Pioneer® Diamante Series 9,000 BTU 20 SEER 115V Mini-Split Aire acondicionado Bomba de calor Juego completo con 16 ft. Equipo
Pioneer® Diamante Series 9,000 BTU 20 SEER 115V Mini-Split Aire acondicionado Bomba de calor Juego completo con 16 ft. Equipo
Stock bajo
-
Estimated delivery if ordered today: Jul 25 - Jul 29
No se pudo cargar la disponibilidad de recogida
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Descripción general
Resumen
- Sistema de bomba de calor mini split sin ductos de la serie Diamante de alta eficiencia
- Capacidad de refrigeración: 9000 BTU/H con eficiencia 20 SEER/12 EER
- Capacidad de calefacción: 9500 BTU/H con una eficiencia de 10,5 HSPF/3,4 COP
- Voltaje: 110/120V, 60Hz, 1Ph
- Sistema de aire acondicionado y calefacción montado en pared alta
- Velocidad variable Inversor de CC Modo de operación
-

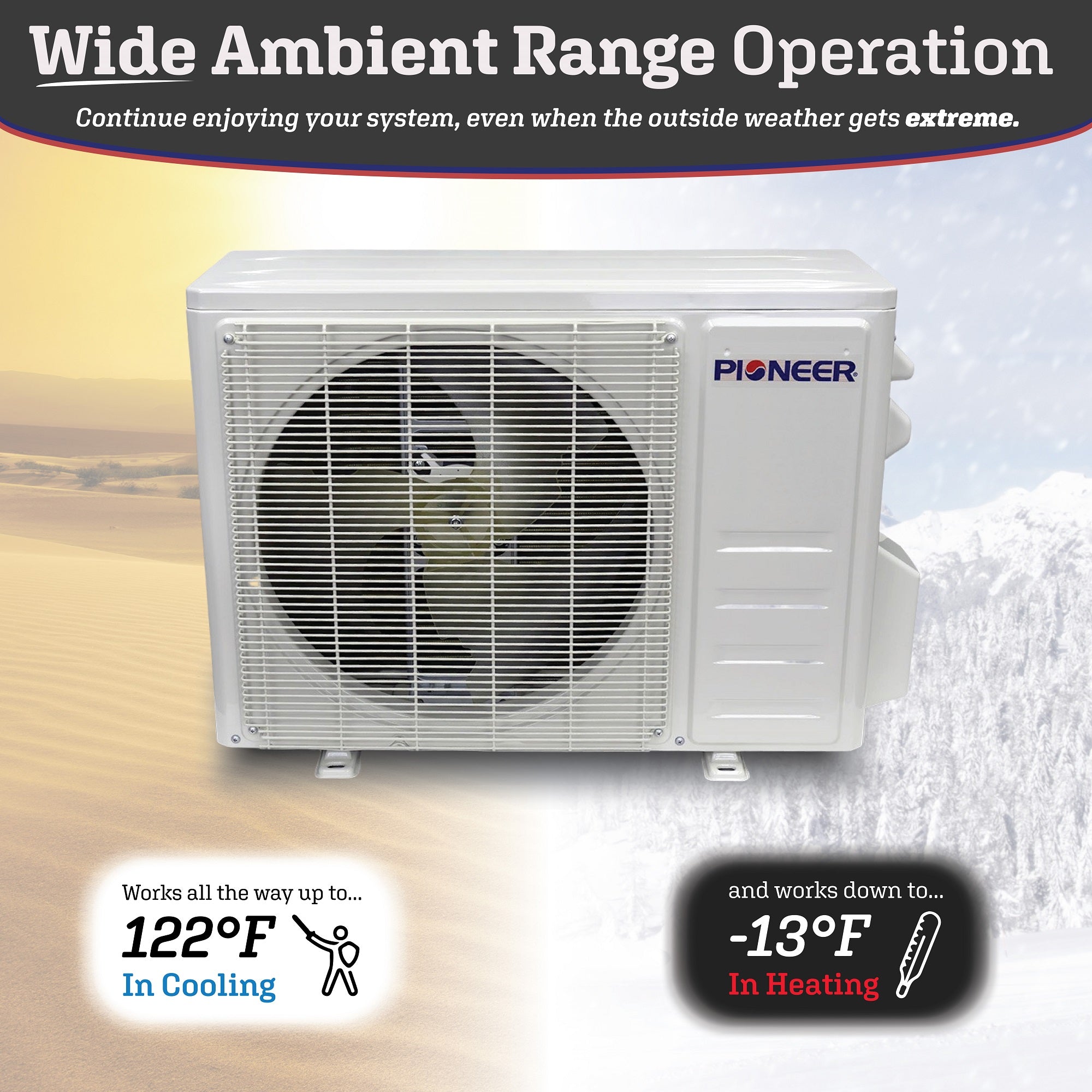

Unidad de temperatura ambiente baja (-13 °F)
- Costos operativos anuales estimados de AHRI:
- Enfriamiento: $59.00
- Calefacción: $191.00

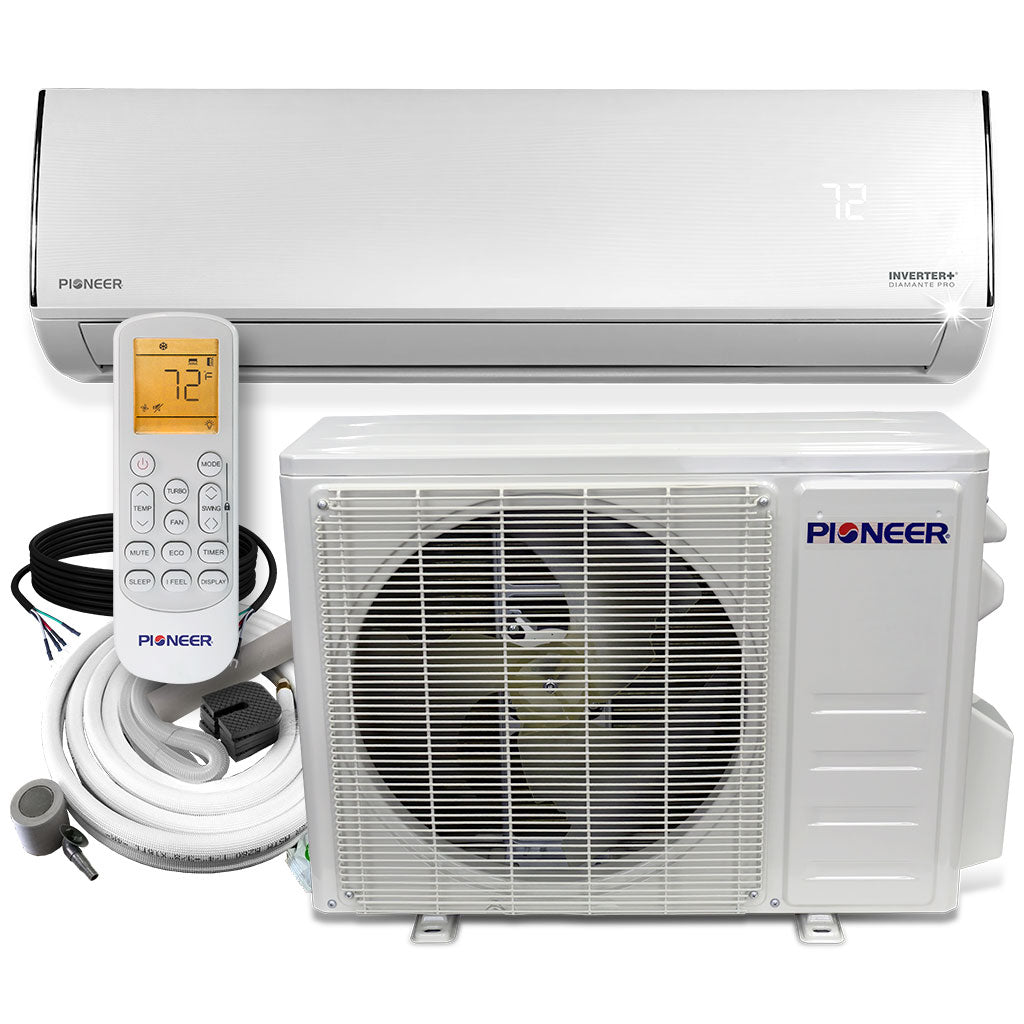

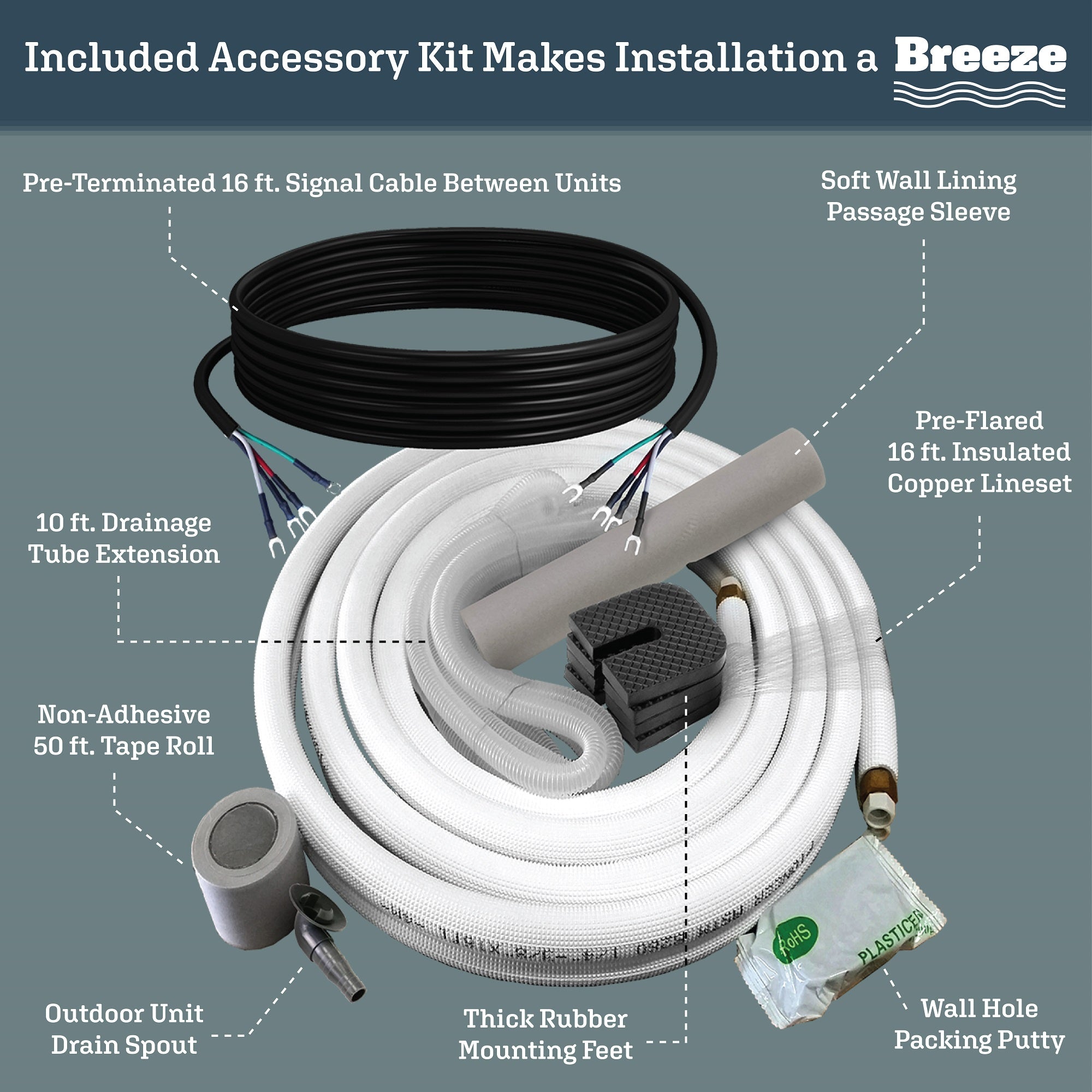

Qué está incluido
- Unidad interior
- Unidad exterior

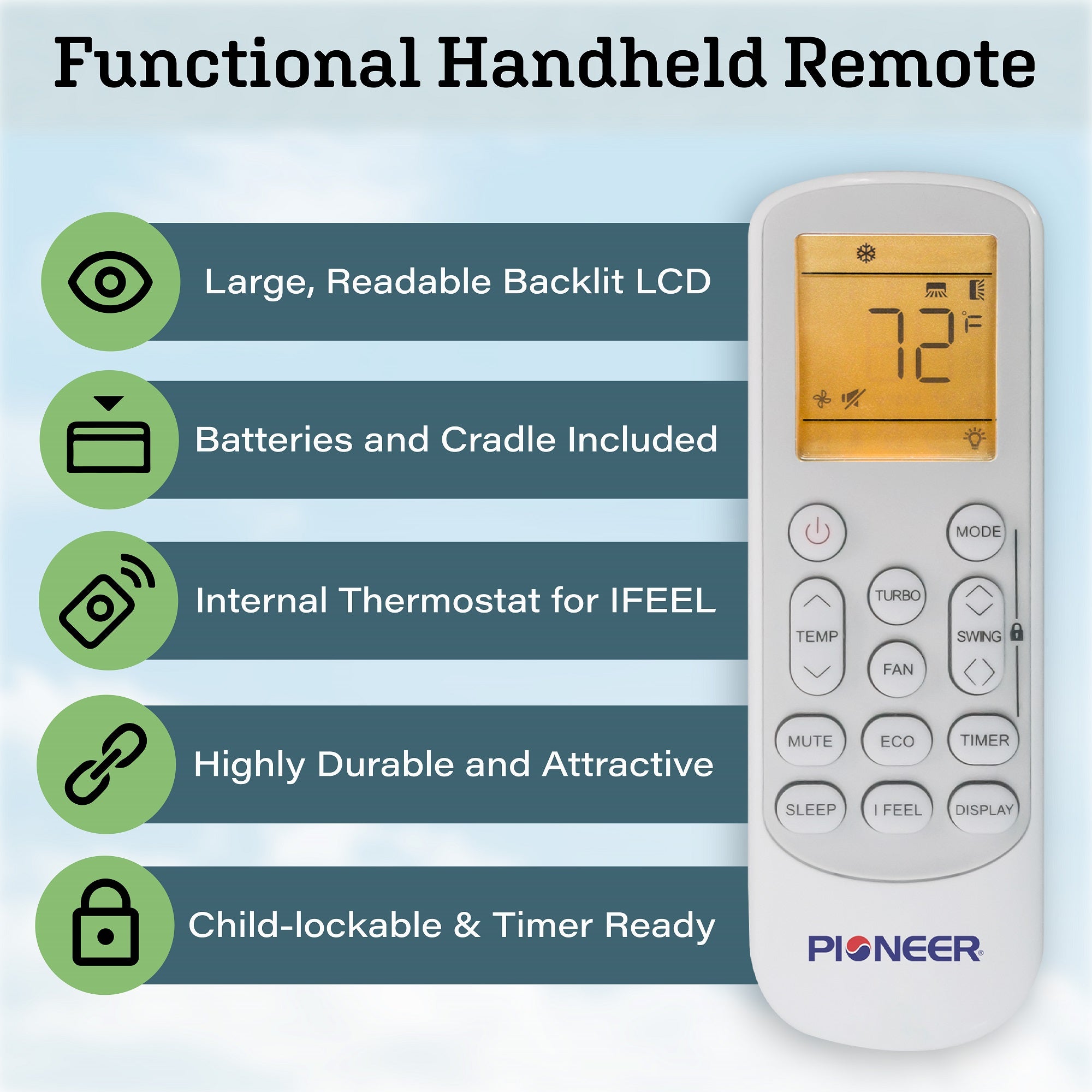

- Mando a distancia inalámbrico (con soporte de pared y pilas)
- 16 pies Líneas de Cobre
- 16 pies Cable eléctrico
- 10 pies Desagüe para interior/exterior
- Manga de paso de pared
- Masilla para Agujero de Pared
- Sellador de protección contra fugas
- cinta de embalaje
- Manual de instalación
- Manual de usuario
nuestra garantia
- 5 años Garantía de piezas
- 5 años de garantía para el compresor
Características
[[CARACTERÍSTICAS]]Información técnica
Datos de rendimiento
- Fuente de alimentación: 115V, 60Hz, 1Ph
- Capacidad nominal de refrigeración: 9000 BTU/h
- Rango de capacidad de enfriamiento: 5,800~10,300 BTU/h
- Enfriamiento SEER: 20.0 BTU/w
- Enfriamiento EER: 12.0 BTU/w
- Capacidad nominal de calefacción: 9500 BTU/h
- Rango de capacidad de calentamiento: 5,400~10,900 BTU/h
- Calefacción HSPF4: 10,5 BTU/w
- COP de calefacción: 3,4 W/W
- Tipo de refrigerante: R410A/28,6 oz.
- Área adecuada: 100 ~ 350 pies cuadrados
Datos de la unidad interior
- Número de pieza: WT009ALFI19HLD
- Flujo de aire (alto/medio/bajo): 353 / 288 / 250 CFM
- Nivel de sonido (alto/medio/bajo): 38/35/32 dB(A)
- Dimensiones netas (WDH): 32 x 8-1/8 x 11-1/2 pulgadas
- Dimensiones de la caja (WDH): 34-7/8 x 11 x 14-1/2 pulgadas
- Peso neto/bruto: 19,8/24,2 libras
Datos de la unidad exterior
-
Número de pieza: YN 009ALFI19RPD
- Disyuntor necesario: 20A (unipolar)
- Nivel de sonido: 50 dB(A)
- Dimensiones netas (WDH): 28-5/8 x 12 x 21-5/8 pulgadas
- Dimensiones de la caja (WDH): 33-1/2 x 14-1/8 x 24 pulgadas
- Peso neto/bruto: 60,6/69,5 libras
Manuales y Documentos
Questions & Answers
Have a Question?
-
What is the minimum line length possible?
The minimum we recommend is 10 ft. The minimum possible is 5 ft but you'll need to remove an ounce of refrigerant.
-
Is this unit self cleaning? They've been known to have mold issues
Yes there is a Self-Clean mode, please see page 19: https://www.pdhvac.com/site/downloads/manuals/WYT-UMIM-2020.pdf
-
how can I add the largest line possible ? It comes with 16 ft and I need 25 ft
The Diamante series comes pre-packed with a 16 ft lineset which cannot be modified during purchase. If you need longer, it would require purchasing either the WYS series, or a longer lineset here.
-
Outdoor unit pre charged, is there any additional charging or is system complete when lines are attached?
The way it works is that the outdoor condensing unit is pre-charged with R410a to support line lengths up to 25 ft long. You will need to remove the air from the lines before releasing the refrigerant from the outdoor unit, using a vacuum pump or the flushing kit that we sell.
-
what happens when the power does off and comes back on?
Yes it has automatic restart and settings memory for power failures.
-
Can the copper lines be cut shorter and re flared?
Yes they can. They use a 45° flare.
-
what wattage generator do I need to operate the 9000 btu 120 volt mini split ?
This unit wouldn't draw more than 1kW at peak.
-
What if you need longer line set? You do not have the option to order longer line set b
The Diamante series comes pre-packed with a 16 ft lineset which cannot be modified during purchase. If you need longer, it would require purchasing either the WYS series, or a longer lineset here.
-
What are the dimensions for inside unit/
INDOOR UNIT DATA Net Dimensions (WDH): 32 x 8-1/8 x 11.5 Inches
-
What size room will this accomodate
We recommend this unit for room sizes up to 350 square feet.
-
What is the maximum power requirements of this(9000btu) 115VAC AC. i.e. what is the current drawn? Is this unit suitable for a dIY installation.
Max current draw would be 8.7A.
-
What is the size of copper tubing
This uses 1/4"-3/8" diameter lines and the included ones are 16 ft long.
-
I am building a solar powered tiny house. I need to know how many watts of electric power does the Pioneer Diamante Series 9,000 BTU use when operating at full capacity?
The maximum it will ever draw is 960 watts. Full info here: https://www.pdhvac.com/site/downloads/brochures/WYT-19-2020.pdf
-
How many amp breaker do you reccomend?
This would take a 20A single breaker with 12 gauge wire.
-
What is the minimum clearance from the ceiling top of the mini split?
6 inches is recommended. 3 inches would be the absolute minimum.
