Diamante Pro™ High-Wall Series
Agotado

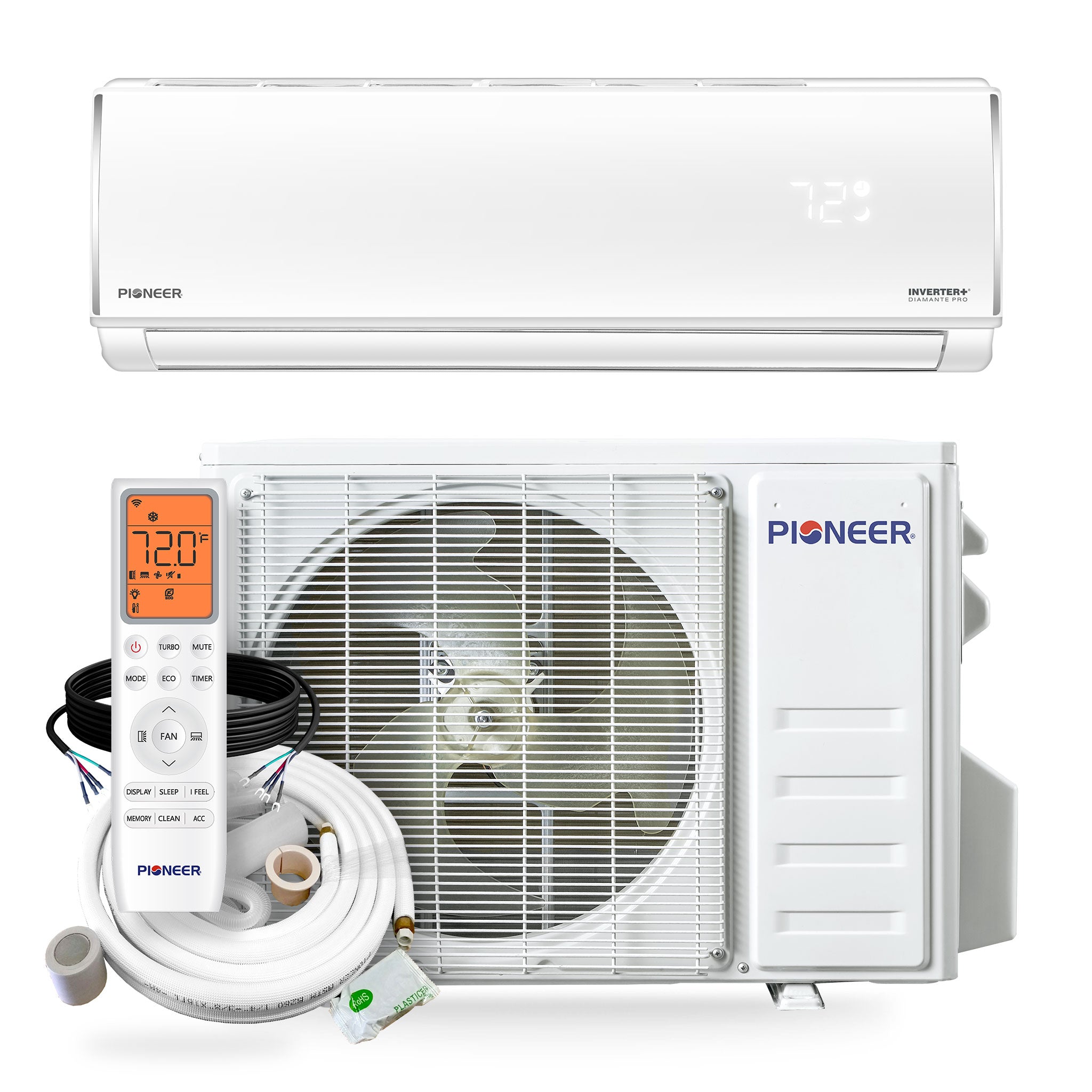

Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Pro™ 24,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Precio habitual
$1,438.00
Precio de venta
$1,438.00
Precio habitual
$2,049.00
Agotado
-
Estimated delivery if ordered today: Jul 20 - Jul 24
No se pudo cargar la disponibilidad de recogida
Payment & Security
Métodos de pago
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Summary
- High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
- Heating capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 5,100 ~ 25,200 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 24,600 BTU/h
- Heating Capacity Range: 5,100 ~ 25,900 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 2.1 W/W
- Refrigerant Type: R454b
- Suitable Area: 750~1000 Sq.F
- Piping Diameter: 1/4 x 1/2"
- AHRI Reference: 217048745
-
Indoor Unit
- Part Number: WT024GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
- Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 49-5/8 x 13 x 17 Inches
- Net / Gross Weight: 36.4 / 43 lbs.
-
Outdoor Unit
- Part Number: YN024GLSI20RPF
- Breaker Needed: 20A (double-pole)
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 36-1/2 x 14-7/8 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17-1/8 x 30-1/2 Inches
- Net / Gross Weight: 88.2 / 103.6 lbs.
Dimension Chart
Diamante Pro™ High-Wall Series
