Connect your indoor and outdoor units securely with a copper piping kit lineset for mini split installation. Copper tube kits offer long-term durability that allows you to install them and forget about them as you enjoy the benefits of your new heating and cooling system.
Our kits come equipped with all the essentials for mini split piping, from nonadhesive wrapping tape to copper pre-flared refrigerant pipes that reduce the risks of rusting and future maintenance requirements. Shop Pioneer’s copper piping kit lineset for mini split installations and pair your heat pump with quality components that maximizes its performance.
Detailed Diameter Reference Guide Available Here
Diameter Selection Guide (FOR WYS-20 and WYS-22 SERIES)
|9,000 BTU Models (except for 22 SEER 115V)||1/4"-3/8"|
|12,000-18,000 BTU Models (as well as 9k 22 SEER 115V)||1/4"-1/2"|
|24,000 BTU and Above Models||3/8"-5/8"|
Diameter Selection Guide (FOR DIAMANTE/WYT-19 SERIES)
|9,000 BTU - 18,000 BTU||1/4"-3/8"|
Diameter Selection Guide (FOR DIAMANTE ULTRA/WYT-22 SERIES)
|9,000 BTU - 12,000 BTU||1/4"-3/8"|
Diameter Selection Guide (FOR HYPERFORMANCE WYF-25 SERIES)
|9,000 BTU - 12,000 BTU||1/4"-3/8"|
Wrench/Tool Sizes Needed
The corresponding Wrench/Tool sizes needed to turn the flare nuts of the line-sets are as follows:
Pioneer’s copper tubing kits include:
- Copper pipes
- 3 layer insulation

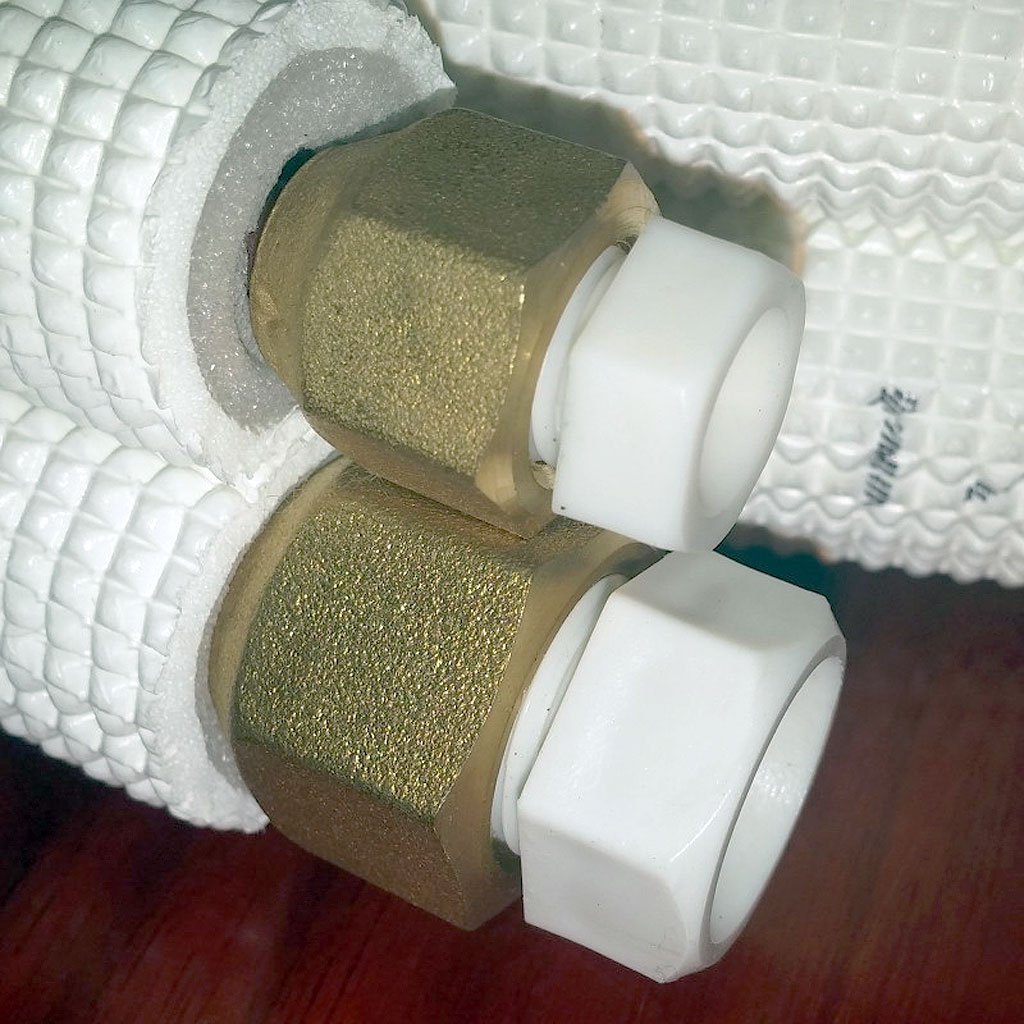

- Brass flare nuts
- Includes the following:

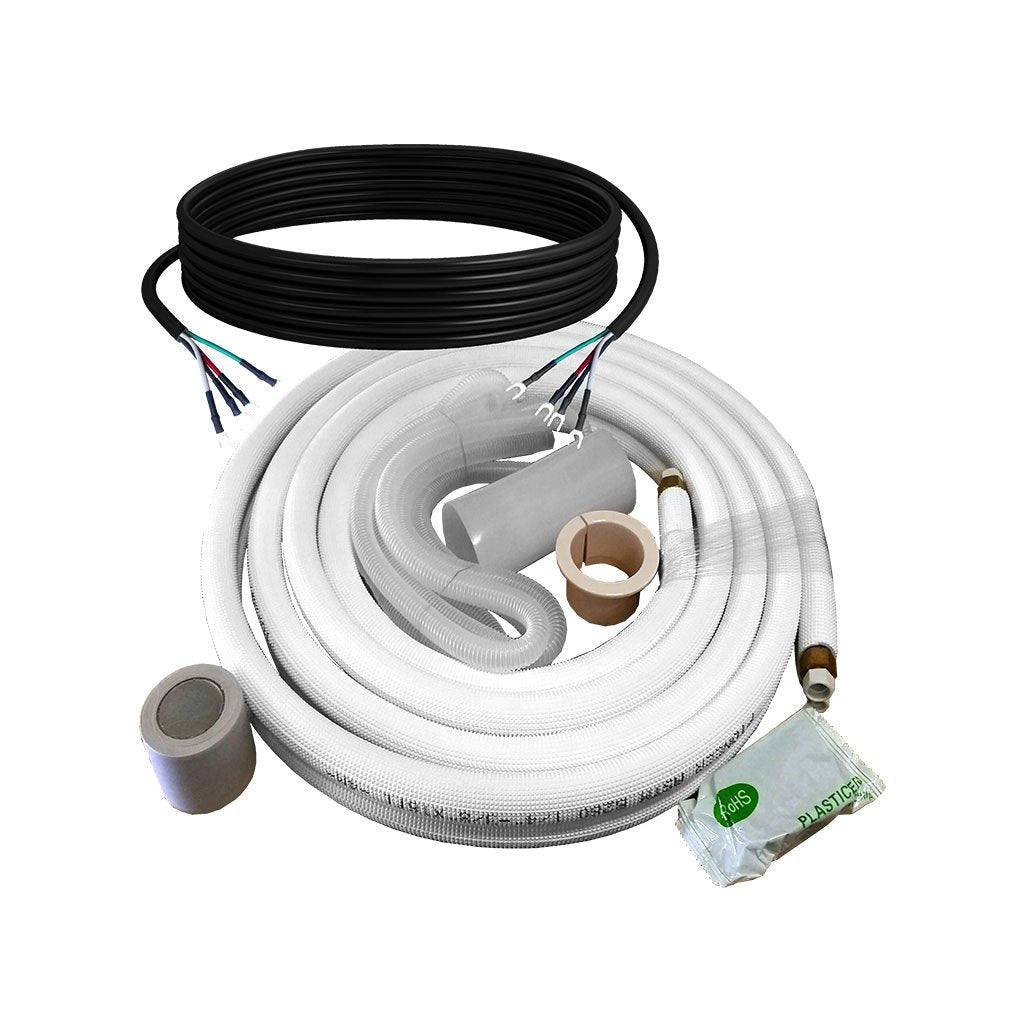

- Insulated pre-flared copper refrigerant pipes (length and diameter as chosen)
- 4 lead communication wire between indoor and outdoor unit (same length as chosen)
- 10 ft. condensate drain hose
- Wall passage sleeve with cap and putty
- Non-adhesive wrapping tape (2" wide, 50' length)
- Highest Quality Full Copper Piping Kit Set.
- Compliance with ASTM-B280 Standard (USA-Canada).
- Dehydrated Soft Drawn Copper Tubes.
- Three Layer Water Proof P.E. Insulation.

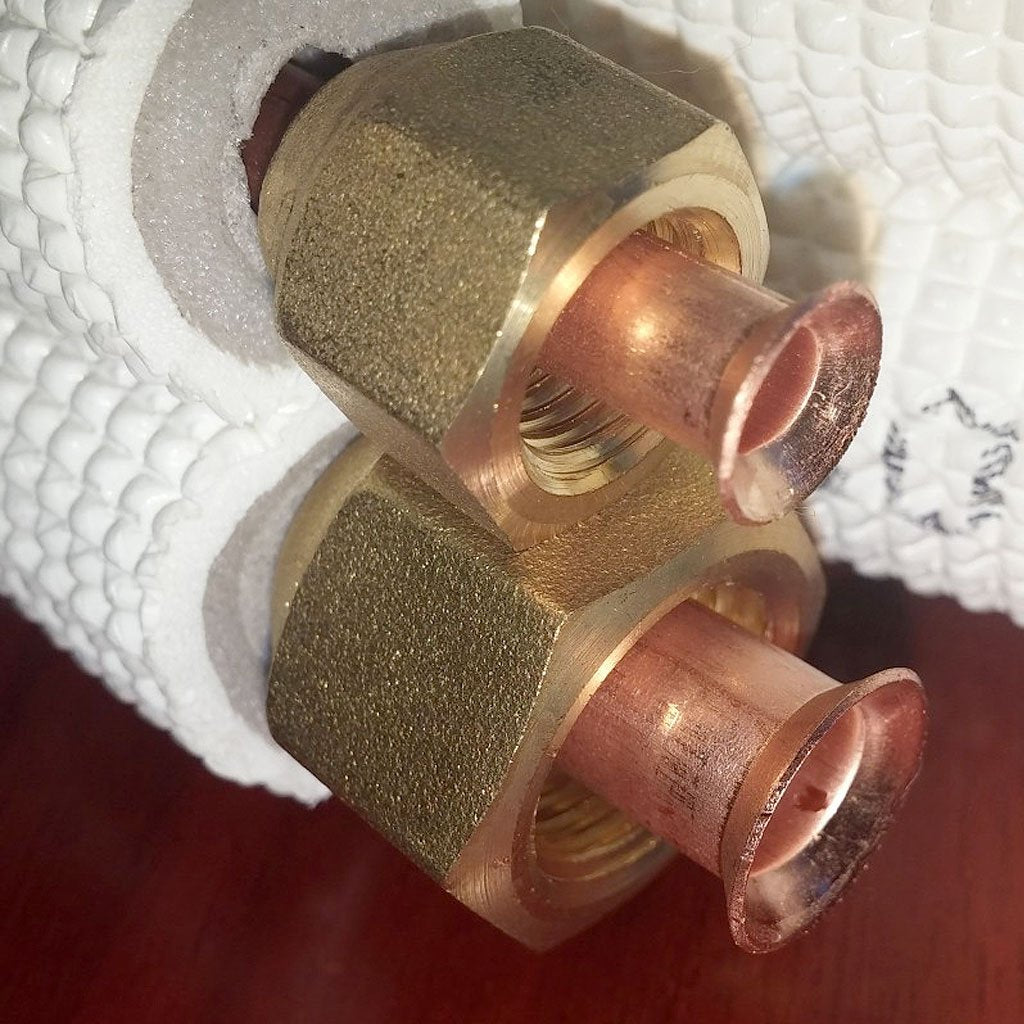

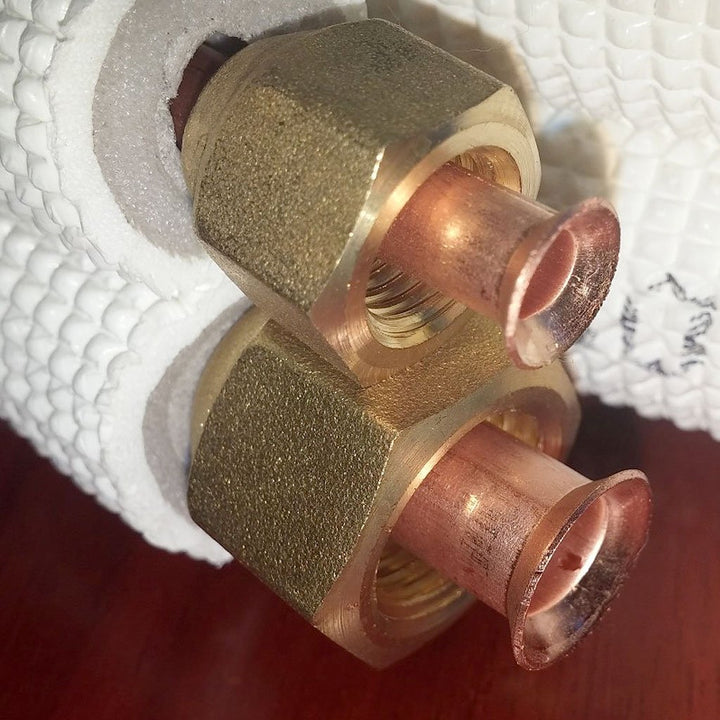

- Brass Flare Nuts, on ready formed flare ends.
- Matching Length 16 Gauge 4 Lead Signal Cable set.
- Plastic dust caps, to keep clean during installation.
- Wall Sleeve/Liner with Cap.
- Wall Filler Putty.
- Non Adhesive Wrapping Tape.
Free Shipping For All Orders Over $49
WE ARE CURRENTLY IN THE BUSY SEASON, PLEASE ALLOW US 1-2 MORE BUSINESS DAYS TO PROCESS AND SEND OUT YOUR ORDER. THANKS FOR YOUR PATIENCE AND UNDERSTANDING.
For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.
Click here for information on Returns and Refunds
We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.
Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.
Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.
We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.
We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.
Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.
We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.
QUESTIONS & ANSWERSAsk a Question
If I have a triple zone mini split and already have two 9000 btu heads at 25ft each. I realize the outside unit comes precharged for only 75ft total of line. But can I add the 3rd head at 50ft from outside and add more coolant from a certified A/C tech, will that work?
Yes, that would be completely fine to do.
what gauge is the control wire?
Does this line set fit 9000BTU 3/4ton 19.5 SEER? Model WYS009AMFI19RL-16
For 9,000 BTU 19.5 SEER you would need to select the 1/4"-3/8" diameter option.
What are the sizes of the flare nuts on the ends of these copper line sets? That way I know what wrenches I need to purchase for my torque wrench
Piping Diameter vs. Flare Nut Size:
1/4" = 5/8"
3/8" = 13/16"
1/2" = 15/16"
5/8" = 1-1/16"
