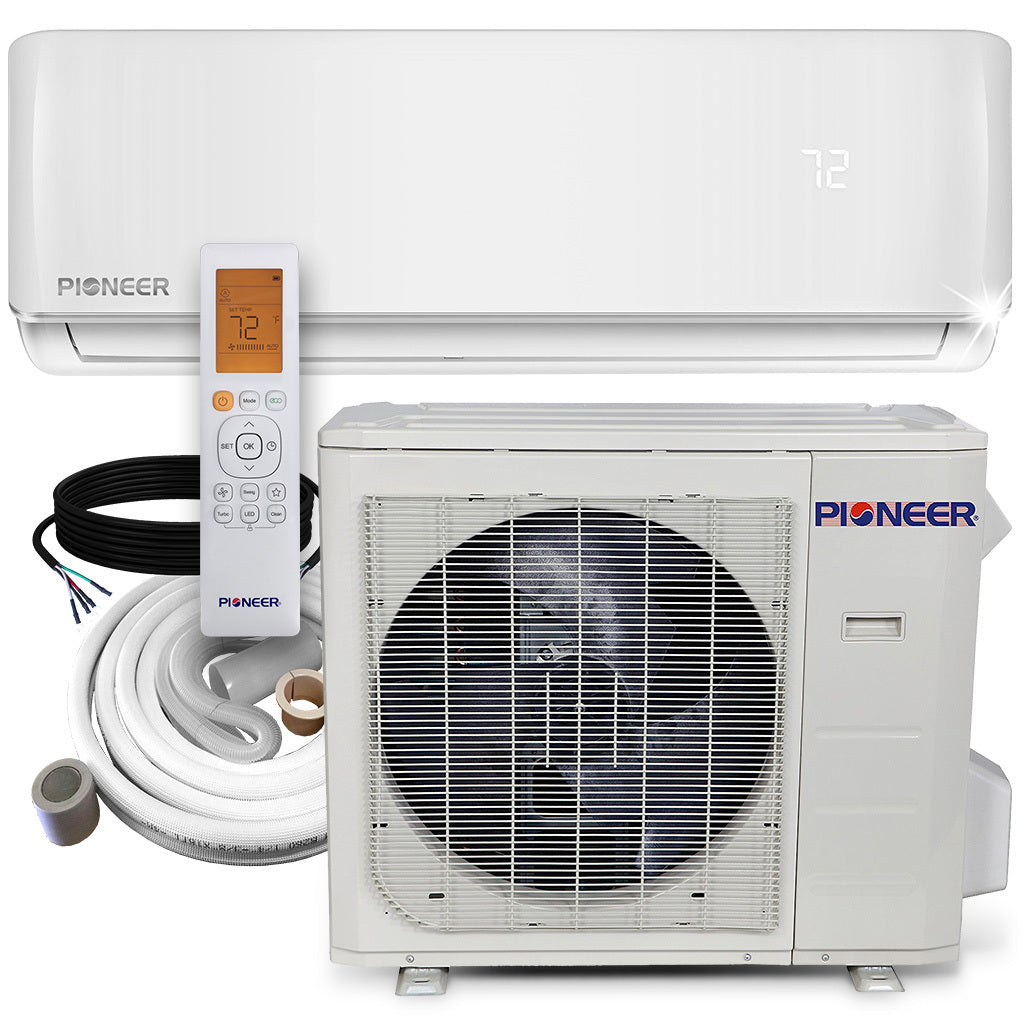

Pioneer® 30,000 BTU 18.6 SEER 230V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo

Pioneer® 30,000 BTU 18.6 SEER 230V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo

SKU: WYS030GMFI20RL-10

Precio habitual $1,908.00
Precio de venta $1,908.00 Precio habitual $2,439.00

Agotado

  • Estimated delivery if ordered today: Jul 25 - Jul 29
Opciones del kit de instalación:: 10 pies
Payment & Security
Métodos de pago
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Why buy from our store?

  • Free Shipping for Orders Above $299
  • Dedicated Product Support Included
  • Wholesale Price Directly From Factory

Descripción general

Resumen

  • Inverter de ultra alta eficiencia + sistema de bomba de calor mini split sin conductos
  • Capacidad de refrigeración: 30.000 BTU/H con eficiencia de 18,6 SEER
  • Capacidad de calefacción: 30.000 BTU/H con eficiencia de 9,5 HSPF
  • Voltaje: 208~230V, 60Hz, 1Ph
  • Sistema de aire acondicionado y calefacción montado en pared alta
  • Modo de funcionamiento del inversor de CC de velocidad variable
  • Juego de líneas de cobre de longitud personalizable con conexiones abocinadas
  • Costos operativos anuales estimados de AHRI:
    • Enfriamiento: $213.00
    • Calefacción: $668.00
[[SERIE]]

Qué está incluido

  • Unidad interior
  • Unidad exterior

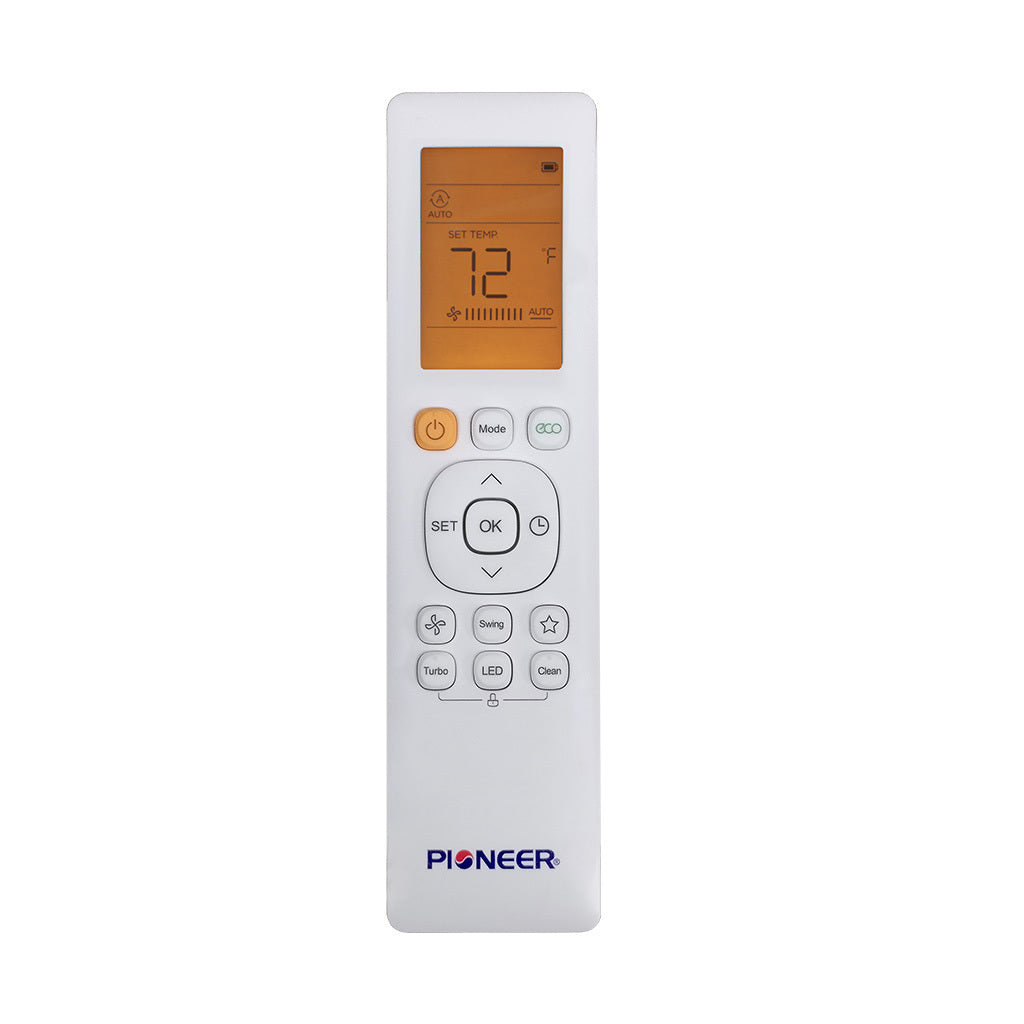

  • Control remoto inalámbrico

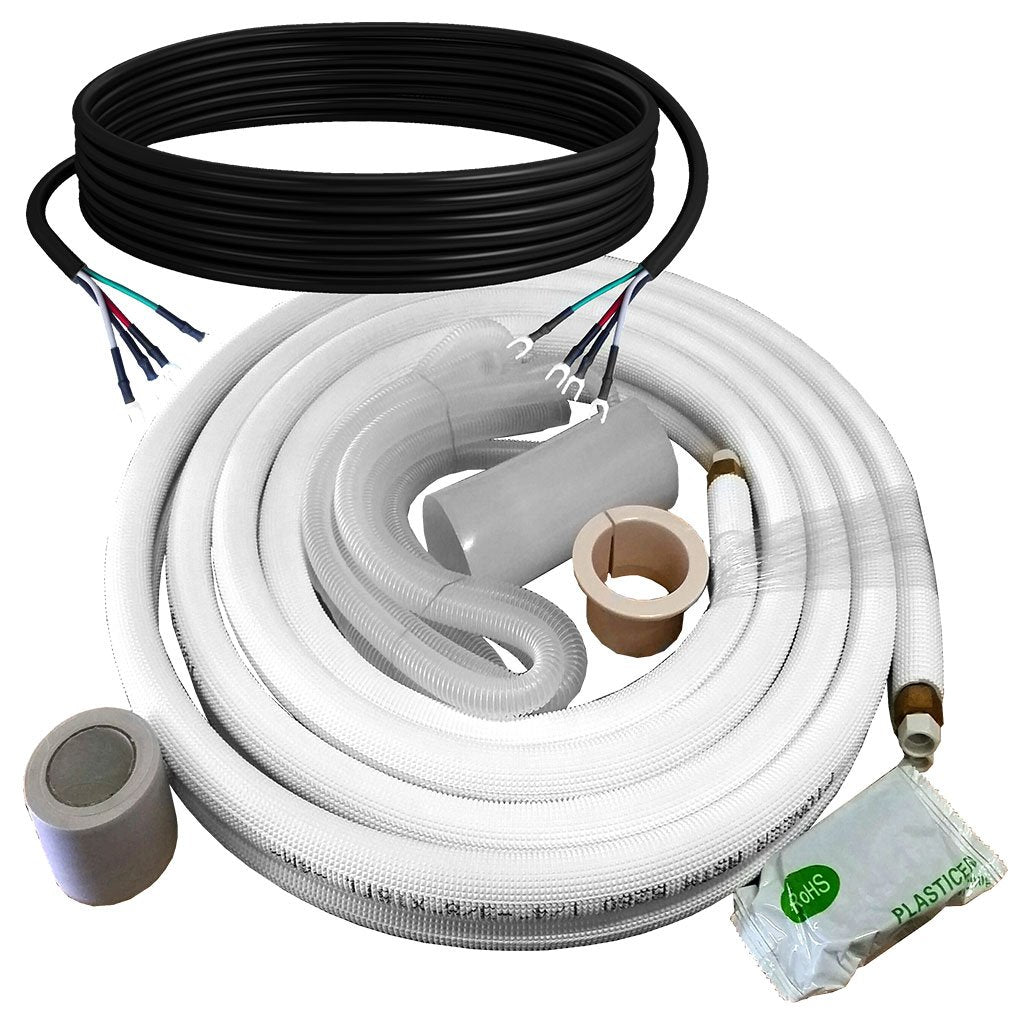

  • Varias opciones de kit de instalación disponibles
  • Sellador de protección contra fugas de conexión acampanada
  • Manual de instalación
  • Manual de usuario
  • Garantía del fabricante

nuestra garantia

  • 5 años de garantía limitada de piezas
  • 5 años de garantía limitada del compresor

Características

[[CARACTERÍSTICAS]]

Información técnica

Certificaciones

Certificaciones Pioneer Mini Split

Datos de rendimiento

  • Fuente de alimentación: 208~230V, 60Hz, 1Ph
  • Capacidad nominal de refrigeración: 30 000 BTU/h
  • Rango de capacidad de enfriamiento: 7,200~31,600 BTU/h
  • Enfriamiento SEER: 18.6 BTU/w
  • Capacidad nominal de calefacción: 30 000 BTU/h
  • Rango de capacidad de calentamiento: 10,600~32,500 BTU/h
  • Calefacción HSPF: 9.5 BTU/w
  • Tipo de refrigerante: R410A/97
  • Área adecuada: 900~1100 pies cuadrados

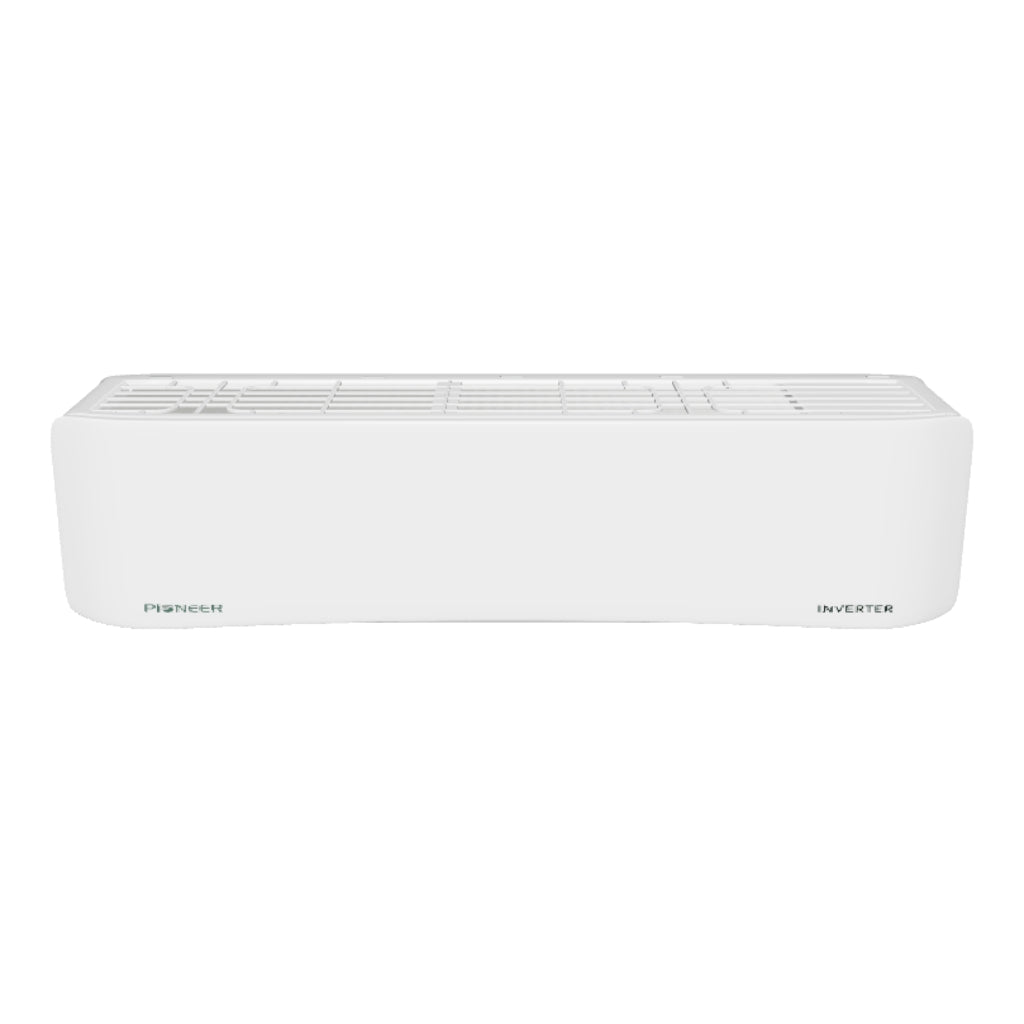

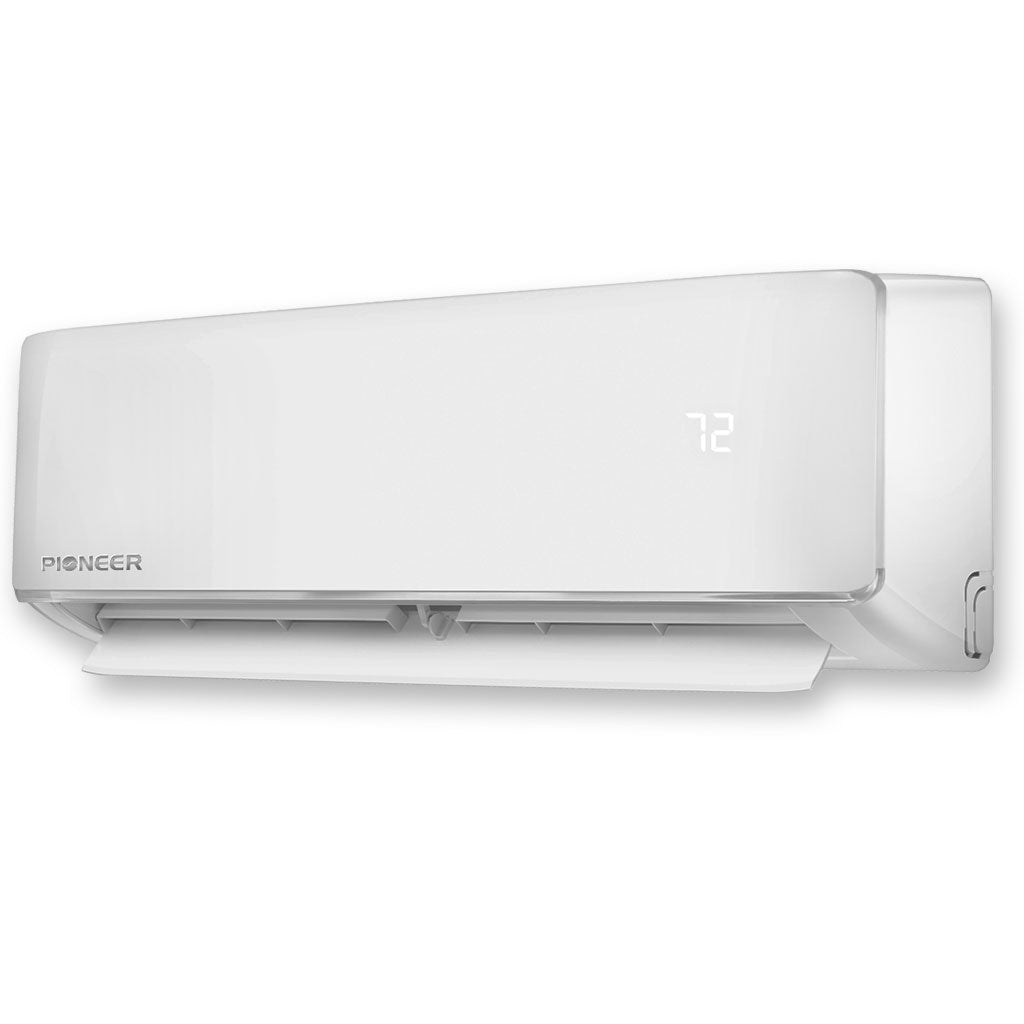

Datos de la unidad interior

  • Número de modelo: WS030GMFI20HLD
  • Flujo de aire (alto/medio/bajo): 974 / 618 / 471 CFM
  • Nivel de sonido (alto/bajo): 51,5 / 44 dB(A)
  • Dimensiones netas (WDH): 49,5 x 11,2 x 14,3 pulgadas
  • Dimensiones de la caja (WDH): 52,7 x 17,7 x 15,0 pulgadas
  • Peso neto/bruto: 37,5/50,5 libras

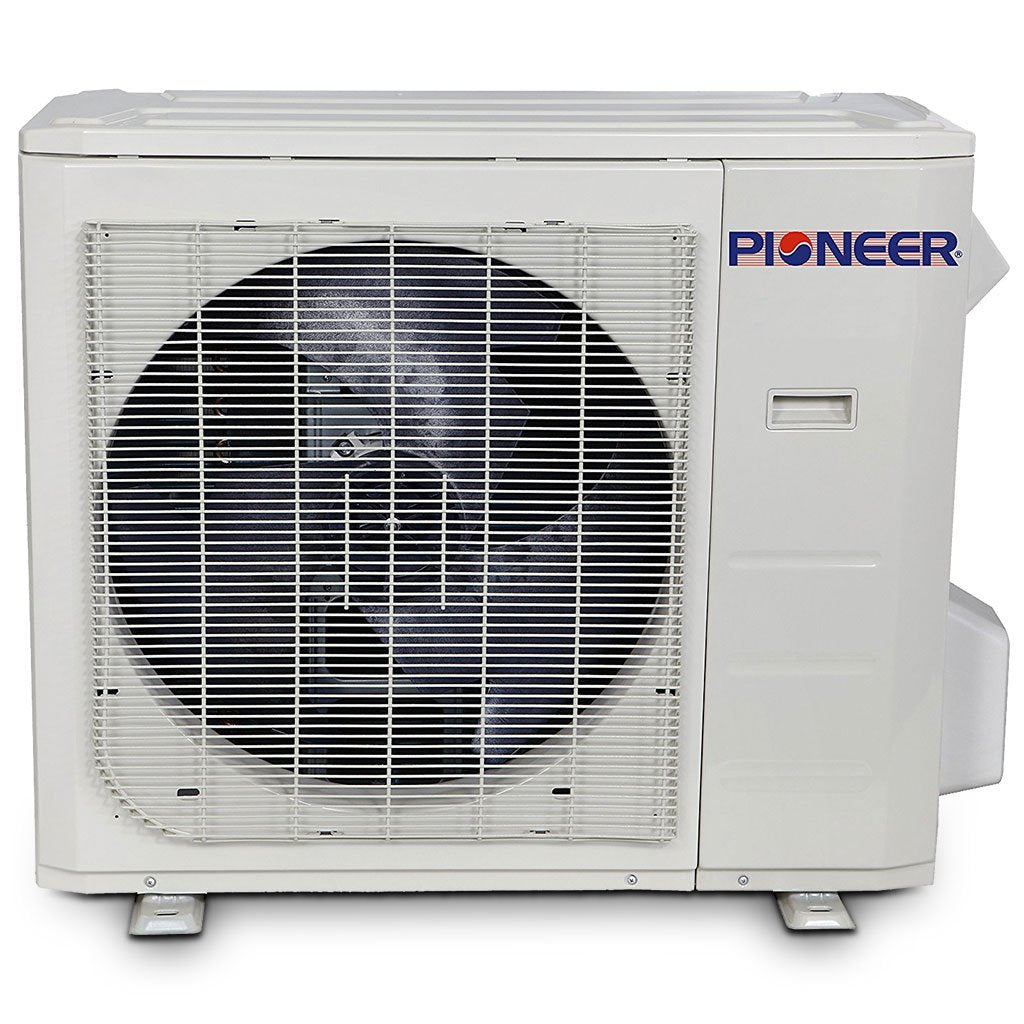

Datos de la unidad exterior

  • Número de modelo: YN030GMFI20RPD
  • Nivel de sonido: 60,0 dB(A)
  • Disyuntor necesario: 30A (doble polo)
  • Dimensiones netas (WDH): 37,3 x 16,5 x 31,8 pulgadas
  • Dimensiones de la caja (WDH): 42,8 x 19,6 x 34,0 pulgadas
  • Peso neto/bruto: 141,7/151,9 libras

Manuales y Descargas

Pioneer® Product Series

Questions & Answers

Have a Question?

Ask a Question
  • How many watts does this unit use

    On average: 2.85kW in cooling and 3.11 kW in heating. More info here: https://www.pdhvac.com/site/downloads/WYS-19-2019.pdf

  • Will this unit work with 20 Amp breakers and 12 Gage wires?

    Yes it will. The 20A must be double-pole type.

  • How many square will this cool and heat?

    For typical instances we recommend this to be used in spaces up to 1,100 square feet.

  • I live in Utah where it gets cold and I want to be able to both heat and cool my shop. When the temp drop below 30 degrees will this unit still heat?

    This system will continue to heat down to 5°F temperatures.

  • If I get a longer tubing kit will their be enough coolant in the unit to do a dyi

    You can get it with up to 25 ft before needing to add additional refrigerant to accomodate the longer lineset length.

  • How many inside units can be hooked to this, I am looking for just one at the moment but may install another inside unit in the future.

    This is a 1-to-1 single-zone system. For multiple air handlers on a single outside condenser, you would need to explore multi-zone options that fit into our matching table.
