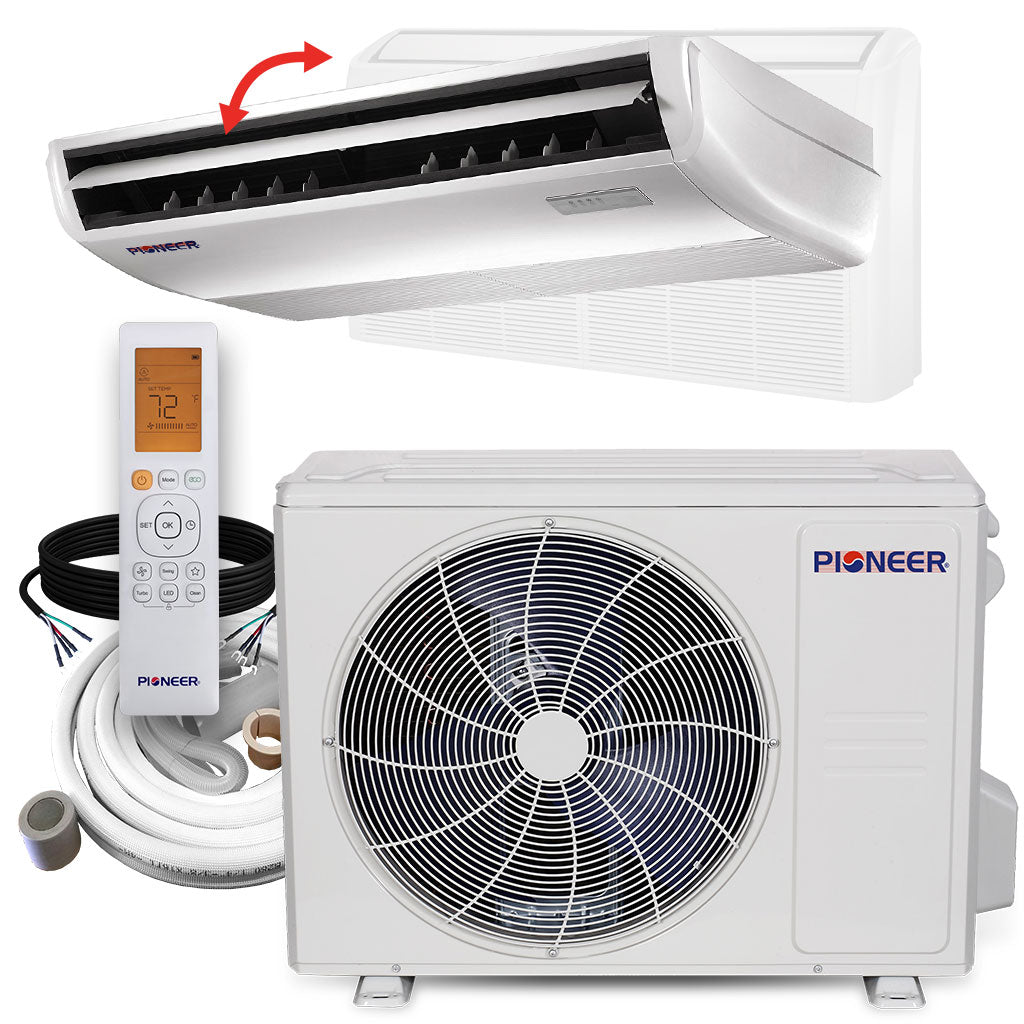

Pioneer® 18,000 BTU 20 SEER Sistema de bomba de calor de aire acondicionado mini-split para piso/techo Juego completo

Pioneer® 18,000 BTU 20 SEER Sistema de bomba de calor de aire acondicionado mini-split para piso/techo Juego completo

SKU: UYB018GMFILCAD-10

Precio habitual $1,713.00
Precio de venta $1,713.00 Precio habitual $2,170.00

Agotado

  • Estimated delivery if ordered today: Jul 25 - Jul 29

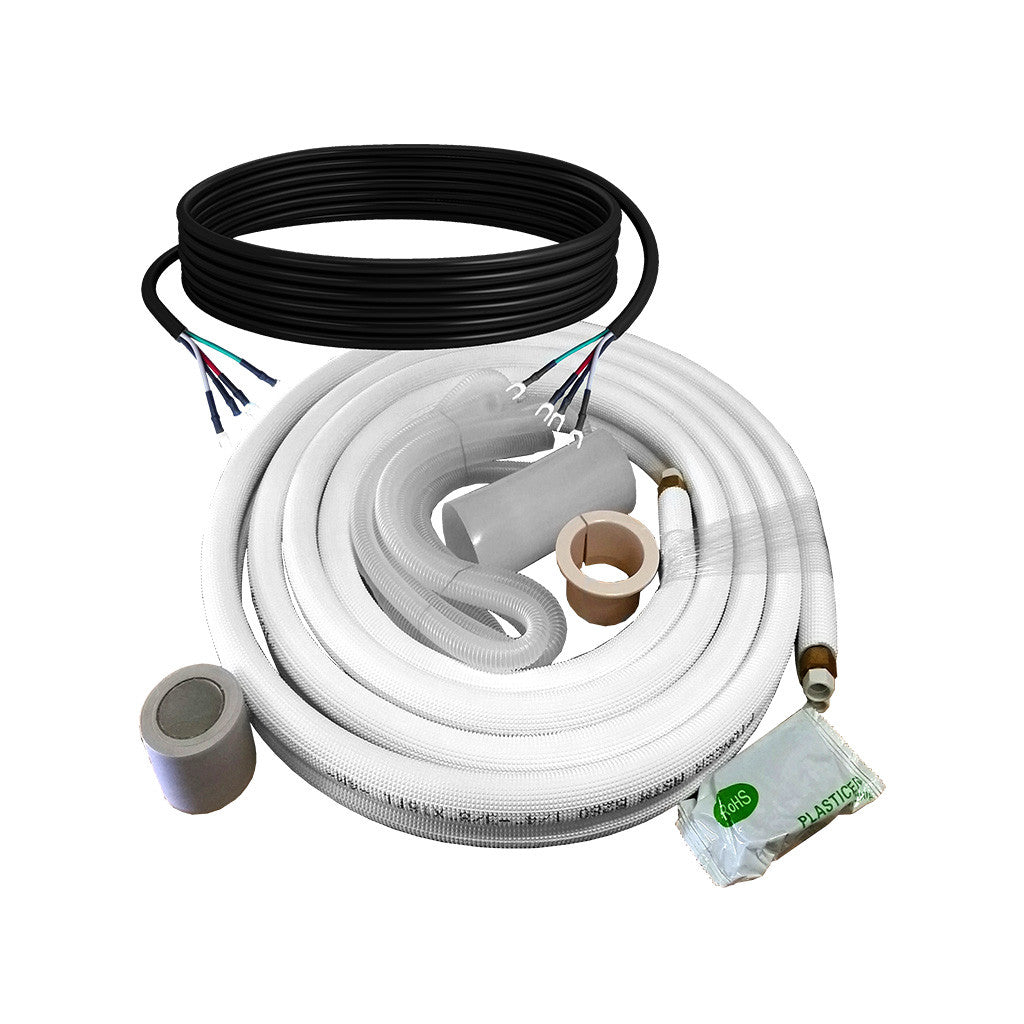

Opciones del kit de instalación: 10 pies
Payment & Security
Métodos de pago
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Why buy from our store?

  • Free Shipping for Orders Above $299
  • Dedicated Product Support Included
  • Wholesale Price Directly From Factory

Descripción general

Resumen

  • Ultra High Efficiency Inverter++ sistema de bomba de calor dividida de suelo/techo
  • Capacidad de enfriamiento: 18,000 BTU/H con eficiencia de 20.0 SEER
  • Capacidad de calefacción: 18.000 BTU/H con eficiencia de 10,5 HSPF
  • Voltaje: 208~230 V, 60 Hertz, monofásico
  • Sistema de aire acondicionado y calefacción de montaje flexible para piso/techo
  • Modo de funcionamiento del inversor de CC de velocidad variable
  • Juego de líneas de cobre de longitud personalizable con conexiones abocinadas
  • Estrella de energía Certificado
  • Costos operativos anuales estimados de AHRI:
    • Enfriamiento: $113.00
    • Calefacción: $346.00
[[SERIE]]

Qué está incluido

  • Unidad interior
  • Unidad exterior

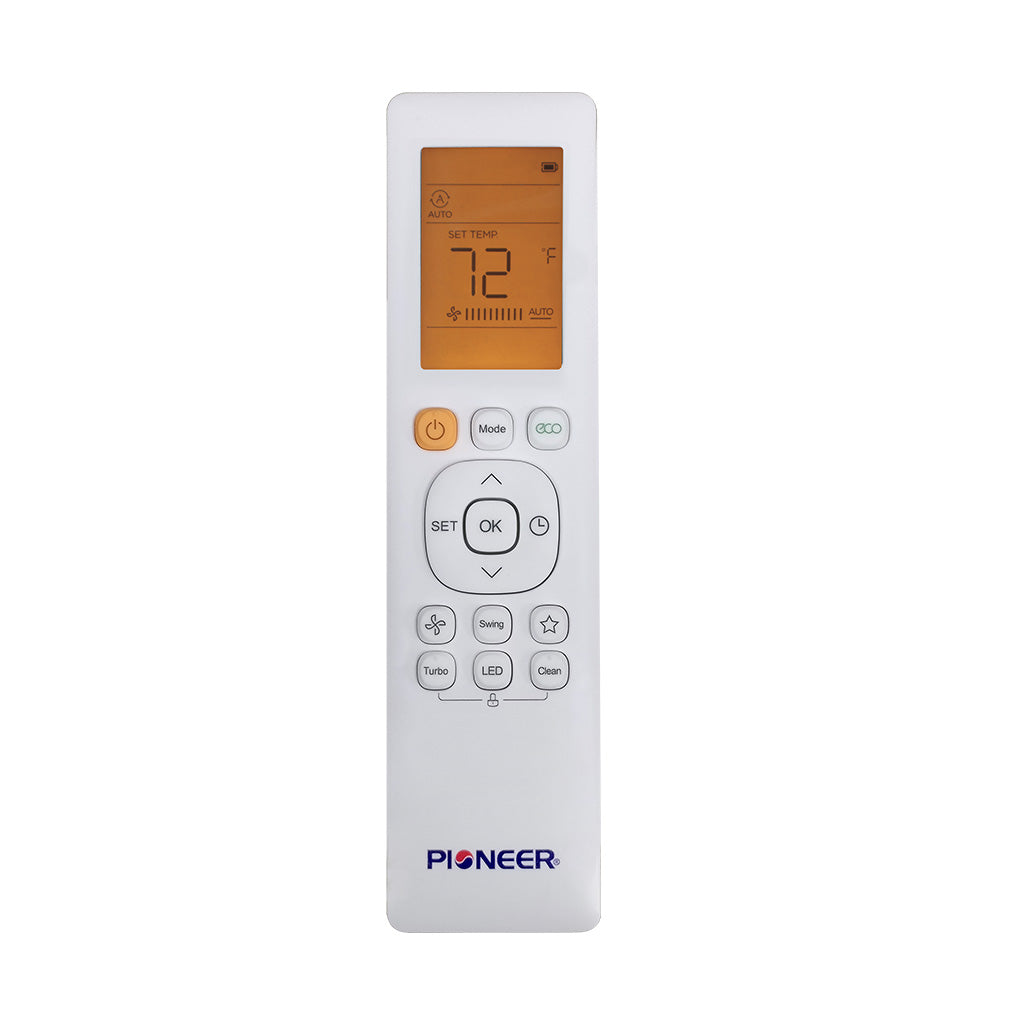

  • Control remoto inalámbrico
  • Varias opciones de kit de instalación disponibles
  • Sellador de protección contra fugas de conexión acampanada
  • Manual de instalación
  • Manual de usuario
  • Garantía del fabricante

nuestra garantia

  • 5 años de garantía limitada de piezas
  • 5 años de garantía limitada del compresor

Características

[[CARACTERÍSTICAS]]

Información técnica

Certificaciones

Certificaciones Pioneer Mini Split

Datos de rendimiento

  • Fuente de alimentación: 208~230V, 60Hz, 1Ph
  • Capacidad nominal de refrigeración: 18 000 BTU/h
  • Rango de capacidad de enfriamiento: 7,500~24,100 BTU/h
  • Enfriamiento SEER: 20.0 BTU/w
  • Capacidad nominal de calefacción: 18 000 BTU/h
  • Rango de capacidad de calentamiento: 7,500 ~ 24,1 00 BTU/h
  • Calefacción HSPF: 10,5 BTU/w
  • Tipo de refrigerante: R410a
  • Área adecuada: 450~650 pies cuadrados

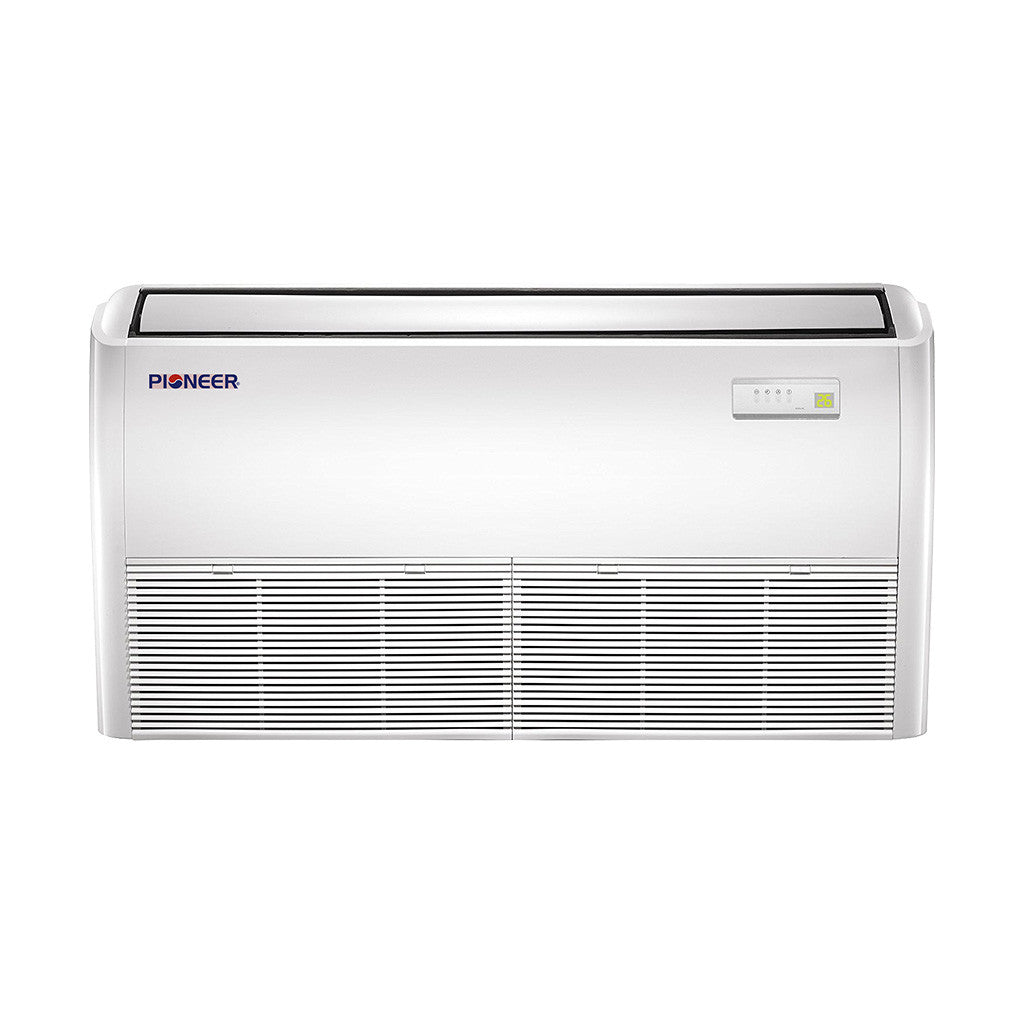

Datos de la unidad interior

  • Modelo: UB018GMFILCFHD
  • Flujo de aire (alto/medio/bajo): 578 / 520 / 465 CFM
  • Nivel de sonido (alto/medio/bajo): 47,0/44,0/39,0 dB(A)
  • Dimensiones netas (WDH): 42,0 x 26,5 x 9,3 pulgadas
  • Dimensiones de la caja (WDH): 45,0 x 29,8 x 12,4 pulgadas
  • Peso Neto / Bruto: 55 / 66 Lbs

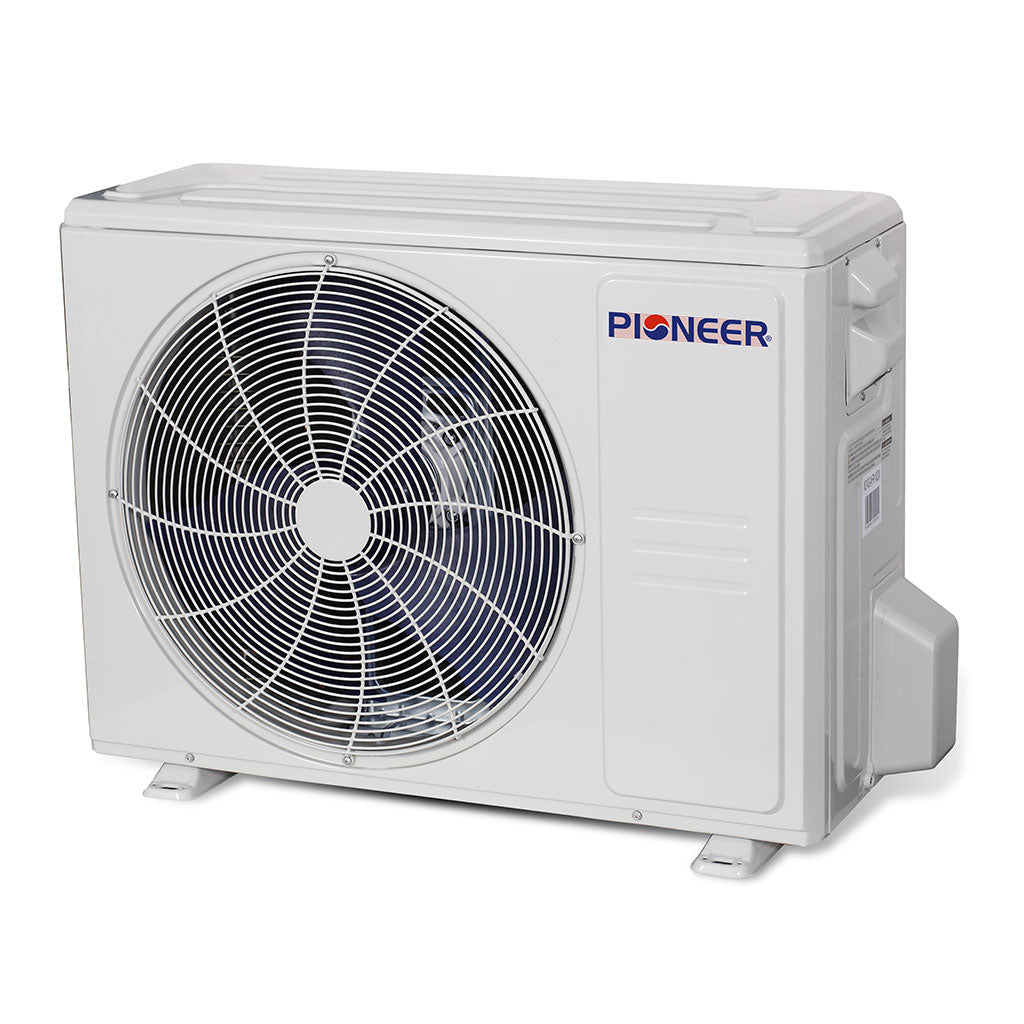

Datos de la unidad exterior

  • Modelo: YN018GMFI22RPD
  • Nivel de sonido: 60,0 dB(A)
  • Dimensiones netas (WDH): 33,3 x 14,4 x 27,6 pulgadas
  • Dimensiones de la caja (WDH): 38,0 x 15,5 x 29,8 pulgadas
  • Peso neto/bruto: 95/103 libras

Manuales y Descargas

Pioneer® Product Series

Estrella de energía

Questions & Answers

Have a Question?

Ask a Question
  • What are the dimensions of the inside unit?

    INDOOR UNIT DATA

    • Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches

  • If I buy your refrigerant line longer than 25 feet when I buy the outdoor unit, is the unit pre-charged with refrigerant for that length ? If not, how do I get sufficient charge into the system?

    We cannot modify the pre-charged amount. You would need to top off 0.16 ounces of R410a per additional ft beyond 25 ft. We do sell top-off bottles here. You'd also need a pair of pressure gauges to add it in.

  • What is the min and max amperage that this pulls? I'm wondering so that I can purchase the correct gage wire.

    This unit takes a 20A double pole breaker and 12 AWG wire. 2 hots + ground wire.

  • What size breaker (amperage) does this require on the main panel? Also, what size AC disconnect does this require outside near the unit?

    This would take a 20A double pole breaker. You can use a 30A disconnect with this.

  • does this unit come with both a ceiling mount and a floor mount and a outside unit

    No, it is an indoor unit that is capable of mounting to the floor OR ceiling, it is a single-zone indoor system.
