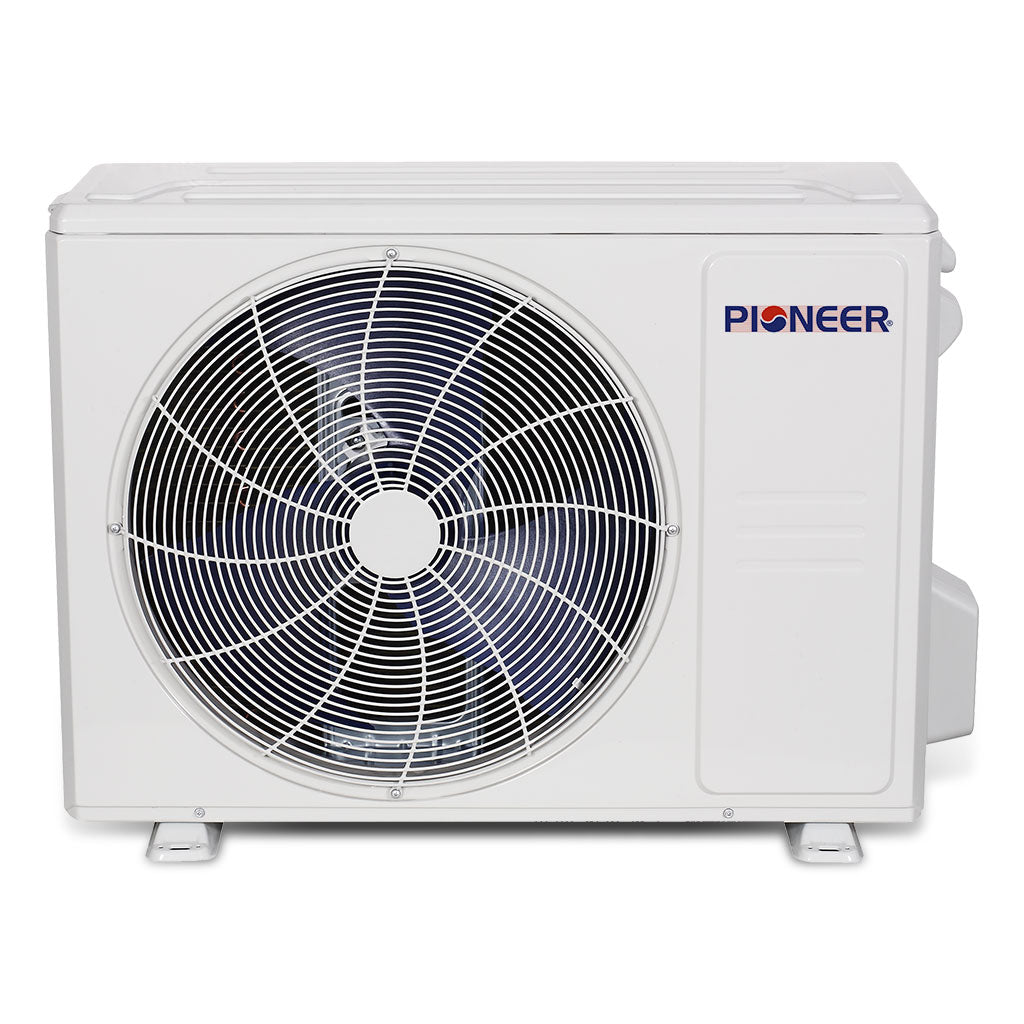

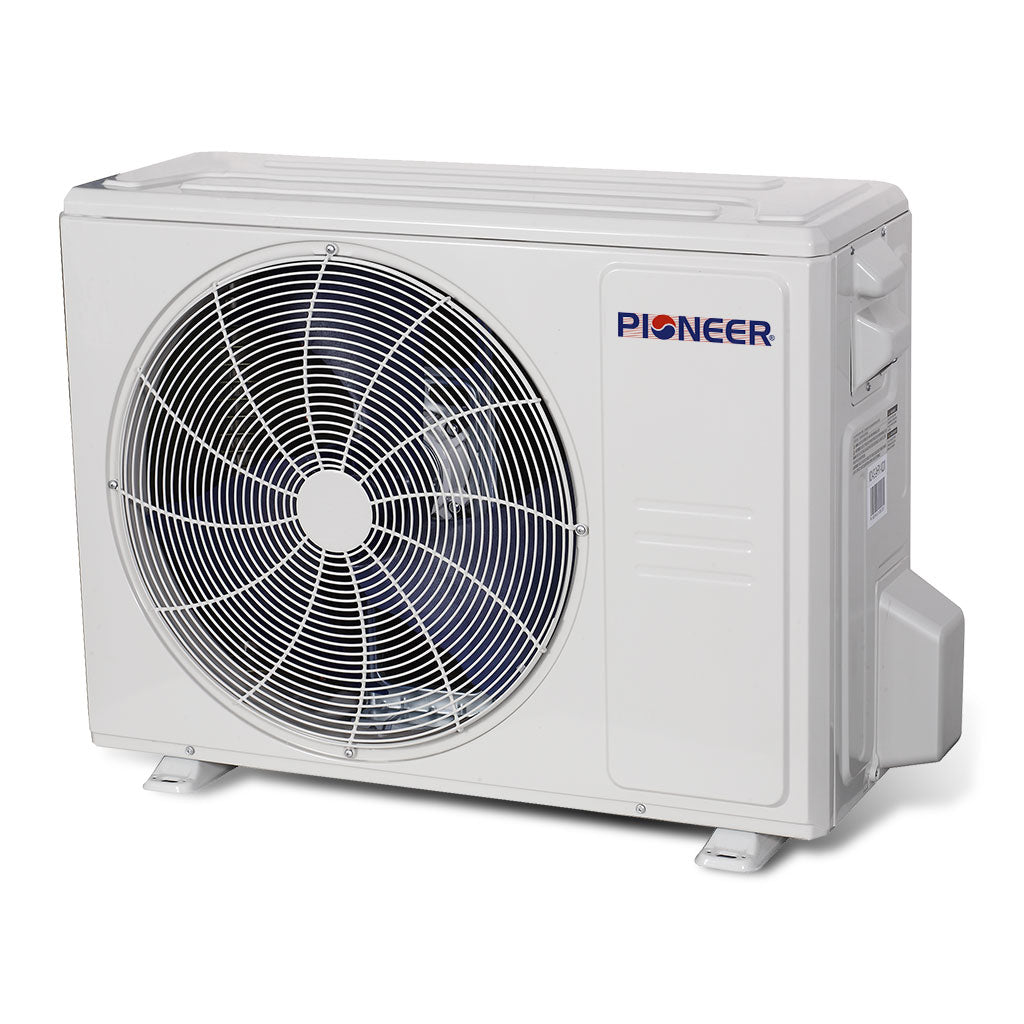

Pioneer® Dual (2) Zone Quantum Series Outdoor Section 21 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V
SKU: YN020GMFI22M2E
Overview
Summary
- OUTDOOR SECTION ONLY for Dual (2) Zone Quantum Free-Match Series
- Ultra High Efficiency DC Inverter++ version with ultra low-ambient heating
- Cooling capacity: 18,000 BTU/H Nominal (Range: 4,950 MIN ~ 23,000 MAX) with 21 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H Nominal (Range: 4,900 MIN ~ 23,000 MAX) with 10.2 HSPF2 / 3.67 C.O.P. efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Factory charged for up to 25’ line set per circuit (or 50' total combined attached)
- Energy-Star Certified
- Whisper Quiet Operation
Refrigerant
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 12,000~24,000 BTU/h
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,950~23,000 BTU/h
- Cooling SEER2 (Ductless): 21 BTU/W.h
- Cooling EER2 (Ductless): 12.5 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 4,950~23,000 BTU/h
- Heating HSPF2 (Ductless): 10.2 BTU/W.h
- Refrigerant Type: R410a
- Suitable Area: 600~800 Sq.F
- Sound Level: 59.5 dB(A)
- Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 40.5 x 17.25 x 29.5 Inches
- Net / Gross Weight: 100 / 109 Lbs
Matching Indoor Models
Dual Zone Combinations
| Rating | Two Units | |||
|---|---|---|---|---|
| Wall: 9 + 9 | 9 + 9 | |||
| Ducted: 9 + 9 | 9 + 12 | |||
| 12 + 12 |
9,000 BTU Compatible Units
- Wall Mounted: WS009GMFI22HLE (30.3 x 11.8 x 21.8 inches)
- Cassette: CB009GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB009GMFILDFHD (27.5 x 25.0 x 8.3 inches)
12,000 BTU Compatible Units
- Wall Mounted: WS012GMFI22HLE (31.5 x 13.2 x 21.7 inches)
- Cassette: CB012GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Floor-Ceiling: FB012GMFILDFHE (27.5 x 23.6 x 8.3 inches)
- Concealed Ducted: RB012GMFILDFHD (27.5 x 25.0 x 8.3 inches)
Min. / Max. Loading
12,000 / 24,000 BTU/h.
Notes
Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.
With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.
Manuals & Downloads
- Technical Brochure
- User Manual
- Installation Manual
- Service Manual
- AHRI Certificate
- Energy Guide
