Quantum Ultra™ Ceiling Cassette
Agotado

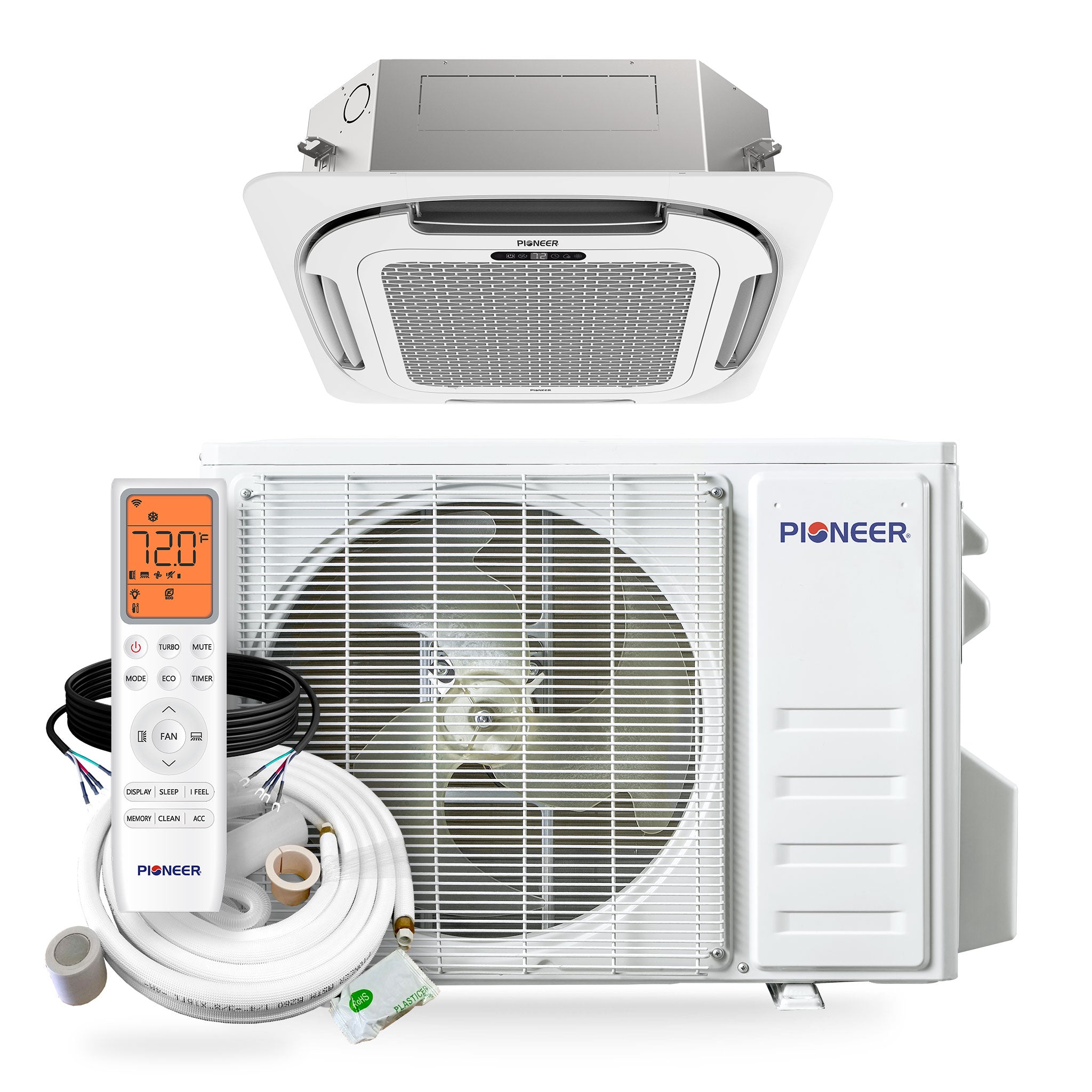

Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Precio habitual
$1,433.00
Precio de venta
$1,433.00
Precio habitual
$2,049.00
Agotado
-
Estimated delivery if ordered today: Jul 20 - Jul 24
No se pudo cargar la disponibilidad de recogida
Payment & Security
Métodos de pago
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Summary
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,500 BTU/h
- Cooling Capacity Range: 2,000~10,400 BTU/h
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 2,500~12,500 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.0 / 2.0 W/W
- Refrigerant Type: R454b
- Suitable Area: 250~350 Sq.F
- AHRI Reference: 217048758
-

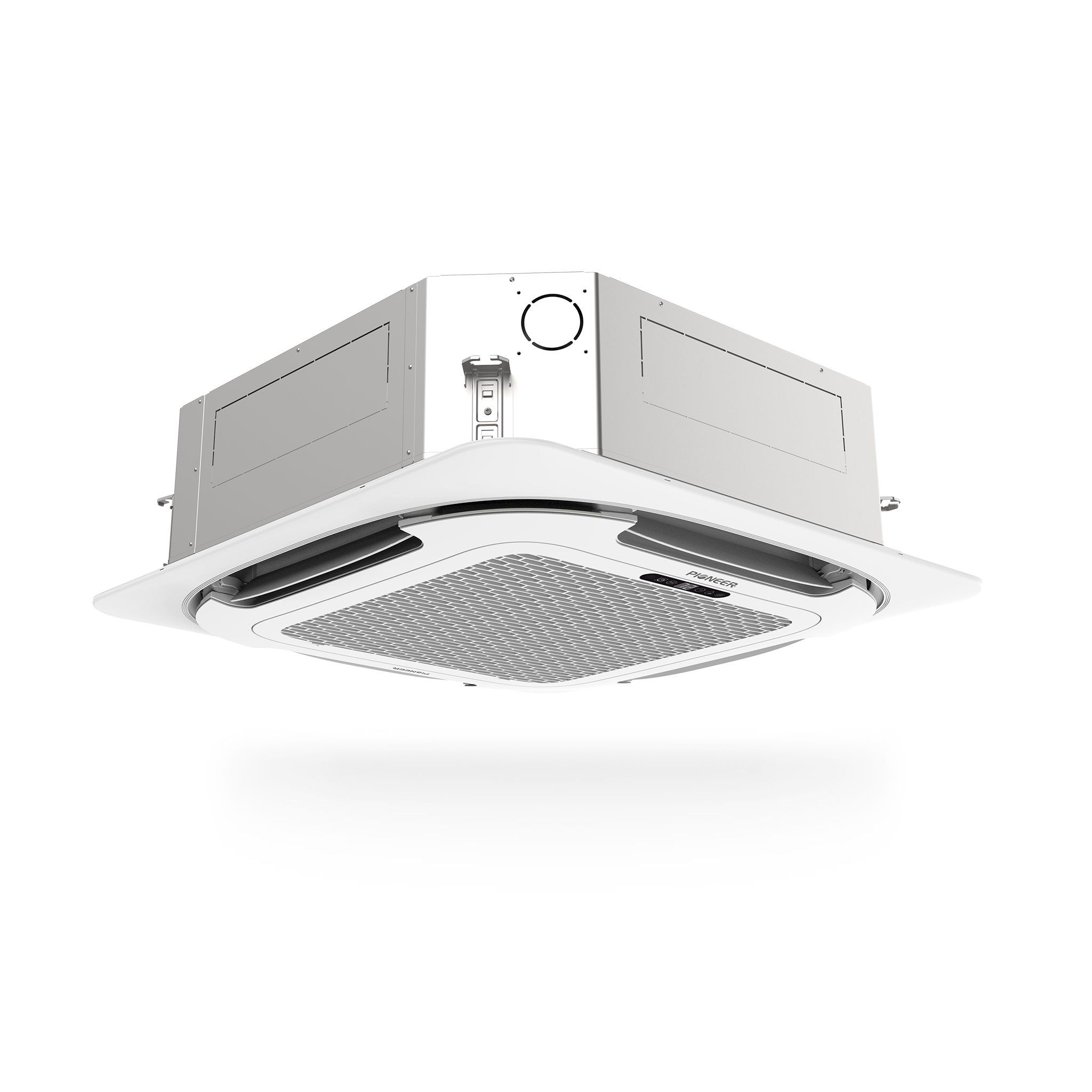

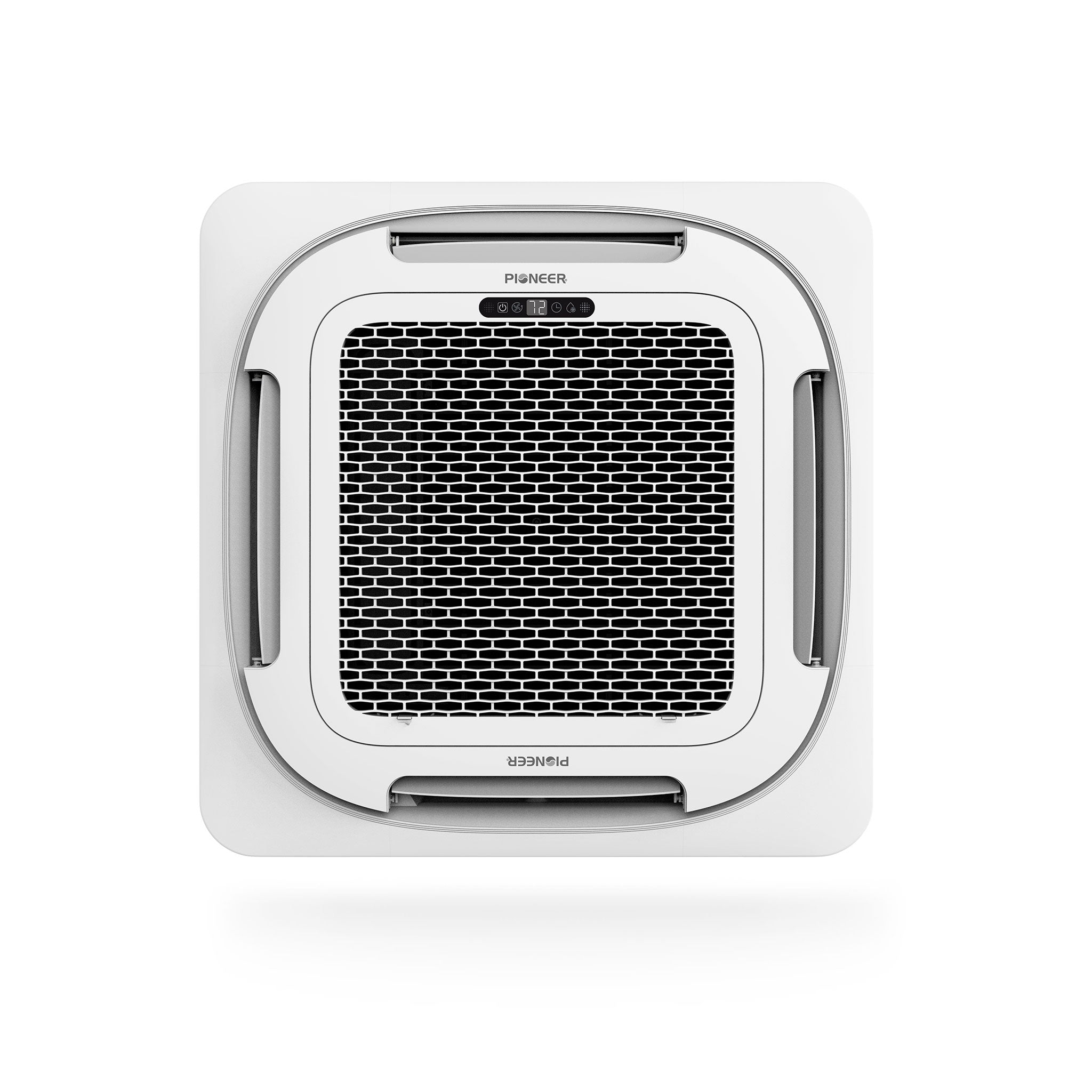

Indoor Unit
- Part Number: CT009GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs.
-
Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 57.1 lbs.
Dimension Chart
Quantum Ultra™ Ceiling Cassette
