Pioneer® 18,000 BTU 21.8 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Pioneer® 18,000 BTU 21.8 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

SKU: CYK018GMFILCAD-10

Precio habitual $2,293.00
Precio de venta $2,293.00 Precio habitual $3,279.00

Agotado

  • Estimated delivery if ordered today: Jul 25 - Jul 29
Installation Kit Options: 10 Ft
Payment & Security
Métodos de pago
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Why buy from our store?

  • Free Shipping for Orders Above $299
  • Dedicated Product Support Included
  • Wholesale Price Directly From Factory

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
  • Cooling capacity: 18,000 BTU/H with 21.8 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 19,000 BTU/H with 10.7 HSPF2 / 3.30 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • One-Way Ceiling Cassette Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
    [[SERIES]]

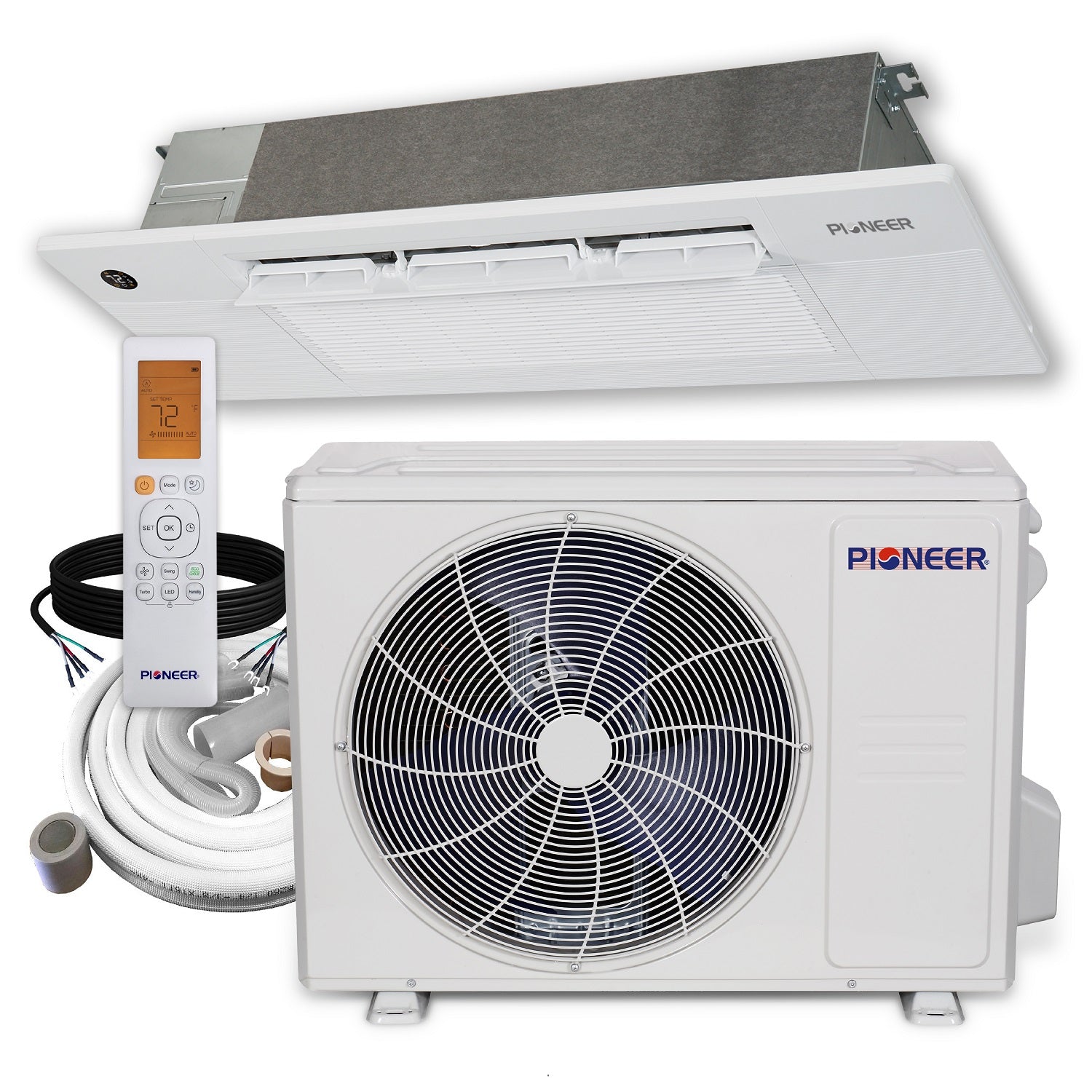

    What's Included

    • Indoor Unit
    • Outdoor Unit

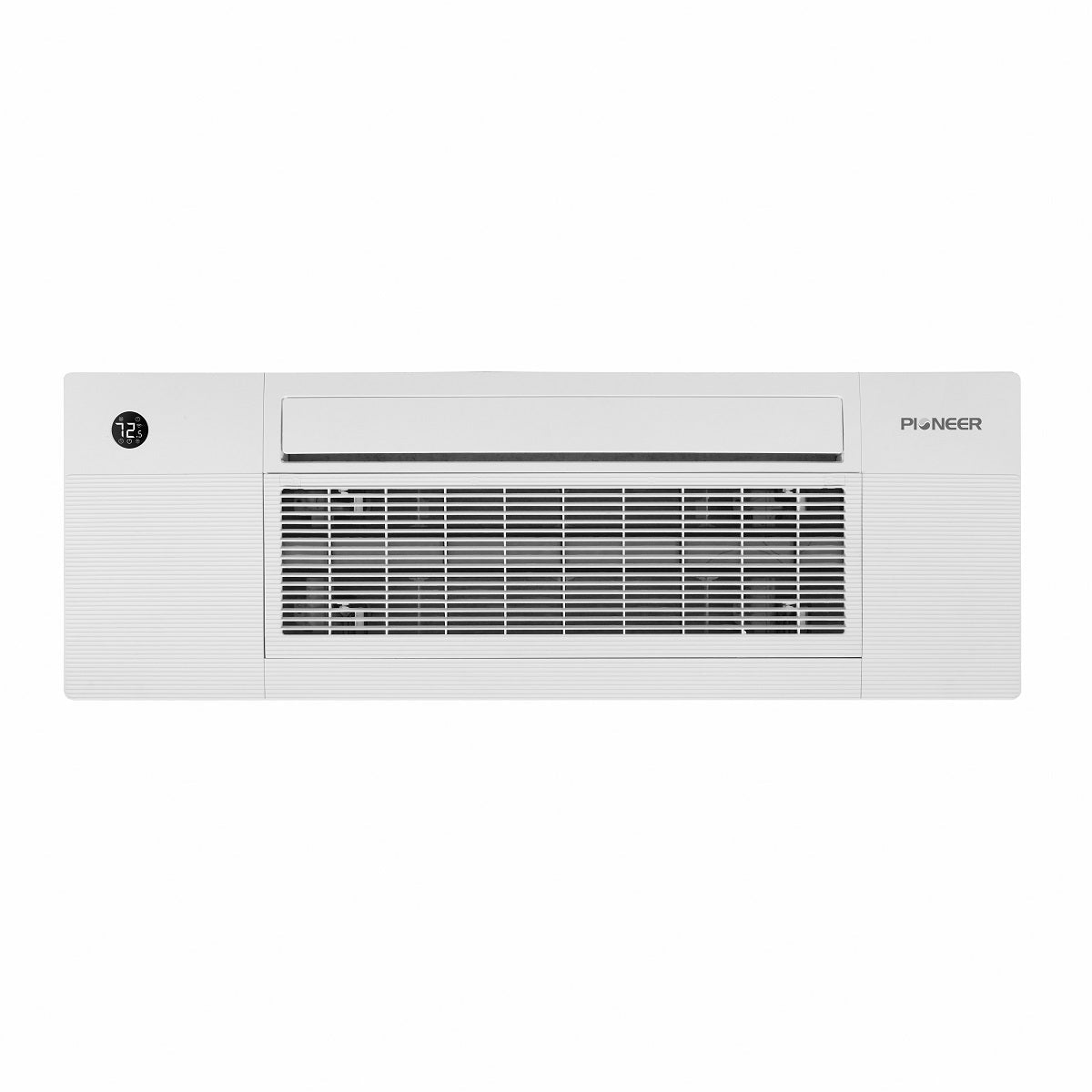

    • Decorative Panel

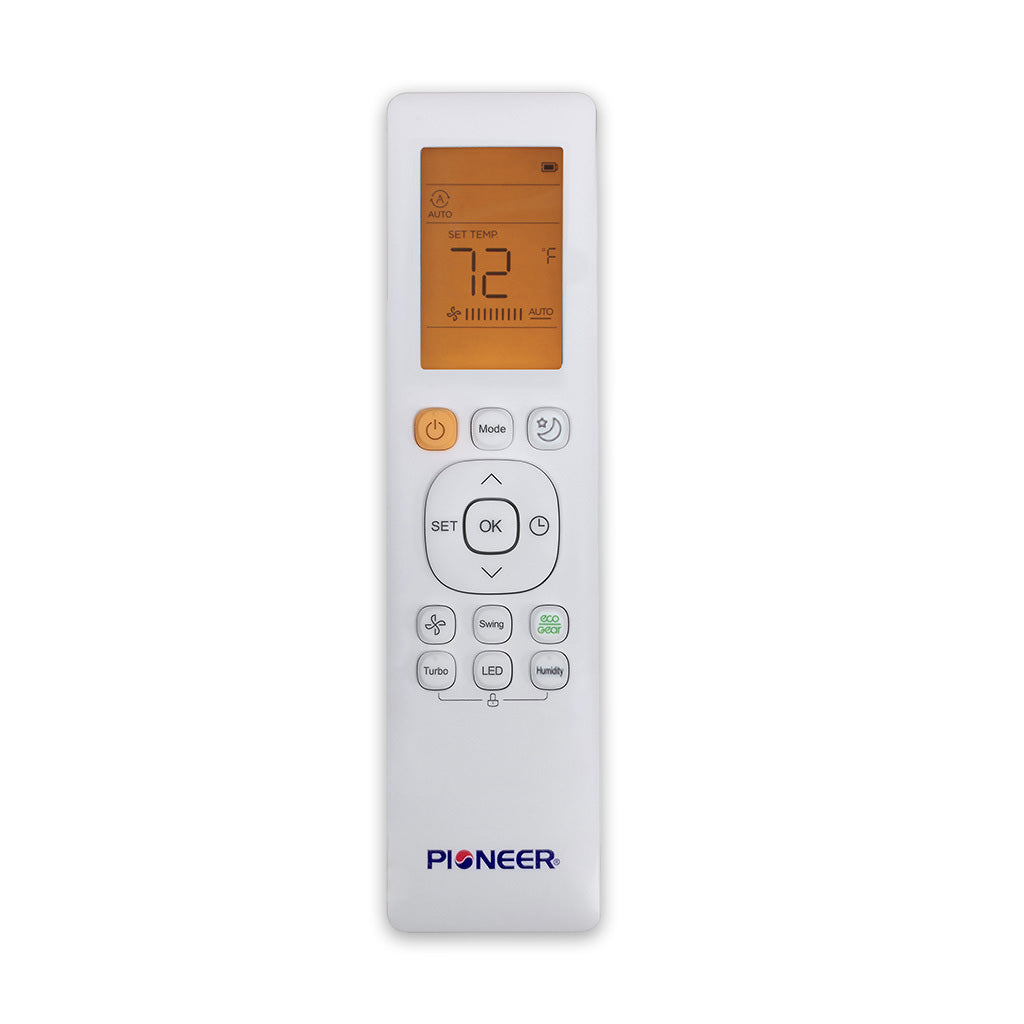

    • Wireless Remote Control

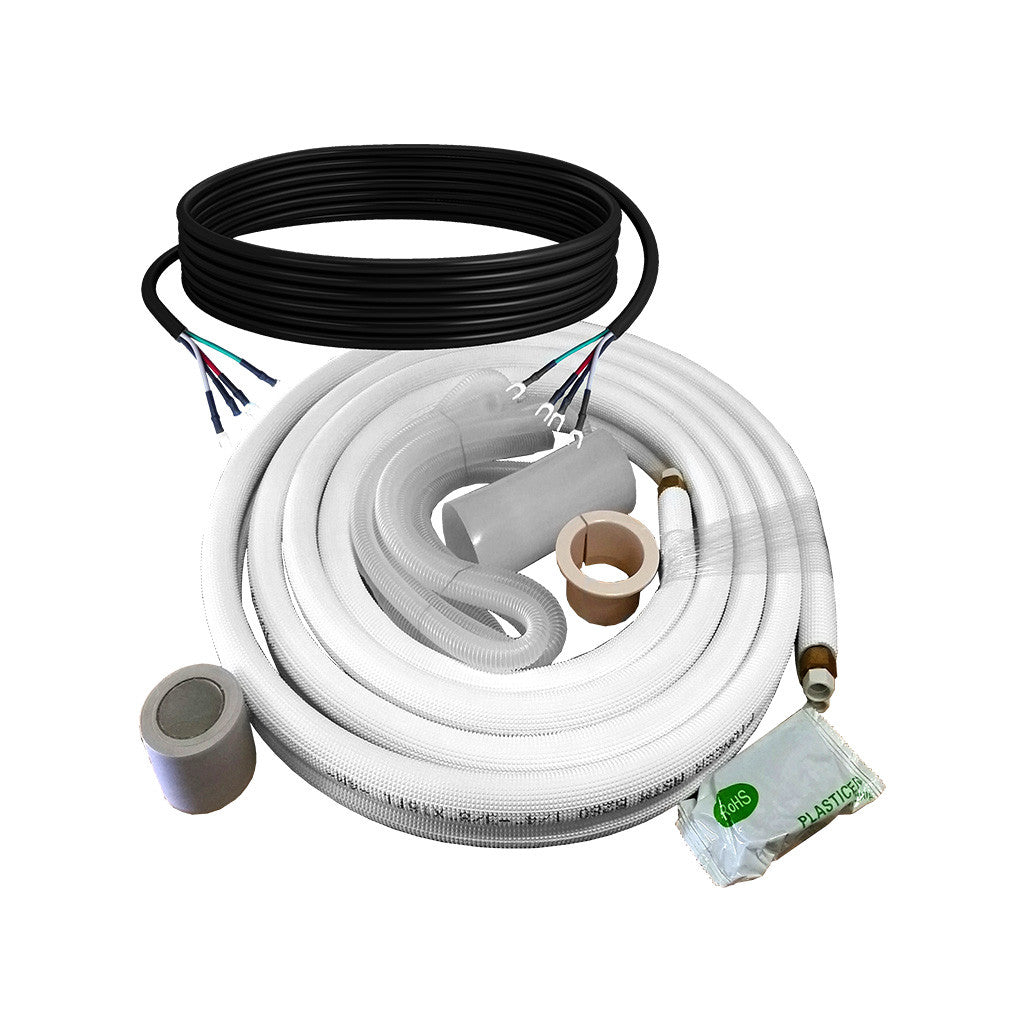

    • Various Installation Kit Options Available
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

    Our Guarantee

    • 5 year parts limited warranty
    • 5 year compressor limited warranty

    Technical Information

    Certifications

    Pioneer Mini Split Certifications

    Performance Data

    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 18,000 BTU/h
    • Cooling Capacity Range: 3,200~18,100 BTU/h
    • Cooling SEER2: 21.8 BTU/W.h
    • Cooling EER2: 12.5 BTU/W.h
    • Heating Rated Capacity: 19,000 BTU/h
    • Heating Capacity Range: 5,300~21,500 BTU/h
    • Heating HSPF2: 10.7 BTU/W.h
    • Heating C.O.P.2: 3.30 W/W
    • Refrigerant Type: R410a
    • Suitable Area: 400~650 Sq.F

    Indoor Unit Data

    • Model: CK018GMFILCFHD
    • Air Flow (Turbo/Hi/Med/Lo): 680 / 598 / 510 / 352 CFM
    • Sound Level (Hi/Med/Lo): 44 / 41 / 34 dB(A)
    • Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
    • Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
    • Net / Carton Weight: 45.2 / 82.9 Lbs

    Panel Data

    • Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
    • Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
    • Panel Net / Gross Weight: 24 / 29 Lbs

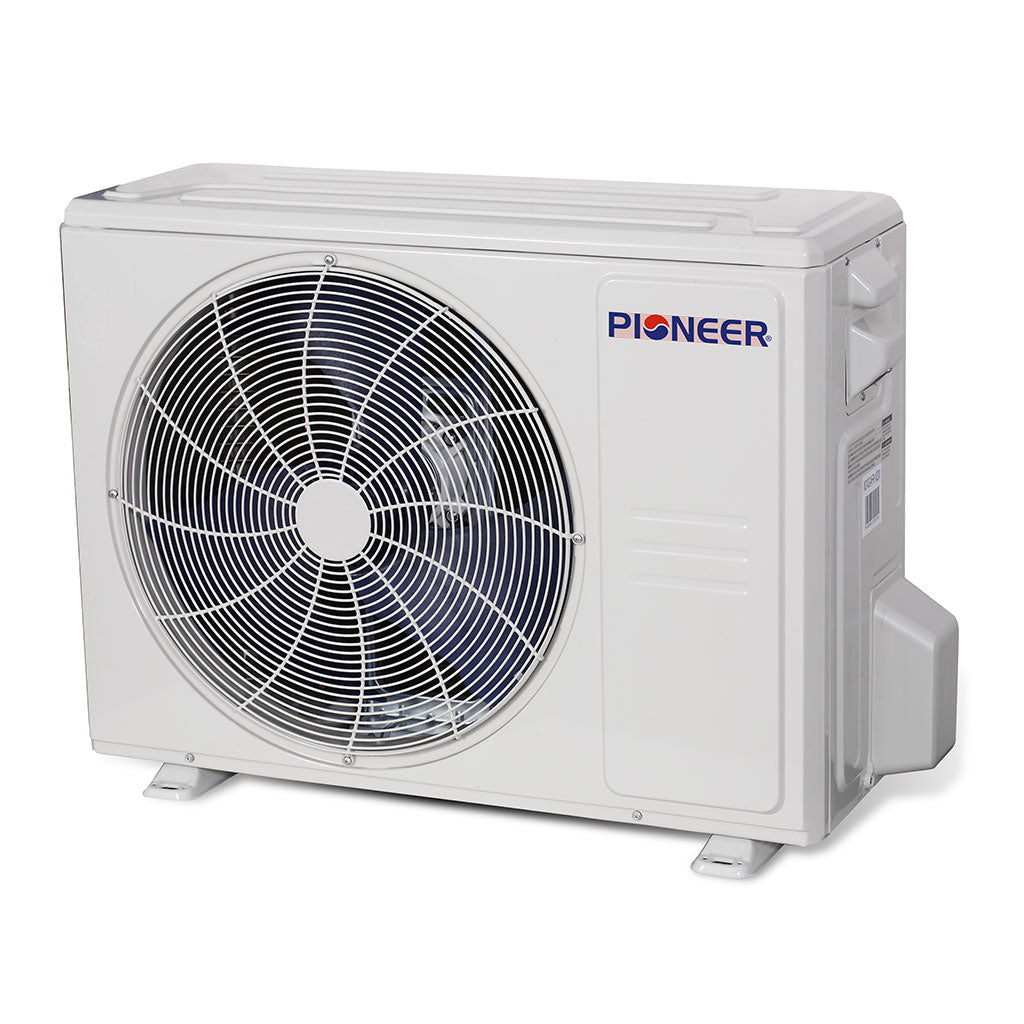

    Outdoor Unit Data

    • Model: YN018GMFI22RPE
    • Sound Level: 58 dB(A)
    • Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
    • Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
    • Net / Gross Weight: 94.4 / 101 Lbs
    • Breaker Needed: 20A (double-pole)
