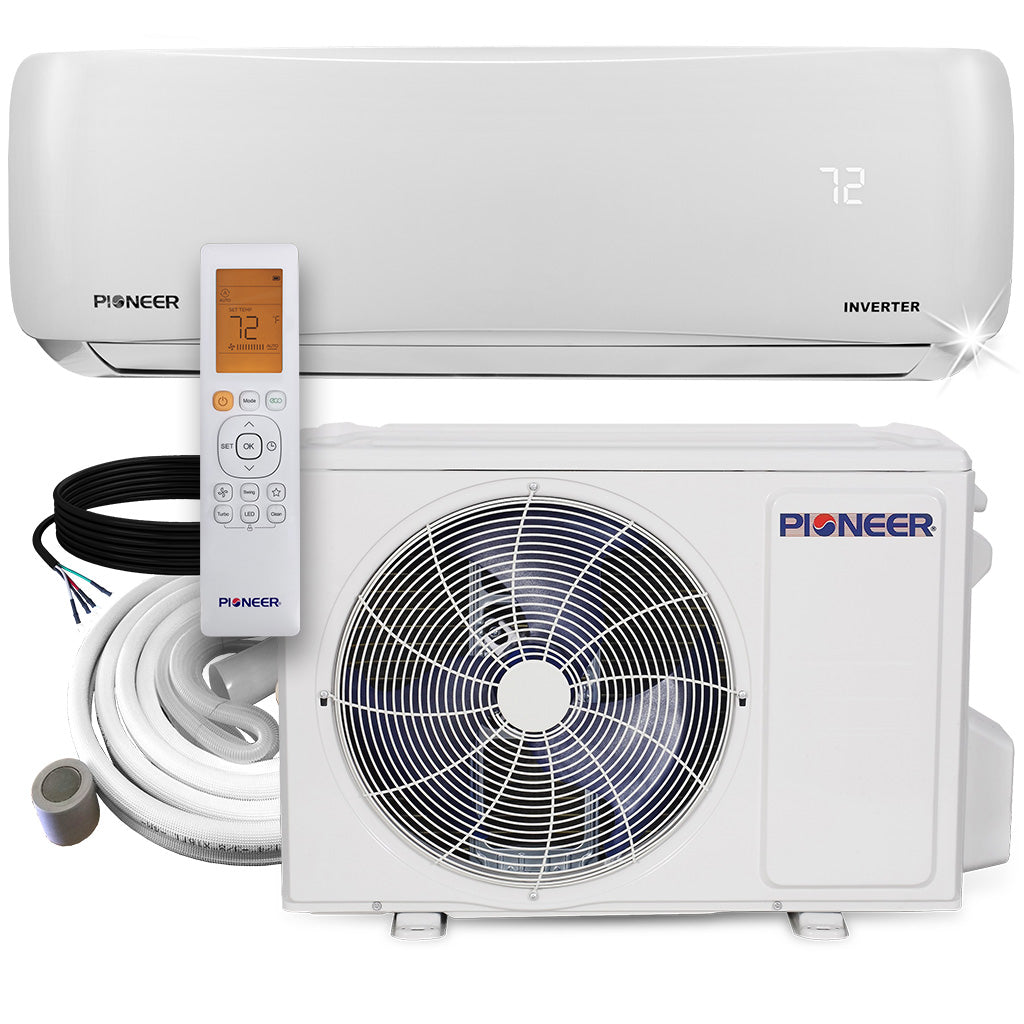

Pioneer® 12,000 BTU 21.5 SEER 115V Mini-Split sin ductos Inverter++ Aire acondicionado Sistema de bomba de calor Juego completo
Pioneer® 12,000 BTU 21.5 SEER 115V Mini-Split sin ductos Inverter++ Aire acondicionado Sistema de bomba de calor Juego completo
Agotado
-
Estimated delivery if ordered today: Jul 20 - Jul 24
No se pudo cargar la disponibilidad de recogida
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Descripción general
Resumen
- Sistema de bomba de calor mini split sin ductos Inverter++ de ultra alta eficiencia
- Capacidad de refrigeración: 12.000 BTU/H con eficiencia de 21,5 SEER/12,5 EER
- Capacidad de calefacción: 12.000 BTU/H con una eficiencia de 11,5 HSPF/3,38 COP
- Voltaje: 110~120 V, 60 Hz, monofásico
- Sistema de aire acondicionado y calefacción montado en pared alta
- Modo de funcionamiento del inversor de CC de velocidad variable
- Juego de líneas de cobre de longitud personalizable con conexiones abocinadas
- Certificación Energy-Star
- Costos operativos anuales estimados de AHRI:
- Enfriamiento: $74.00
- Calefacción: $221.00
Qué está incluido
- Unidad interior
- Unidad exterior
- Control remoto inalámbrico

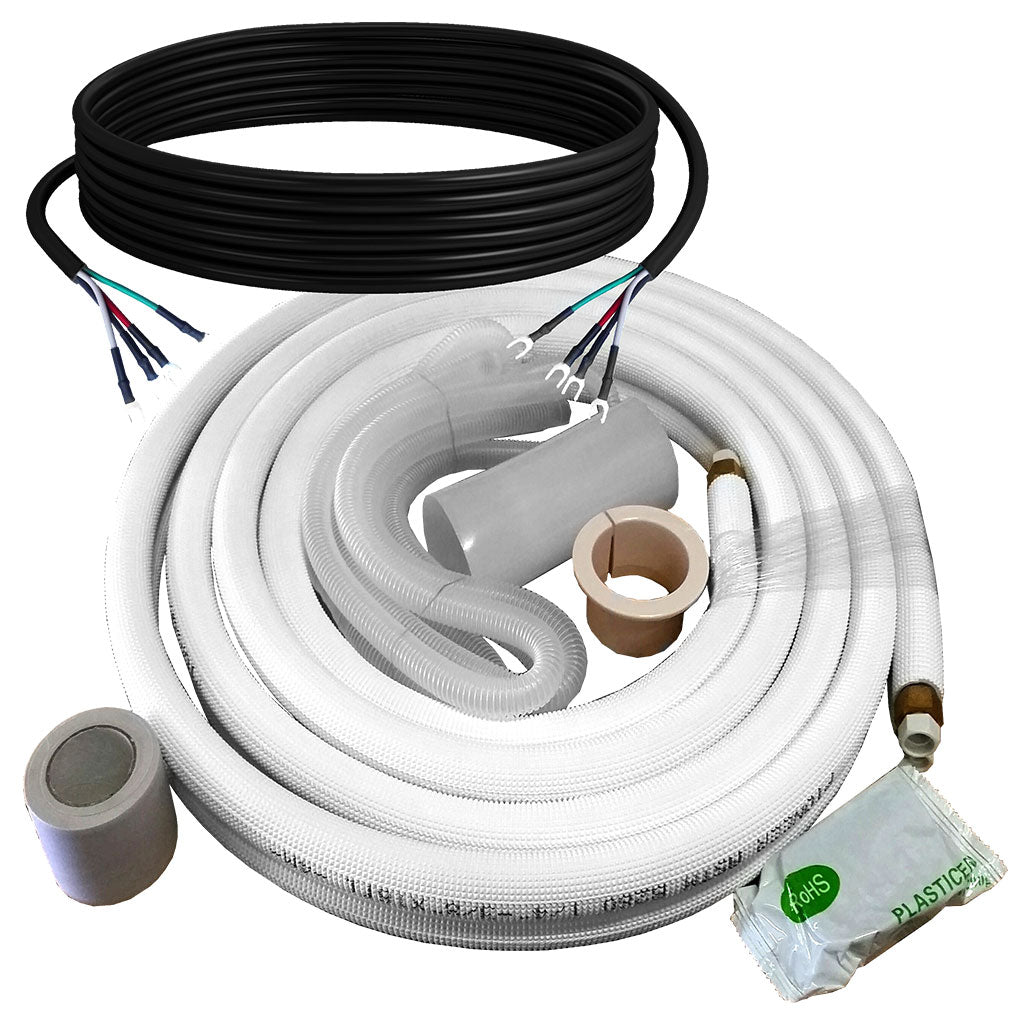

- Varias opciones de kit de instalación disponibles
- Sellador de protección contra fugas de conexión acampanada
- Manual de instalación
- Manual de usuario
- Garantía del fabricante
nuestra garantia
- 5 años de garantía limitada de piezas
- 5 años de garantía limitada del compresor
Características
[[CARACTERÍSTICAS]]Información técnica
Certificaciones
Datos de rendimiento
- Fuente de alimentación: 110~120V, 60Hz, 1Ph
- Capacidad nominal de refrigeración: 12 000 BTU/h
- Rango de capacidad de enfriamiento: 3,500~12,150 BTU/h
- Enfriamiento SEER: 21.5 BTU/w
- Capacidad nominal de calefacción: 12 000 BTU/h
- Rango de capacidad de calentamiento: 4,600~12,904 BTU/h
- Calefacción HSPF: 11,5 BTU/w
- Tipo de refrigerante: R410a
- Área adecuada: 300~450 pies cuadrados

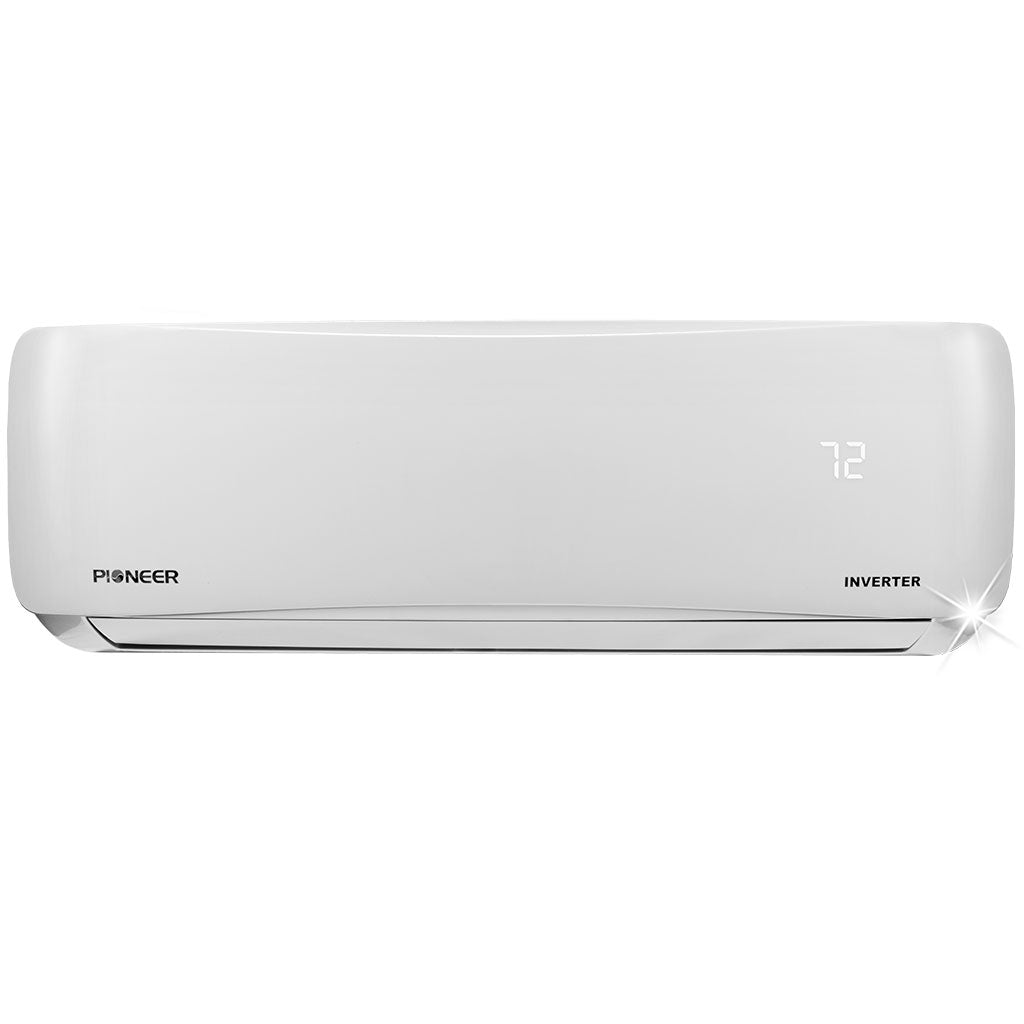

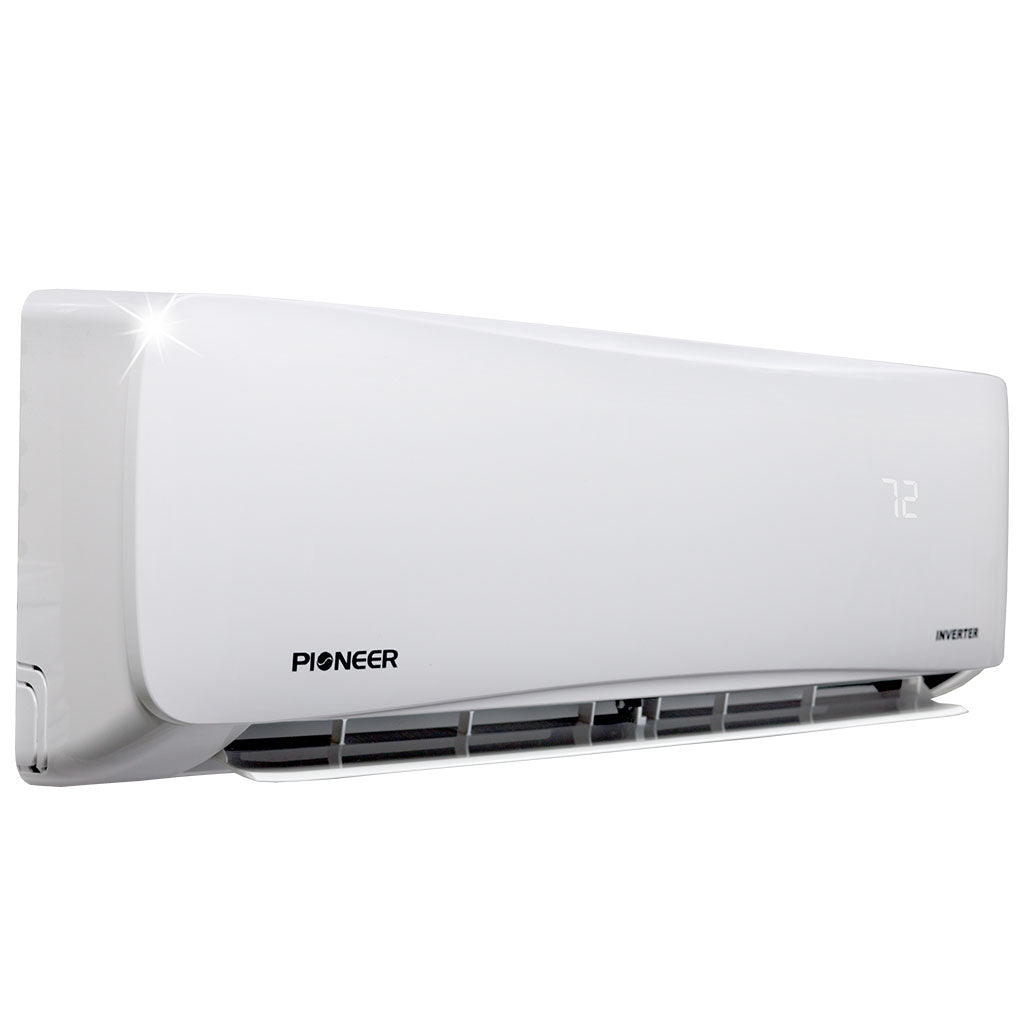

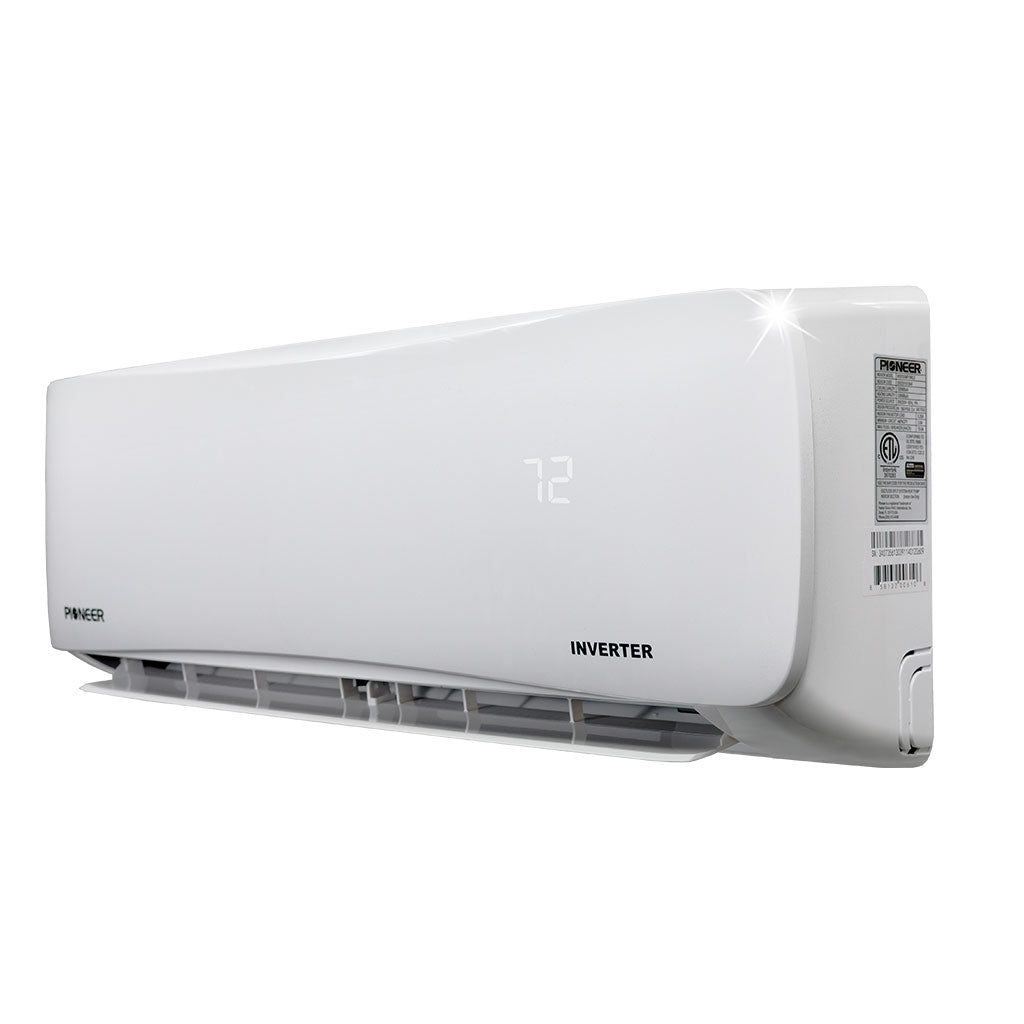

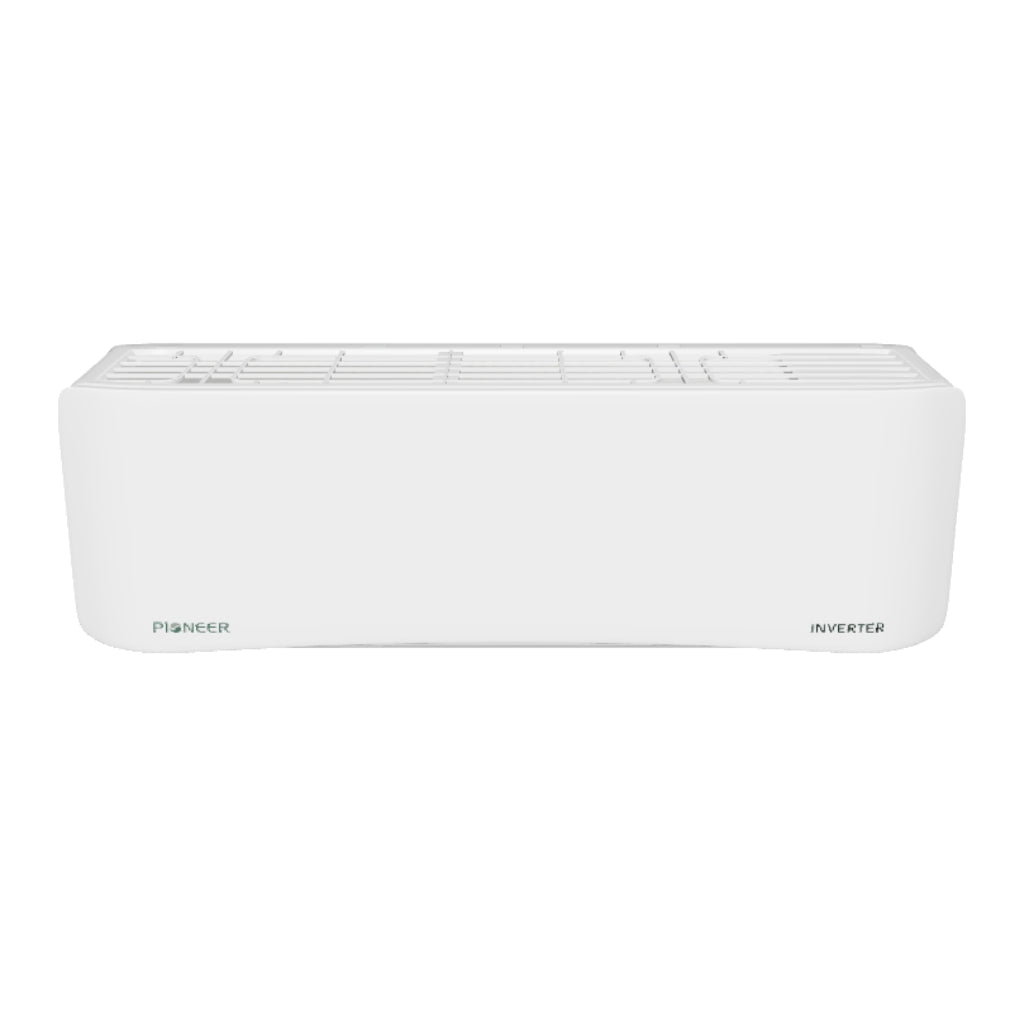

Datos de la unidad interior
- Número de modelo: WS012AMFI22HLE
- Flujo de aire (alto/medio/bajo): 306 / 212 / 147 CFM
- Nivel de sonido (alto/bajo): 36,0 / 23,0 dB(A)
- Dimensiones netas (WDH): 31,5 x 7,3 x 11,6 pulgadas
- Dimensiones de la caja (WDH): 34.5 x 11.25 x 15 pulgadas
- Peso neto/bruto: 24/34,2 libras

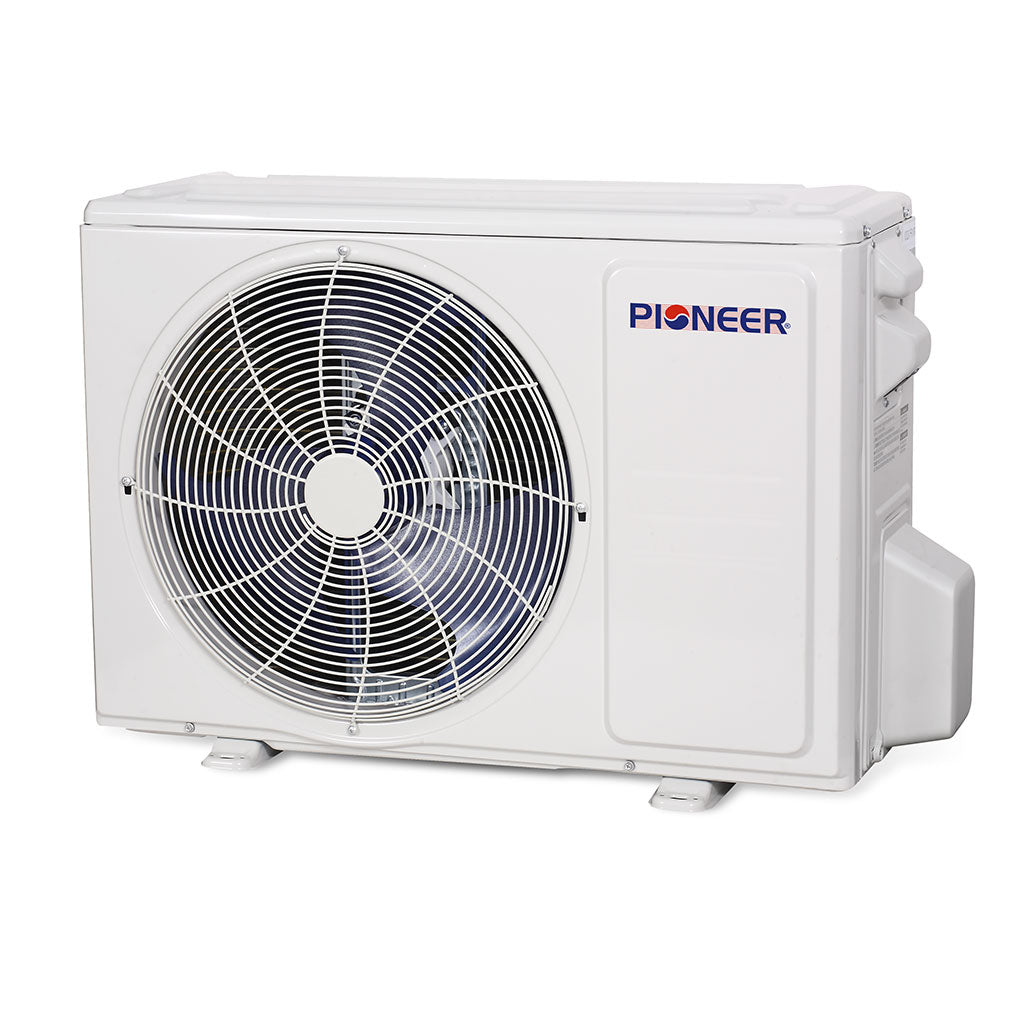

Datos de la unidad exterior
- Número de modelo: YN012AMFI22RPE
- Nivel de sonido: 52,5 dB(A)
- Disyuntor necesario: 20 A (unipolar)
- Dimensiones netas (WDH): 30,2 x 11,8 x 21,7 pulgadas
- Dimensiones de la caja (WDH): 34,8 x 13,25 x 24 pulgadas
- Peso neto/bruto: 66,8/72,3 libras
Manuales y Descargas
Estrella de energía
Questions & Answers
Have a Question?
-
how much clearance is required above the wall unit
We recommend 4-6 inches, 6 would be best.
-
What size line set is needed for this unit?
This would take 1/4"-1/2" diameter lines.
-
Will a portable 3500 watt continuous generator be able to power your energy star 12,000 btu 21.5 seer mini split during power outages?
Most certainly. This unit draws a peak of 1.5kW (average is about half that) so a 3.5kW generator should have no issue keeping the unit running even in full demand.
-
what size area will this unit handle?
For typical scenarios we recommend this unit for managing between 200 and 450 square feet.
-
The section on refrigerant says, R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit. Does this mean the line set can only be 25 ft.? I see an option for a 50 ft. installation kit. How does that work?
The way it works is that the outdoor condensing unit is pre-charged with R410a to support line lengths up to 25 ft long. You can have a line up to 80 ft long, but for longer than 25' lineset runs, you will need to top off additional refrigerant during installation in order to rebalance the contained charge.
-
How many lbs of R410 is in this unit?
This system is factory preloaded with 40.60 ounces of R410a.
-
what size wire to run to box??
This takes a 20A breaker and 12 AWG wire.
-
What is minimum temperature for operational heating of this unit?
This particular system can HEAT down to -13°F outside temperatures.
-
What is the amp draw for this unit?
This particular system is rated 8.4A in cooling mode and 9.8 in heating mode.
-
Does this have the anti mildew option?
There is a "self-clean" feature to dry the coils, and the blower wheel is treated with an anti-mildew coating.
-
Does the air handler have manual vents so I can control the direction of air flow?
This model has a motorized up-down louver, and a manually adjusted left-right louver. On the Diamante and Hyperformance models, both are motorized.
-
How do I determine what size line set I will need for my install?
That is essentially the distance between where you plant to mount the interior and exterior units, as that is the set of pipes that connects the two together.
-
Are these two model numbers for the same unit. WS012AMFI22HLE vs WS012AMFI22RL I'm looking to purchase the inverter ++ unit and found these two model numbers. thank you
WS012AMFI22RL is a combination SKU entailing the full set of both indoor unit (WS012AMFI22HLE) and outdoor unit (YN012AMFI22RPE).
-
Hi there, I have a 12k BTU system I just recieved! I want to install it in my basement. Is there a way to drain the condensation vertically? Thanks.
You would need to add a condensate pump to pump it upwards. SKU: CP-RE-MWP-06
-
How much clearance is needed at back of outside unit to another surface?
It would need 12 inches of clearance behind when ground-mounted and 3 inches when wall-mounted.
