is the fitting on the blue hose a low loss fitting?

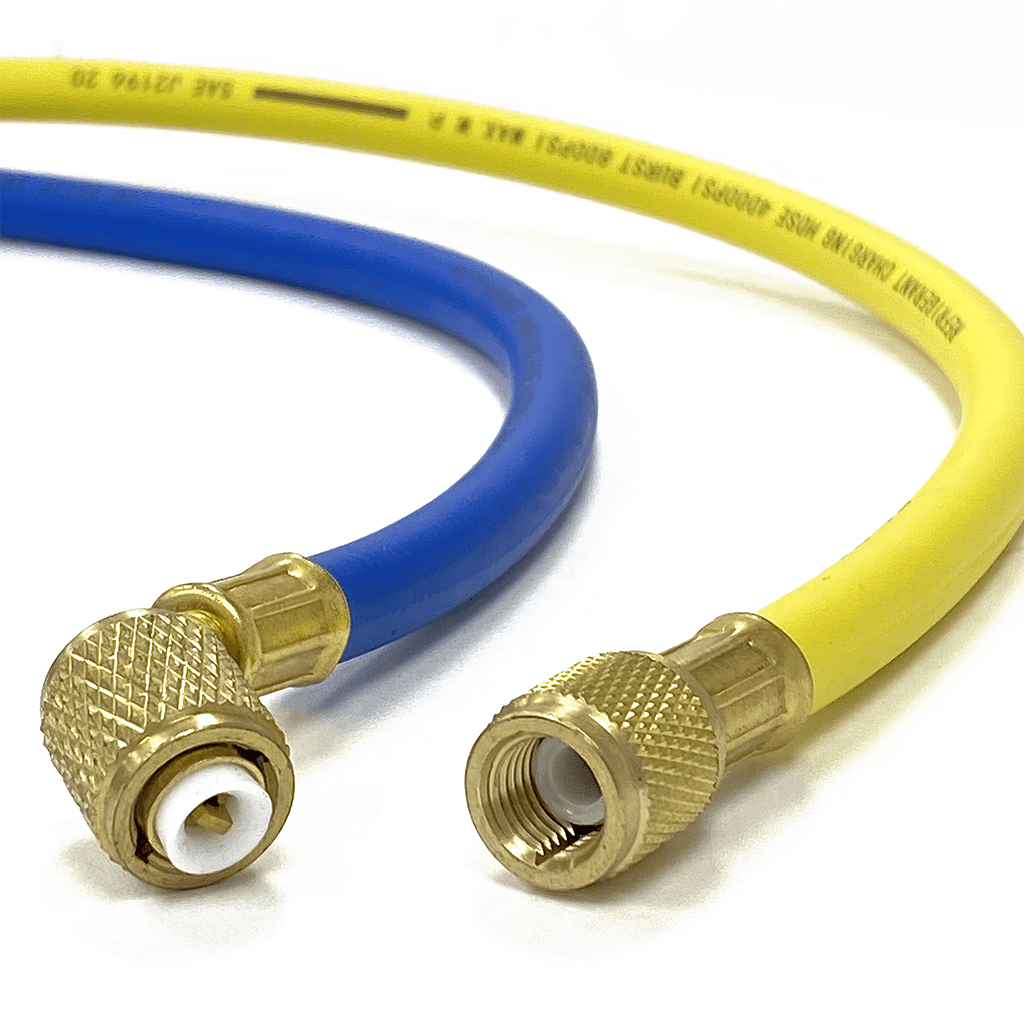

It is a flared, threaded connector. The service port uses a Schrader valve so some loss will be inevitable, the amount depends on how quickly it is disconnected.

Is there a instructional video or a step by step guide to use this low side Charging Service Gauge Hose Set ?

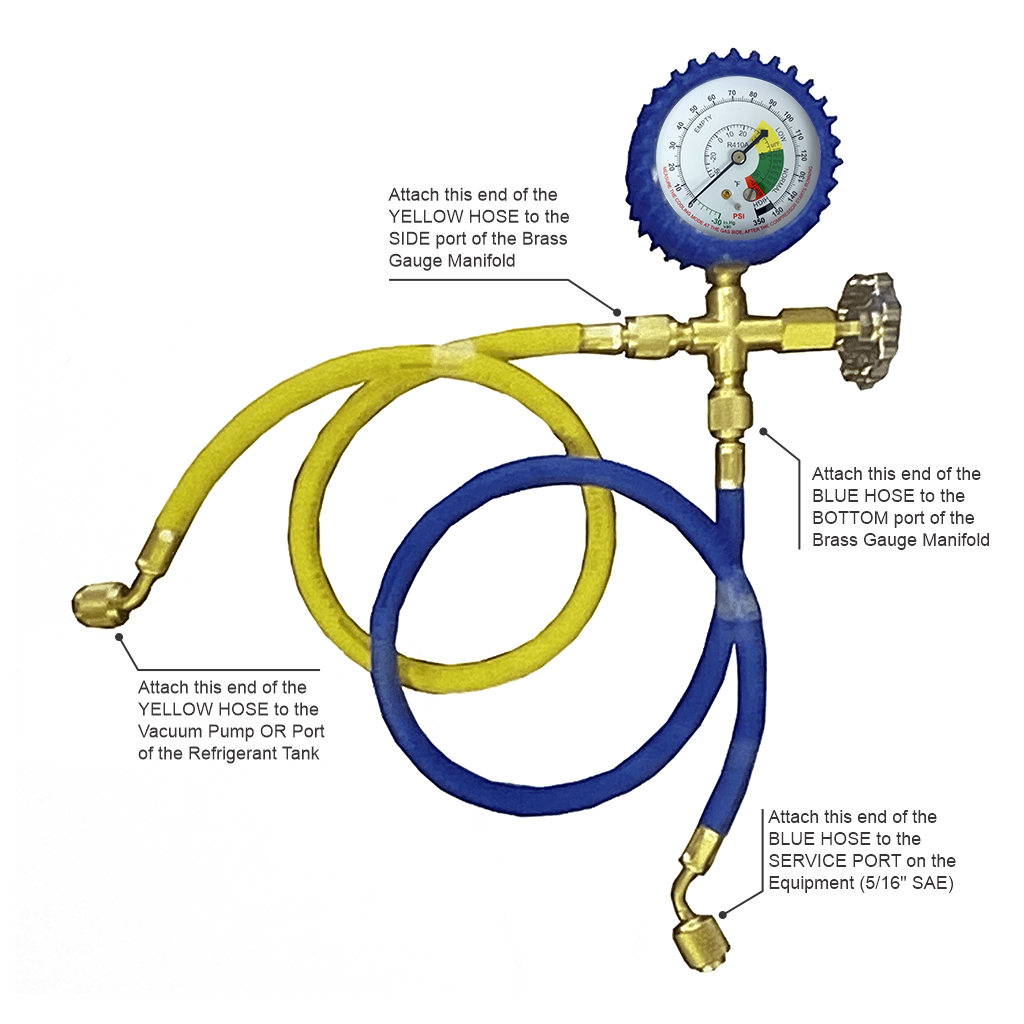

The blue hose connects to the service port on the unit and then the yellow hose connects to your vacuum pump. The blue hose is 5/16" ready to connect to the outdoor unit. The yellow is 1/4" for most vacuum pumps. The depicted valve isolates the gauge itself. This gauge also comes with a diagram on the packaging box.

Can you charge the system with this?

Yes you can, this would connect directly to the service port and to a vacuum pump or a container of refrigerant.

does anyone know what the presure should be in a unit ?

You can reference the following chart regarding this: https://www.pdhvac.com/site/downloads/Temperature-Pressure-Chart.pdf

Is this what I would need to check for leaks during installation?

You can use this to monitor that pressure stays steady, indicating no leaks.

I just purchased a Pioneer Mini split does it come with this or does this extra

This would be sold separately and not included by default.

How does this gauge administer the leak stop/refrigerant? No button like it says on the can.

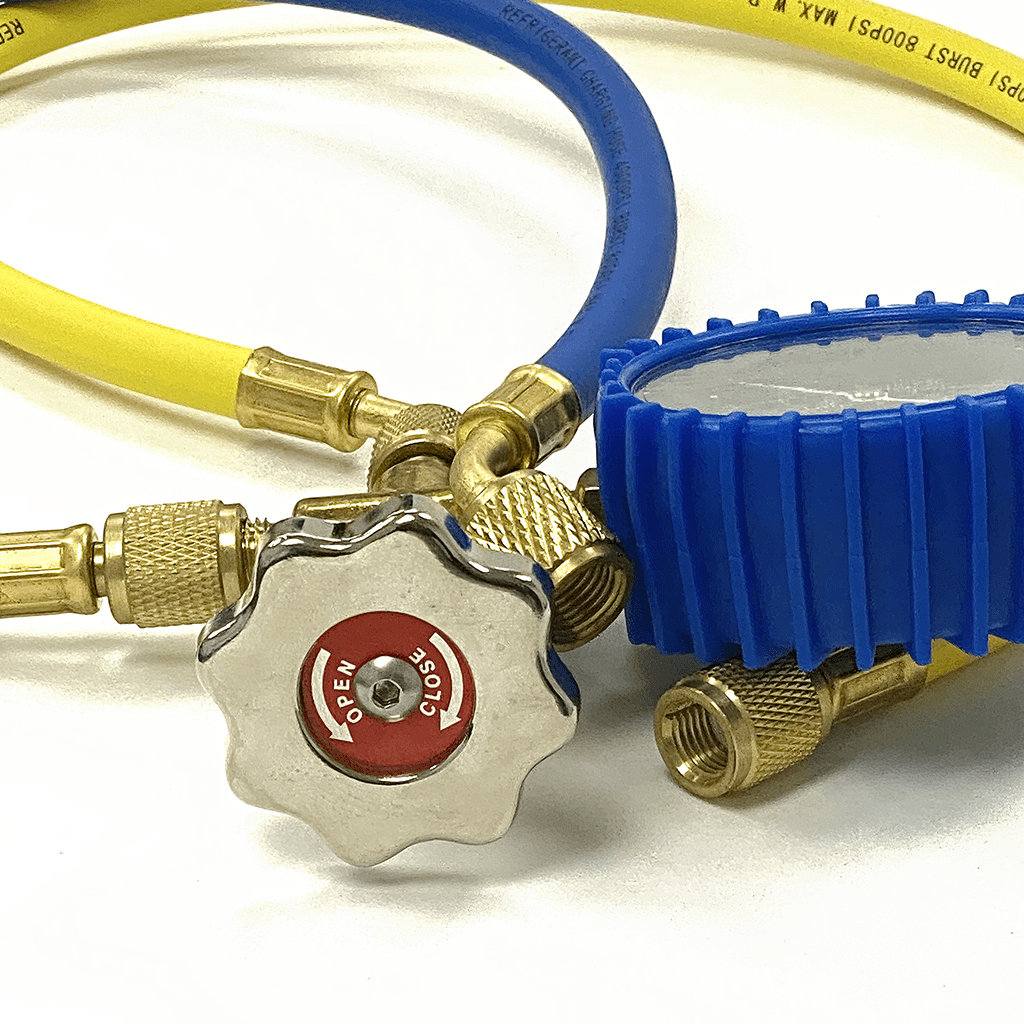

It has a knob valve for facillitating access between the bottle and the condenser unit's service port.

How can I check system pressure with the gauge without opening a path for the refrigerant to leak out? Do I have to connect something to the yellow hose (like a can of refrigerant?

There is an access knob to allow or cut off access past the gauge.

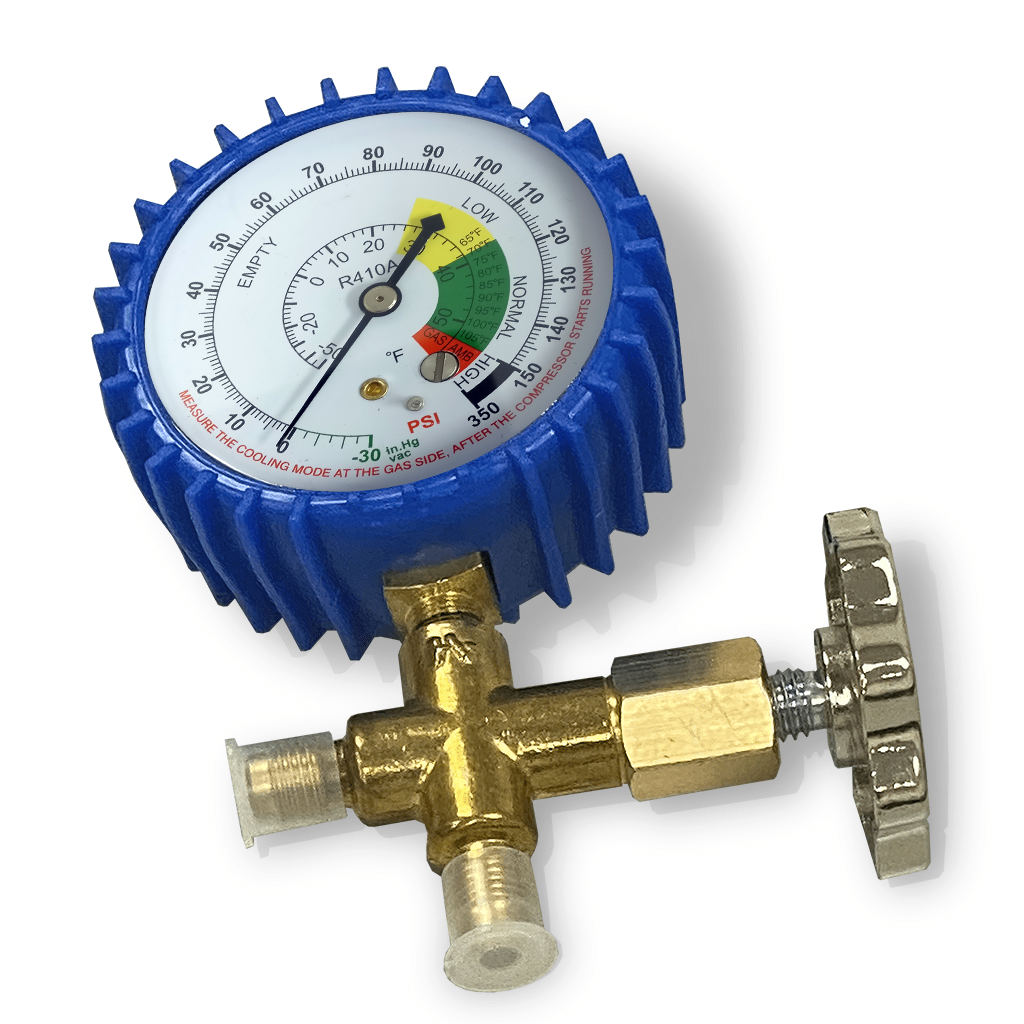

I notice that the gauge says r410a and r454b so does it do both and would I get the exact gauage as shown here?

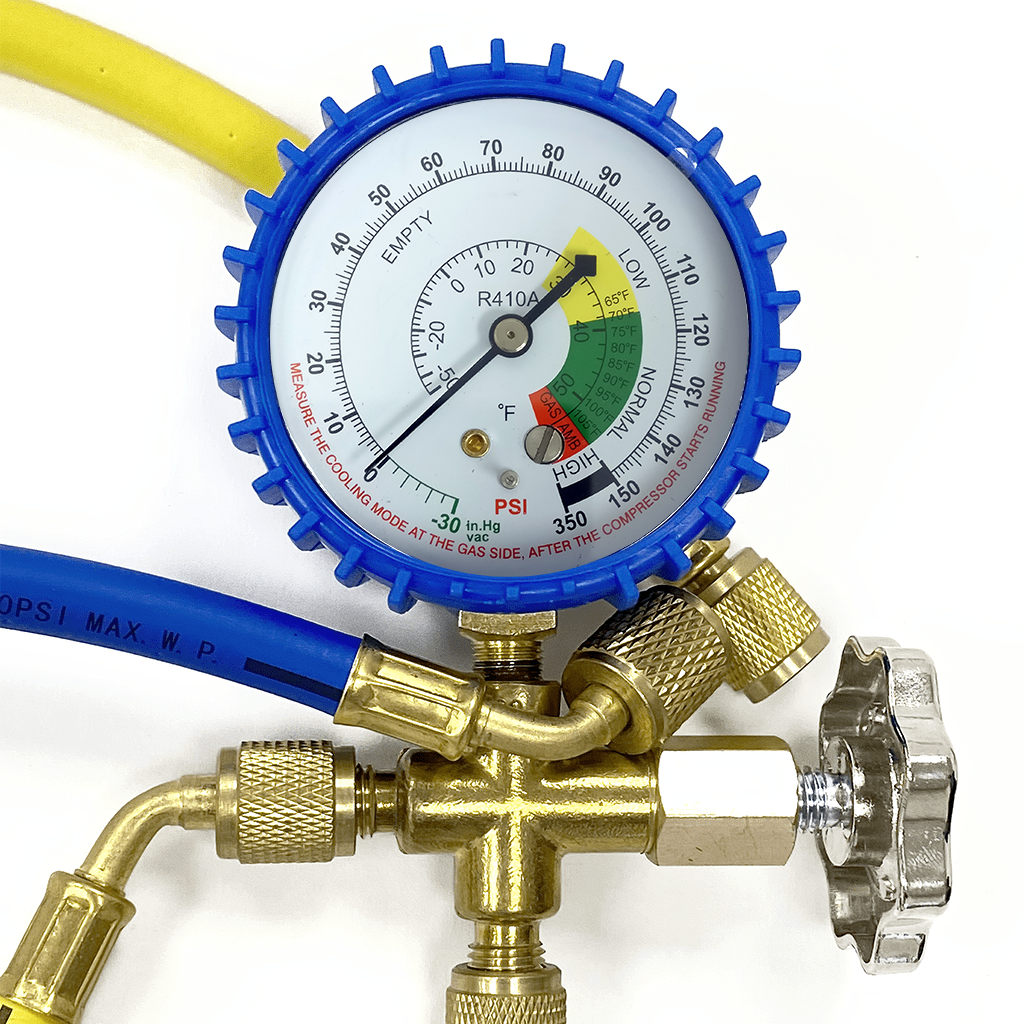

Yes, it will have the triple scale of R410a/R32/R454B.

Can this be used with R-454 B refrigerant?

Yes, it can read R454B refrigerant based system pressures.

Mini Split R410a Juego de mangueras de calibre de servicio de carga de succión lateral baja Puerto de 5/16"

Mini Split R410a Juego de mangueras de calibre de servicio de carga de succión lateral baja Puerto de 5/16"

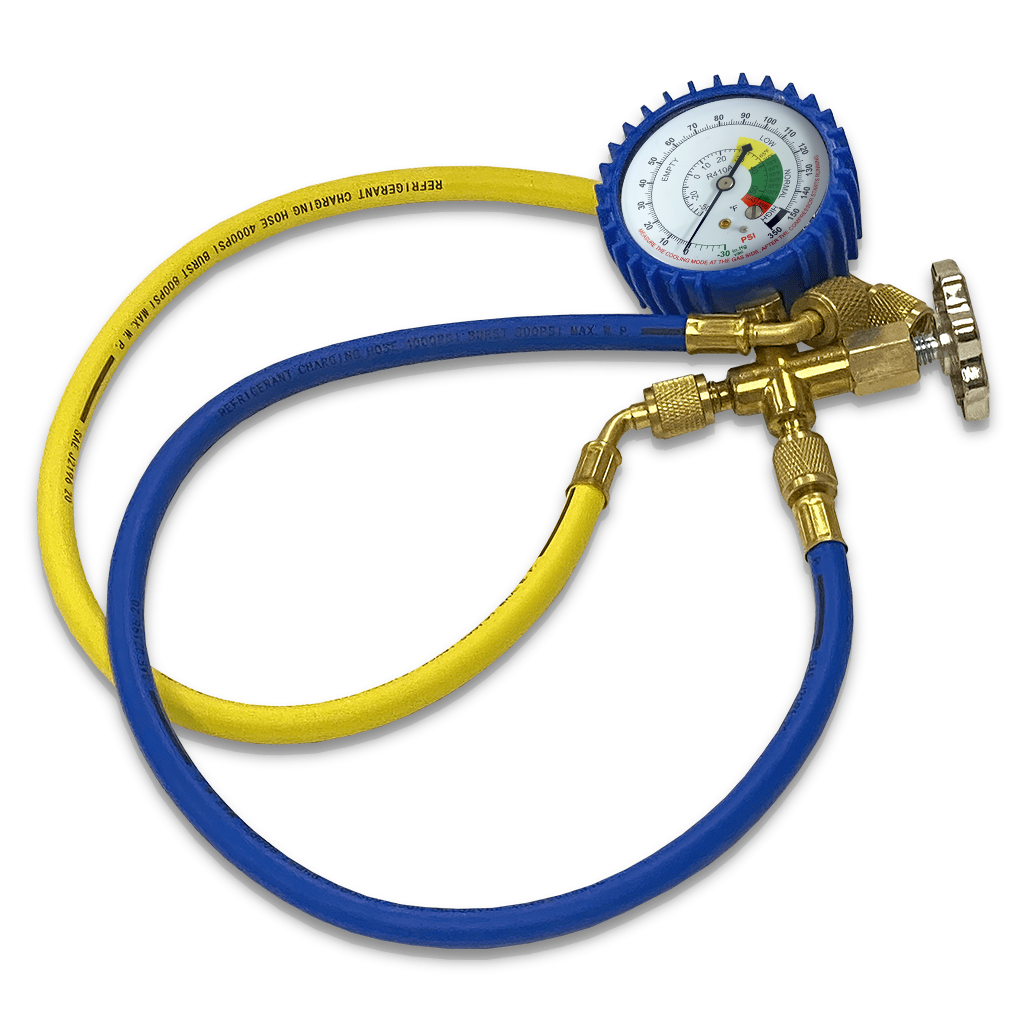

Name: Mini Split R410a Juego de mangueras de calibre de servicio de carga de succión lateral baja Puerto de 5/16"
Brand: Parker Davis HVAC Systems, Inc.
SKU: PGML-5/16B1/4Y
Price: 29.75 USD
Availability: InStock

SKU: PGML-5/16B1/4Y

$29.75 ~~$42.50~~
