Soporte de montaje plegable para unidad condensadora Mini Split

Soporte de montaje plegable para unidad condensadora Mini Split

SKU: BRK-FLD-D-2P

Precio habitual $28.75
Precio de venta $28.75 Precio habitual $41.25
  • Estimated delivery if ordered today: Jul 25 - Jul 29
Tamaño: 9000-12000 BTU
Payment & Security
Métodos de pago
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Why buy from our store?

  • Free Shipping for Orders Above $299
  • Dedicated Product Support Included
  • Wholesale Price Directly From Factory

Descripción general

Resumen

  • Construcción de acero resistente, galvanizado y pintado con epoxi.
  • Incluye todo el hardware para fijar el condensador más 4 pernos de expansión para montaje en pared.
  • 4 Amortiguadores de vibraciones de goma también incluidos.
  • Múltiples tamaños para elegir. Elija el soporte que se ajuste a la salida de BTU de su máquina.
  • Eleva la unidad condensadora por encima del suelo para protegerla de la suciedad, la nieve, los escombros, las inundaciones y otros peligros.

Descripción

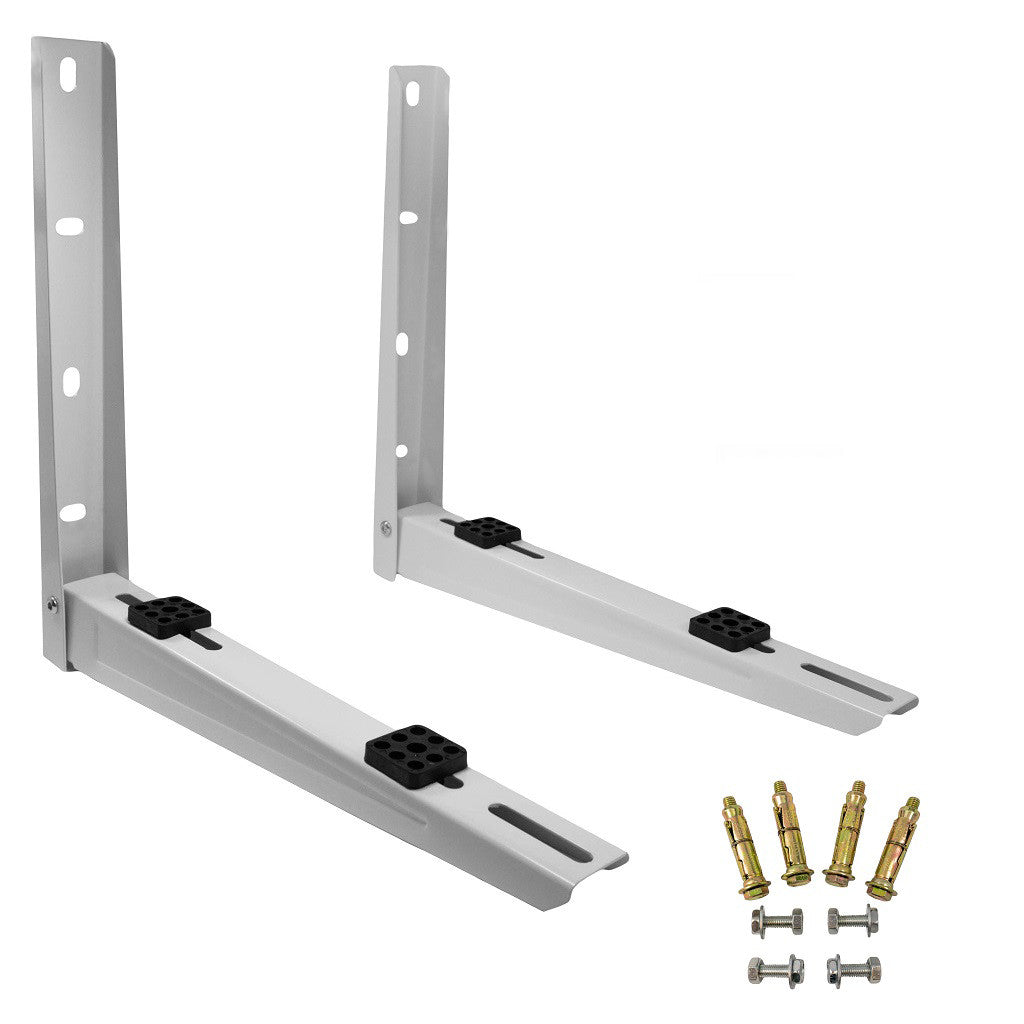

Kit de soporte de condensador plegable de acero de gran calibre, para instalaciones en pared. Úselo en todos los modelos de unidades condensadoras Mini Split. Estructura de acero galvanizado de gran espesor con pintura epoxi electrostática. Embalado con todo el hardware necesario, incluidos 4 pernos de expansión de hormigón.

Instalación

Video: Cómo instalar los soportes de montaje en pared de la unidad exterior Pioneer Mini Split

Questions & Answers

Have a Question?

Ask a Question
  • Hi, is there a mounting system for the 48,000BTU units?

    We don't recommend wall-mounting for that capacity of units. It's not an option we carry. You can consider using floor mounting blocks such as these.

  • What type of fastener is recommended for a wood structure?

    Lag screws. For that we recommend the framed bracket here: https://www.pioneerminisplit.com/collections/accesories/products/folding-mounting-bracket-for-mini-split-unit-with-leveler

  • Does this keep unit 12 inches from wall. It looks closer in picture. I thought you needed that much space.

    When using a wall mounting bracket, the required clearnace drops from 12 to 4 inches, because of the increased ventilation from underneath.

  • I have a 12,000 btu unit. Should I get the 9000-12000 bracket or the 12000-18000 bracket? Thanks!

    You can get the 9-12,000 BTU one, it will work great.

  • I'm assuming this bracket can be installed on the side of a wooden structure and not just a concrete wall. Correct?

    That is correct, but it would require different types of hardware that is not included.

  • Is there an NOA or Product Approval for Miami-Dade County for this Mounting Bracket?

    There is no such approval currently.
