Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo

SKU: WYS012AMFI20RL-10
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
WYS012AMFI17RL
Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo

Pioneer® 12,000 BTU 20 SEER 115V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo

SKU: WYS012AMFI20RL-10

  • Free Shipping for Orders Above $49
  • Wholesale Price Directly From Factory
  • Secure and Versatile Payment Options
  • En stock
  • Inventario en el camino

Precio habitual $1,029.00 Precio de oferta $823.00 Guardar $206
/

Opciones del kit de instalación:

Descripción general

Resumen

  • Inverter de ultra alta eficiencia + sistema de bomba de calor mini split sin conductos
  • Capacidad de refrigeración: 12.000 BTU/H con eficiencia de 20 SEER/10,3 EER
  • Capacidad de calefacción: 12.000 BTU/H con eficiencia de 10,5 HSPF/3,13 COP
  • Voltaje: 110~120V, 60Hz, 1Ph
  • Sistema de aire acondicionado y calefacción montado en pared alta
  • Modo de funcionamiento del inversor de CC de velocidad variable
  • Juego de líneas de cobre de longitud personalizable con conexiones abocinadas
  • Costos operativos anuales estimados de AHRI:
    • Enfriamiento: $79.00
    • Calefacción: $242.00
[[SERIE]]

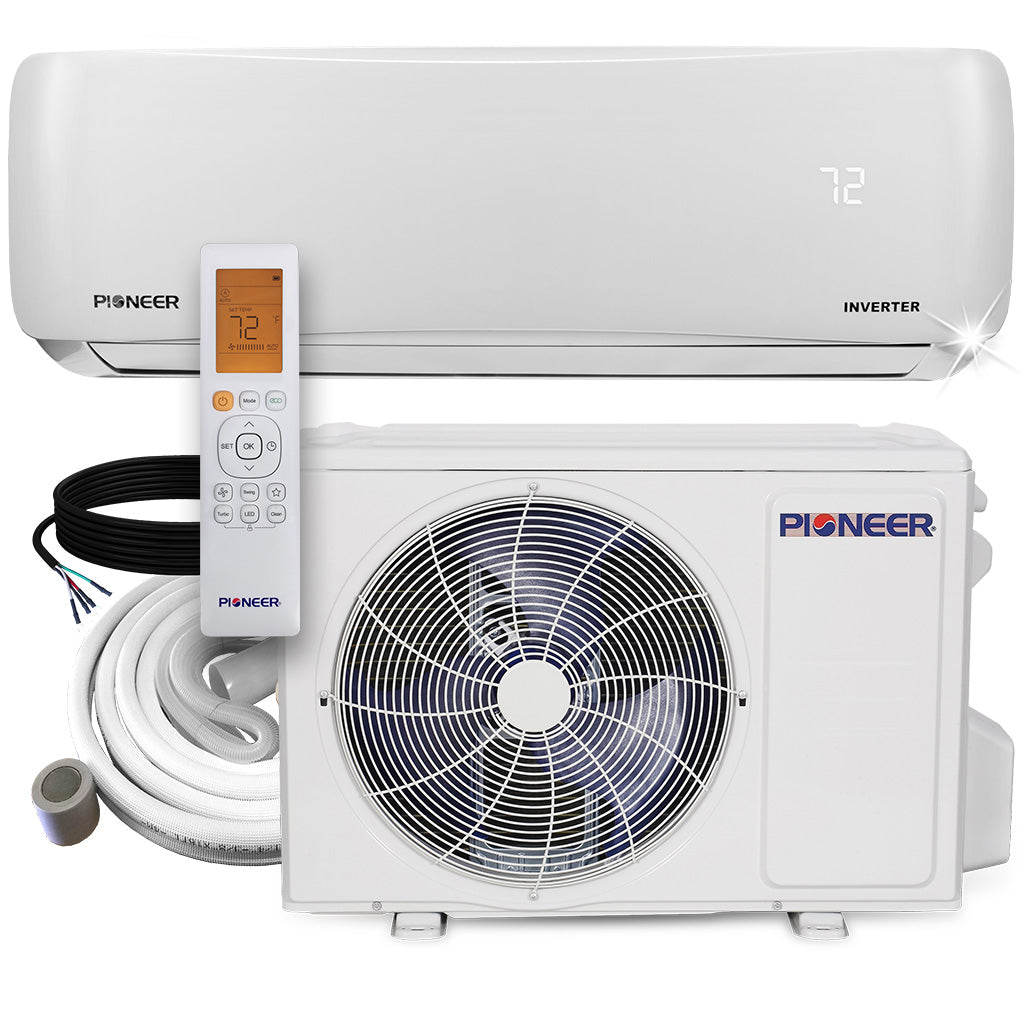

Qué está incluido

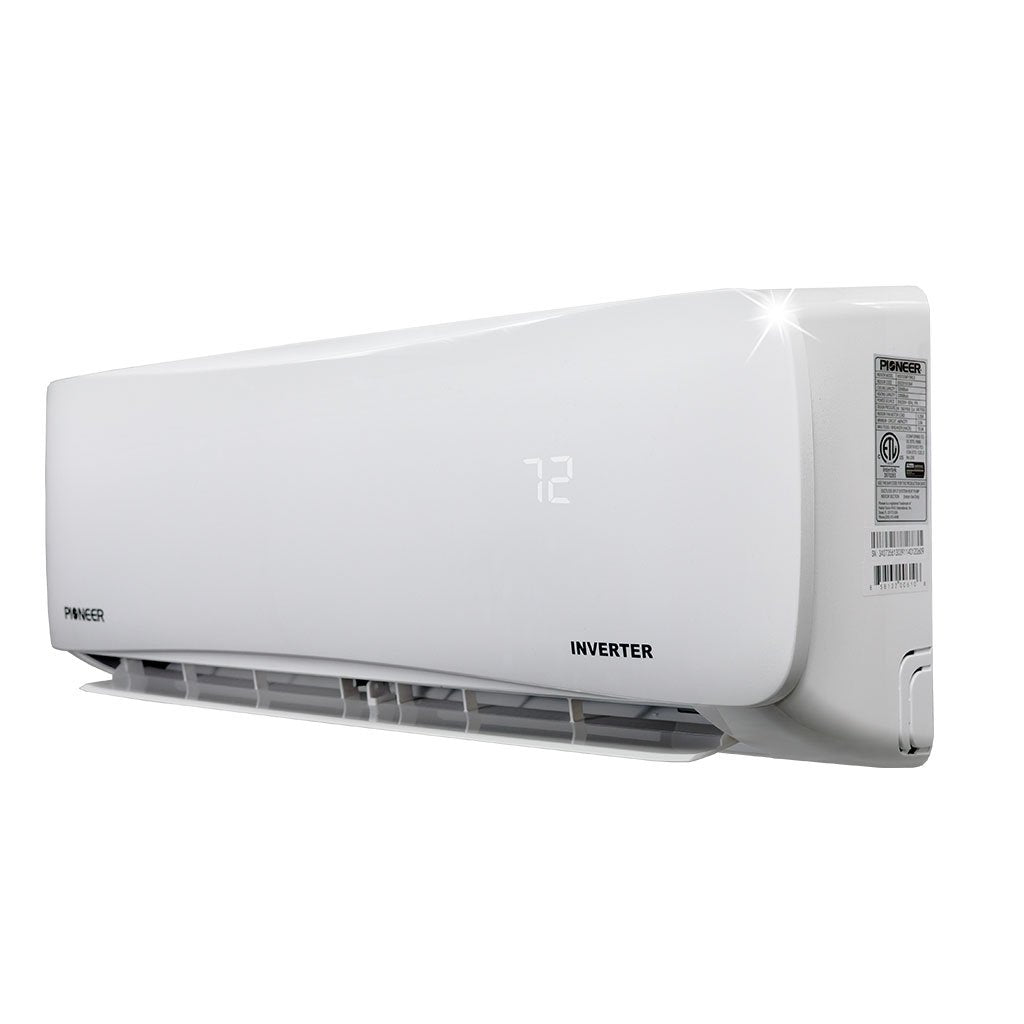

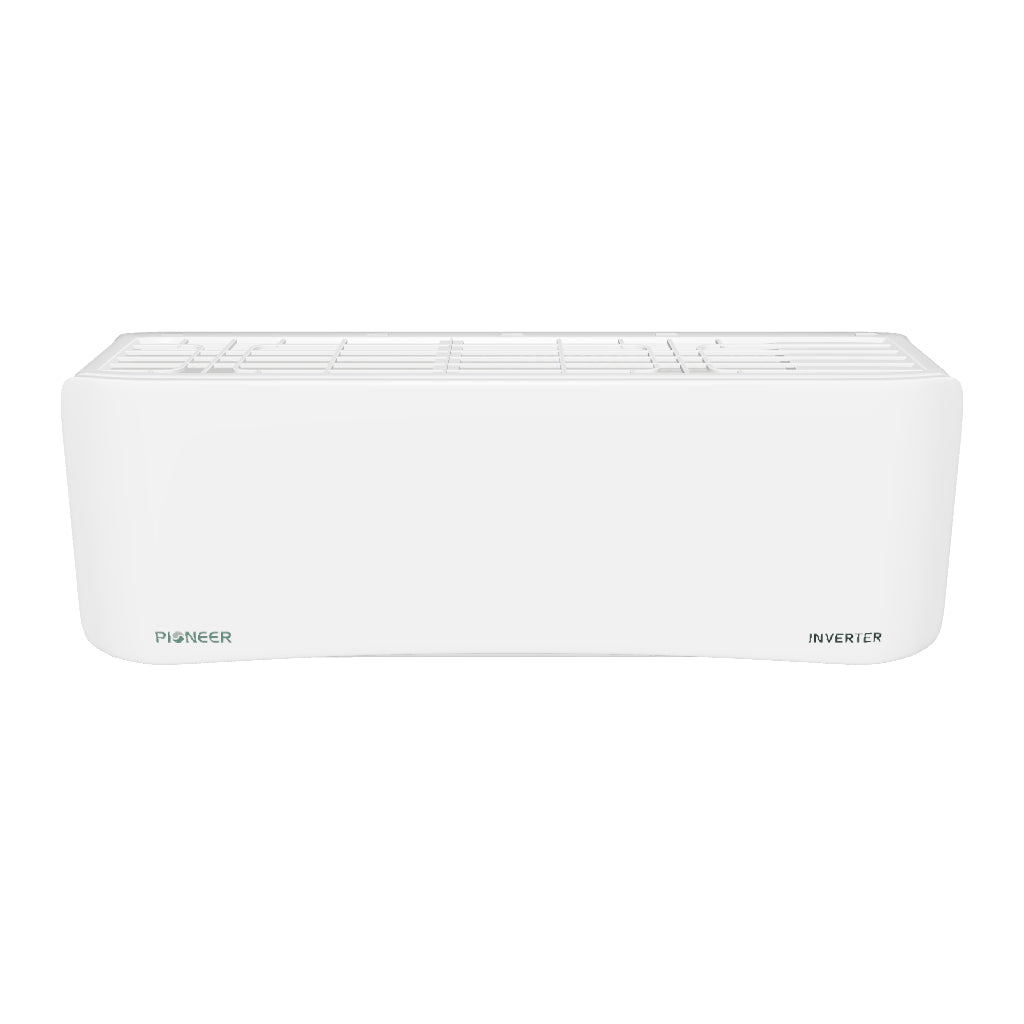

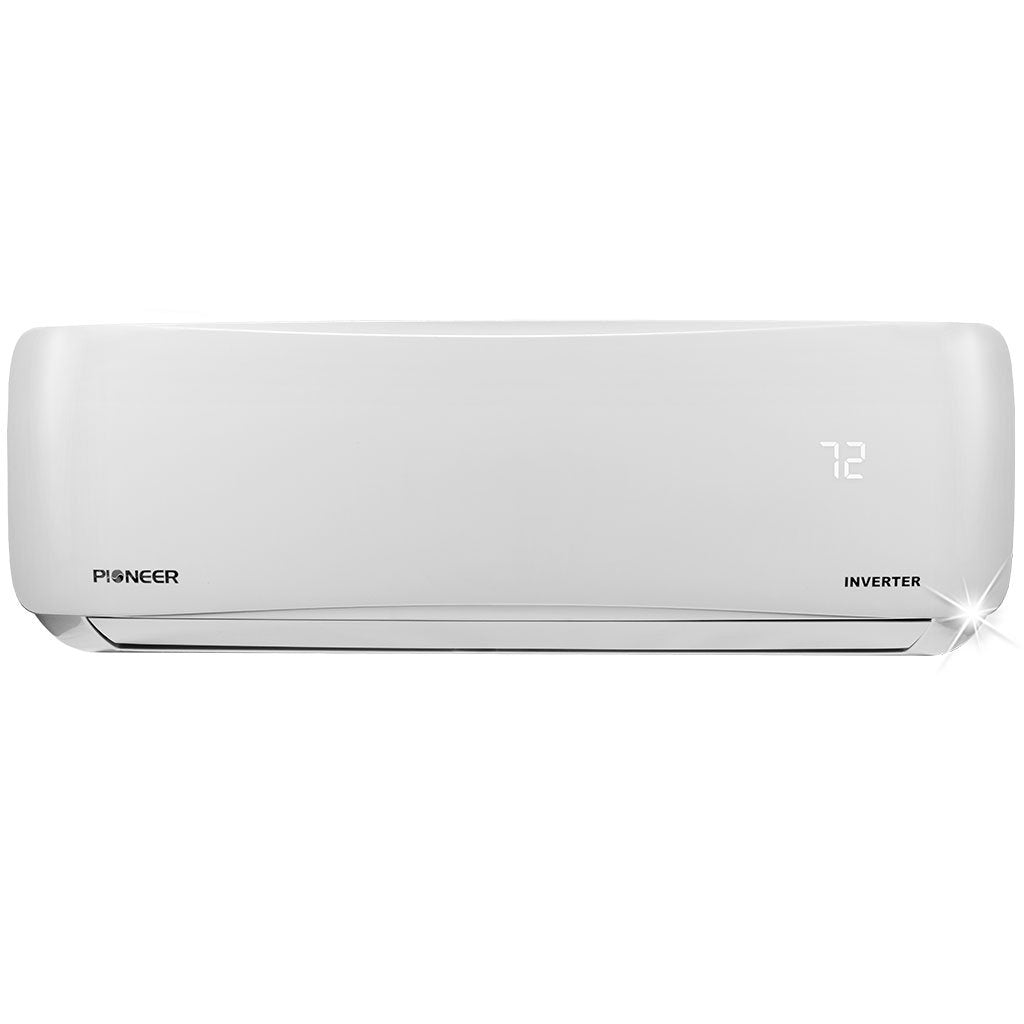

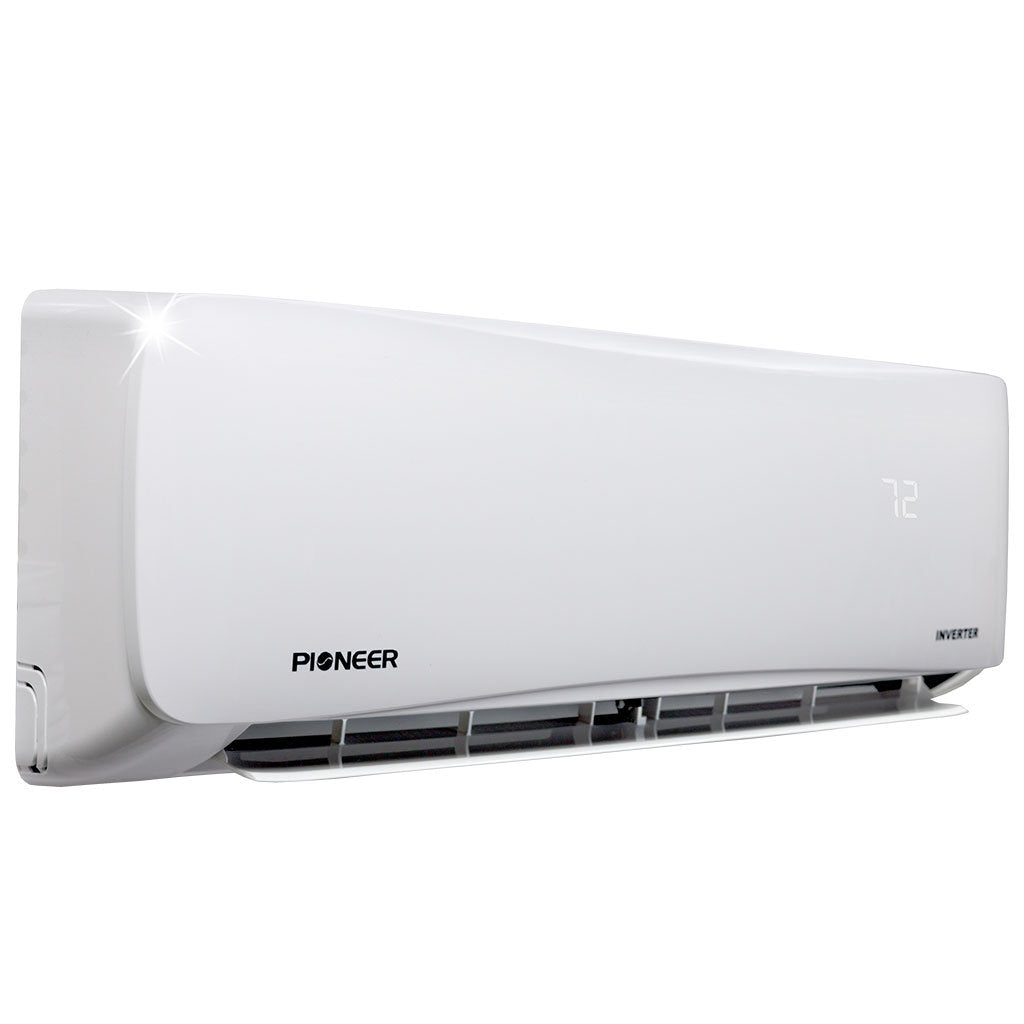

  • Unidad interior

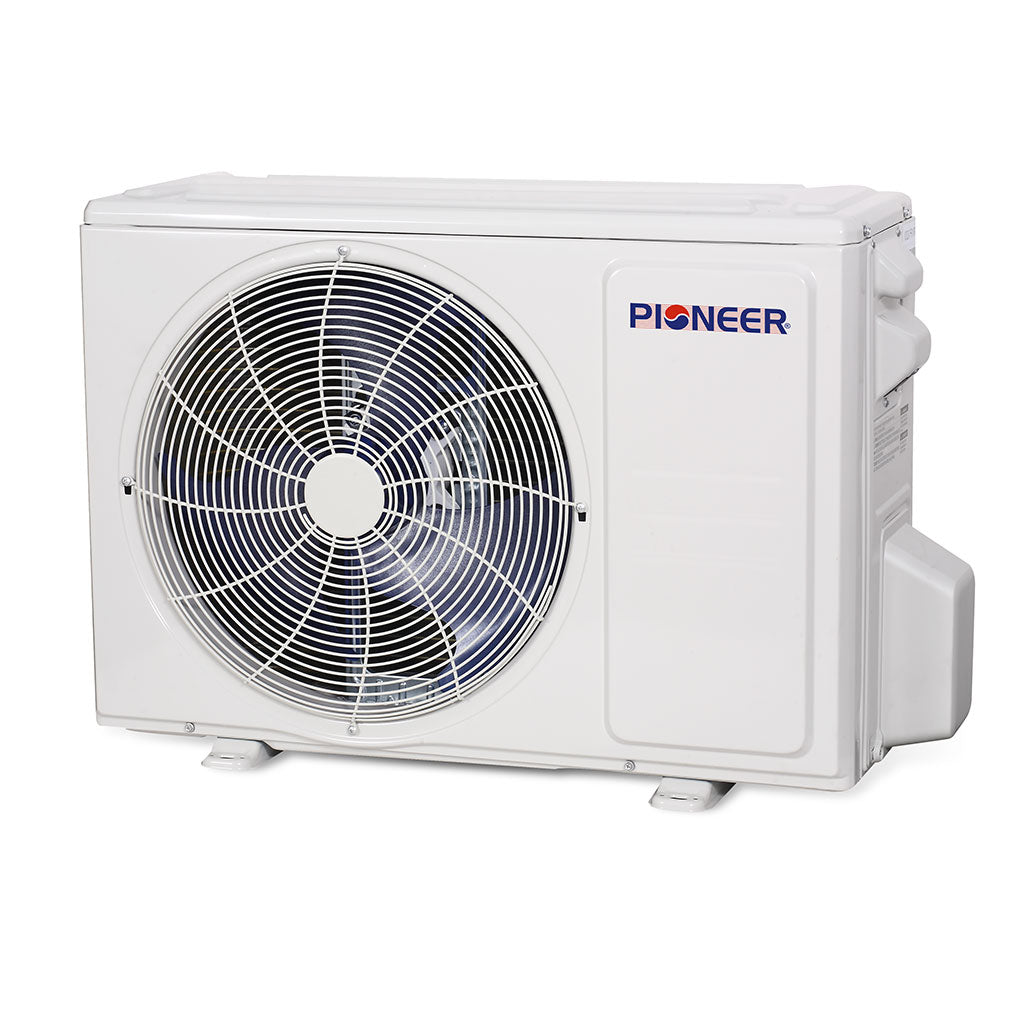

  • Unidad exterior
  • Control remoto inalámbrico

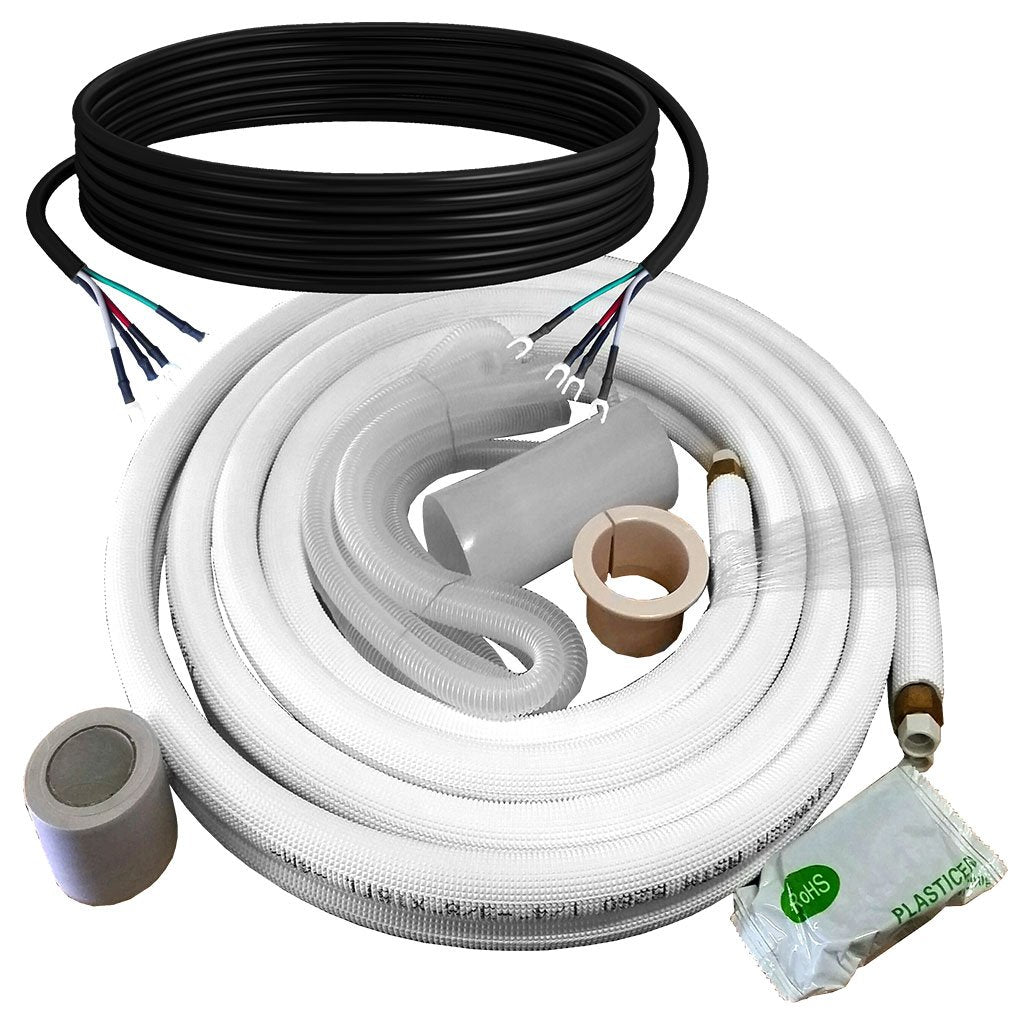

  • Varias opciones de kit de instalación disponibles
  • Sellador de protección contra fugas de conexión acampanada
  • Manual de instalación
  • Manual de usuario
  • Garantía del fabricante

nuestra garantia

  • 5 años de garantía limitada de piezas
  • 5 años de garantía limitada del compresor

Características

[[MODELO 3D]]

[[CARACTERÍSTICAS]]

Información técnica

Certificaciones

Certificaciones Pioneer Mini Split

Datos de rendimiento

  • Fuente de alimentación: 110~120V, 60Hz, 1Ph
  • Capacidad nominal de refrigeración: 12 000 BTU/h
  • Rango de capacidad de refrigeración: 3700~13 000 BTU/h
  • Enfriamiento SEER: 20 BTU/w
  • Refrigeración EER: 10.3 BTU/w
  • Capacidad nominal de calefacción: 12 000 BTU/h
  • Rango de capacidad de calentamiento: 3500~13 500 BTU/h
  • Calefacción HSPF4/HSPF5: 10,5 / 8,4 BTU/w
  • Tipo de refrigerante: R410A/30
  • Área adecuada: 300~450 pies cuadrados

Datos de la unidad interior

  • Número de modelo: WS 012AMFI20HLD
  • Flujo de aire (alto/medio/bajo): 309 / 206 / 176 CFM
  • Nivel de sonido (alto/medio/bajo): 41,5/30,5/26,0 dB(A)
  • Dimensiones netas (WDH): 31.57 x 7.44 x 11.69 pulgadas
  • Dimensiones de la Caja (WDH): 34.45 x 11.22 x 14.96 Pulgadas
  • Peso neto / bruto: 20 / 25 libras

Datos de la unidad exterior

  • Número de modelo: YN012AMFI20RPD
  • Nivel de sonido: 55,5 dB(A)
  • Dimensiones netas (WDH): 30.1 x 11.8 x 21.81 pulgadas
  • Dimensiones de la caja (WDH): 34,8 x 13,25 x 24 pulgadas
  • Peso neto/bruto: 62,2/67,7 libras

Manuales y Descargas

Envío gratis para todos los pedidos superiores a $ 49

ACTUALMENTE ESTAMOS EN LA TEMPORADA OCUPADA, POR FAVOR PERMÍTANOS 1-2 DÍAS HÁBILES MÁS PARA PROCESAR Y ENVIAR SU PEDIDO. GRACIAS POR SU PACIENCIA Y COMPRENSIÓN.

Por tiempo limitado , ofrecemos envío gratis en todos los pedidos superiores a $49 por Standard Ground o entregados por Freight (LTL) a los 48 estados contiguos. La oferta de envío gratuito no se aplica a Alaska, Hawái ni a ningún destino internacional. La elegibilidad para el envío gratuito se indica en la página del producto, arriba del precio.

Haga clic aquí para obtener información sobre devoluciones y reembolsos

Detalles de envío

Solo enviamos a los 48 estados contiguos de los Estados Unidos. No se aceptan envíos a direcciones APO/FPO, AK, HI, PR u otros territorios de EE. UU. Sin envíos internacionales. Debido al tamaño y el peso de nuestro equipo, solo podemos utilizar empresas de transporte reconocidas para el envío. Cada envío será paletizado, amarrado y envuelto en película estirable para protegerlo contra daños durante el tránsito.

A su llegada, puede pedirle al conductor que divida la paleta en cajas de cartón individuales para descargar los productos del camión fácilmente. Generalmente incluimos el servicio de Puerta Elevadora. Esto llegará como entrega en la acera. El camionero descargará las mercancías del camión al nivel del suelo. Si debe tener un servicio de entrega interno, habrá un cargo adicional que debe pagarse por separado y coordinarse con la empresa de transporte. También permitimos la recolección gratuita desde nuestro almacén de distribución principal, ubicado en el área de Miami. El equipo que vendemos no es adecuado para envíos urgentes o de mensajería debido a su peso y al alto riesgo de daños.

Debido al volumen de pedidos superior al esperado y la temporada alta de ventas, los pedidos más grandes pueden tardar entre 3 y 5 días adicionales en prepararse para el envío. Estamos trabajando las 24 horas para enviar todos los pedidos de manera oportuna y nos comunicaremos con usted si hay demoras o preguntas inesperadas.

Preparamos cada envío dentro de las 72 horas posteriores a la recepción del pago ( solo entre semana ). Las empresas de camiones generalmente recogen el mismo día o un día después de que les llamemos para informarle que el envío está listo. El tránsito puede demorar entre 5 y 8 días hábiles y, en casos excepcionales, hasta 12 días .

Proporcionaremos información de seguimiento después del envío. Póngase en contacto con nosotros en caso de retrasos en el envío. REVISE SU INFORMACIÓN CUIDADOSAMENTE PARA ENVIAR LA DIRECCIÓN DE ENTREGA CORRECTA, EL CORREO ELECTRÓNICO ACTUALIZADO Y UN NÚMERO DE TELÉFONO VÁLIDO con su pedido. Alguien debe estar presente para recibir la carga en el momento de la entrega. La empresa de entrega llamará a su número de teléfono para programar una cita de entrega para entregas residenciales. Si su número de teléfono no es válido, la carga no se puede entregar y será devuelta a su cargo dentro de los 3 días posteriores a la llegada. Si la entrega es rechazada o no se puede entregar, se tratará como mercancía devuelta.

Al llegar, cuente todas las cajas y compárelas con el número indicado en el recibo de entrega antes de firmar. Abra las cajas de cartón e inspeccione los productos cuidadosamente para detectar cualquier daño. Todos los productos han sido inspeccionados bajo estrictas instalaciones reguladas por ISO y salen de nuestro almacén en perfectas condiciones. Informe cualquier daño de envío al transportista en el recibo de entrega y presente un reclamo. También contáctenos con la descripción de los daños e imágenes, etc. Aunque es raro, pueden ocurrir ciertos daños en el transporte y estamos aquí para ayudarlo.

Llevamos todas las piezas y componentes de repuesto y servicio necesarios en grandes cantidades y los ponemos a disposición durante y después del período de garantía.

Visto recientemente

QUESTIONS & ANSWERS

Ask a Question
  • Is the total line length of the 10' line set 10' plus the length of the line stubs that are part of the wall unit that get turned and put through the hole in the wall?

    Yes, the pigtail stems on the back of the unit are not counted. The 10' length is the separate lineset.

  • Hello , with the system 12,000 btu system 110v , how long is the supply line and how short???

    You can select the length under "Installation Kit Options" Dropdown menu above the Add to Cart button. We have 10, 16, 25, 33, 50 ft options available.

  • How many amps does the 120 ac unit use at peak uses?

    At peak it is 8.9A. These are slow start units so they peak only at max output, not at startup.

  • what is the difference between net and carton dimensions?

    Net is the unit itself. Carton is with including the box it comes in for shipping purposes.

  • I purchased this unit, I lost the directions to the remote control information, how can I get that information? Thank you

    Sure, here you go: https://www.pdhvac.com/site/downloads/RG66B6(B)BGEFU1_UM.pdf

  • Does a 110-120 v. System . Heat and cool the same as 220-240 v? Or is it better to get a 220v

    There is no real performance-difference between 115V and 230V versions of the same BTU capacity. It all comes down to what you have available or preference. We offer the 115V versions of 9000 and 12000 BTU single-zone wall mounts for those whose panels are limited in adding additional electrical breakers. 230V would generally run more electrically efficiently, but the electrical cost to run either is fairly even.

  • Can this be use for a semi truck

    Certainly, it has been used in that application many times. See this picture: https://www.instagram.com/p/CEFjzYGnZrf/

  • Can the outdoor unit be wall mounted?

    Certainly, you can see our recommended wall bracket for doing by clicking here.

  • How much freon is needed to recharge the unit in the event it becomes discharged?

    The precharged amount for a lineset between 10 and 25 feet is 30 ounces of R410a.

  • How many square feet will this unit serve....heat and air

    This is intended for 200 - 500 square feet roughly.

  • Does the lineset that comes with the kit have pre-flared ends with the nuts on already? in the pics online it looks like that but the installation manual says you have to cut the pipe and flare them yourself? thanks.

    They arrive pre-flared and ready to connect. Manual just shows that in case you want to shorten them or make your own flares.

  • What diameter do I need for the installation kit (copper piping kit) if I am buying the installation kit separately?

    It would be 1/4" - 1/2".

  • Is this model Energy Star Rated?

    It is not, the equivalent model that is Energy-Star rated would be located here.

  • What gauge wire from the breaker is recommended for this unit?

    This would use 12 AWG wire (20A breaker).

  • Does this unit have to be evac? Or is it connect and its ready to run.

    You would need to evacute the lines to verify no leaks and remove contaminants before releasing the refrigerant.

  • Can the exterior unit be laid on its side?

    It cannot, it must be upright at all times.

  • do this unit can be cotrolled from me phone?

    Yes, it would require this smart controller module.

  • Hi- does this website provide installation along with purchase?

    We do not provide installation but you can provide us your zip code and we can see if there are any recommended installers nearby that you can reach out to.

  • Is there any kind of condensate pump available if gravity drain is not an option?

    Yes there is one available here.

  • 20 amp 110 circuit ok

    Yes this unit takes a 20A breaker.

  • can line set go on either side of wall unit?

    Yes, they can exit from the back through a left or right side hole. There are also knockouts on their side for a left or right side exit instead.

  • Will this unit work off grid with solar power? What would the system requirements in terms of energy be?

    This can be done, it can run on a 115V storage or generator. Please refer to the tech spec sheet for wattage and power usage and requirements.

  • is the installation the hose the connects both units

    Yes, this is the copper lineset and communication wire that connects the two together, as well as the drain hose for the indoor unit.

  • What size room is this designed for?

    We recommend this unit to be used for rooms between 200 and 450 square feet.

  • How is condensate drained from interior air handling unit?

    The condensation collects in the drain pan where it then drains out via gravity through the rear condensate drain tube.

  • Are there third party wifi thermostats comparable with this unit?

    This unit couldn't take a wired thermostat at this time. For a similar sort of functionality, you can consider the Cielo Smart Controller device which is wireless but would be compatible with this unit.

  • I have to install on an 8" thick concrete wall. How long are the tubing stubs that come already attached to the indoor unit?

    The system comes with roughly 14" of pre-attached pigtails on the back of the air handler.

  • How do I know how long of a line I need?

    This would generally be the distance between where you are planning to mount the indoor and outdoor units. The lineset will be connecting the two together.

  • Can I mount the wall mount 12000 indoor unit on a wall that is 52" the angled to 8'? I would have it mounted at 50" plenty of airflow above it.

    The system needs to be on a completely vertical and level wall, for proper drainage purposes as it drains via gravity.

  • Can a ten foot line set be used on my Pioneer 12000btu 115V mini-split?

    Yes, this system can use anywhere from 5 up to 80 ft of lineset.

  • Is there any warranty coverage on the compressor?

    The system comes with 5 years of coverage on the compressor upon registration.

  • what is the amperage of the 110vac 12,000 btu model?

    This particular unit takes a 20A breaker. It draws 8.9A during operation.

  • Is Dehumidification provided on this unit?

    Yes this system comes with DRY mode which is a dehumidification mode that will drop humidity quickly, however it is not a mode designed to run for long periods as it can also drop temperature quickly.

  • During final hook up of refrigeration lines, must the system/lines be evacuated prior to charging the refrigerant?

    The way it works is that the outdoor condensing unit is pre-charged with enough refrigerant R410A to accommodate refrigerant lines that are up to 25 ft long. You will need to vacuum the lines before releasing the refrigerant housed within the outdoor unit.

  • Does this unit plug into a 20 amp 110 outlet?

    This requires being hardwired to a dedicated 20A breaker, it does not plug into a regular household outlet.

  • How long is power cord on 110 unit?

    This does not come with any sort of power cord or electrical wire as this must wired to its own dedicated breaker.
    The communication cable between indoor and outdoor unit would be the same length as the installation kit chosen.

  • can the refrigerant lines be run horizontal or close to at any point

    This would not be an issue.

  • What are the lowest temperatures that the heat pump will still work. Temperatures get down to -20 Fahrenheit a couple of times/year.

    This particular system will heat and cool down to +5°F outside temperatures.
    You can also consider our Inverter++ line, which HEATS down to -13°F.

  • What's typical shipping times

    Orders are shipped out within 1-2 business days and transit times can be found here.

  • Does this 12,000 btu 19 seer 115 v unit come with the refrigerant lines, wiring and drain line, if so, are they already attached to the inside unit. If you need to buy the installation kit, how much for a 16' long

    The installation kit length options would be selected on the dropdown menu above the "Add to cart" button. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty. There is approximately 14" of pre-attached copper lines on the rear of the unit. The standard length of the installation kit is 16 ft.

  • can i install this myself?

    You can DIY as long as the system is installed carefully and correctly abiding by all steps in the instruction manual.

  • Will the unit self start after a power interruption? Would like to set the temperature and leave for the summer.

    Yes, this system is equipped with auto-restart with memory for power outages.

  • Can you send some info for my neighbor? He is interested but elderly and needed help with this.

    Please feel free to browse our technical brochure which has all of the relevant information about features and specifications.

  • How heavy is the wall mounted unit? My home has old lathe and plaster walls. Hard to wall mount many things

    20 lbs.

  • Can the line sets. electrical , and condensate line exit the unit from the side of the evaporator rather than thru a hole in the wall directly behind the unit? M My situation is that I do not have an exterior wall to mount the evaporator. I need to expose the mentioned lines on a wall under the most inconspicuous cover.

    Yes, there are knockouts on either side of the cabinet to facilliate a left or right side piping exit instead of rear.

  • How do I turn on freeze protection mode... where the unit would turn on to keep the room temp above about 46 degrees?

    To enable FP mode you would put the unit on heat mode, then take it to 62F, and then double tap the down arrow on your remote.

  • How many amps does this unit pull?

    10.6A in cooling and 10.3A in heating. For all relevant specs, please see the technical brochure.
