Pioneer® Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Pioneer® Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit
Out of stock
-
Estimated delivery if ordered today: Jul 18 - Jul 22
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Overview
Summary
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 8.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode

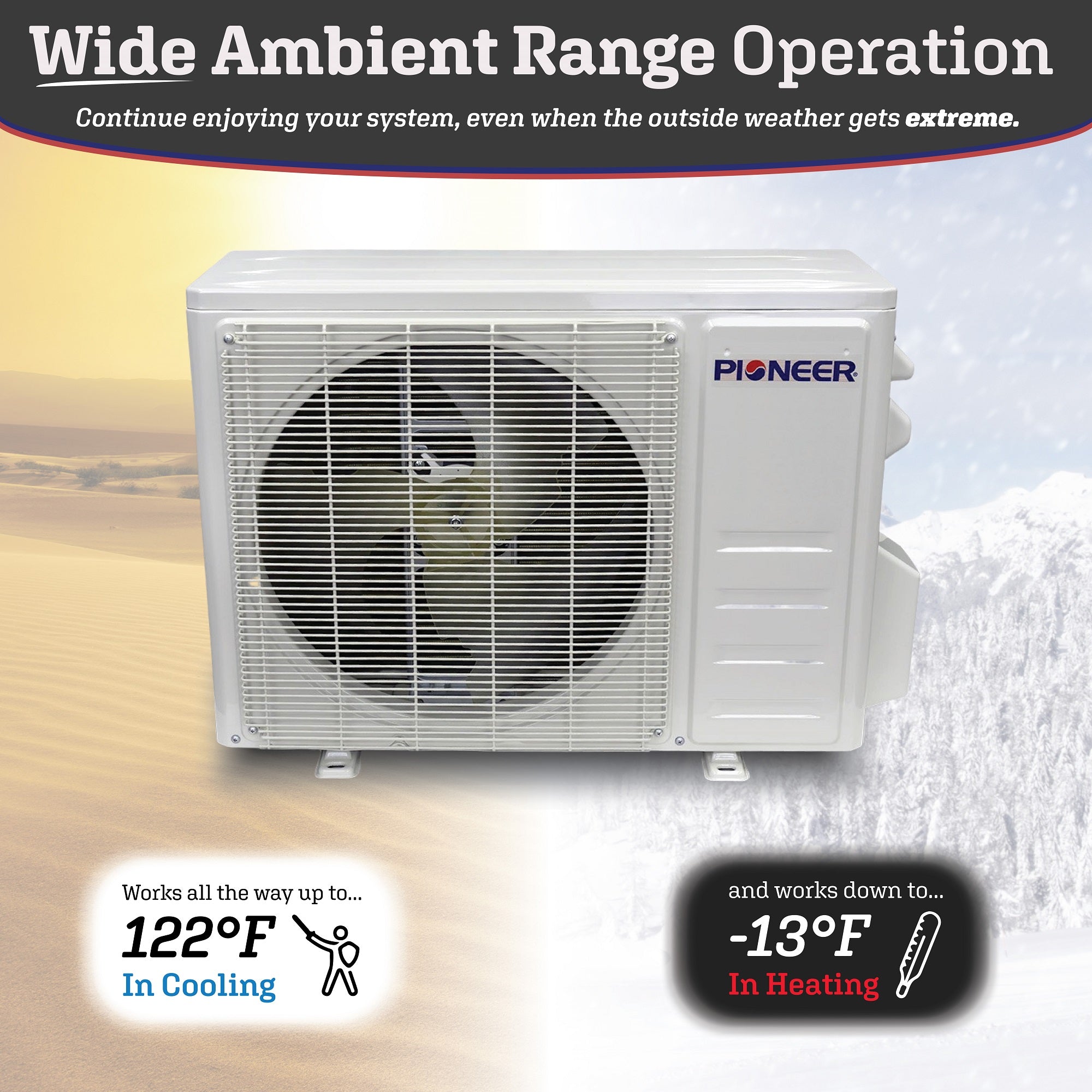

- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $63.00
- Heating: $201.00

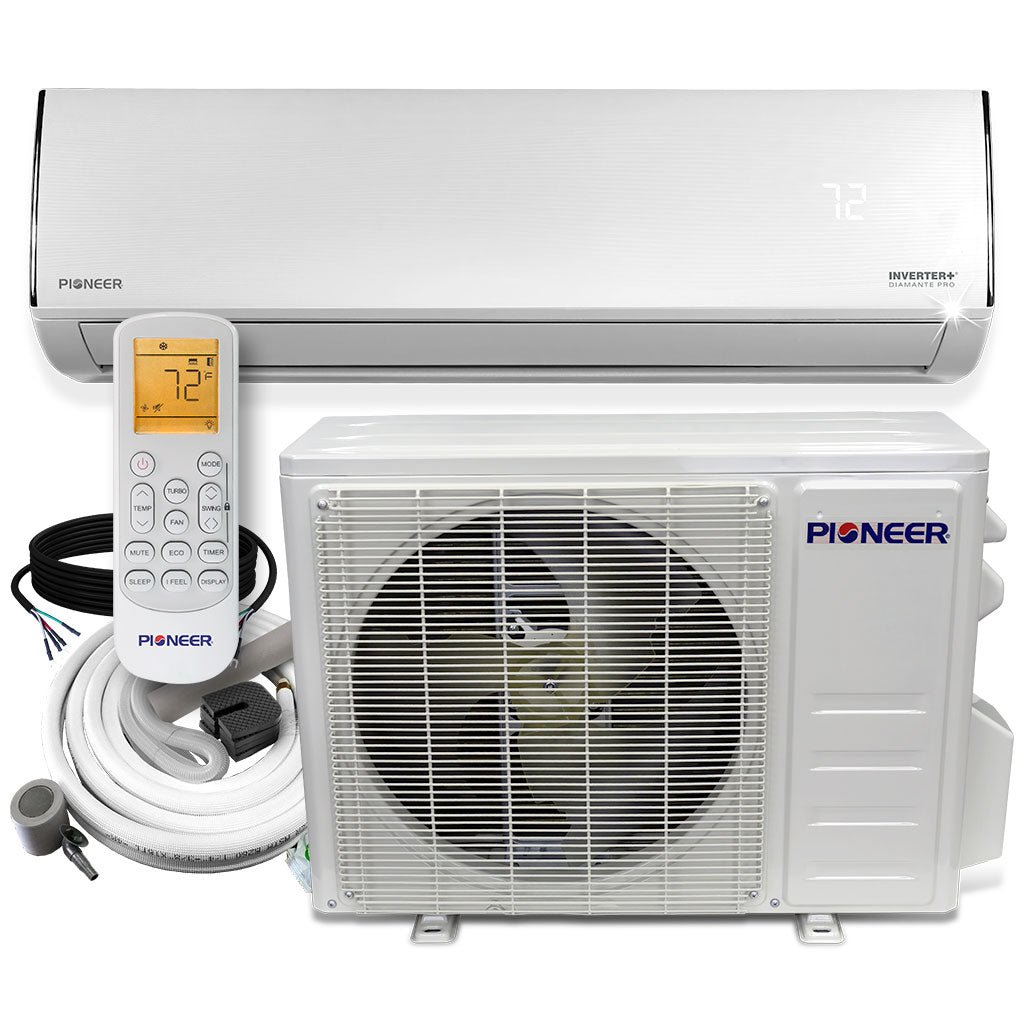

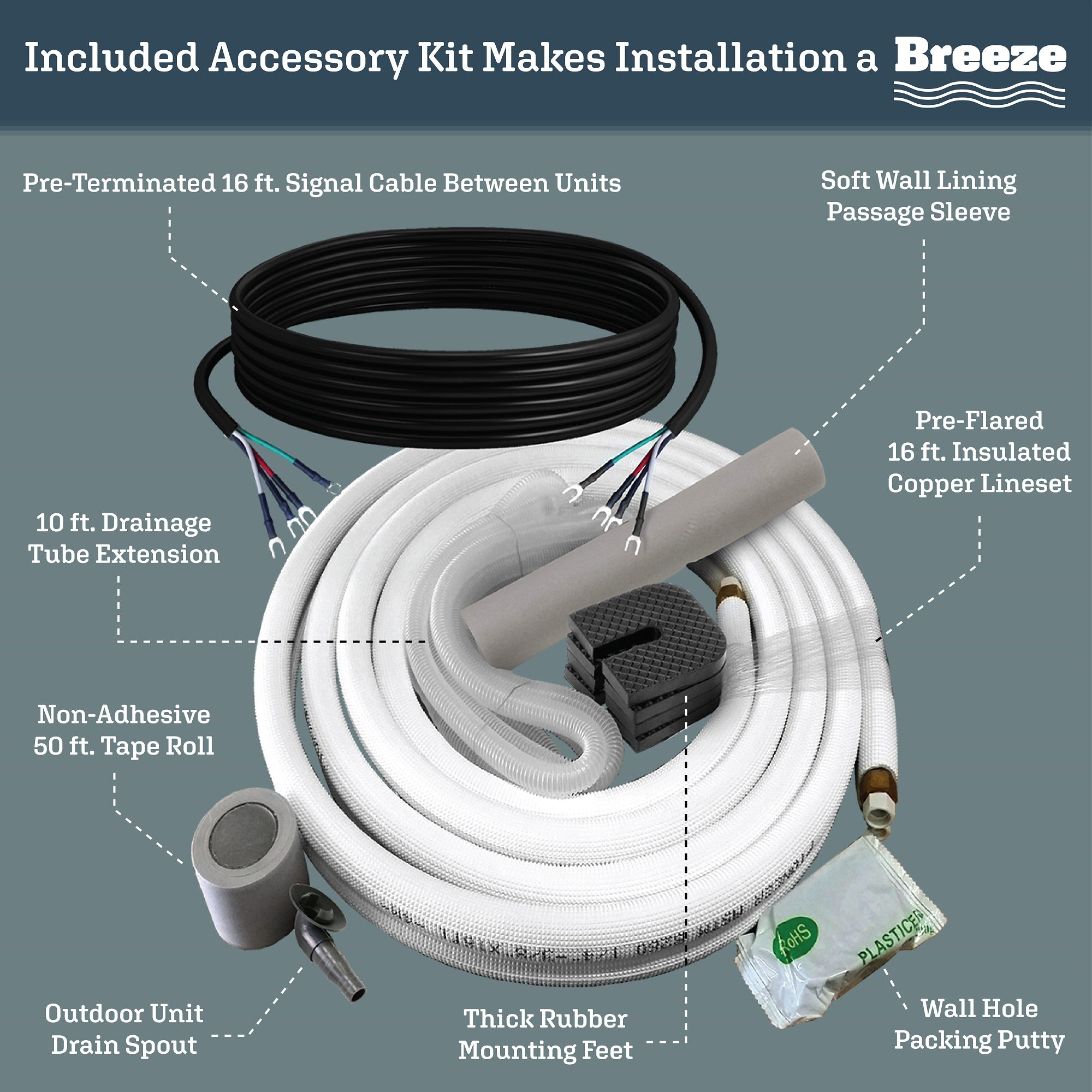

What's Included
- Indoor Unit
- Outdoor Unit

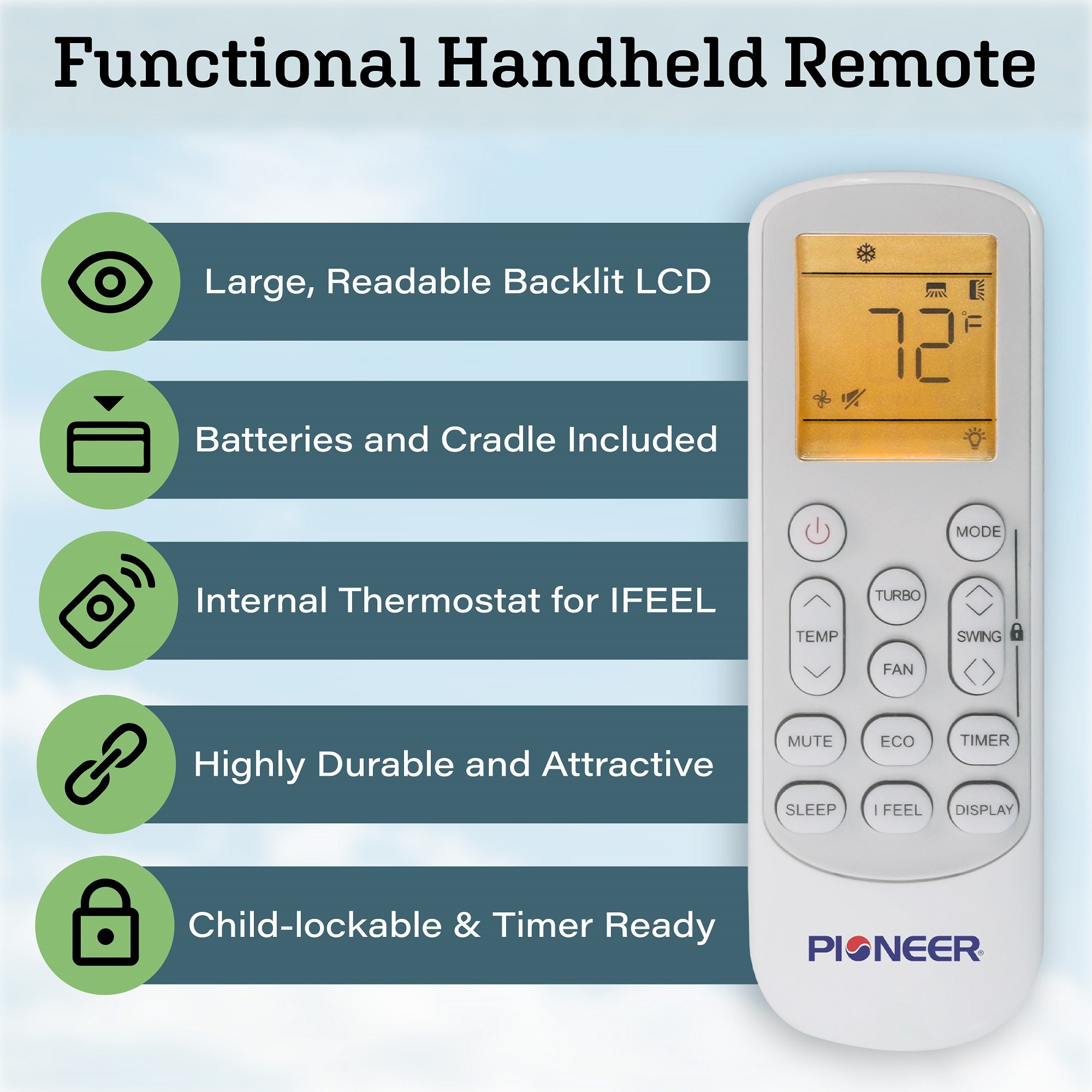

- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
[[FEATURES]]Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,700~9,900 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 3,000~11,000 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 1.75 W/W
- Refrigerant Type: R410A
- Suitable Area: 100~350 Sq.F
Indoor Unit Data
- Part Number: WT009GLFI19HLE
- Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
- Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
- Net / Gross Weight: 19.8 / 26.5 lbs
Outdoor Unit Data
- Part Number: YN009GLFI19RPE
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-1/8 x 11-3/8 x 19-5/8 Inches
- Carton Dimensions (WDH): 33 x 13-3/8 x 21-5/8 Inches
- Net / Gross Weight: 48.5 / 57.3 lbs
Manuals & Documents
Questions & Answers
Have a Question?
-
is there a pdf download for the Infrared Remote manual
See here starting at Page 9: https://www.pdhvac.com/site/downloads/manuals/WYT-UMIM-2020.pdf
-
I have received the PIONEER® WYT SERIES 9,000 BTU 19 SEER 230V WITH 16 FT. KIT, how do I order the wifi part?
It is available here.
-
I have received the PIONEER® DIAMANTE SERIES 9,000 BTU 19 SEER 230V WITH 16 FT. KIT, how do I order the wifi part?
WiFi module available here.
-
What is the running load amps FLA?
Please see our technical brochure for amperage and electrical info: https://www.pdhvac.com/site/downloads/brochures/WYT-19-2020.pdf
-
how many square feet will this unit heat and cool
For typical applications, we recommend this for 0 - 350 square feet.
-
how much clearance is required between top of unit and ceiling
We recommend 6 inches of clearance.
