- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
- Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System

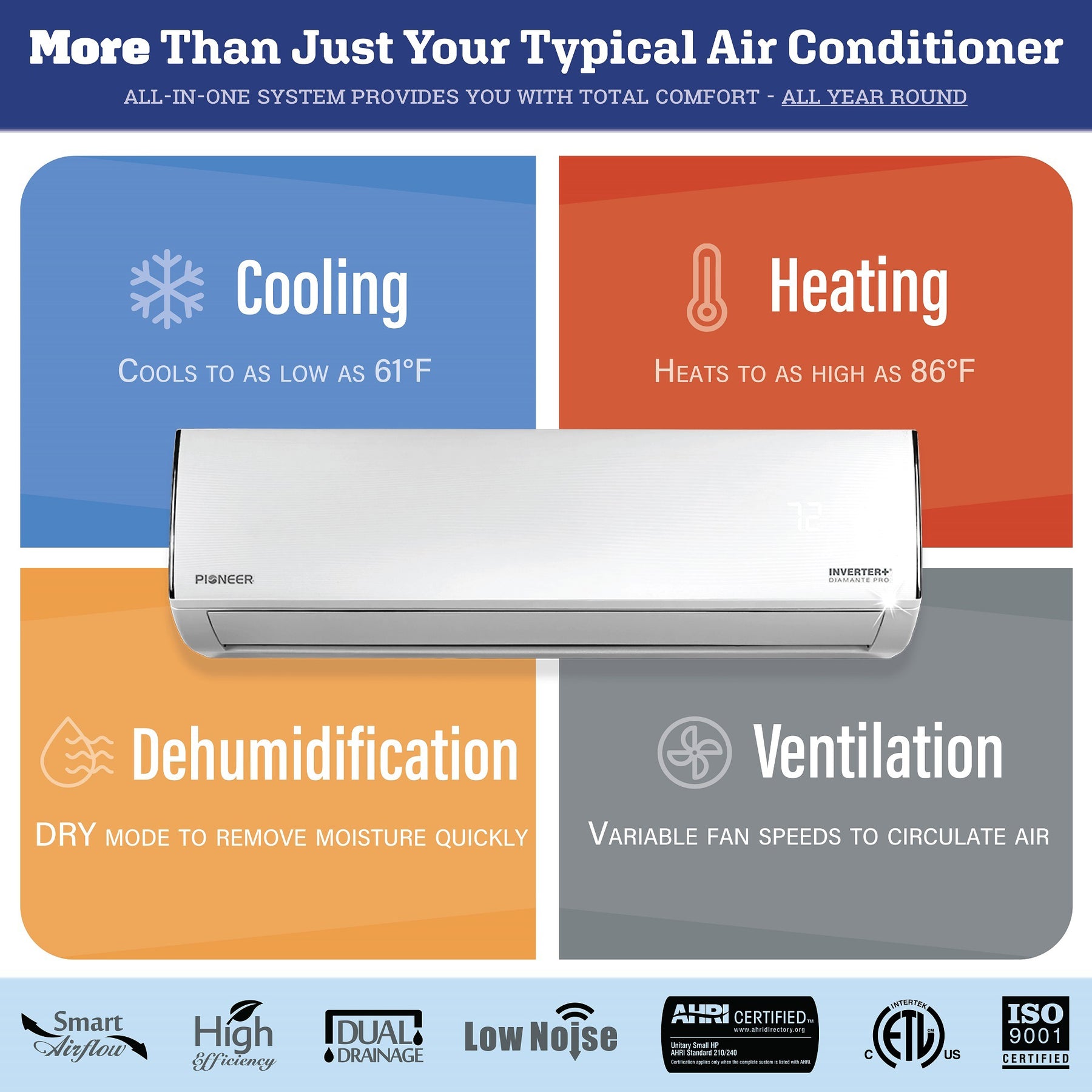

- Variable Speed DC Inverter Operation Mode

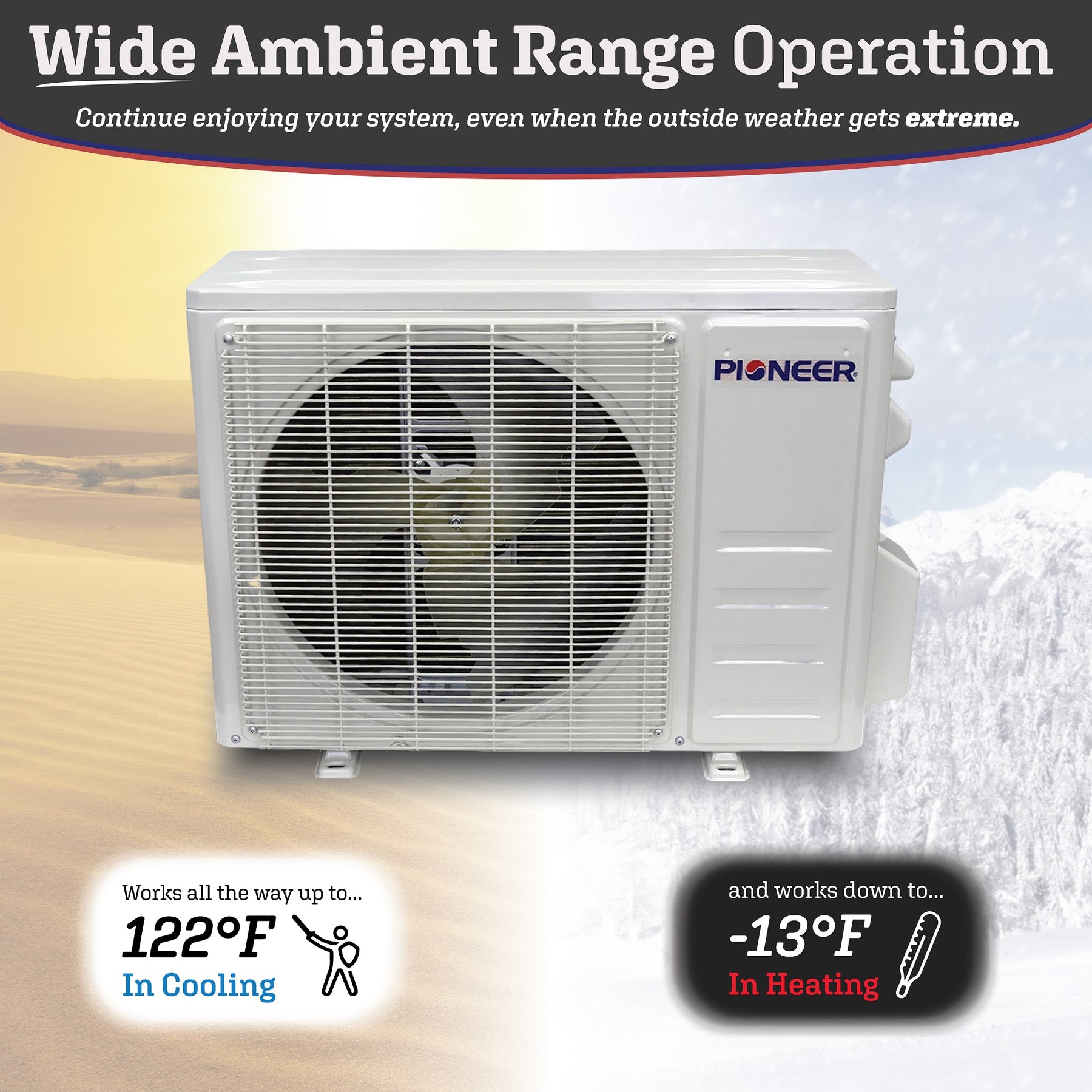

- Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $79.00
- Heating: $254.00
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

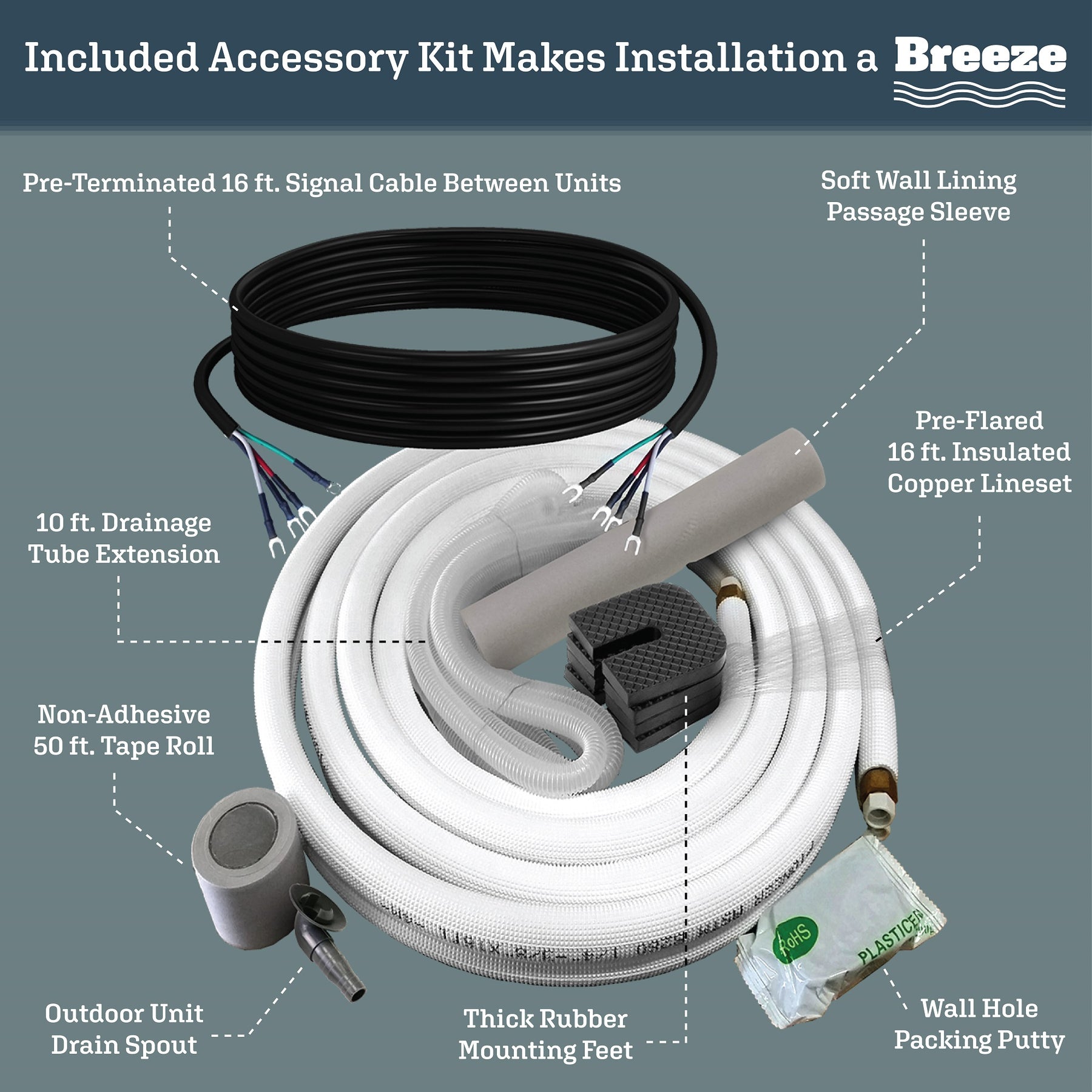

The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

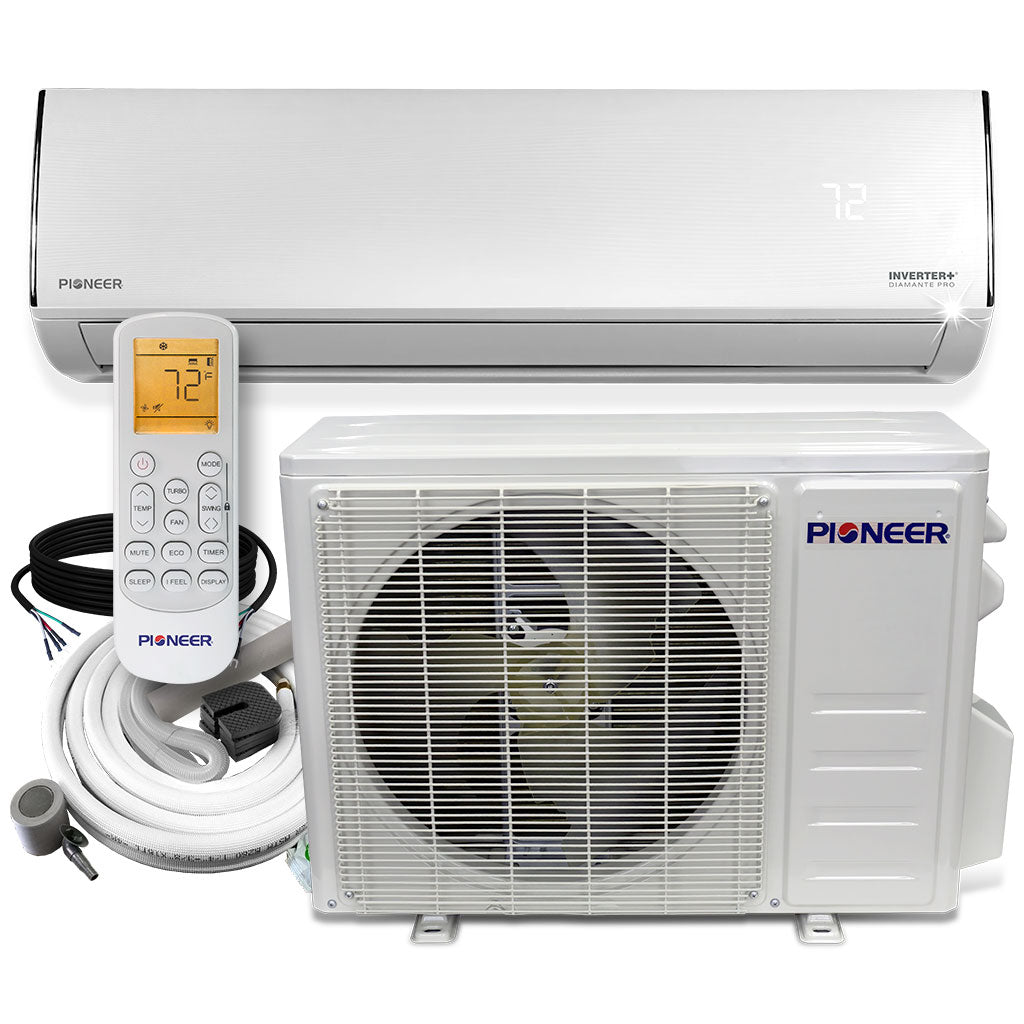

- Indoor Unit
- Outdoor Unit

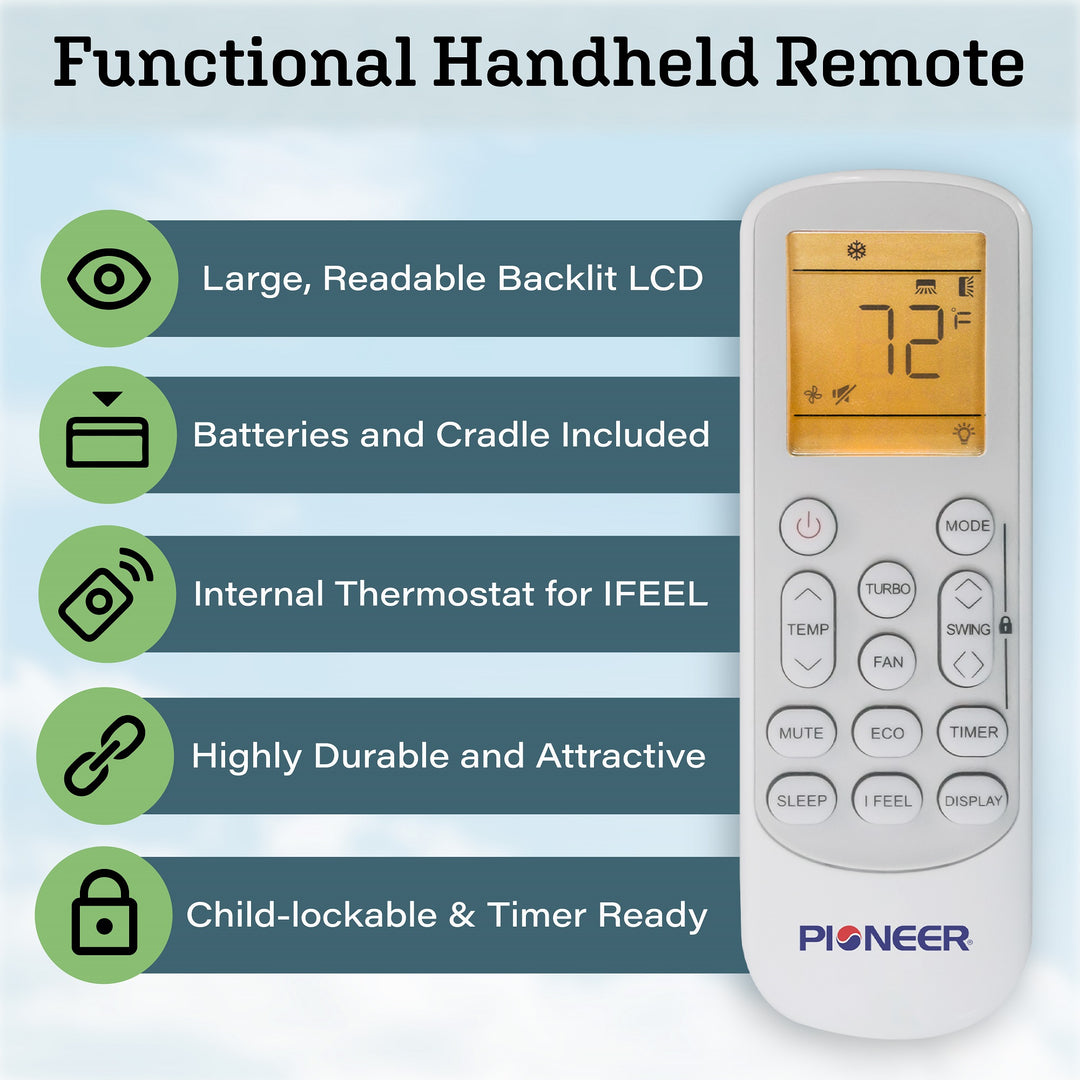

- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
- 5 years Warranty for Parts
- 5 years Warranty for Compressor

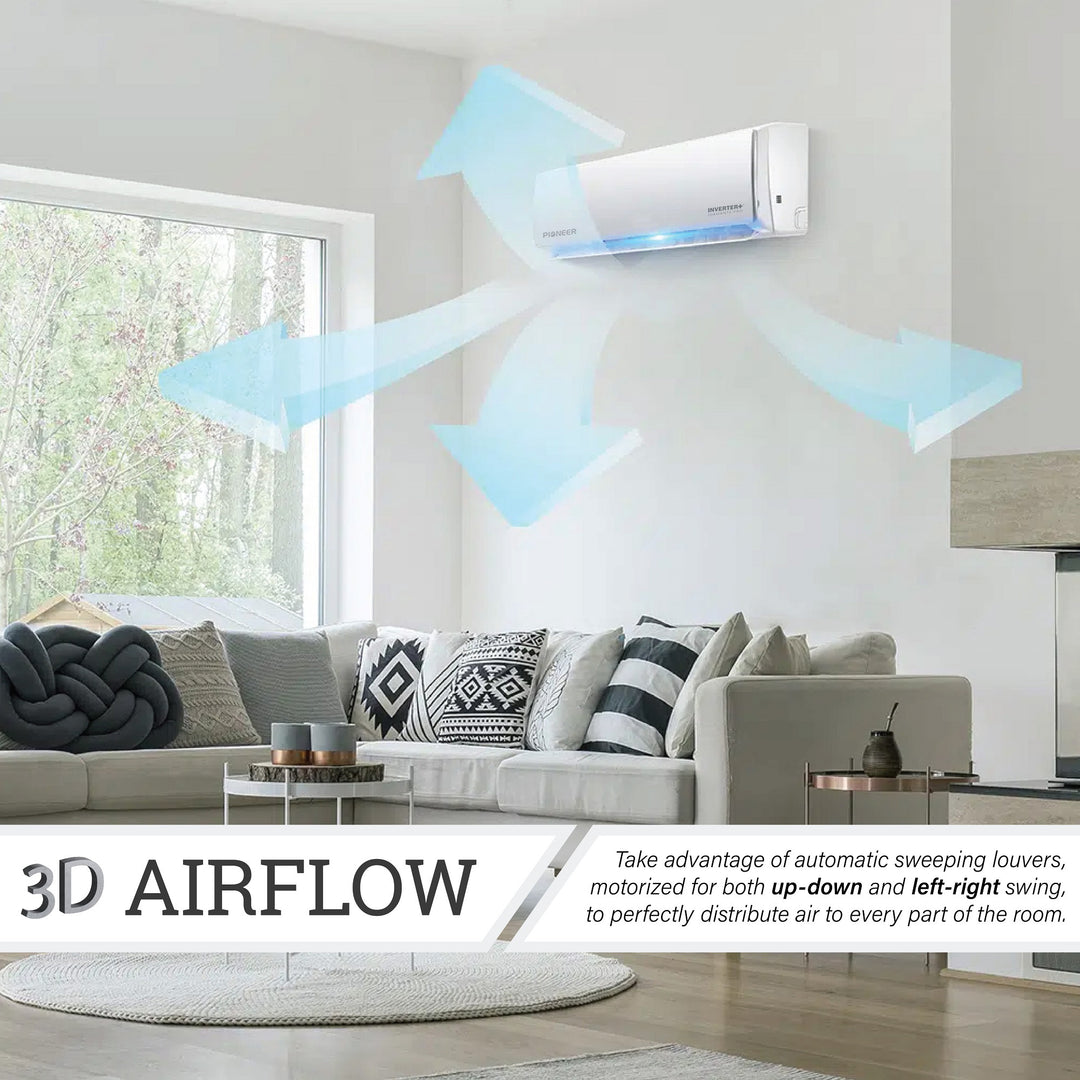

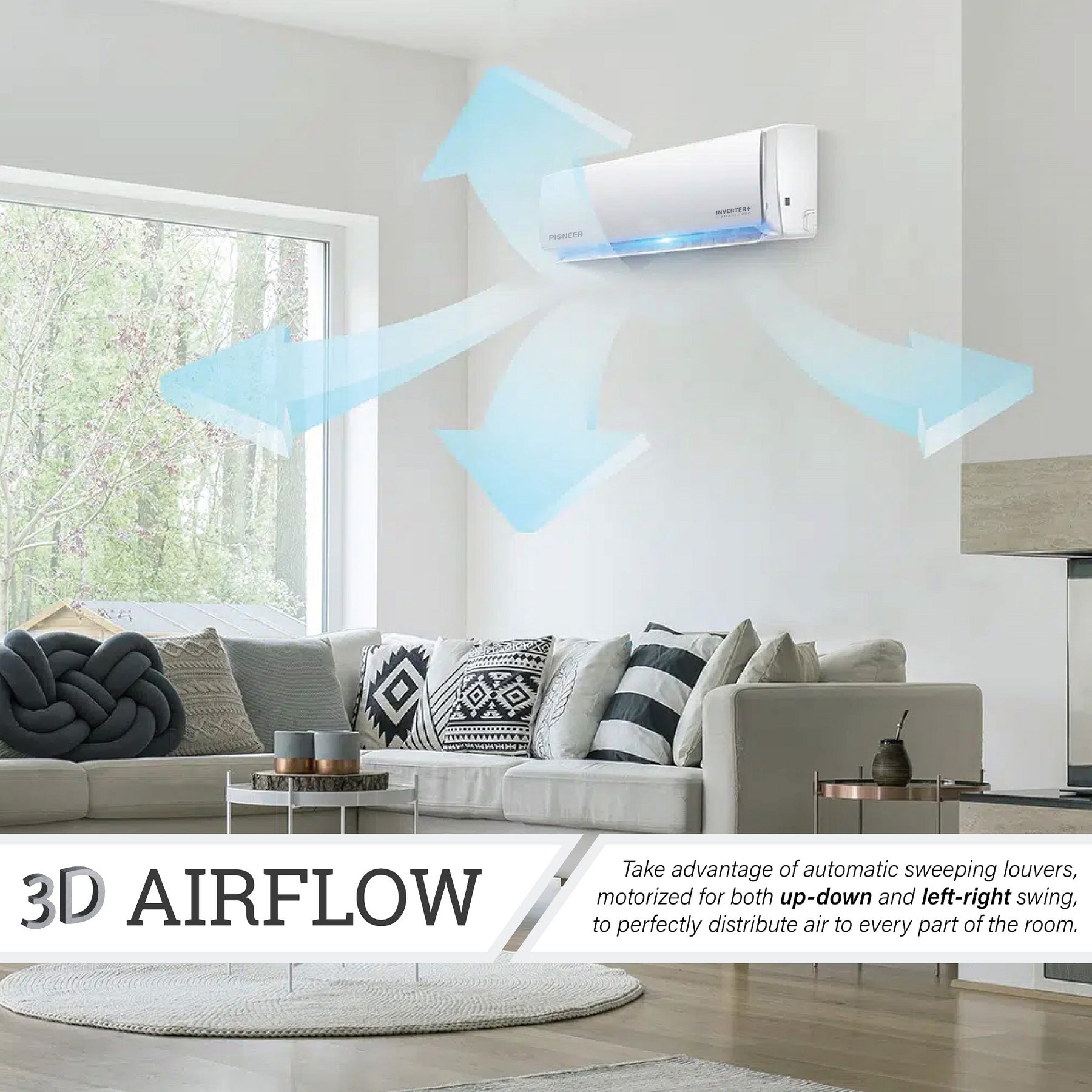

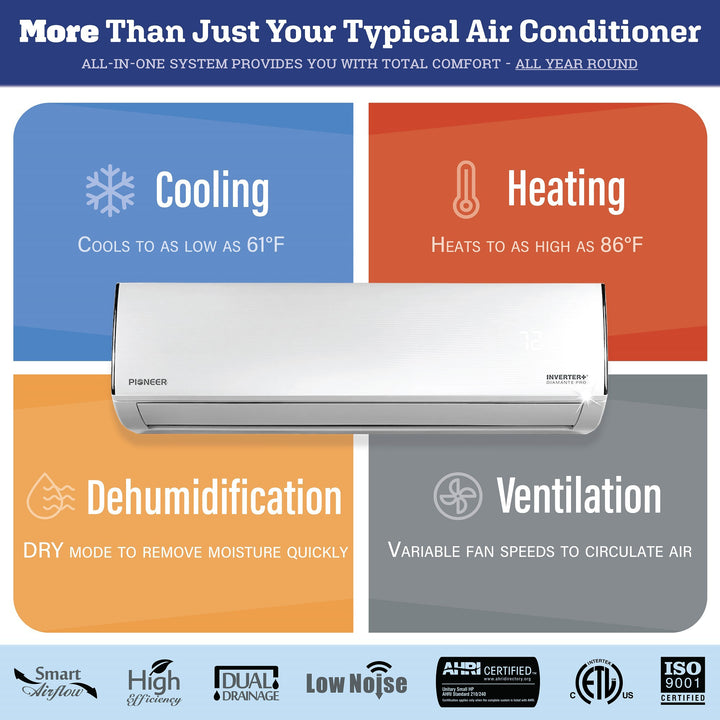

- Dual Swing
- Dual Drainage
- Low Noise
- High Efficiency
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,600~13,200 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 12,200 BTU/h
- Heating Capacity Range: 3,700~13,500 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
- Refrigerant Type: R410A
- Suitable Area: 200~450 Sq.F
Indoor Unit Data
- Part Number: WT012ALFI19HLE
- Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
- Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-3/8 Inches
- Net / Gross Weight: 19.8 / 26.5 lbs
Outdoor Unit Data
- Part Number: YN012ALFI19RPE
- Breaker Needed: 20A (single-pole)
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches
- Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches
- Net / Gross Weight: 55 / 66.1 lbs
