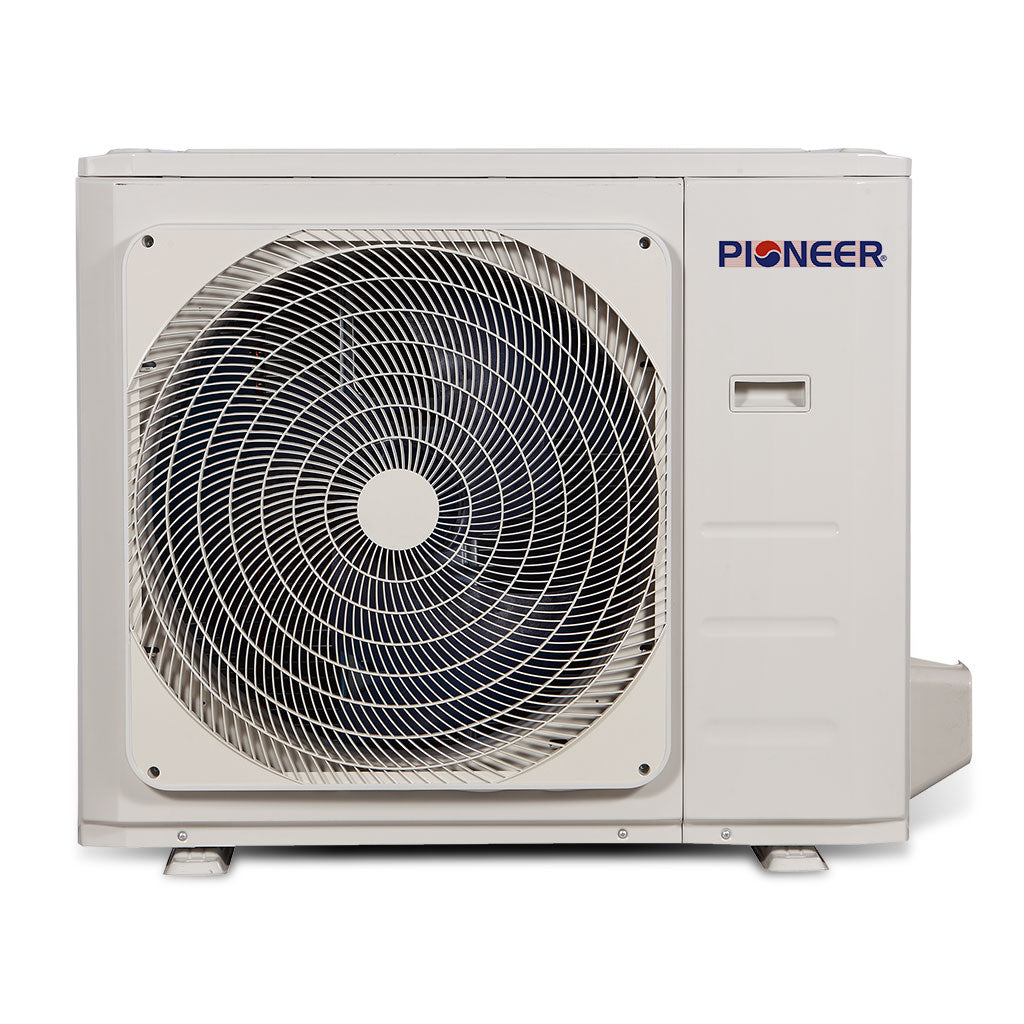

Pioneer® Triple (3) Zone Quantum Series Outdoor Section 23.5 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V

SKU: YN030GMFI22M3E
Pioneer® Triple (3) Zone Quantum Series Outdoor Section 23.5 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V

Pioneer® Triple (3) Zone Quantum Series Outdoor Section 23.5 SEER2 Multi Split Inverter++ Energy-Star Air Conditioner & Heat Pump 230V

SKU: YN030GMFI22M3E

  • Free Shipping for Orders Above $49
  • Wholesale Price Directly From Factory
  • Secure and Versatile Payment Options
  • In stock, ready to ship
  • Inventory on the way

Regular price $2,030.00 Sale price $1,728.00 Save $302
/

THIS IS AN OUTDOOR SECTION ONLY, YOU NEED TO ALSO PURCHASE A COMPATIBLE INDOOR SECTION IN ORDER TO HAVE A COMPLETE WORKING SYSTEM.

Overview

Summary

  • OUTDOOR SECTION ONLY for Triple (3) Zone Quantum/Free-Match Series
  • Ultra High Efficiency DC Inverter++ version
  • Cooling capacity: 27,000 BTU/H Nominal (Range: 8,500 MIN ~ 32,000 MAX) with 23.5 SEER2 / 12.2 EER2 efficiency
  • Heating capacity: 28,000 BTU/H Nominal (Range: 8,200 MIN ~ 35,000 MAX) with 9.2 HSPF2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Factory charged for up to 25’ line set per circuit
  • Whisper Quiet Operation
Refrigerant

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Communication Protocol: Current Loop
  • Min-Max Load Attached: 18,000~36,000 BTU/h
  • Cooling Rated Capacity: 27,000 BTU/h
  • Cooling Capacity Range: 8,500~32,000 BTU/h
  • Cooling SEER2 (Ductless): 23.5 BTU/W.h
  • Cooling EER2 (Ductless): 12.2 BTU/W.h
  • Heating Rated Capacity: 28,000 BTU/h
  • Heating Capacity Range: 3,690~32,860 BTU/h
  • Heating HSPF2 (Ductless): 9.2 BTU/W.h
  • Refrigerant Type: R410a
  • Suitable Area: 800~1,200 Sq.F
  • Sound Level: 60.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
  • Net / Gross Weight: 140 / 151 Lbs



Matching Indoor Models

Triple Zone Combinations

Rating Two Units Three units
Wall: 9 + 9 + 9 9 + 9 9 + 9 + 9
Ducted: 9 + 9 + 9 9 + 12 9 + 9 + 12
  9 + 18 9 + 9 + 18
  12 + 12 9 + 12 + 12
  12 + 18 12 + 12 + 12
  18 + 18


9,000 BTU Compatible Units

12,000 BTU Compatible Units

18,000 BTU Compatible Units

Min. / Max. Loading

18,000 / 36,000 BTU/h.

Notes

Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.

With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.

For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.

Manuals & Downloads

Free Shipping For All Orders Over $49

WE ARE CURRENTLY IN THE BUSY SEASON, PLEASE ALLOW US 1-2 MORE BUSINESS DAYS TO PROCESS AND SEND OUT YOUR ORDER. THANKS FOR YOUR PATIENCE AND UNDERSTANDING.

For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.

Click here for information on Returns and Refunds

Shipping Details

We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.

Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.

Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.

We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.

We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.

Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.

We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.

Recently viewed

QUESTIONS & ANSWERS

Ask a Question
  • Can you mixed a ducted head with two high wall heads

    Yes you absolutely can.

  • Does the Indoor unit package come with the same length wire, as the copper conduit; needed to connect it to the Outdoor unit?

    Yes, same length that is chosen for Installation Kit Options".

  • Can I run 1 18000 btu indoor unit with the triple zone outdoor unit by itself and add a 9 k later or do I need to add it at time of install

    This would be completely fine to do. You can run this system with only one 18K load attached.

  • How do you connect the 18K wall unit to this since it uses 1/4 & 1/2 lines while this has 1/4 and 3/8 ports? Is there an adapter?

    A set of adapters are included together with each outdoor unit to allow for all possible combinations.

  • How cold will this unit pull heat from outside??

    This system will continue providing heating down to -13°F outside ambient temperatures.

  • do you make a 36000 btu in a trriple zone

    You would need to purchase the Quad-Zone which is 36,000 BTU, and you can leave the 4th circuit closed, to effectively make it into a stronger Triple-Zone.

  • � does anyone know how many pounds of pre charge refrigerant this unit comes with?

    This model is factory charged with 98.8 ounces of R410a.

  • What is the max BTU of the triple unit?

    See our matching table here for compatible combinations.

  • Can this triple unit be wall hung with your wall brackets that you sell?

    Yes, it would need the biggest wall bracket. We recommend this one.

  • Will this unit run two 18000 btu units Plus a 9000 btu

    This is not a valid combination. You would need to use a Quad Zone unit for that. See available combinations here.

  • I purchased the triple zone outdoor unit and 2-12000 btu indoor units if I need to add another one later on would there be any problem after the units been running for a couple months

    That would not be an issue at all. You can add the 3rd head on at your convenience.

  • What size wire do I need to pull for this triple zone outdoor unit? Thanks

    This would take a 30A double pole breaker with 10 AWG wire. 2 hots and a ground, no neutral.

  • Can this run 9,000, 12,000, and 18,000?

    Yes, that is a valid combination.

  • Off this unit can I run 2, 9000btu and 1, 18000btu?

    Yes this is a compatible configuration.

  • If i bought a PIONEER® TRIPLE ZONE OUTDOOR SECTION 230V 22.0 SEER MULTI SPLIT AIR CONDITIONER & HEAT PUMP. what is the matching indoor unit and the cost?

    Any of the following indoor units will be a match for this system. For valid combinations you can see our matching table.

  • With all units, you state they come with 25' charged lines. What if I need 50' and 33' lines for a dual setup?

    The lines themselves are not pre-charged, the outside units contain the refrigerant, thus you will need to vacuum the linesets after connections are made before releasing the charge. Every multi-zone contains enough pre-charge for 25 ft per circuit, so the dual-zones have enough for 50 ft of total line attached, the triple zone 75 ft, the quad zone 100 ft, and the quint zone 125 ft. This is total combined line, since each circuit shares the same refrigerant. If the total attached line lengths are within these values, no refrigerant needs to be added. If exceeding these values, it will need to be topped off with the required extra amount.

  • How many amps does it take?

    Please find all electrical and technical specifications in this document: https://www.pdhvac.com/site/downloads/YN-M22-2016.pdf

  • Trying to determine electrical requirements for triple unit. 230 V circuit required for main unit. What electrical requirements for each additional interior wall unit?

    This particular system would take a 30A double-pole breaker with 10 AWG wire (2 hots and a ground, no neutral). The interior units are each powered individually by the outside unit via the communication cable included within the installation kit.

  • For a triple zone unit with only two indoor units attached and a 33 foot line set on each, will I need to add extra refrigerant or does it already contain sufficient charge since it is designed for 3 x 25 foot lines?

    It would be sufficiently charged. The factory precharge covers 75 feet total and with 66 feet you'd be covered.

  • I am inquiring about the YN040GMFI22M4E. I believe it's a 4 zone unit with 36 BTU capacity. Is it possible to only have 3 zones connected (for example 18-9-9)? This would make one zone redundant, would this be a problem? Thank you

    That would be no trouble at all. That would effectively make this unit into a stronger 3-zone system.

  • Are these units good for mobile homes

    They will work well for mobile homes since no ductwork is necessary and they are very flexible with their placement.
