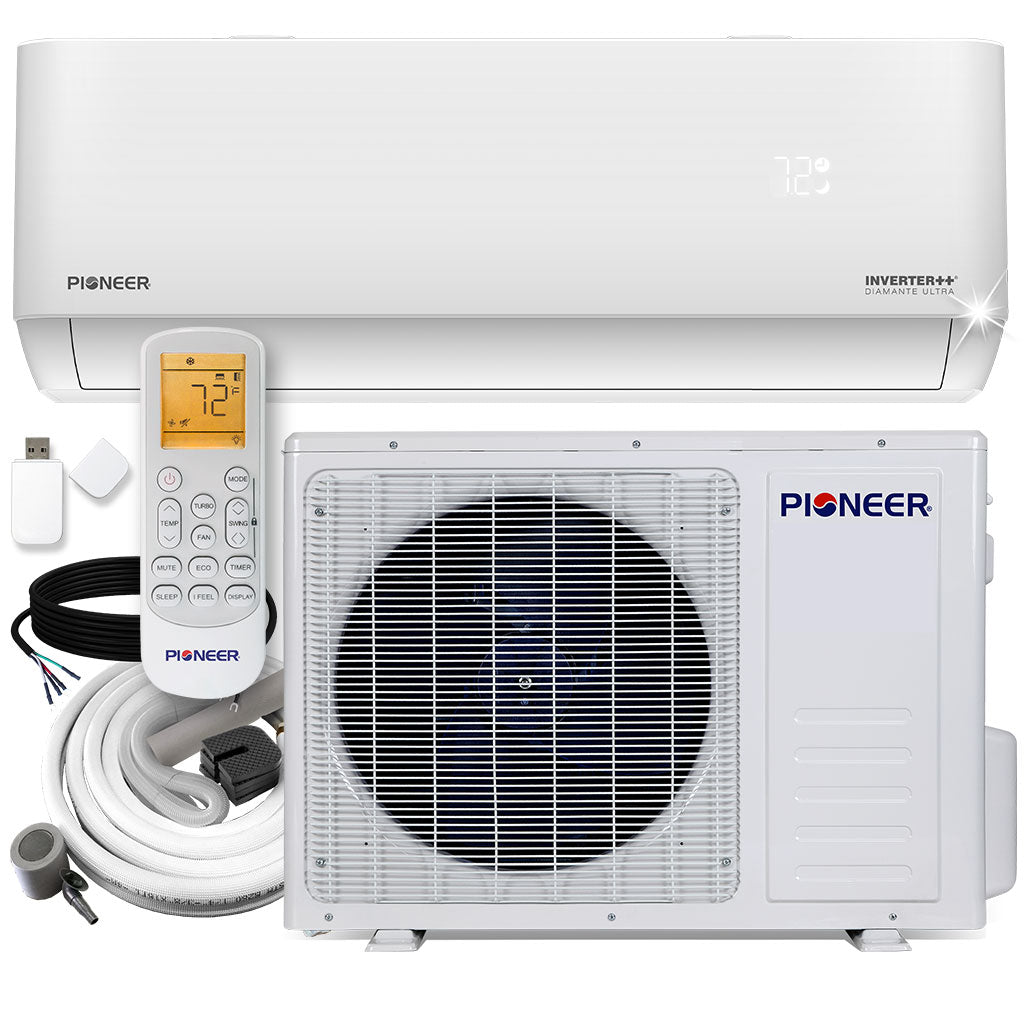

- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 23 SEER/13 EER efficiency
- Heating capacity: 9,500 BTU/H with 10 HSPF efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $52.00
- Heating: $201.00
- Dual Swing
- Dual Drainage
- Ultra Low Noise
- Ultra High Efficiency
- Energy-Star Certified
- Wi-Fi Enabled
- Indoor Unit
- Outdoor Unit

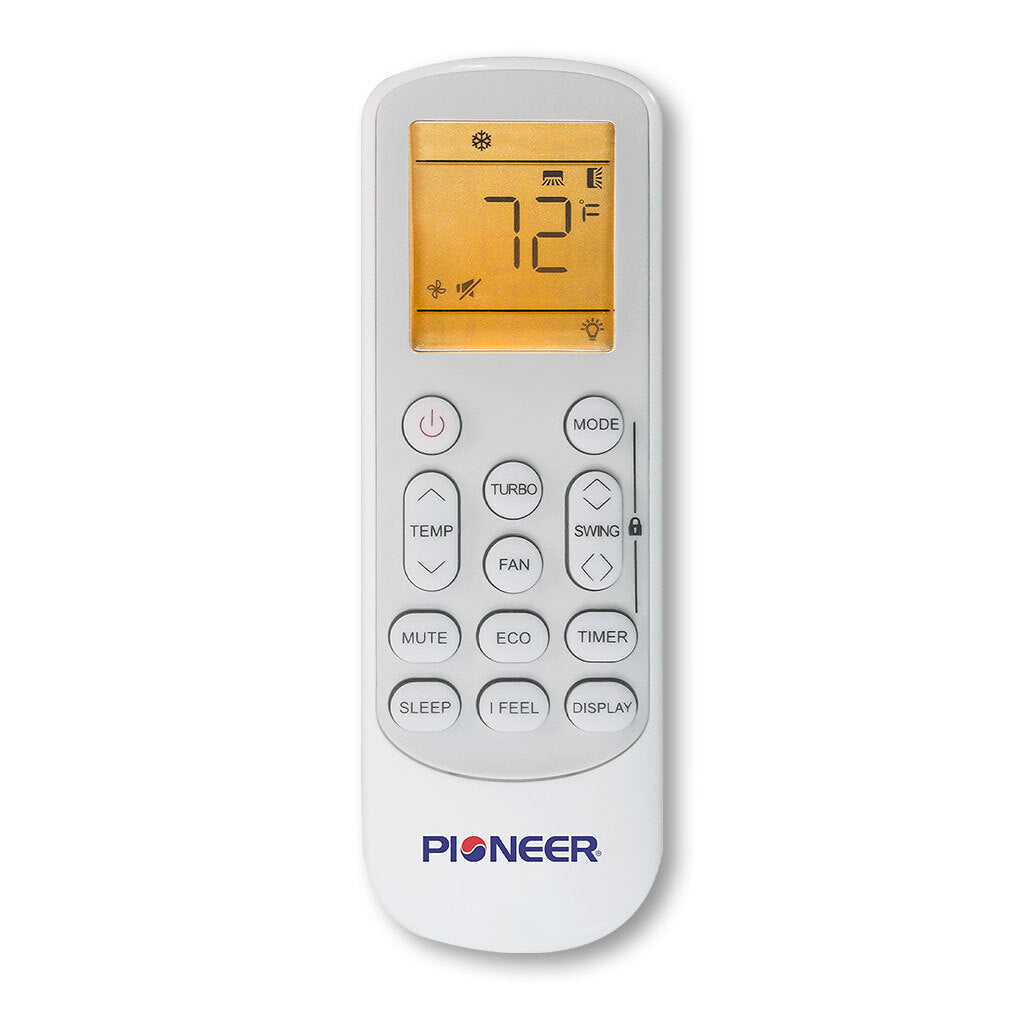

- Wireless Remote Control (with wall holder and batteries)

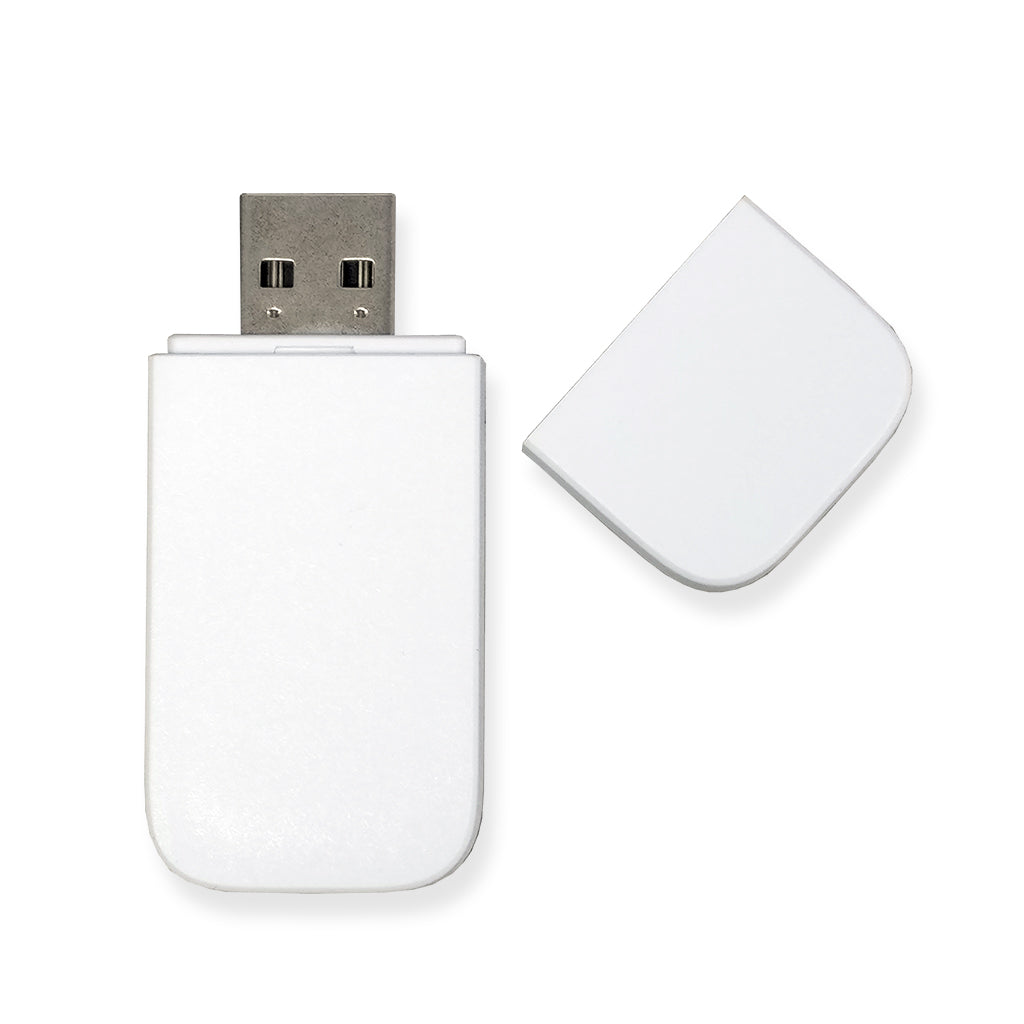

- Internet Control Module

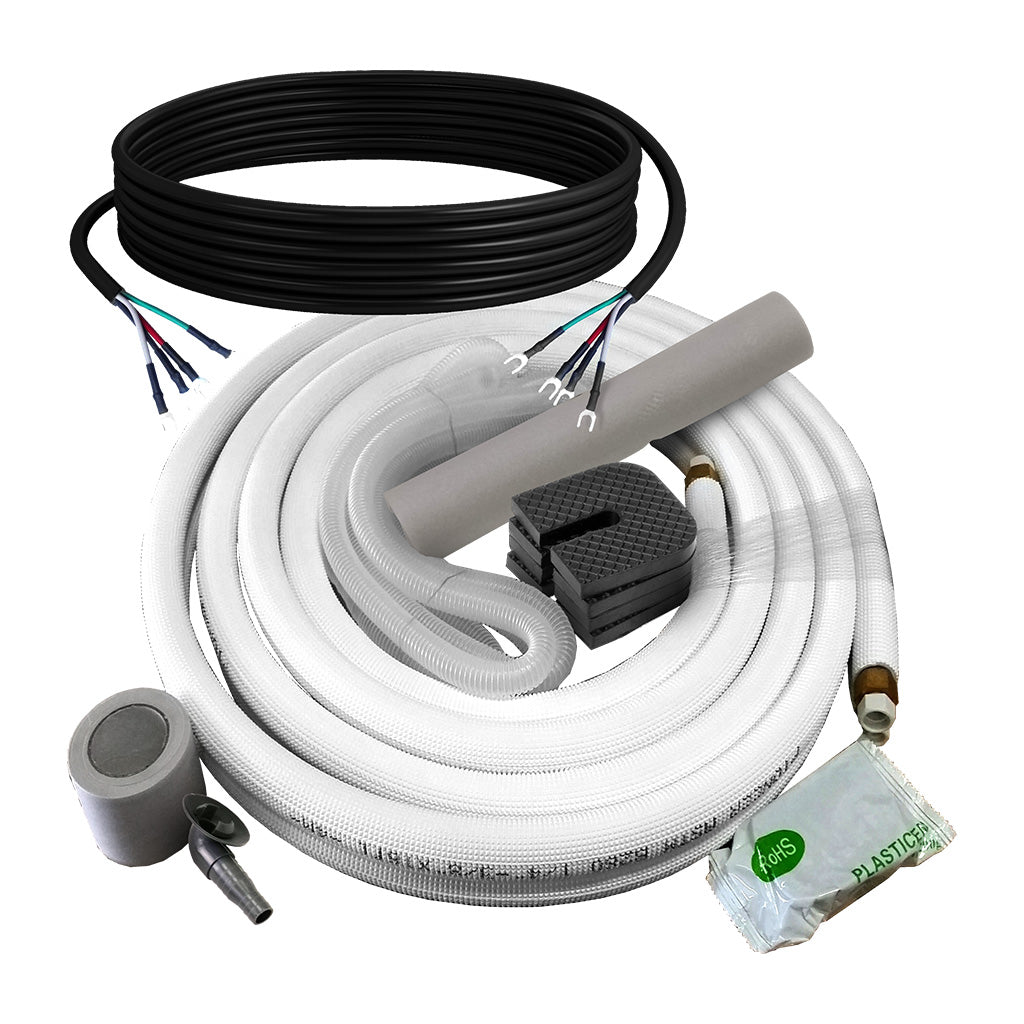

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
- 5 years Warranty for Parts
- 5 years for Compressor
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
- Rated Power Input (Cooling): 920W
- Cooling SEER: 23 BTU/w
- Heating Rated Capacity: 9,600 BTU/h (0.8 Ton)
- Rated Power Input (Heating): 910W
- Heating HSPF4: 10 BTU/w
- Refrigerant Type: R410A
- Recommended Application Area: 100~350 Sq.Ft
Indoor Unit Data
- Model Number: WT009GLFI22HLD
- Air Flow (Hi): 382 CFM
- Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
- Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
- Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs
Outdoor Unit Data
- Model Number: YN009GLFI22RPD
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 51.4 / 55.8 Lbs
- Electrical Circuit Size: 15A (double-pole)
Manuals & Documents
