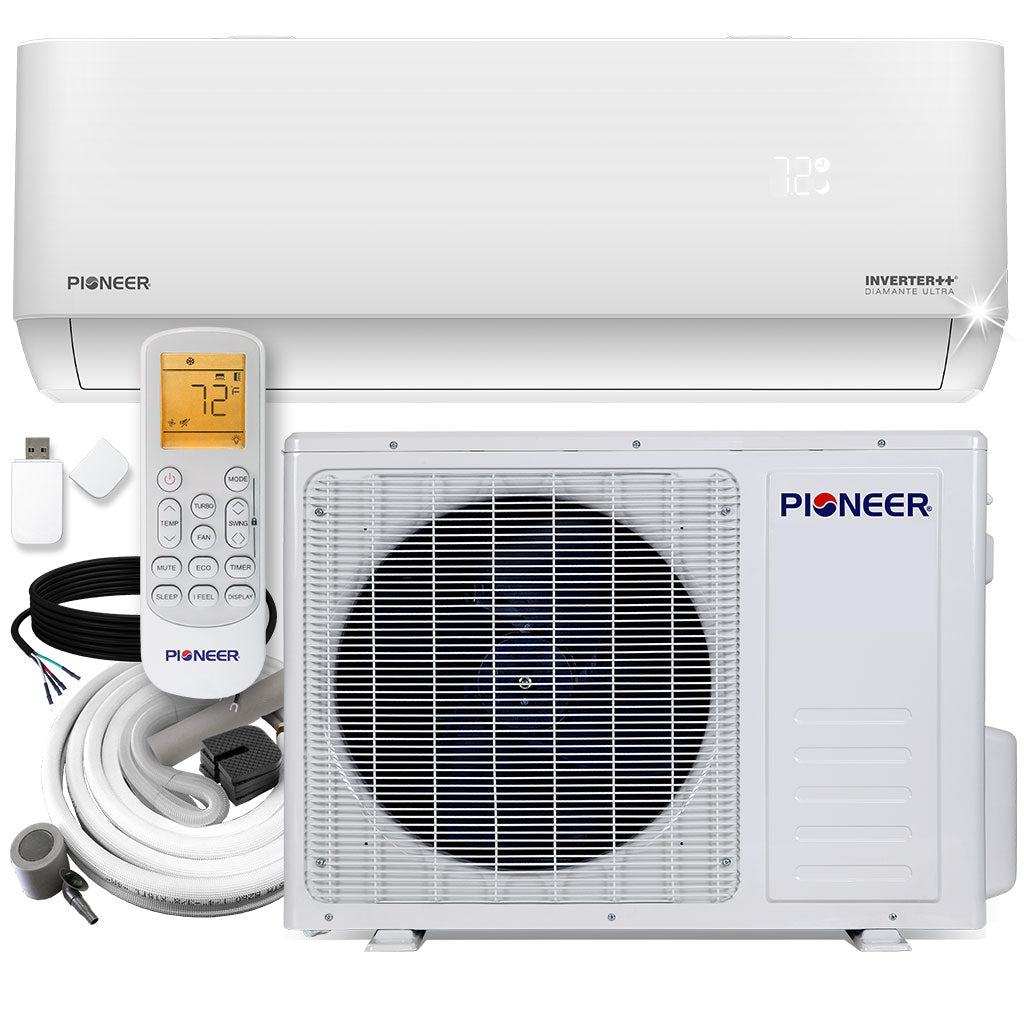

- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 22 SEER2 / 13 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $111.00
- Heating: $381.00
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.
- Indoor Unit
- Outdoor Unit

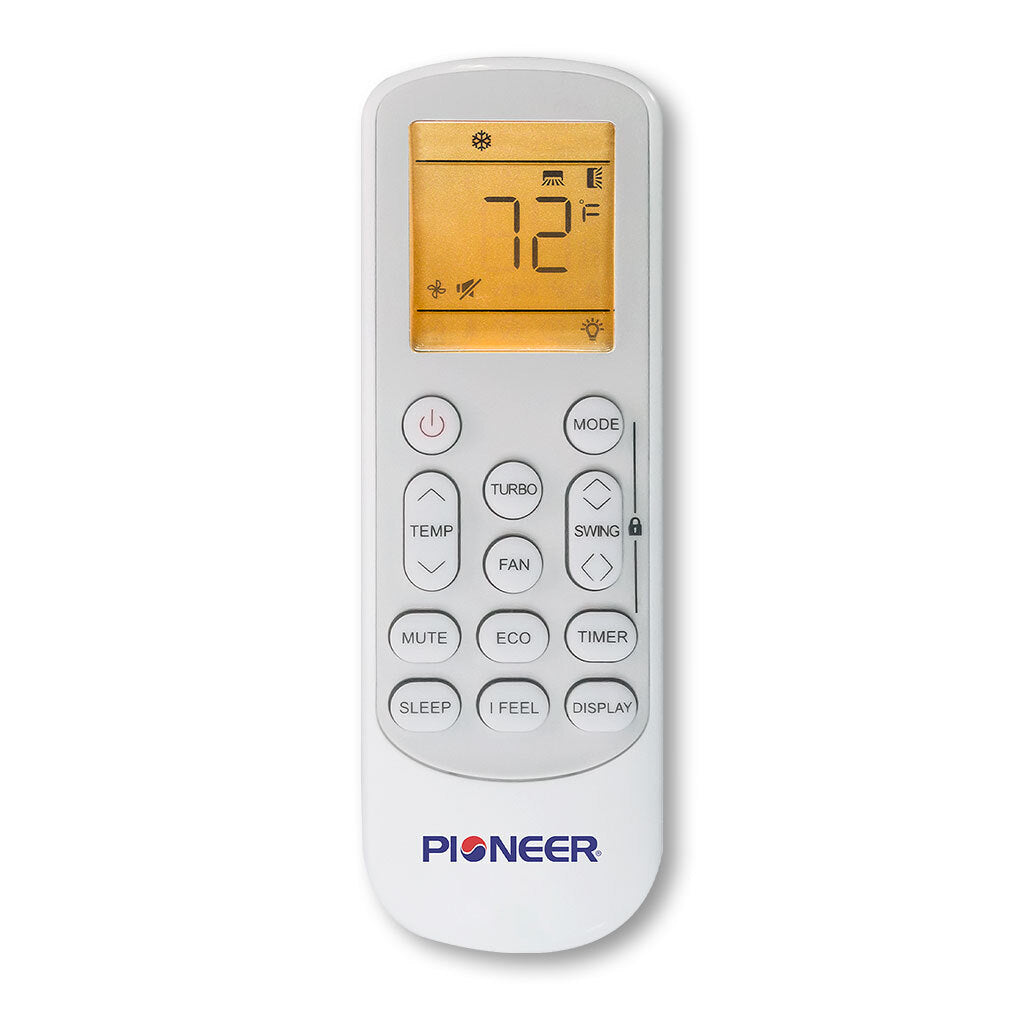

- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module

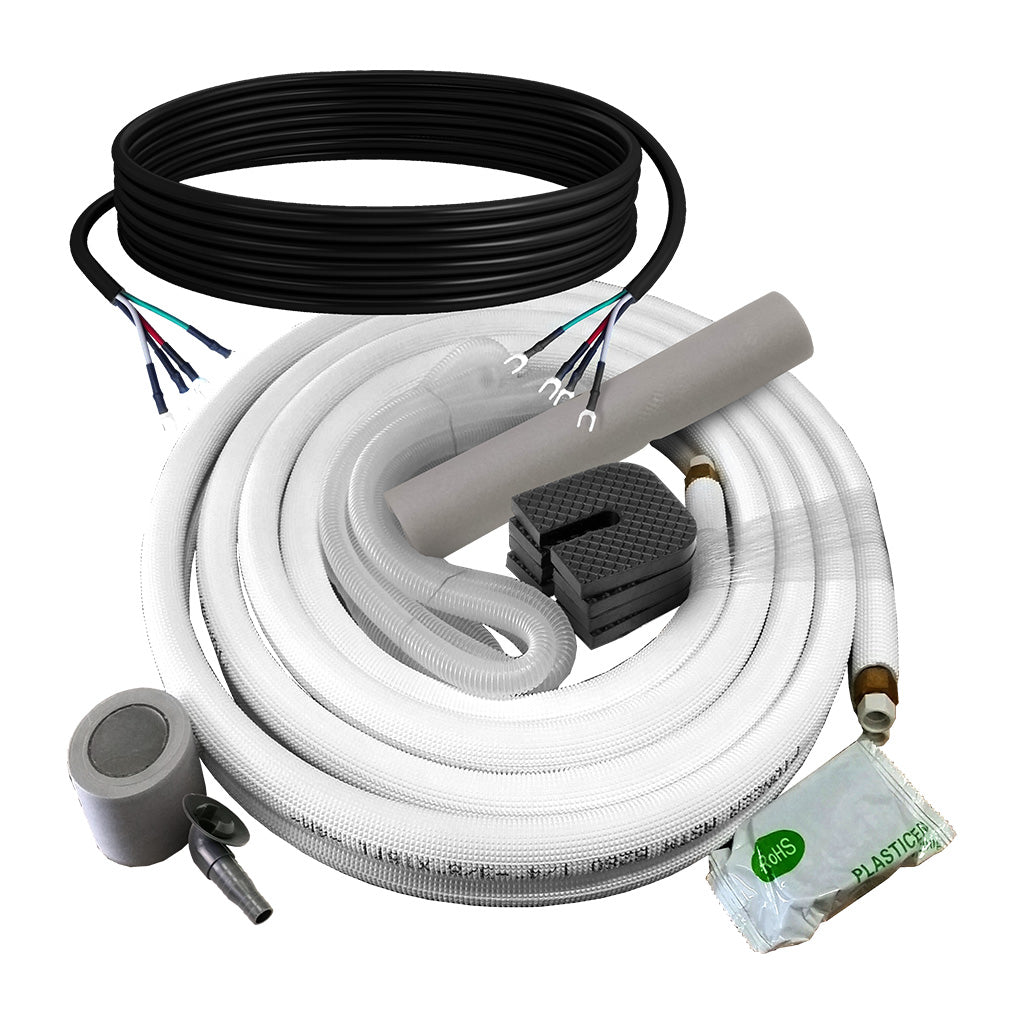

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Enhanced Modern Design
How do you improve upon an air handler that’s already silent? You make the appearance of it silent as well, with a premium encasing and elegant textures. A matte-frost finish ensures less fingerprints and time spent wiping. The curved edges give the system a softer look, and the LED display has been modified to show the set temperature in a more subdued fashion.
Cools like A Crisp Shower
Diamante Ultra drapes the room with a satisying breeze from above, without the mist. Cool air sinks from high to low, so we designed the system to let the conditioned air be “thrown” toward the ceiling, so that is can naturally reach as far as possible horizontally in the room, while also ensuring that the refreshing breeze is felt by all occupants of the room, no matter if they are sitting, standing, or lying down.
Heats like a Nuzzling Blanket
Diamante Ultra also wraps the room in cozy warmth, from floor to ceiling. Just as how cold air sinks, hot air rises - The system can use this quality to its advantage by directing the louver at a sharp downward angle, so that the air throw sweeps across the floor as far out as possible, and swells upward to saturate the room with a comforting blanket of warmth, to all four corners of the room.
Wi-Fi Controlled via Free App

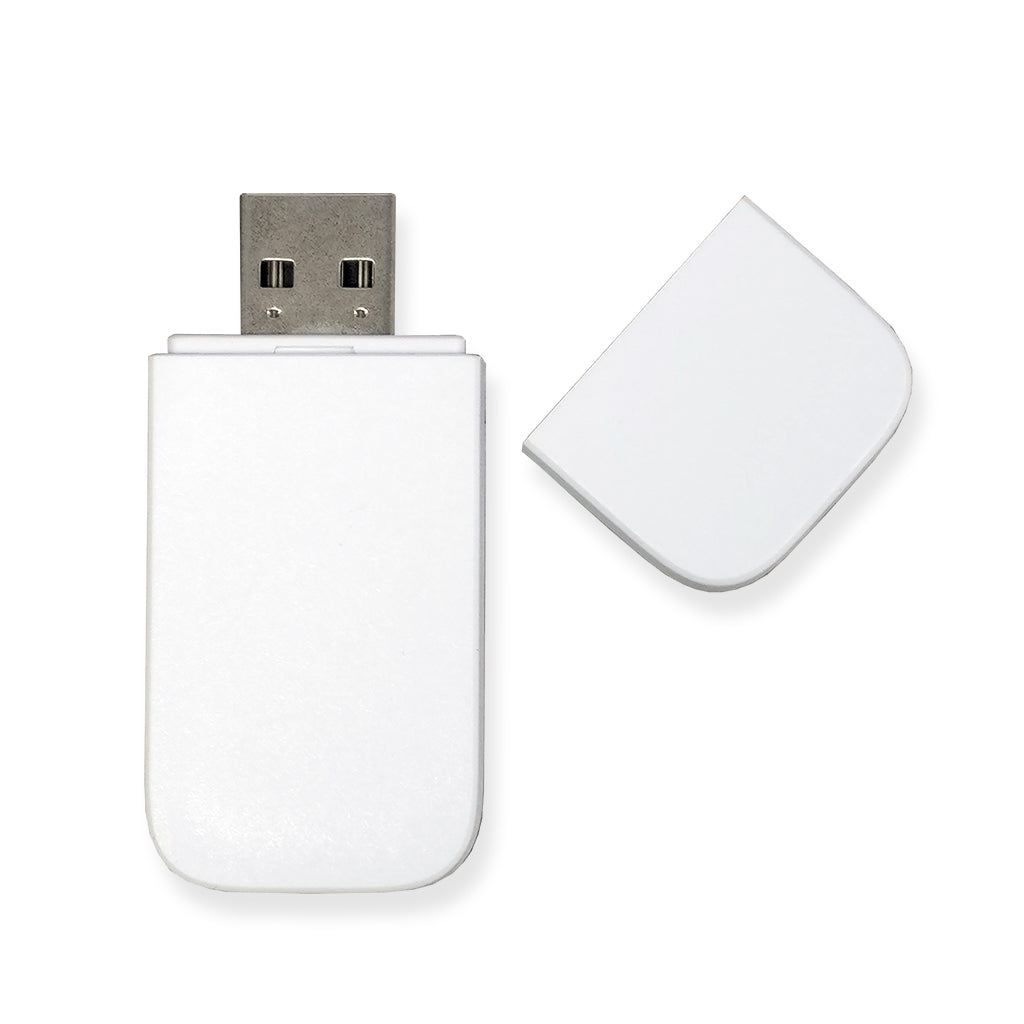

Unlock the full potential of your new Pioneer system by activating the USB module included with your purchase. In 2 minutes you’ll be up and running, and ready to set custom schedules or fully control one or many units from the same app, easily and reliably, from across the world. Now you can pre-condition your home before you arrive, turn off the unit remotely or check that your pets are relaxing in comfort. You can also integrate your new mini split with a Smart Assistant, such as Alexa, Google Assistant, and Apple Siri.
Super Simplified Installation
Enjoy improved accessibility to the Diamante Ultra's crucial components. The bottom side of the air handler unit includes a hidden cover that is easily removable, exposing some handy elements that cut out a lot of the guesswork. Use the viewing window for making both the piping and electrical connections, and gain access to a single-press button to unlatch the unit for an easy removal.
Energy-Star for Efficiency
With its built-in DC inverter technology, the Diamante Ultra series brings big benefits for those looking to cut down on their electric bill. The outdoor unit compressor is soft-start and variable speed between 30% and 110% in both heating and cooling, and the indoor fan draws only a few watts when running. Take advantage of technology that is so power efficient, it is the go-to heating and cooling system for use on solar-powered setups. Silence and efficiency never looked so good together. Switch from your outdated system to the Diamante Ultra series and start saving today!
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Cooling): 1350W
- Cooling SEER2: 22 BTU/W.h
- Cooling EER2: 13 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Heating): 1310W
- Heating HSPF2: 9 BTU/W.h
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 400~650 Sq.Ft
Indoor Unit Data
- Part Number: WT018GLFI22HLD
- Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
- Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
- Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
- Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
- Net / Gross Weight: 30.9 / 35.3 Lbs
Outdoor Unit Data
- Part Number: YN018GLFI22RPD
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
- Net / Gross Weight: 84.9 / 93.7 lbs
- Electrical Circuit Size: 20A (double-pole)
Manuals & Documents
Free Shipping For All Orders Over $49
WE ARE CURRENTLY IN THE BUSY SEASON, PLEASE ALLOW US 1-2 MORE BUSINESS DAYS TO PROCESS AND SEND OUT YOUR ORDER. THANKS FOR YOUR PATIENCE AND UNDERSTANDING.
For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.
Click here for information on Returns and Refunds
We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.
Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.
Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.
We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.
We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.
Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.
We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.
QUESTIONS & ANSWERSAsk a Question
How setup WiFi on this model There is no information available
Here is the instruction manual for the WiFi: https://www.pdhvac.com/site/downloads/manuals/WYT-WIFI-IM.pdf
If you continue to have issues, just reach out to us via email/chat/phone at pdhvac website.
