- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 9,000 BTU/H with 22.5 SEER2 / 13.0 EER2 efficiency
- Heating capacity: 11,000 BTU/H with 11.5 HSPF2 / 3.44 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- One-Way Ceiling Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

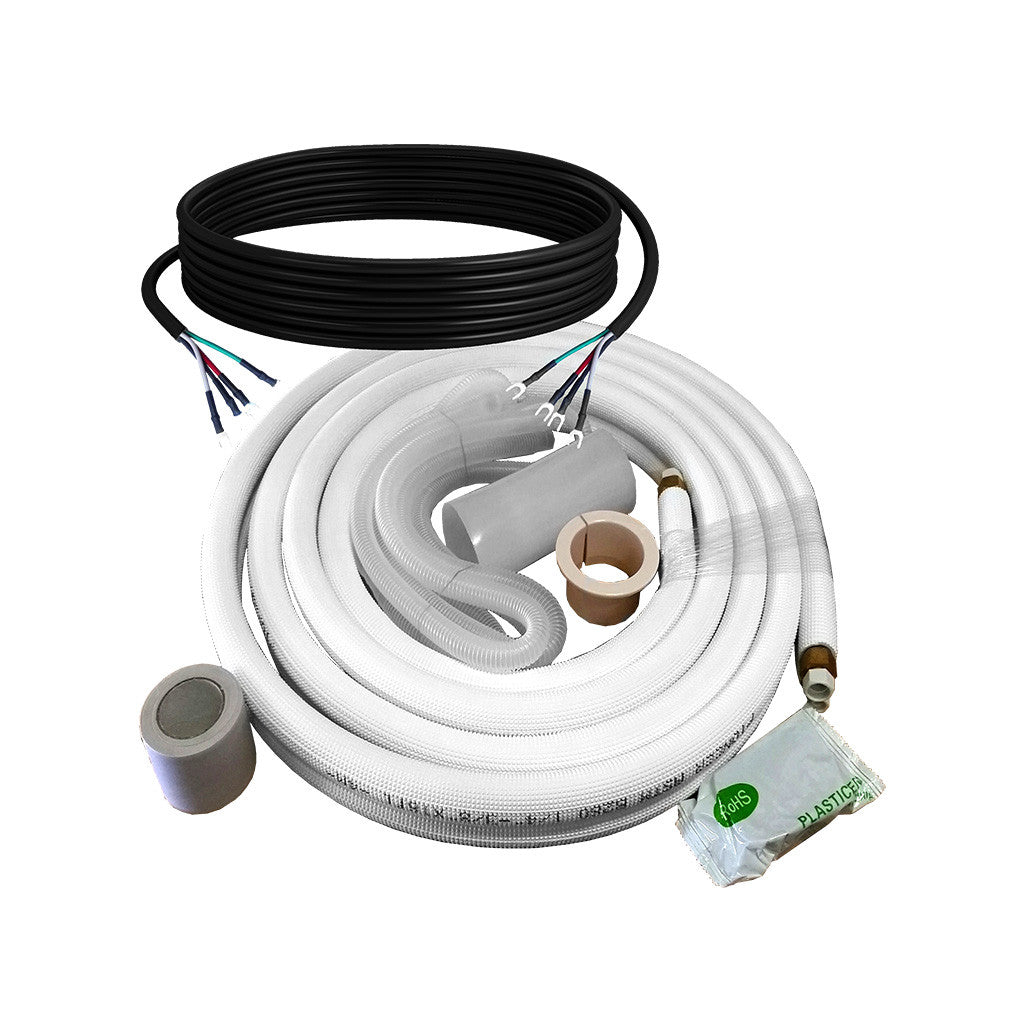

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
One-Way Cassette Mini Split

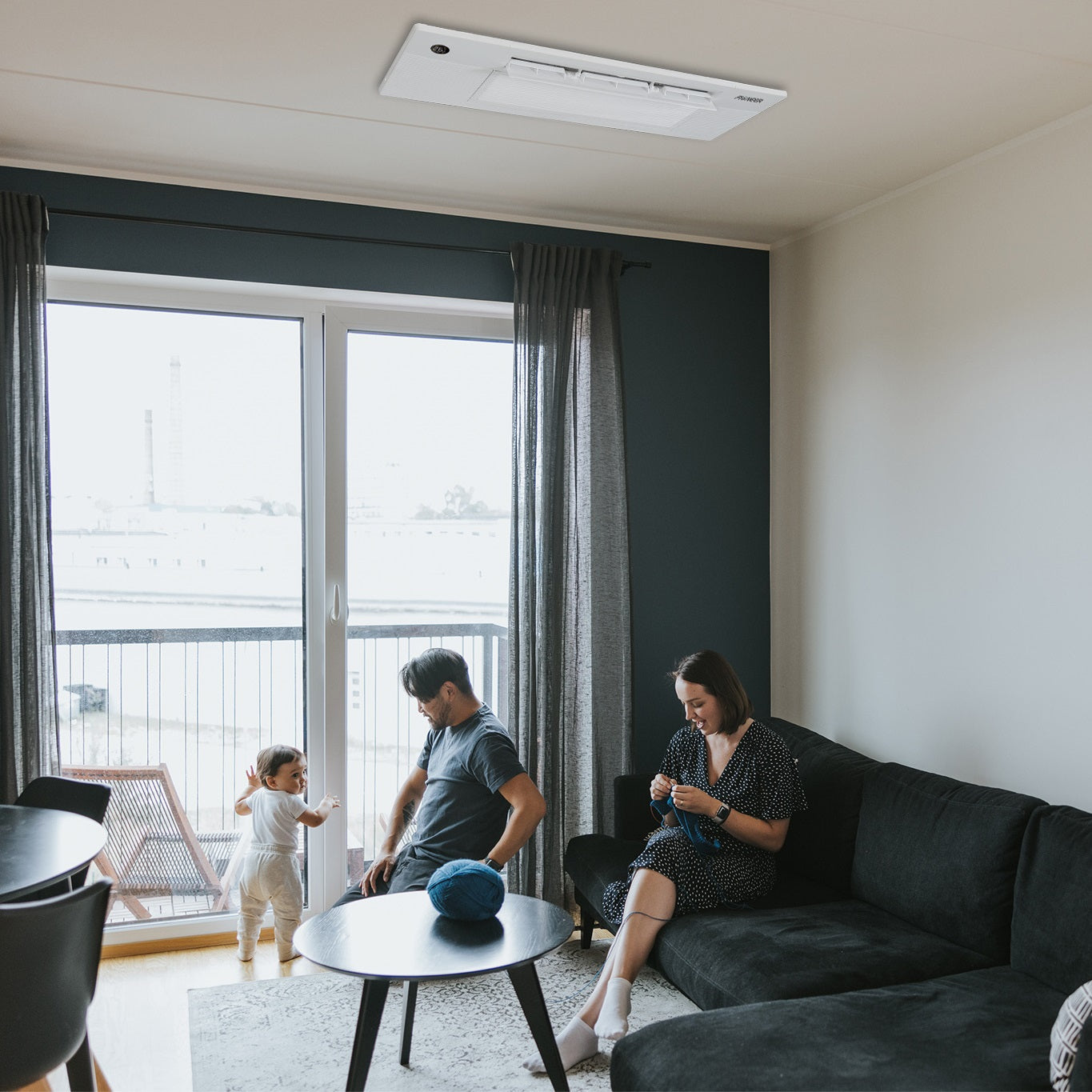

Introducing the Pioneer® CYK-22 single-way cassette series, a revolutionary ductless ceiling cassette system from Pioneer® that combines groundbreaking technology with architectural prowess to offer unprecedented control over your indoor environment. Engineered to seamlessly integrate into the structural standards of most homes and establishments, the rectangular, less than 14-inch depth design slots effortlessly between 16-inch on-center joists or rafters, eliminating the need for intrusive and costly modifications. The unit has been meticulously designed to offer only the utmost convenience, and installation is simply a breeze.
At the heart of the CYK-22 series is a series of technological advancements designed to enhance your living experience. The motorized filter panel is a game-changer, offering easy access as it lowers to the ground by up to 80 inches for hassle-free maintenance, promising a healthier and cleaner indoor atmosphere at all times. The built-in condensate pump is capable of lifting drainage water vertically by 30 inches to ensure optimal functionality and a moisture-free environment. Coupled with a range of smart features that allow for intuitive control and personalization, such as easier to install Wi-Fi control capabilities, the CYK-22 series offers a system that is at the crossroads of efficiency, innovation, and design. Step into the future of indoor climate control with the Pioneer CYK-22 series.

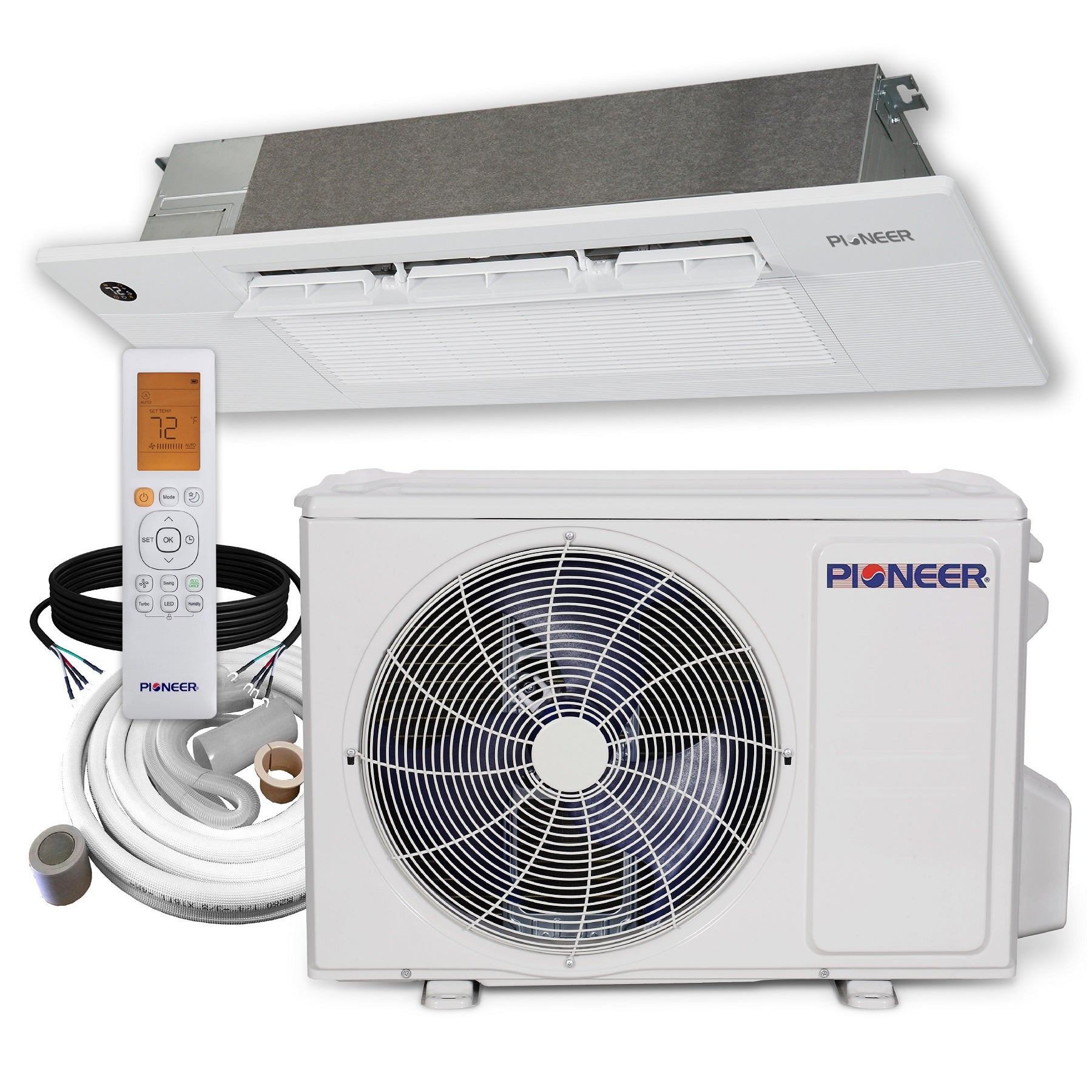

- Indoor Unit
- Outdoor Unit

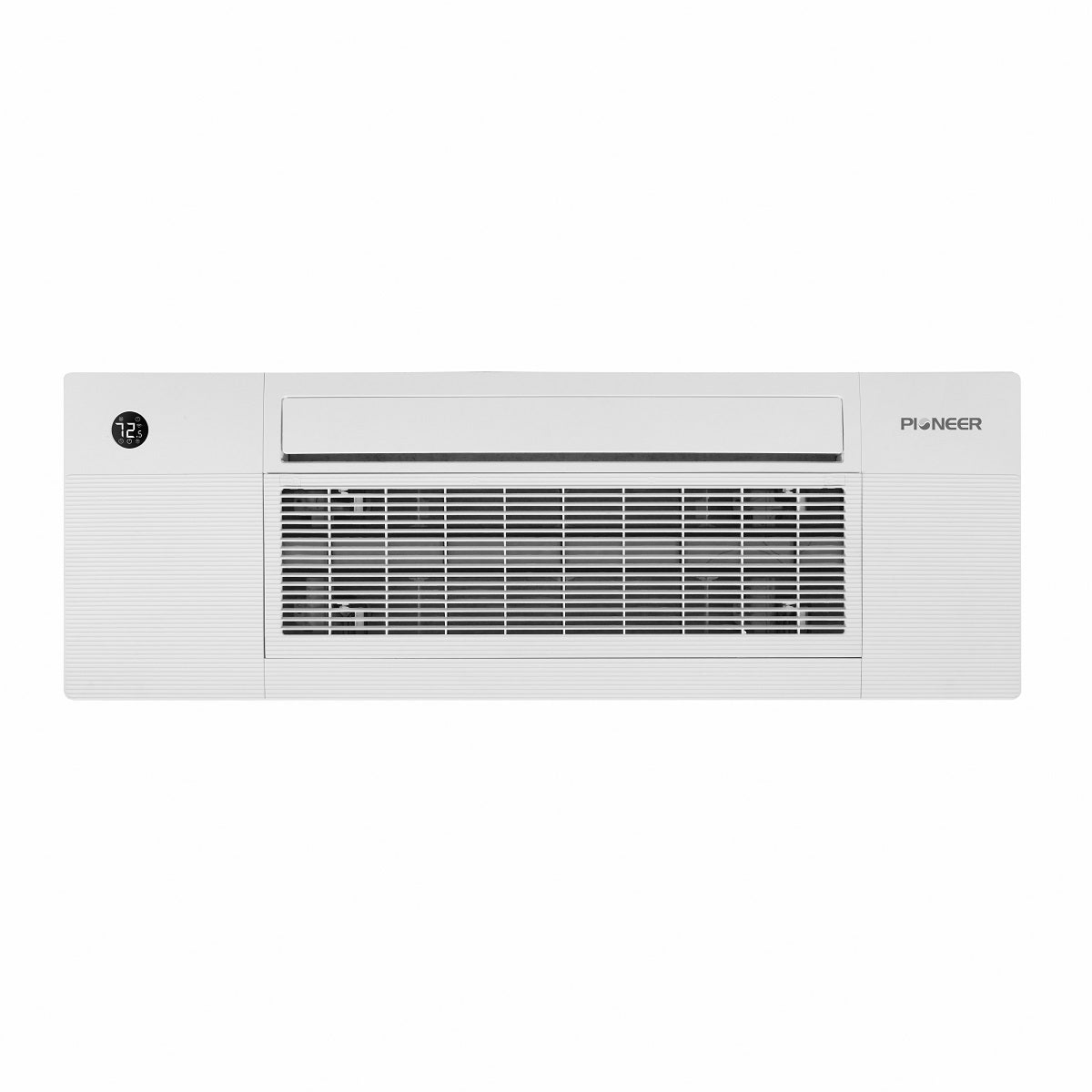

- Decorative Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- 5 year parts limited warranty
- 5 year compressor limited warranty
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 4,400~11,200 BTU/h
- Cooling SEER2: 22.5 BTU/W.h
- Cooling EER2: 13.0 BTU/W.h
- Heating Rated Capacity: 11,000 BTU/h
- Heating Capacity Range: 3,800~12,400 BTU/h
- Heating HSPF2: 11.5 BTU/W.h
- Heating C.O.P.2: 3.44 W/W
- Refrigerant Type: R410a
- Suitable Area: 100~350 Sq.F
Indoor Unit Data
- Model: CK009GMFILCFHD
- Air Flow (Turbo/Hi/Med/Lo): 580 / 500 / 440 / 400 CFM
- Sound Level (Hi/Med/Lo): 38 / 36 / 33 dB(A)
- Net Dimensions (WDH): 50-1/4 x 13-1/4 x 9 Inches
- Carton Dimensions (WDH): 57-5/8 x 22-1/2 x 22-5/8 Inches
- Net / Carton Weight: 44 / 81 Lbs
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
- Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs

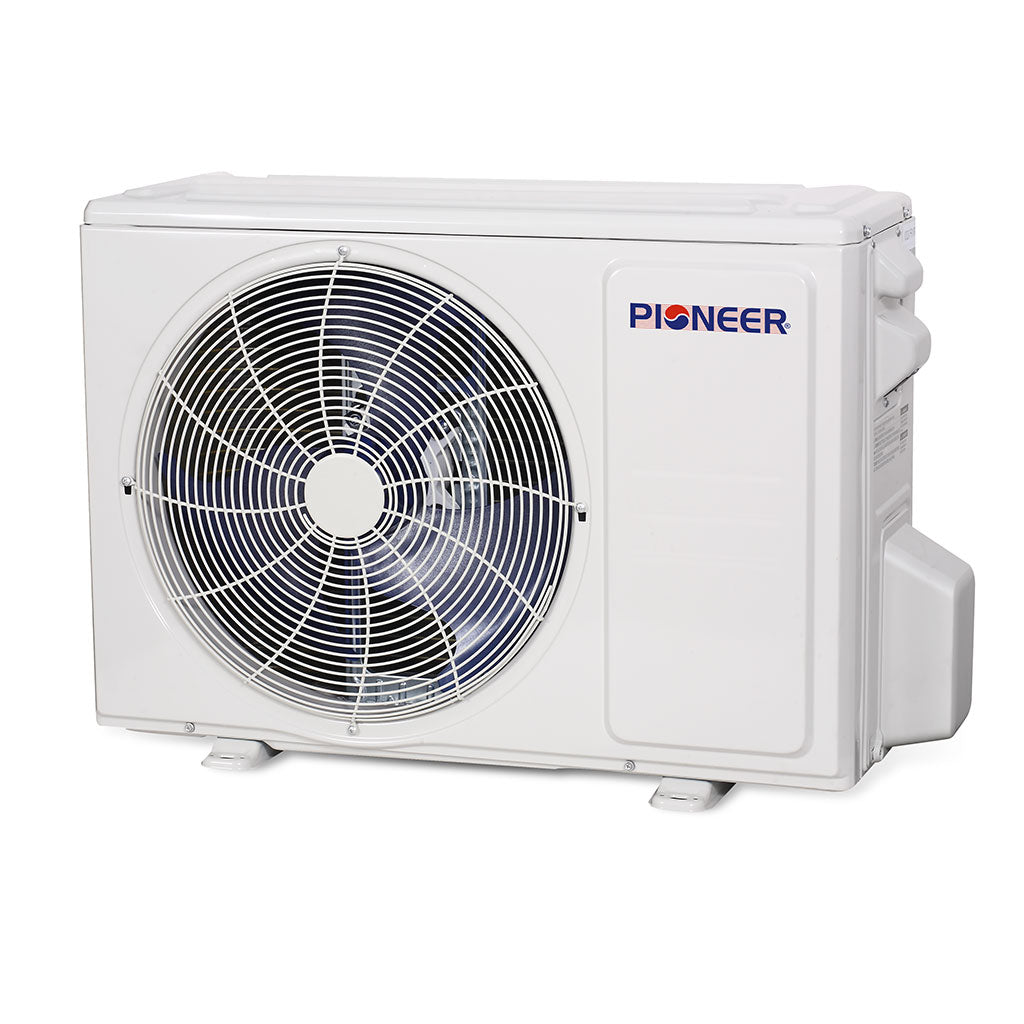

Outdoor Unit Data
- Model: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
- Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
- Net / Gross Weight: 64 / 69 Lbs
- Breaker Needed: 15A (double-pole)
Manuals & Downloads
