Name: Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set
Brand: Parker Davis HVAC Systems, Inc.
SKU: CYB009GMFILCAD-10
Price: 1478.0 USD
Availability: InStock

Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set

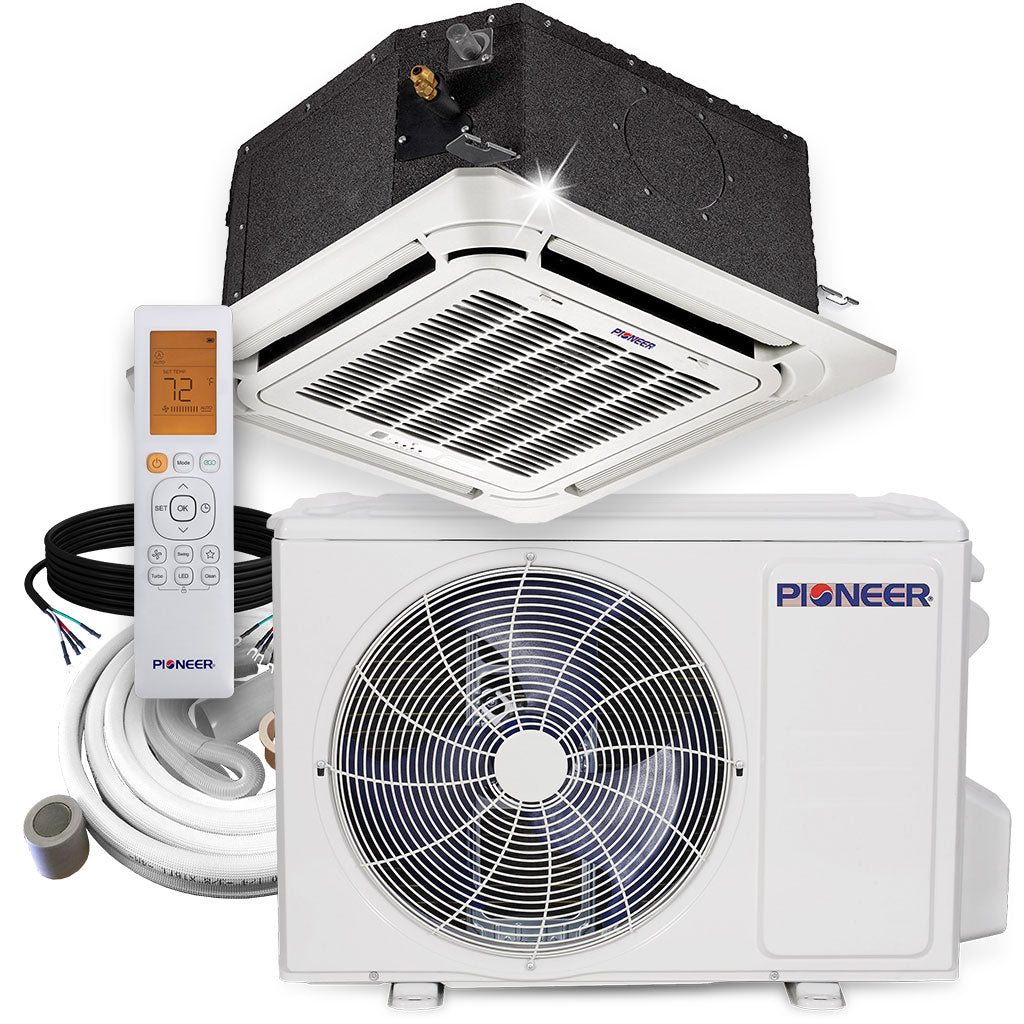

Pioneer CYB Compact Cassette Mini Split Heat Pump

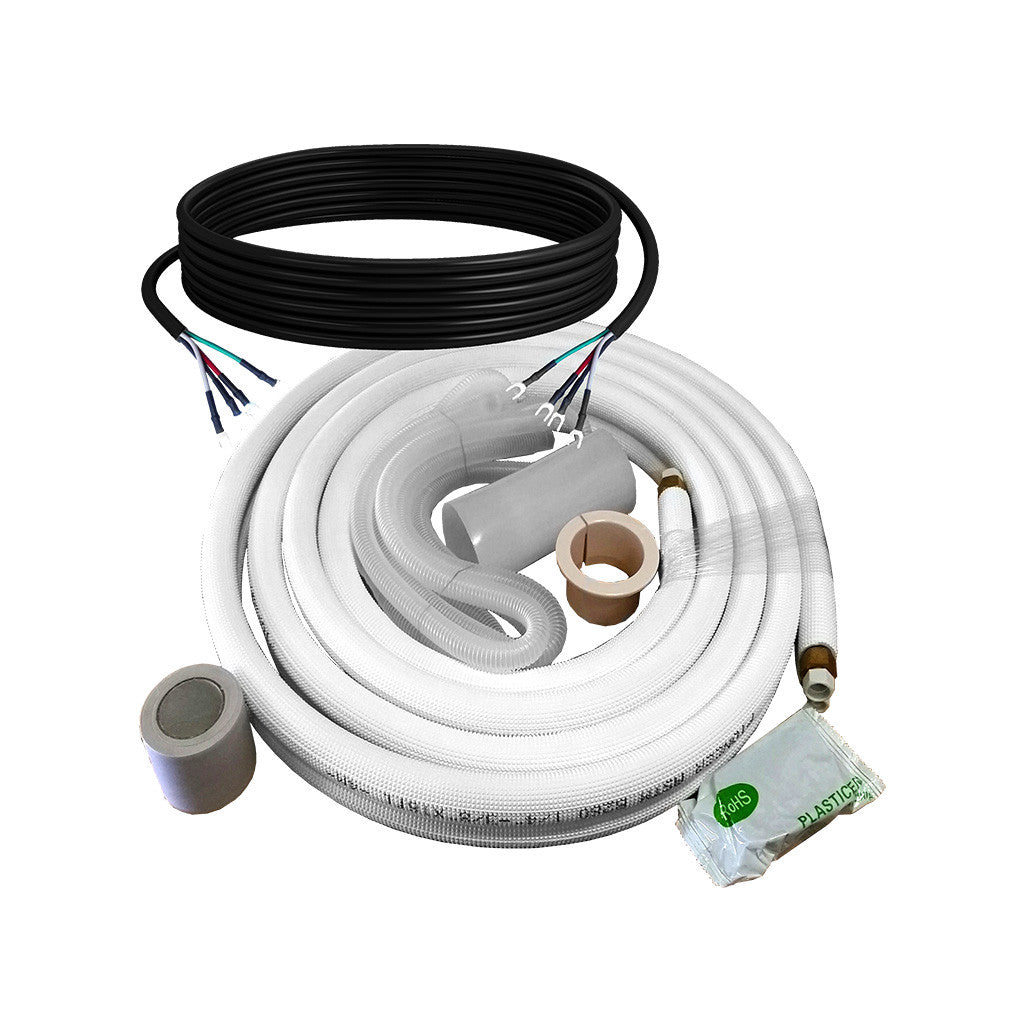

Pioneer Compact Cassette Mini Split Heat Pump (Accessories)

Free Shipping for Orders Above $49

Wholesale Price Directly From Factory

Secure and Versatile Payment Options

In stock, ready to ship
Inventory on the way

Price Save $212

Quantity

[{"id":33251443472,"title":"10 Ft","option1":"10 Ft","option2":null,"option3":null,"sku":"CYB009GMFILCAD-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - 10 Ft","public_title":"10 Ft","options":["10 Ft"],"price":147800,"weight":79379,"compare_at_price":169000,"inventory_quantity":-13,"inventory_management":null,"inventory_policy":"deny","barcode":"858132007769","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":35778762768,"title":"16 Ft","option1":"16 Ft","option2":null,"option3":null,"sku":"CYB009GMFILCAD-16","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - 16 Ft","public_title":"16 Ft","options":["16 Ft"],"price":150800,"weight":80286,"compare_at_price":172000,"inventory_quantity":-24,"inventory_management":null,"inventory_policy":"deny","barcode":"858132006243","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":35778762896,"title":"25 Ft","option1":"25 Ft","option2":null,"option3":null,"sku":"CYB009GMFILCAD-25","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - 25 Ft","public_title":"25 Ft","options":["25 Ft"],"price":154800,"weight":80739,"compare_at_price":177000,"inventory_quantity":-22,"inventory_management":null,"inventory_policy":"deny","barcode":"858132007776","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":35778762960,"title":"33 Ft","option1":"33 Ft","option2":null,"option3":null,"sku":"CYB009GMFILCAD-33","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - 33 Ft","public_title":"33 Ft","options":["33 Ft"],"price":159300,"weight":82100,"compare_at_price":181000,"inventory_quantity":-14,"inventory_management":null,"inventory_policy":"deny","barcode":"858132007783","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":35778763024,"title":"50 Ft","option1":"50 Ft","option2":null,"option3":null,"sku":"CYB009GMFILCAD-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - 50 Ft","public_title":"50 Ft","options":["50 Ft"],"price":166800,"weight":86183,"compare_at_price":191000,"inventory_quantity":-13,"inventory_management":null,"inventory_policy":"deny","barcode":"858132007790","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":13333248081962,"title":"WITHOUT INSTALLATION KIT","option1":"WITHOUT INSTALLATION KIT","option2":null,"option3":null,"sku":"CYB009GMFILCAD-00","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - WITHOUT INSTALLATION KIT","public_title":"WITHOUT INSTALLATION KIT","options":["WITHOUT INSTALLATION KIT"],"price":140300,"weight":76657,"compare_at_price":162000,"inventory_quantity":-10,"inventory_management":null,"inventory_policy":"deny","barcode":"858132007806","requires_selling_plan":false,"selling_plan_allocations":[]}]

Overview

Summary

Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
Cooling capacity: 9,000 BTU/H with 20 SEER/13 EER efficiency
Heating capacity: 10,000 BTU/H with 10.5 HSPF/3.08 COP efficiency
Voltage: 208~230 V, 60 Hertz, 1 Ph
Ceiling Compact Cassette Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Customizable length copper line set with flare connections
Energy-Star Certified
AHRI Estimated Annual Operating Costs:

Cooling: $59.00
Heating: $201.00

Refrigerant

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

Important

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Ceiling Cassette Mini Split

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

More details about Pioneer® CYB Series

What's Included

Indoor Unit
Outdoor Unit

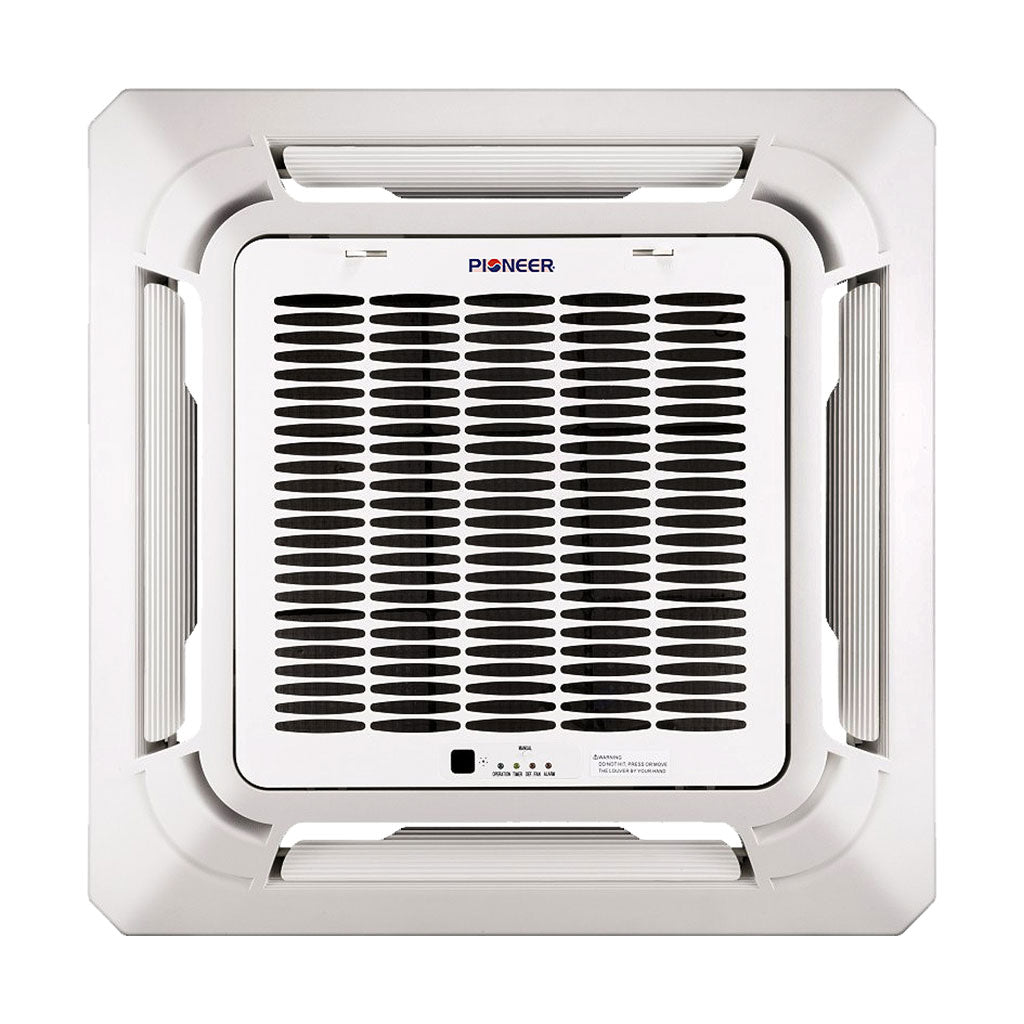

Panel
Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Our Guarantee

5 year parts limited warranty
5 year compressor limited warranty

Features

Fresh Air Intake

The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

Built-in Drain Pump

Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

8-Way, 360° Airflow

Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

Programmable Wired Controller Option

The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

Wi-Fi Controllable via Free App

Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit (part number: TST-LCACWIFIKP).

Provision for Auxiliary Duct

A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

Technical Information

Certifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 9,000 BTU/h
Cooling Capacity Range: 2,970~10,500 BTU/h
Cooling SEER: 20.0 BTU/w
Cooling EER: 13.0 BTU/w
Heating Rated Capacity: 10,000 BTU/h
Heating Capacity Range: 2,230~11,650 BTU/h
Heating HSPF: 10.5 BTU/w
Heating C.O.P.: 3.08 W/W
Refrigerant Type: R410a
Suitable Area: 200~350 Sq.F

Indoor Unit Data

Model: CB009GMFILCFHD
Air Flow (Hi/Med/Lo): 309 / 265 / 200 CFM
Sound Level (Hi/Med/Lo): 37.5 / 34.5 / 31.5 dB(A)
Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
Net / Gross Weight: 32 / 38 Lbs

Panel Data

Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
Net / Gross Weight: 6 / 10 Lbs

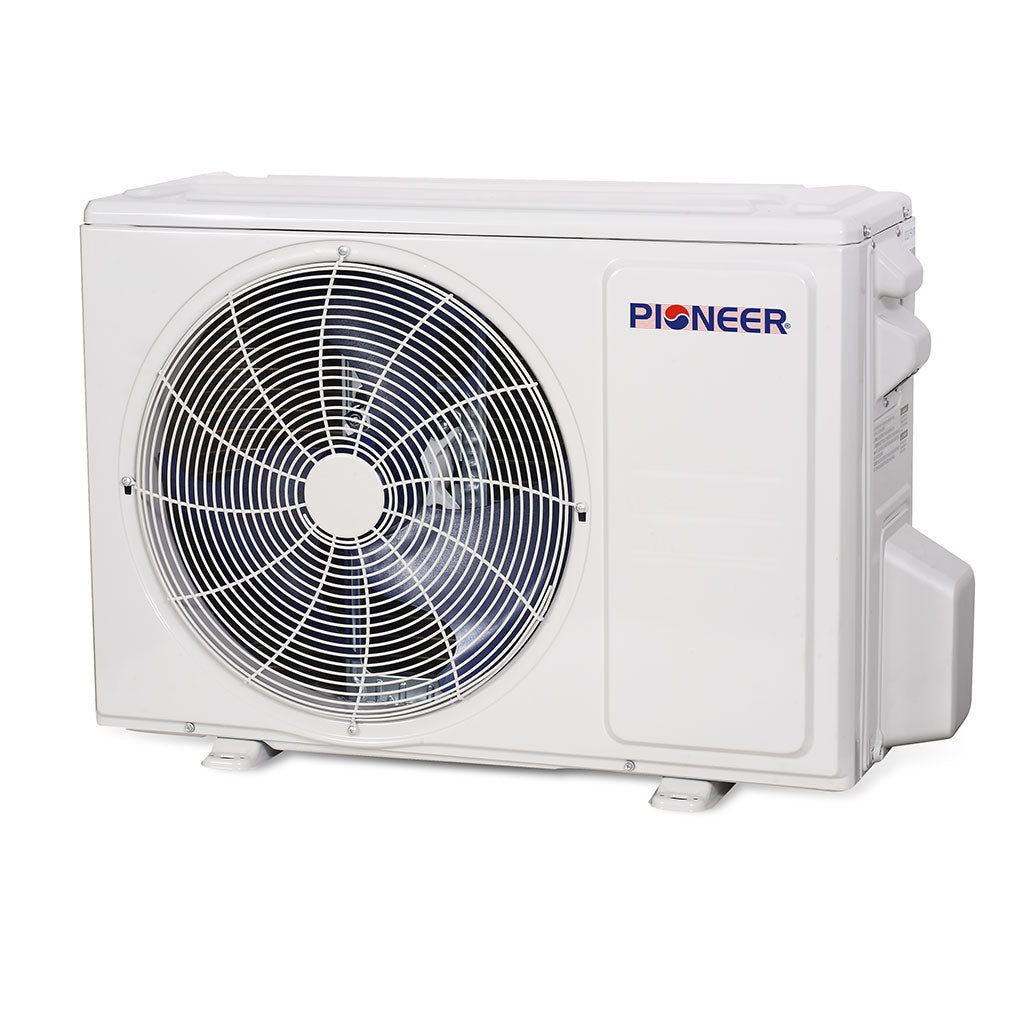

Outdoor Unit Data

Model: YN009GMFI22RPE
Sound Level: 54.5 dB(A)
Breaker Needed: 15A (double-pole)
Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
Net / Gross Weight: 64 / 69 Lbs

Manuals & Downloads

Free Shipping For All Orders Over $49

For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.

Click here for information on Returns and Refunds

Shipping Details

We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.

Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.

Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.

We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.

We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.

Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.

We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.

QUESTIONS & ANSWERS

Ask a Question

How many continuous watts does this pull?

Roughly 834W when operating at the full rated capacity.
Can you only run one cieling unit from your 12000 btu outdoor unit?

You can run up to 5. You would need to build your bundle using our multi-zone section, we also have a helpful tool for doing this here.
Can you angle the air flow in ceiling vent?

Yes, you can adjust the louver of the panel to direct airflow.
Will the ceiling cassette fit between 24" ceiling joist?

Yes, this measures 22.5" square.
Can the cassette be mounted vertically in a wall?

No unfortunately it cannot for drainage reasons.
