Name: Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
Brand: Pioneer Official Store
SKU: CYK012GMFILCAD-10
Price: 2023.0 USD
Availability: InStock

Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Free Shipping for Orders Above $49

Wholesale Price Directly From Factory

Secure and Versatile Payment Options

Low stock - 5 items left
Inventory on the way

Price Save $866

Quantity

[{"id":40588254085162,"title":"10 Ft","option1":"10 Ft","option2":null,"option3":null,"sku":"CYK012GMFILCAD-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - 10 Ft","public_title":"10 Ft","options":["10 Ft"],"price":202300,"weight":0,"compare_at_price":288900,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40588254117930,"title":"16 Ft","option1":"16 Ft","option2":null,"option3":null,"sku":"CYK012GMFILCAD-16","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - 16 Ft","public_title":"16 Ft","options":["16 Ft"],"price":205800,"weight":0,"compare_at_price":293900,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":"810102182005","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40588254150698,"title":"25 Ft","option1":"25 Ft","option2":null,"option3":null,"sku":"CYK012GMFILCAD-25","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - 25 Ft","public_title":"25 Ft","options":["25 Ft"],"price":210300,"weight":0,"compare_at_price":299900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40588254183466,"title":"33 Ft","option1":"33 Ft","option2":null,"option3":null,"sku":"CYK012GMFILCAD-33","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - 33 Ft","public_title":"33 Ft","options":["33 Ft"],"price":215800,"weight":0,"compare_at_price":307900,"inventory_quantity":4,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40588254216234,"title":"50 Ft","option1":"50 Ft","option2":null,"option3":null,"sku":"CYK012GMFILCAD-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - 50 Ft","public_title":"50 Ft","options":["50 Ft"],"price":225300,"weight":0,"compare_at_price":321900,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40588254249002,"title":"WITHOUT INSTALLATION KIT","option1":"WITHOUT INSTALLATION KIT","option2":null,"option3":null,"sku":"CYK012GMFILCAD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V - WITHOUT INSTALLATION KIT","public_title":"WITHOUT INSTALLATION KIT","options":["WITHOUT INSTALLATION KIT"],"price":194300,"weight":0,"compare_at_price":277900,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Overview

Summary

Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.6 EER2 efficiency
Heating capacity: 12,500 BTU/H with 9.8 HSPF2 / 3.20 COP2 efficiency
Voltage: 208~230 V, 60 Hertz, 1 Ph
One-Way Ceiling Cassette Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Customizable length copper line set with flare connections
Energy-Star Certified

Refrigerant

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

Important

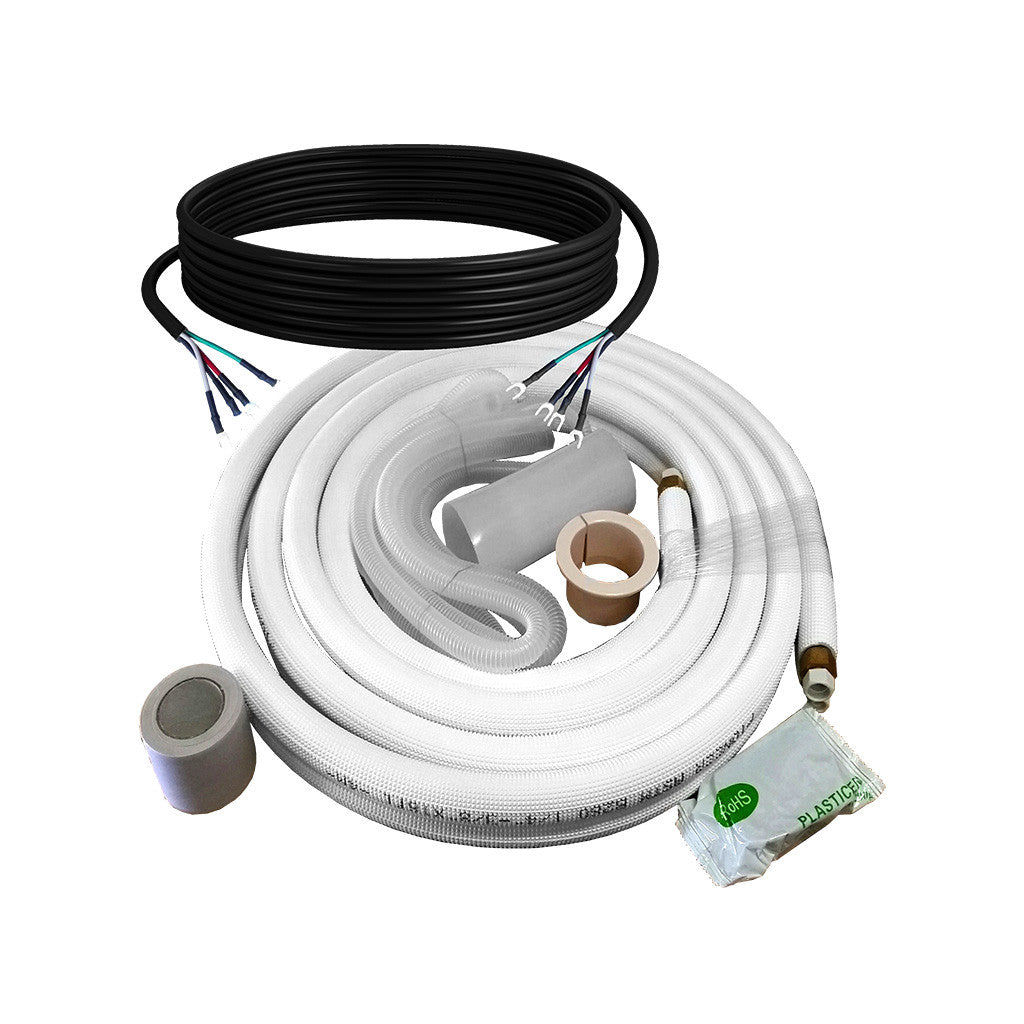

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

One-Way Cassette Mini Split

Introducing the Pioneer® CYK-22 single-way cassette series, a revolutionary ductless ceiling cassette system from Pioneer® that combines groundbreaking technology with architectural prowess to offer unprecedented control over your indoor environment. Engineered to seamlessly integrate into the structural standards of most homes and establishments, the rectangular, less than 14-inch depth design slots effortlessly between 16-inch on-center joists or rafters, eliminating the need for intrusive and costly modifications. The unit has been meticulously designed to offer only the utmost convenience, and installation is simply a breeze.

At the heart of the CYK-22 series is a series of technological advancements designed to enhance your living experience. The motorized filter panel is a game-changer, offering easy access as it lowers to the ground by up to 80 inches for hassle-free maintenance, promising a healthier and cleaner indoor atmosphere at all times. The built-in condensate pump is capable of lifting drainage water vertically by 30 inches to ensure optimal functionality and a moisture-free environment. Coupled with a range of smart features that allow for intuitive control and personalization, such as easier to install Wi-Fi control capabilities, the CYK-22 series offers a system that is at the crossroads of efficiency, innovation, and design. Step into the future of indoor climate control with the Pioneer CYK-22 series.

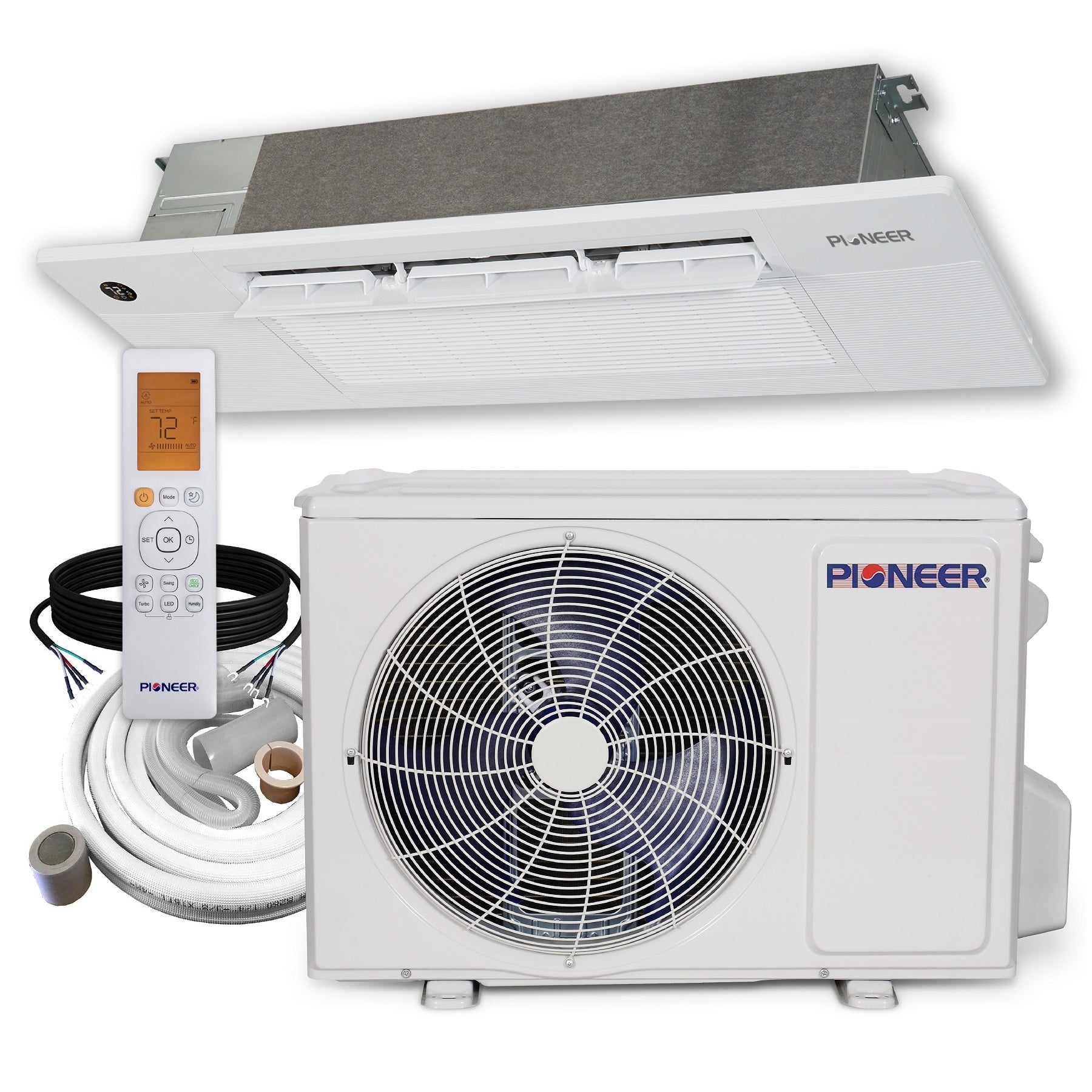

What's Included

Indoor Unit
Outdoor Unit
Decorative Panel
Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Our Guarantee

5 year parts limited warranty
5 year compressor limited warranty

Technical Information

Certifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 12,000 BTU/h
Cooling Capacity Range: 4,000~13,200 BTU/h
Cooling SEER2: 22.0 BTU/W.h
Cooling EER2: 12.6 BTU/W.h
Heating Rated Capacity: 12,500 BTU/h
Heating Capacity Range: 3,700~12,800 BTU/h
Heating HSPF2: 9.8 BTU/W.h
Heating C.O.P.2: 3.20 W/W
Refrigerant Type: R410a
Suitable Area: 200~450 Sq.F

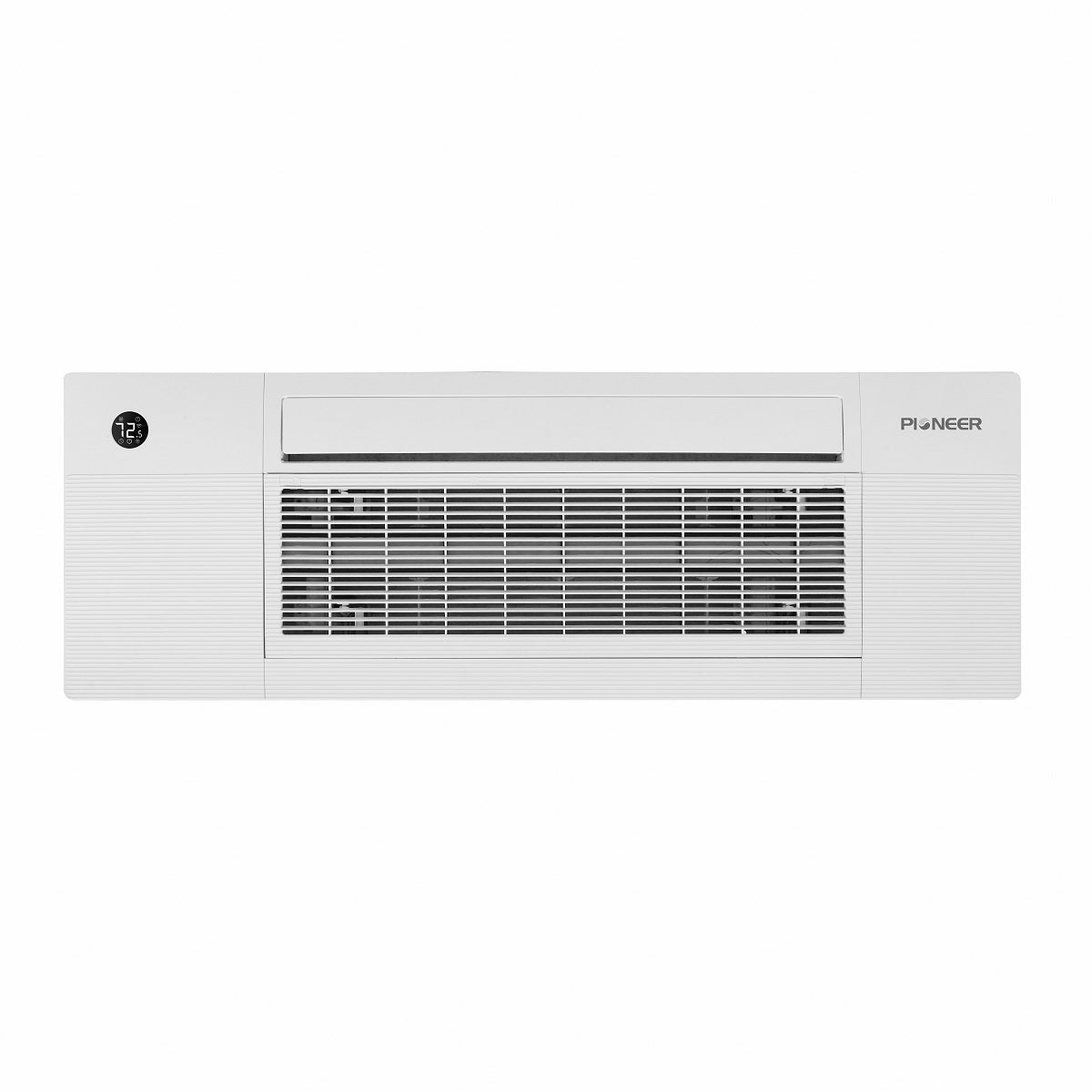

Indoor Unit Data

Model: CK012GMFILCFHD
Air Flow (Turbo/Hi/Med/Lo): 600 / 530 / 480 / 420 CFM
Sound Level (Hi/Med/Lo): 40.5 / 38.5 / 34.5 dB(A)
Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
Net / Carton Weight: 45.2 / 82.9 Lbs

Panel Data

Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
Panel Net / Gross Weight: 24 / 29 Lbs

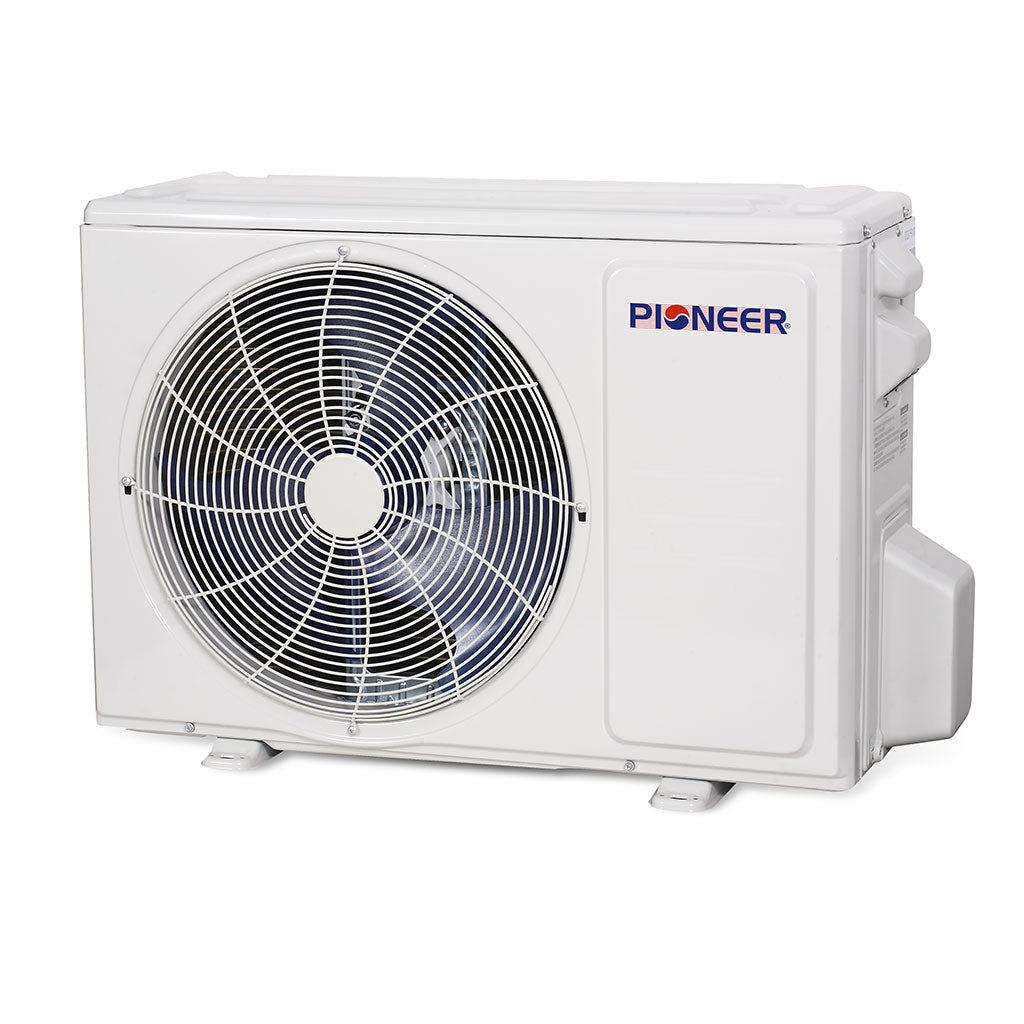

Outdoor Unit Data

Model: YN012GMFI22RPE
Sound Level: 54.5 dB(A)
Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
Net / Gross Weight: 64 / 69 Lbs
Breaker Needed: 15A (double-pole)

Manuals & Downloads

Series Technical Brochure
Series User Manual
Series Installation Manual
Series Service Manual
Series Disassembly Guide
CYK012GMFILCAD Submittal Sheet
AHRI Certificate
Energy Guide
