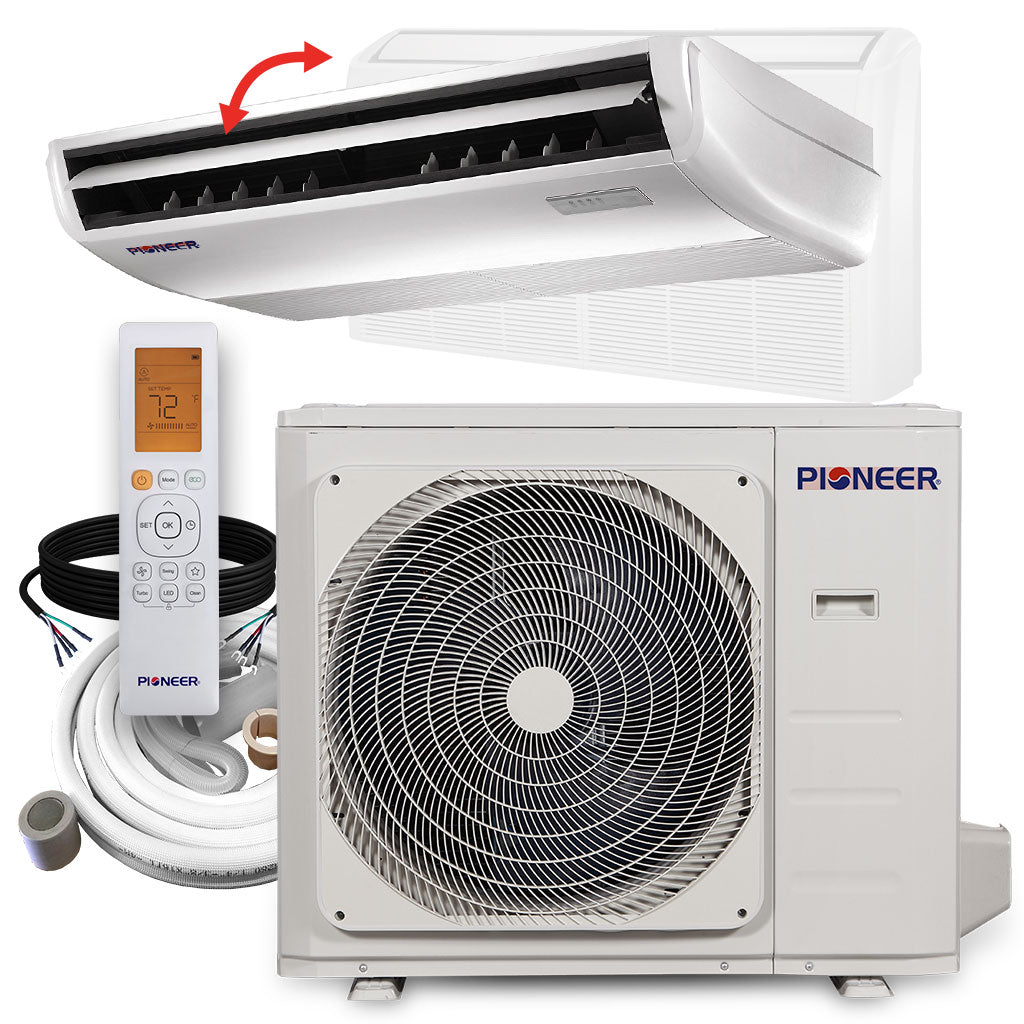

Name: Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V
Brand: Parker Davis HVAC Systems, Inc.
SKU: UYB036GMFILCBD-10
Price: 3028.0 USD
Availability: InStock

Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

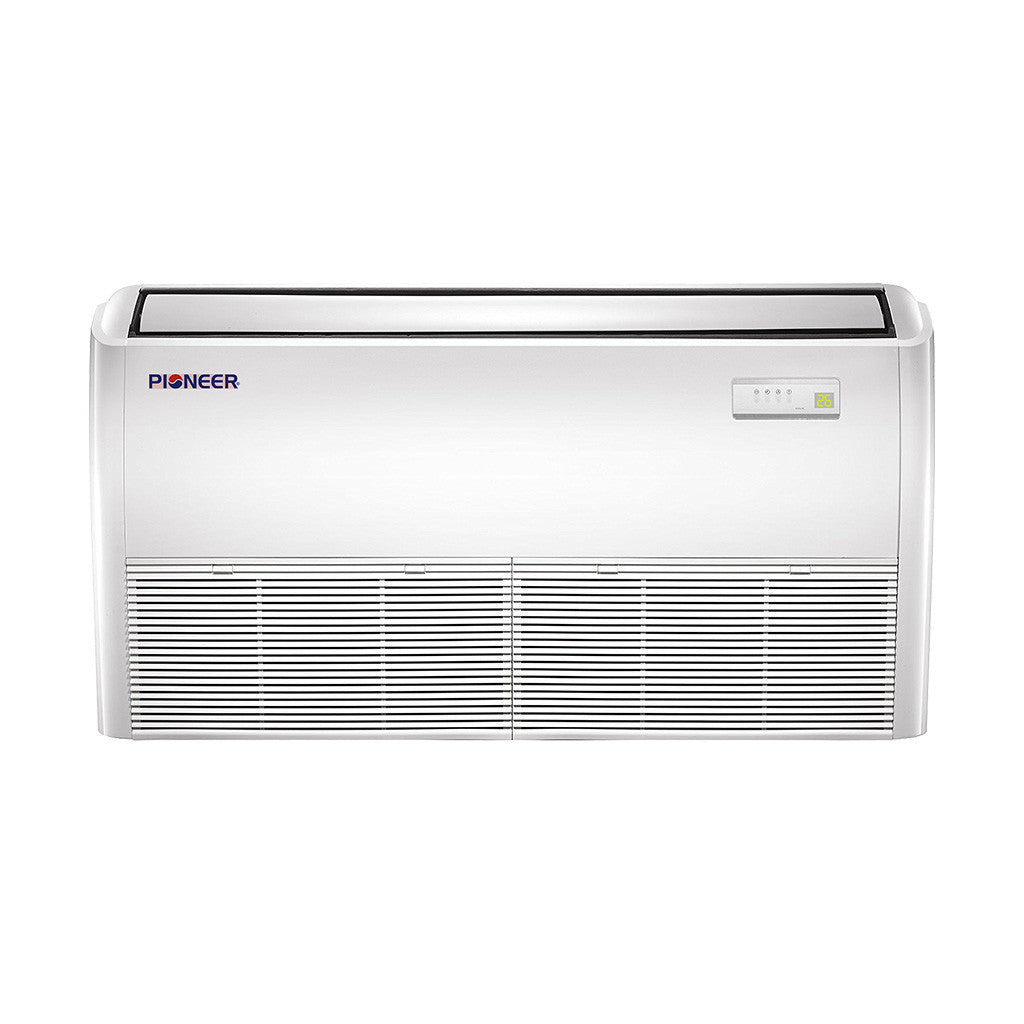

Pioneer Floor Ceiling Mini Split Heat Pump (Indoor)

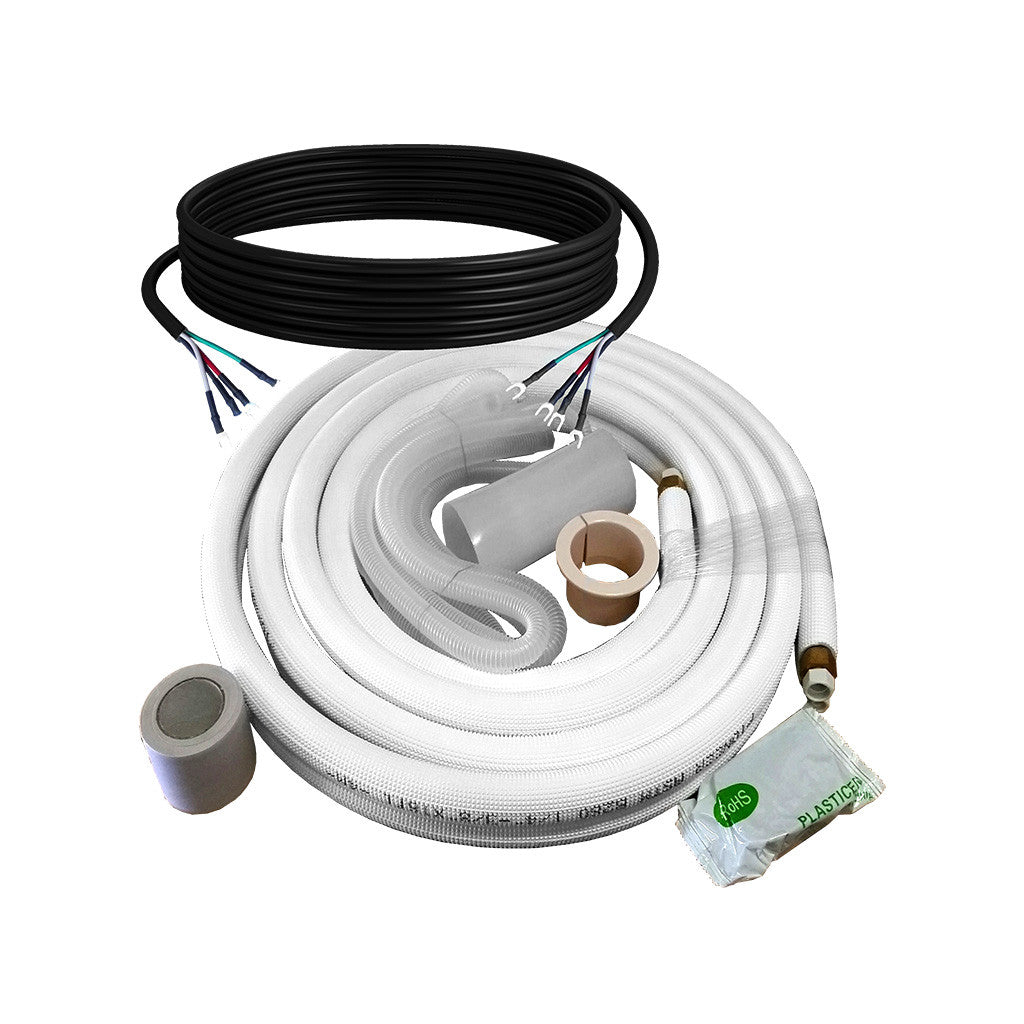

Pioneer Floor Ceiling Mini Split Heat Pump (Accessories)

Free Shipping for Orders Above $49

Wholesale Price Directly From Factory

Secure and Versatile Payment Options

In stock, ready to ship
Inventory on the way

Price Save $882

Quantity

[{"id":33424809744,"title":"10 Ft","option1":"10 Ft","option2":null,"option3":null,"sku":"UYB036GMFILCBD-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - 10 Ft","public_title":"10 Ft","options":["10 Ft"],"price":302800,"weight":139253,"compare_at_price":391000,"inventory_quantity":-13,"inventory_management":null,"inventory_policy":"deny","barcode":"858132008216","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35827036112,"title":"16 Ft","option1":"16 Ft","option2":null,"option3":null,"sku":"UYB036GMFILCBD-16","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - 16 Ft","public_title":"16 Ft","options":["16 Ft"],"price":307800,"weight":140614,"compare_at_price":397000,"inventory_quantity":-14,"inventory_management":null,"inventory_policy":"deny","barcode":"753807439053","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35827036176,"title":"25 Ft","option1":"25 Ft","option2":null,"option3":null,"sku":"UYB036GMFILCBD-25","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - 25 Ft","public_title":"25 Ft","options":["25 Ft"],"price":313800,"weight":142428,"compare_at_price":403000,"inventory_quantity":-15,"inventory_management":null,"inventory_policy":"deny","barcode":"858132008223","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35827036240,"title":"33 Ft","option1":"33 Ft","option2":null,"option3":null,"sku":"UYB036GMFILCBD-33","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - 33 Ft","public_title":"33 Ft","options":["33 Ft"],"price":320300,"weight":143789,"compare_at_price":410000,"inventory_quantity":-11,"inventory_management":null,"inventory_policy":"deny","barcode":"858132008230","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":35827036304,"title":"50 Ft","option1":"50 Ft","option2":null,"option3":null,"sku":"UYB036GMFILCBD-50","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - 50 Ft","public_title":"50 Ft","options":["50 Ft"],"price":332800,"weight":146510,"compare_at_price":423000,"inventory_quantity":-12,"inventory_management":null,"inventory_policy":"deny","barcode":"858132008247","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":13333247524906,"title":"WITHOUT INSTALLATION KIT","option1":"WITHOUT INSTALLATION KIT","option2":null,"option3":null,"sku":"UYB036GMFILCBD","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Pioneer® 36,000 BTU 19 SEER2 Floor\/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V - WITHOUT INSTALLATION KIT","public_title":"WITHOUT INSTALLATION KIT","options":["WITHOUT INSTALLATION KIT"],"price":292800,"weight":135624,"compare_at_price":381000,"inventory_quantity":-11,"inventory_management":null,"inventory_policy":"deny","barcode":"858132008254","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Overview

Summary

Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
Cooling capacity: 36,000 BTU/H with 19.0 SEER2 / 8.5 EER2 efficiency
Heating capacity: 38,000 BTU/H with 9.0 HSPF / 2.68 C.O.P.2 efficiency
Voltage: 208~230 V, 60 Hertz, 1 Ph
Floor/Ceiling Flex Mount Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Customizable length copper line set with flare connections
AHRI Estimated Annual Operating Costs:

Cooling: $280.00
Heating: $803.00

Refrigerant

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

Important

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Ductless Floor-Ceiling Mini Splits

Pioneer Mini Split offers a wide selection of flexible ductless floor-ceiling mini splits that are ideal for homes and commercial properties. These low-mount mini split systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; this allows you to have a ceiling-suspended mini split. Our Pioneer mini split floor mount and ductless air conditioning ceiling mount systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of ductless floor-ceiling mini splits!

What's Included

Indoor Unit
Outdoor Unit
Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Our Guarantee

5 year parts limited warranty
5 year compressor limited warranty

Features

Standard

Front Desk Control
With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
46° F Heating
Refrigerant Leakage Detect
Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
Anti-cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
Emergency Using
Low Ambient Cooling
With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
Follow Me
Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Optional

Wired Controller
Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
Remote in Engineer Mode
Central Control Management
The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

Technical Information

Certifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 36,000 BTU/h
Cooling Capacity Range: 11,476~36,000 BTU/h
Cooling SEER2: 19.0 BTU/W.h
Cooling EER2: 8.5 BTU/W.h
Heating Rated Capacity: 38,000 BTU/h
Heating Capacity Range: 11,467~38,000 BTU/h
Heating HSPF2 (Region IV/V): 9.0 / 7.0 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 2.68 / 1.8 W/W
Refrigerant Type: R410a
Suitable Area: 900~1,350 Sq.F

Indoor Unit Data

Model: UB036GMFILCFHD
Air Flow (Hi/Med/Lo): 1,036 / 917 / 638 CFM
Sound Level (Hi/Med/Lo): 51.5 / 48.0 / 40.5 dB(A)
Net Dimensions (WDH): 50.5 x 26.5 x 9.3 Inches
Carton Dimensions (WDH): 53.5 x 29.8 x 12.4 Inches
Net / Gross Weight: 69 / 82 Lbs

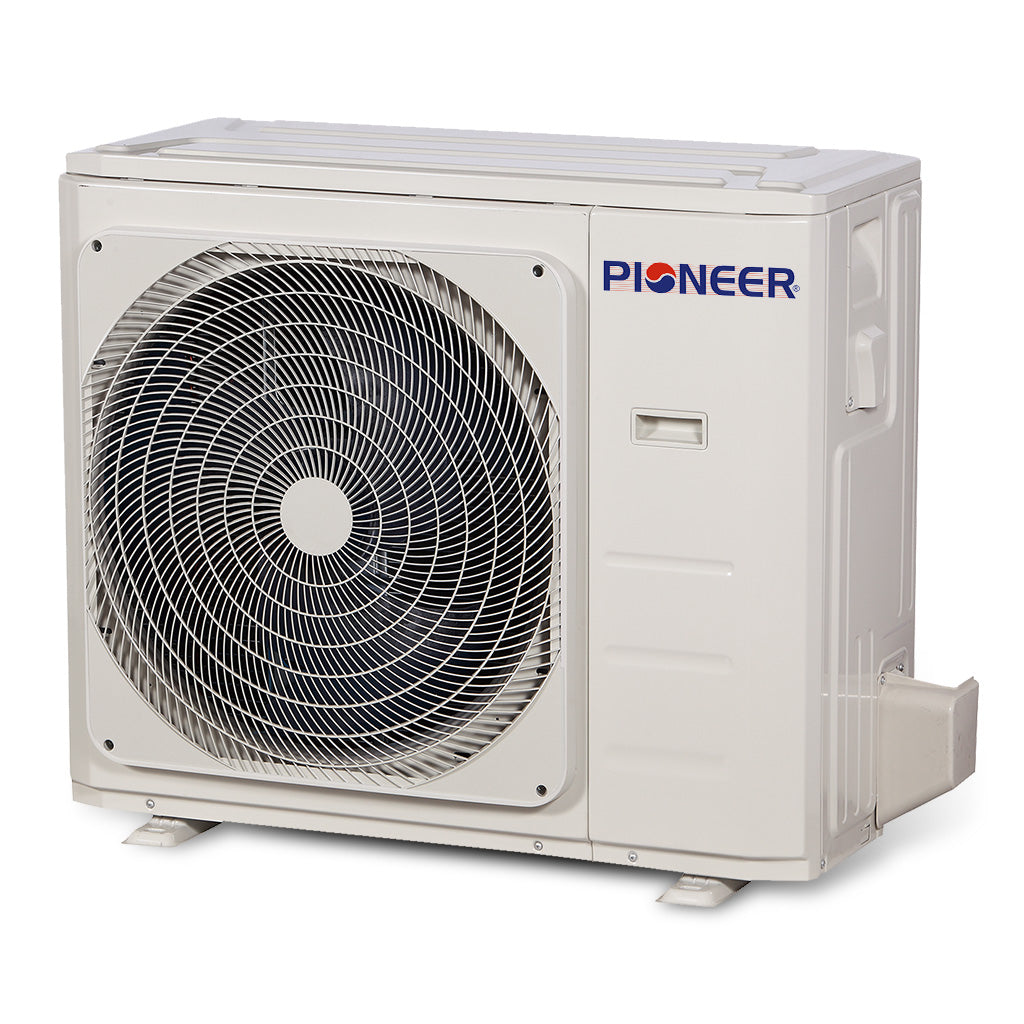

Outdoor Unit Data

Part Number: YN036GMFI18RUE
Sound Level: 63.5 dB(A)
Breaker Needed: 40A (double-pole)
Net Dimensions (WDH): 37.3 x 16.2 x 31.8 Inches
Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
Net / Gross Weight: 155.4 / 166.2 Lbs

Manuals & Downloads
