- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 24,000 BTU/H with 18 SEER2 / 9 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 8.6 HSPF2 / 3.03 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $176.00
- Heating: $518.00
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

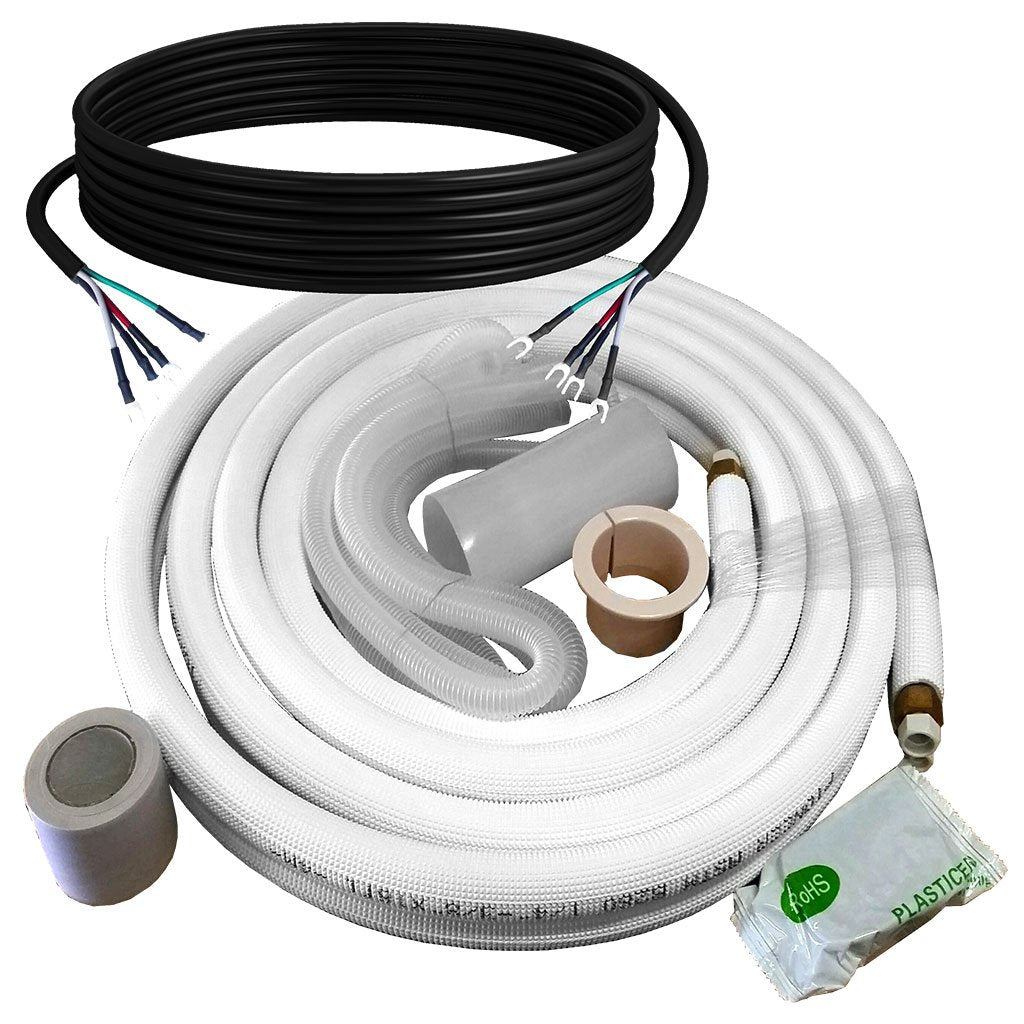

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Wall-Mounted Mini Split
Quantum Series Inverter+ (20 SEER) and Inverter++ (22 SEER)
At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

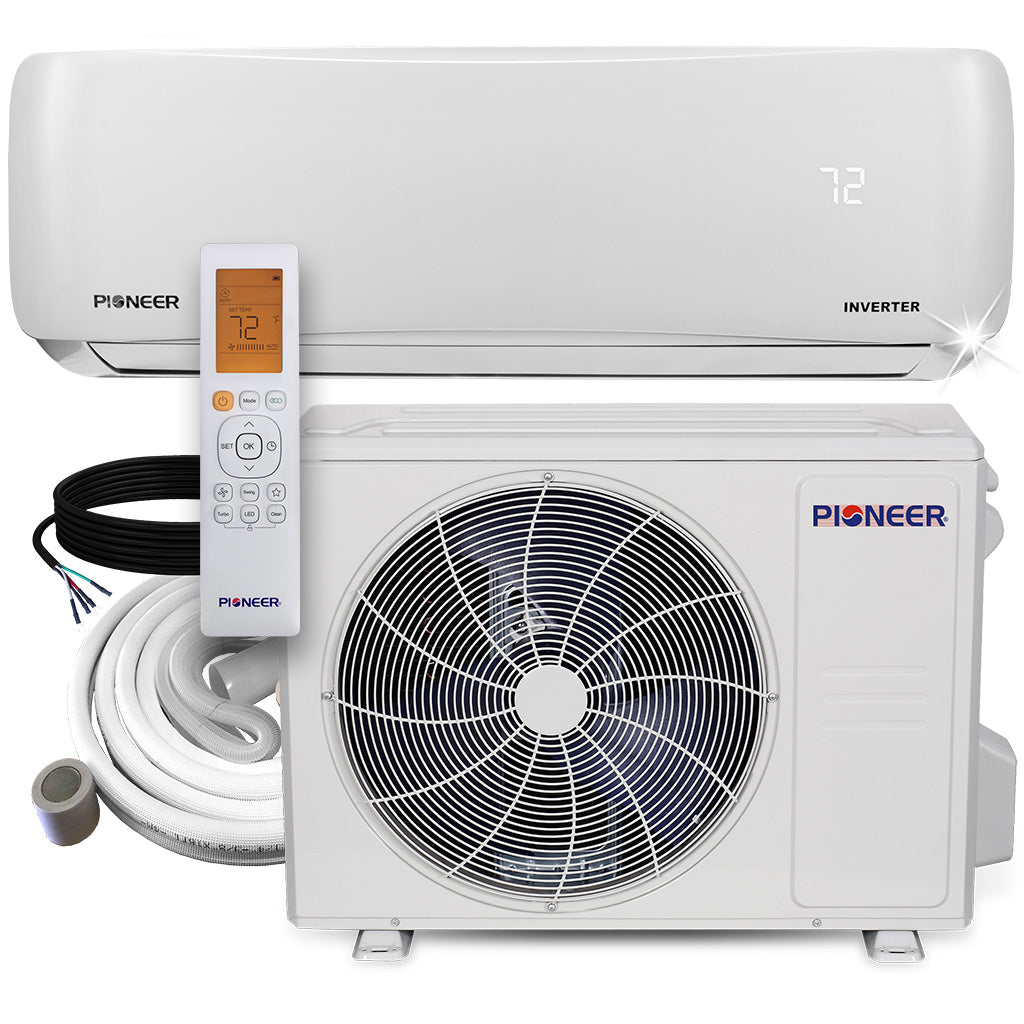

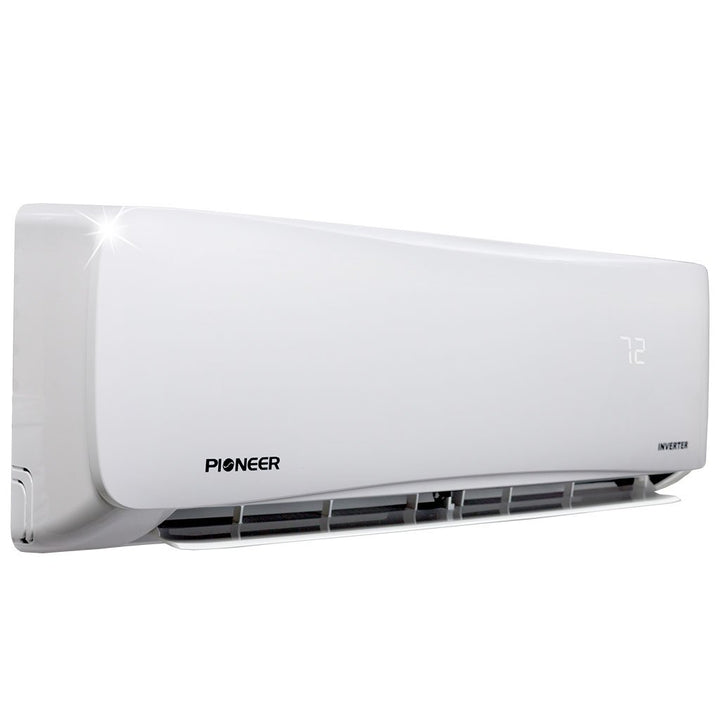

- Indoor Unit
- Outdoor Unit

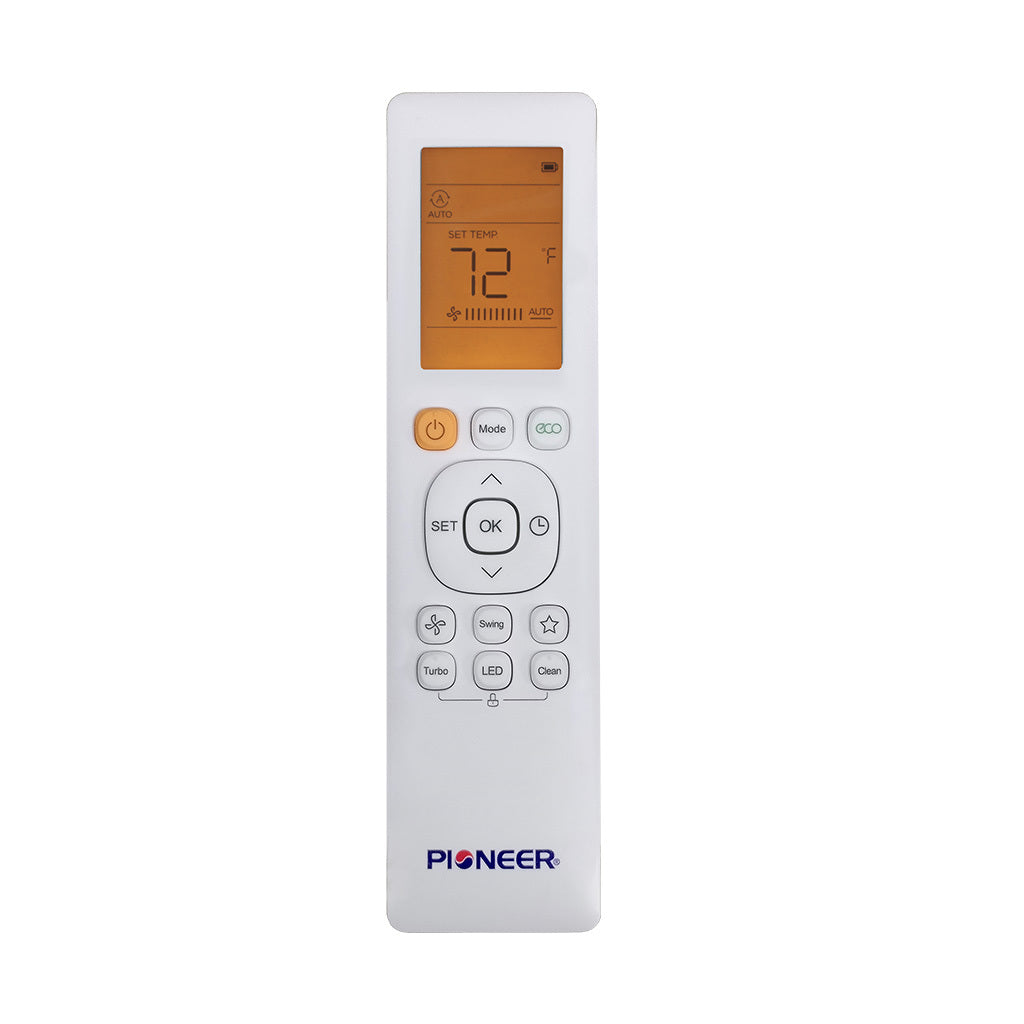

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- 5 year parts limited warranty
- 5 year compressor limited warranty
Front Desk Control
With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
46° F Heating
Refrigerant Leakage Detect
Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
Anti-cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
Low Ambient Cooling
With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
Remote in Engineer Mode
Central Control Management
The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 6,704~25,300 BTU/h
- Cooling SEER2: 18.0 BTU/W.h
- Cooling EER2: 9.0 BTU /W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 6,900~28,100 BTU/h
- Heating HSPF2 (Region IV/V): 8.6 / 6.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.03 / 1.78 W/W
- Refrigerant Type: R410A/63
- Suitable Area: 650~900 Sq.F

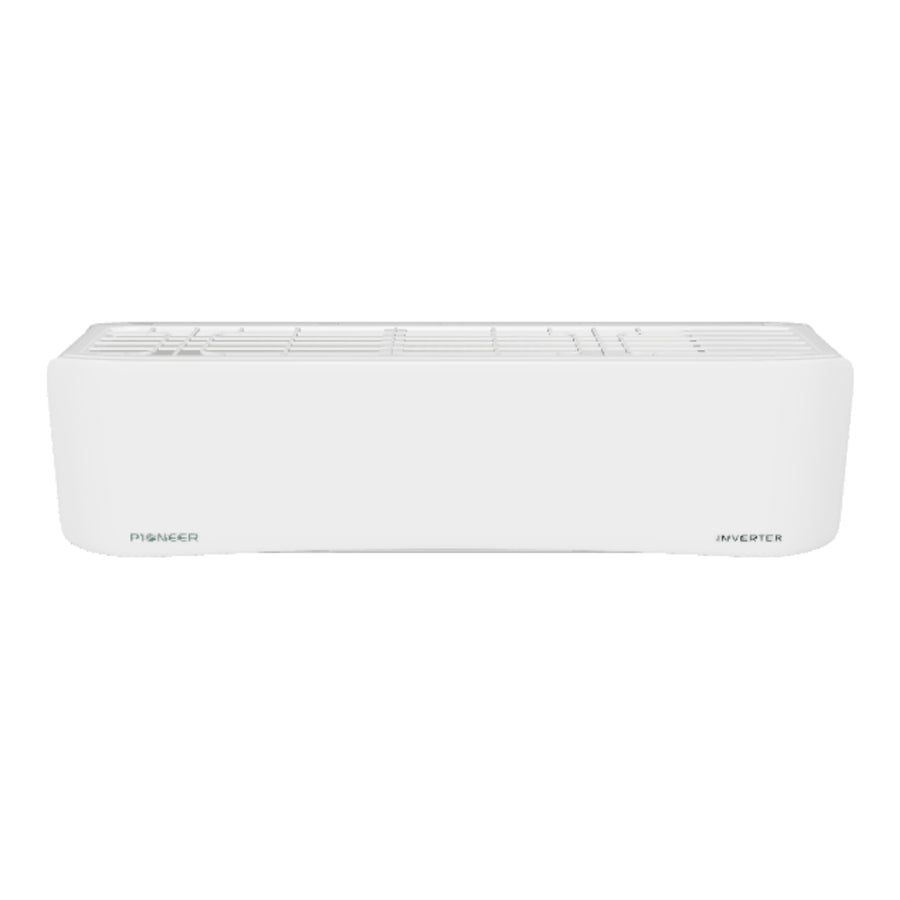

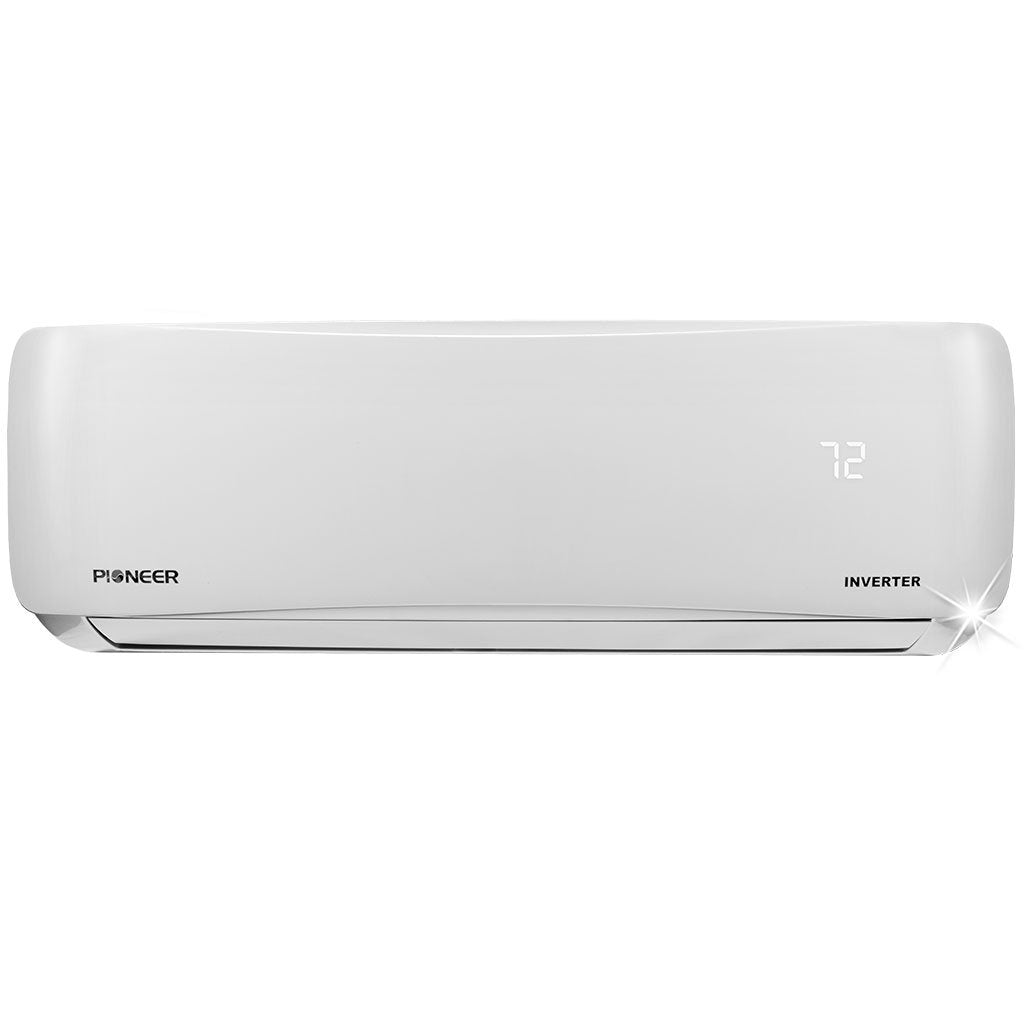

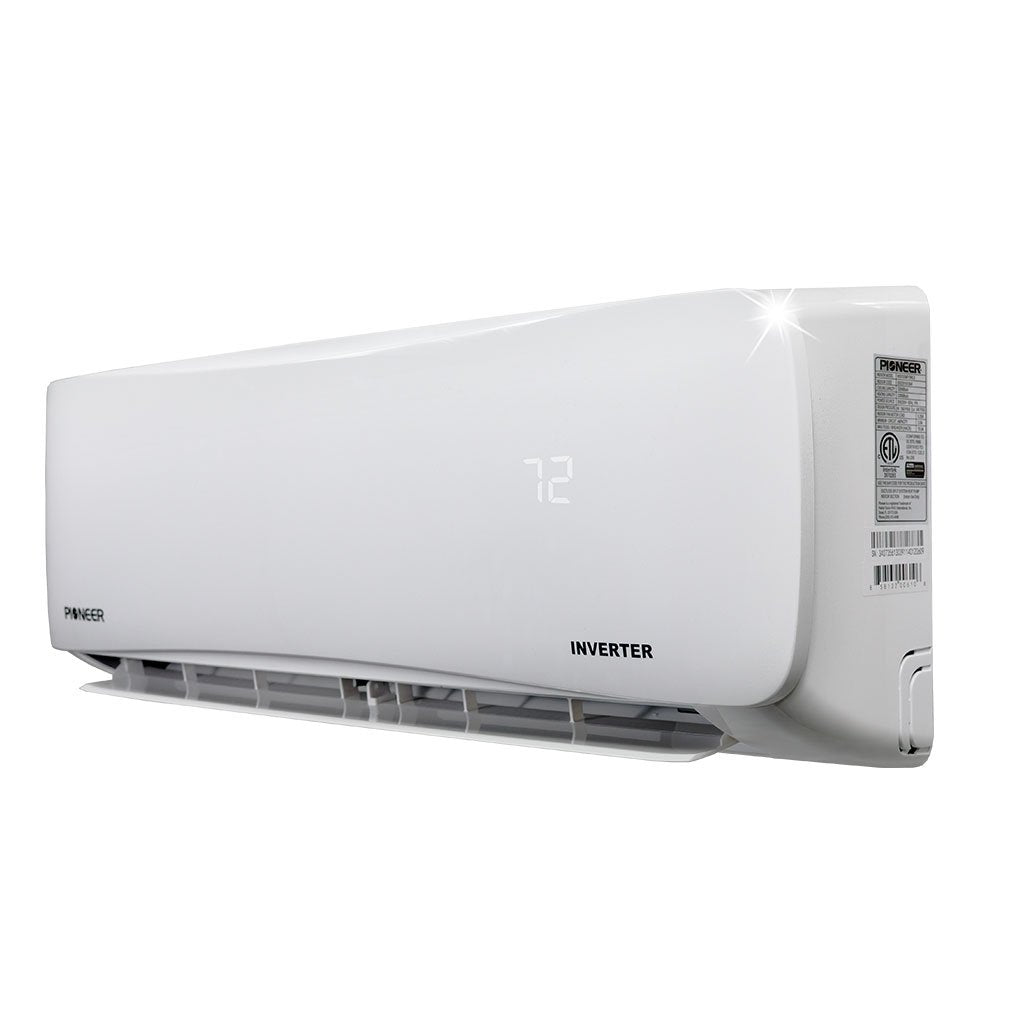

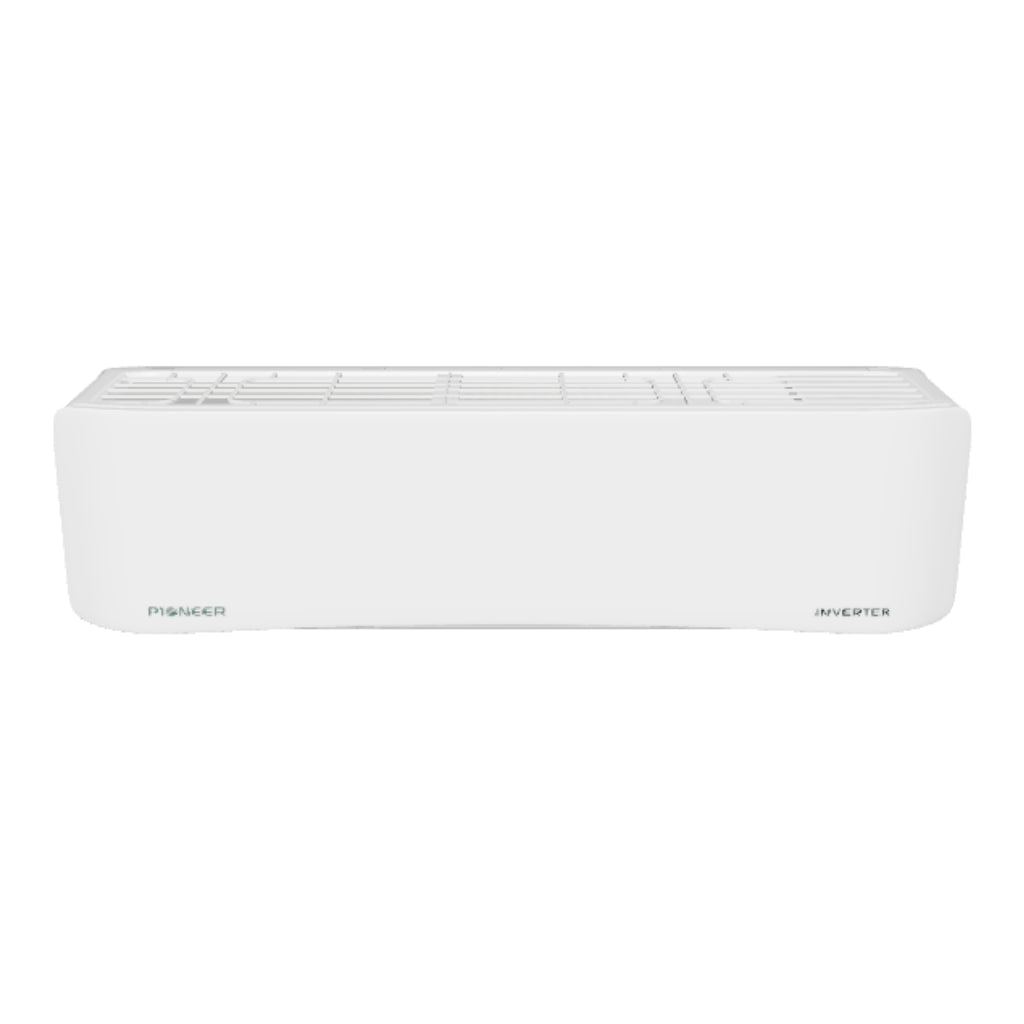

Indoor Unit Data
- Model Number: WS024GMFI20HLD
- Air Flow (Hi/Med/Lo): 588 / 450 / 353 CFM
- Sound Level (Hi/Med/Lo): 45.5 / 39.5 / 35.0 dB(A)
- Net Dimensions (WDH): 42"-1/2 x 8"-7/8 x 13"-1/8 Inches
- Carton/Shipping Dimensions (WDH): 45"-1/2 x 16"-3/8 x 12"-5/8 Inches
- Net / Gross Weight: 30 / 38.6 lbs

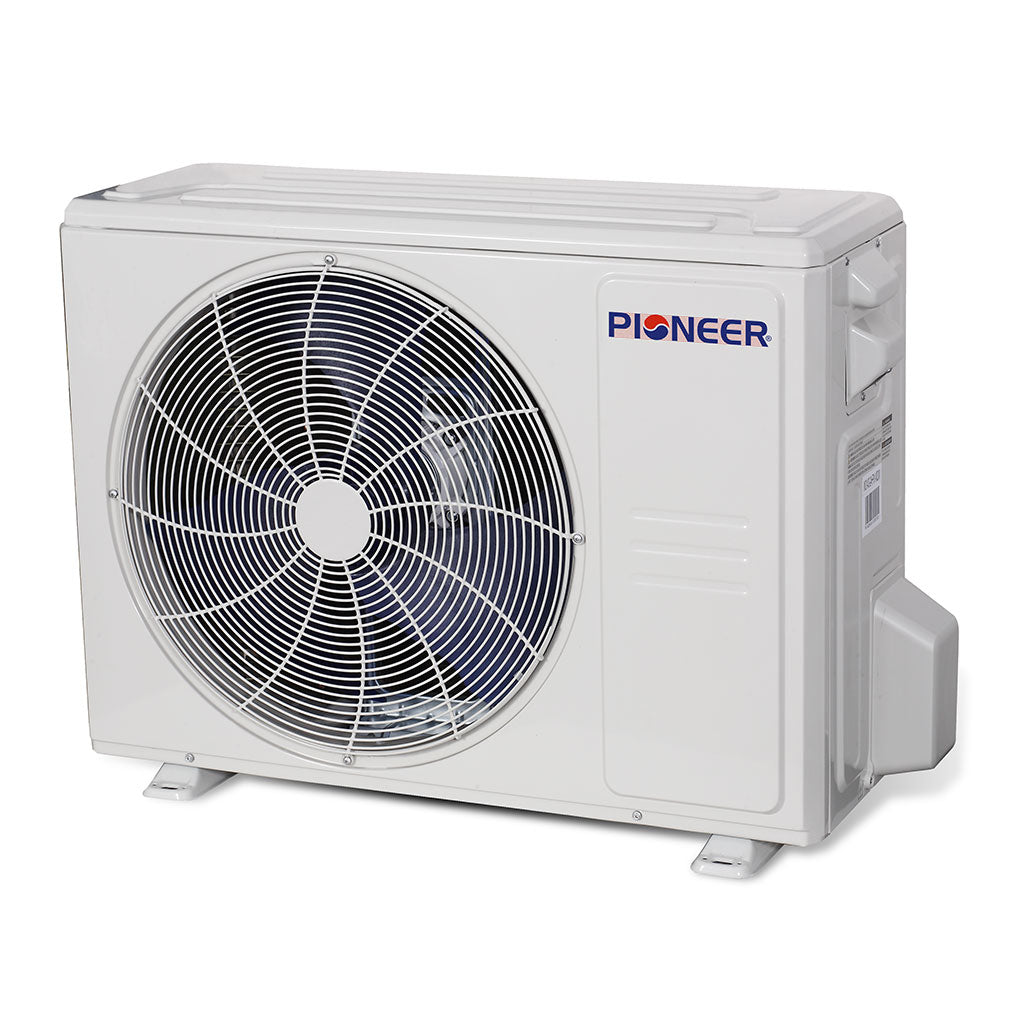

Outdoor Unit Data
- Model Number: YN024GMFI20RPD
- Sound Level: 60.0 dB(A)
- Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
- Carton Dimensions (WDH): 39"-1/8 x 15"-5/8 x 29"-1/8 Inches
- Net / Gross Weight: 97.9 / 104.60 lbs
- Breaker Needed: 20A (double-pole)
Manuals & Downloads
Free Shipping For All Orders Over $49
WE ARE CURRENTLY IN THE BUSY SEASON, PLEASE ALLOW US 1-2 MORE BUSINESS DAYS TO PROCESS AND SEND OUT YOUR ORDER. THANKS FOR YOUR PATIENCE AND UNDERSTANDING.
For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.
Click here for information on Returns and Refunds
We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.
Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.
Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.
We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.
We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.
Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.
We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.
QUESTIONS & ANSWERSAsk a Question
How many units can be added to 1 condenser
This is a single-zone, 1-to-1 system. If you are needing multiple indoor heads off of one outdoor, check out our Multi-zone section.
How many square’ ?
For standard applications, this system is intended to heat/cool spaces between 600 and 1,000 sq. ft.
What is the size of wrench needed for the 3/8 and 5/8 line fittings ?
The wrench/tool sizes needed would be 13/16" and 1-1/16".
Does it require a neutral wire ?
For this 230V system the power wire would be 2 hots and a ground, no neutral.
how long is the drain hose on a 33 foot line set?
For all selections, the drain hose remains at 10 ft. This is because for longer drainage runs, we recommend to route into PVC for optimal longevity.
Electric what size by realer and wire for 24000 btu and 30000
You can use a 20A double-pole breaker with 12 AWG wire on either of those.
what is the size of the line set size? both lines & what is max distance that condenser and evaporator coil apart from each other?
This system takes 3/8" and 5/8" lines and the two units can be up to 80 ft apart from eachother.
What is the lowest outdoor temperature that the heater will work at?
This system will heat down to 5°F outside temperatures.
How many square feet will this unit heat and cool?
This is typically meant to manage up to 1,000 SQ ft.
How much power AMPS or WATTS does this unit use?
You can find all technical specs and electrical on this product in this tech brochure. It is the 6th product column on the 2nd page.
How is the unit shipped?
It is shipped via freight LTL truck and is strapped and wrapped to a pallet. The delivery includes appointment and liftgate.
Does the kit come with a mounting pad?
The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty. It does not include a mounting pad.
Will this unit communicate with Amazon Alexa?
It would have this capability after installing this Wi-Fi module.
I need the 33ft line set. Will the unit still come charged with R410a refrigerant?
The system comes pre-charged for line lengths up to 25 ft long. If selecting beyond that length, you might need to add some R410a to the unit onsite. We are unable to make adjustments to the precharge levels.
How many sq ft will this unit take care of?
This unit is generally intended for room sizes between 650 and 950 square feet.
I have a power feed of 246 volts single phase that run of a double pole 20amp breaker, would this be ok to power this 230 volt ac unit. The used to supply and under cabinet electric heater.
A 20A double-pole breaker is appropriate, and yes this system can work with 230V +/- 10%, for a range of 207~253V.
what is included with the unit ?
It would be: Outside Condenser Section with drain spout, Inside Air Handler Section with handheld remote and filter, and the installation kit length of your selection which would include the copper refrigerant tubing, signal cable, drain tube, wall cap, sleeve, and putty.
