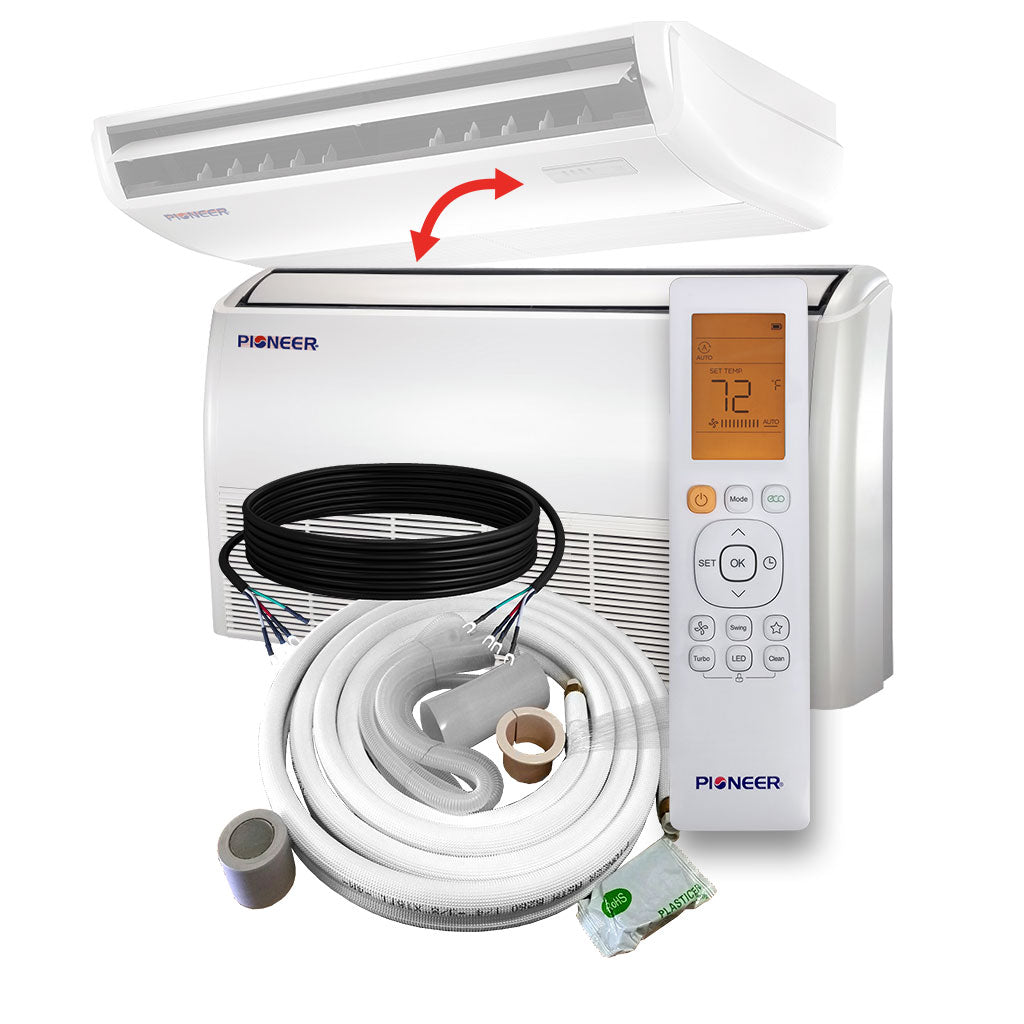

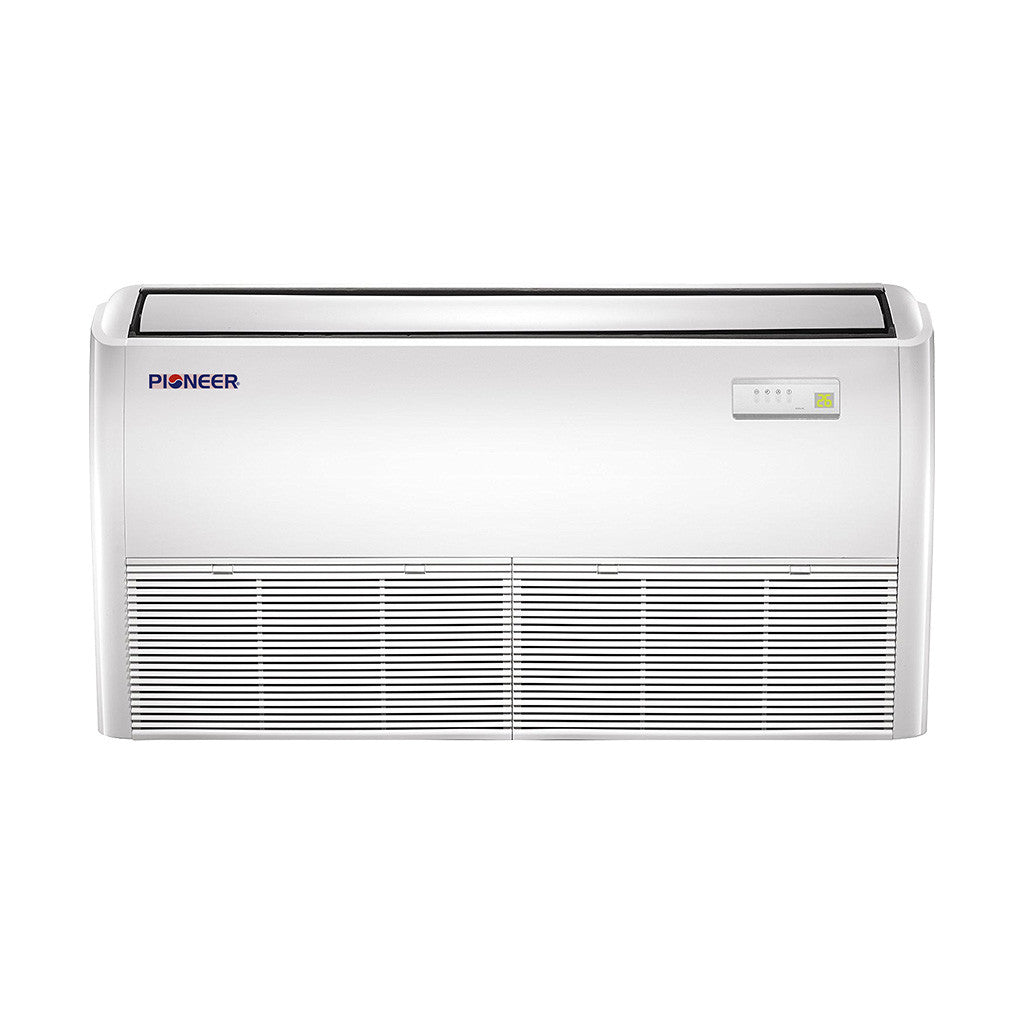

Multi Zone Split Ductless Floor / Ceiling Flex Mount Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units Only.

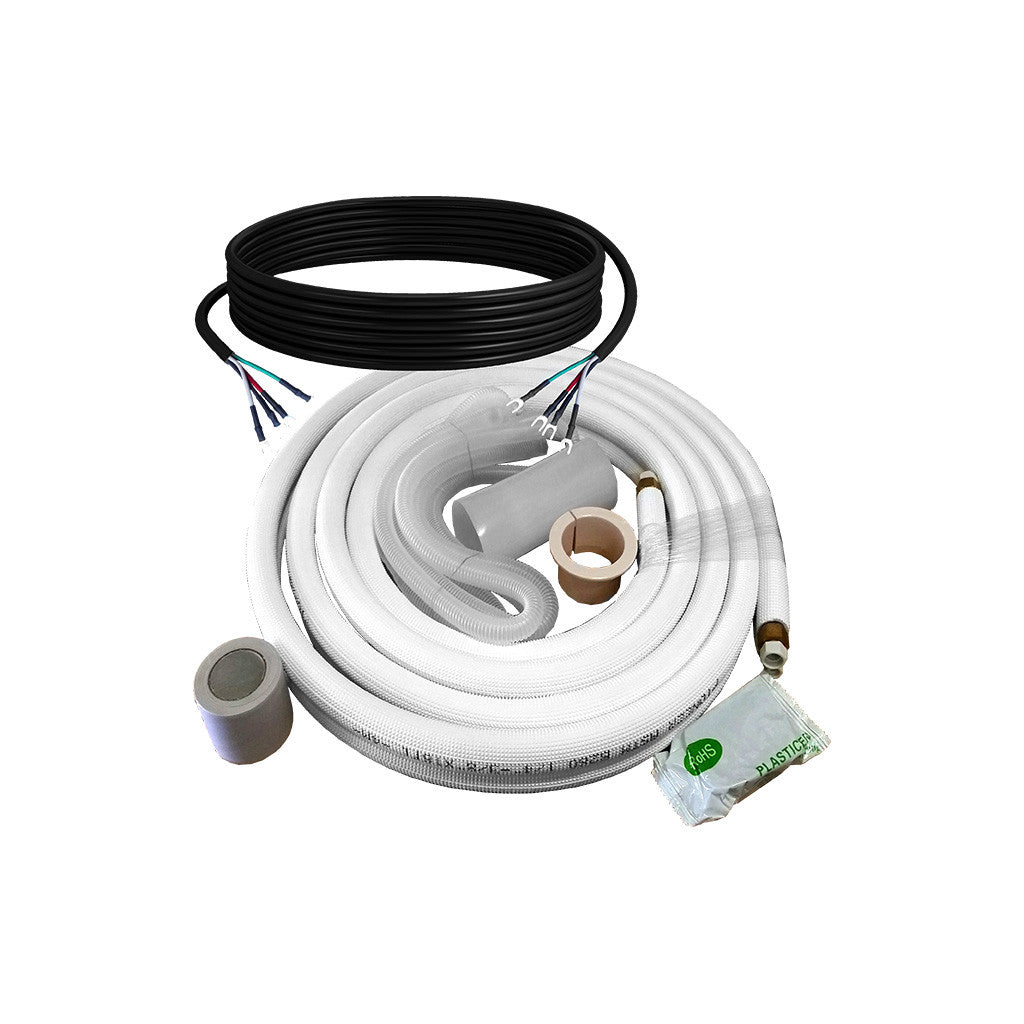

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the 4 kinds of outdoor units we offer as follows:
- Quad Zone: YN040GMFI22M4D
Quint Zone: YN050GMFI22M5D
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.
- Indoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- 5 year parts limited warranty
- 5 year compressor limited warranty
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 24,000 BTU/h
- Cooling SEER: 20.0
- Heating Capacity: 24,000 BTU/h
- Heating HSPF: 11.0
- Suitable Area: 650~900 Sq.F
- Air Flow (Hi/Med/Lo): 759 / 695 / 630 CFM
- Sound Level (Hi/Med/Lo): 53 / 48 / 42 dB(A)
- Net Dimensions (WDH): 42" x 26"-1/2 x 9"-1/4
- Carton Dimensions (WDH): 45" x 29"-3/4 x 12"-3/8
- Net / Gross Weight: 58.5 / 69 Lbs
