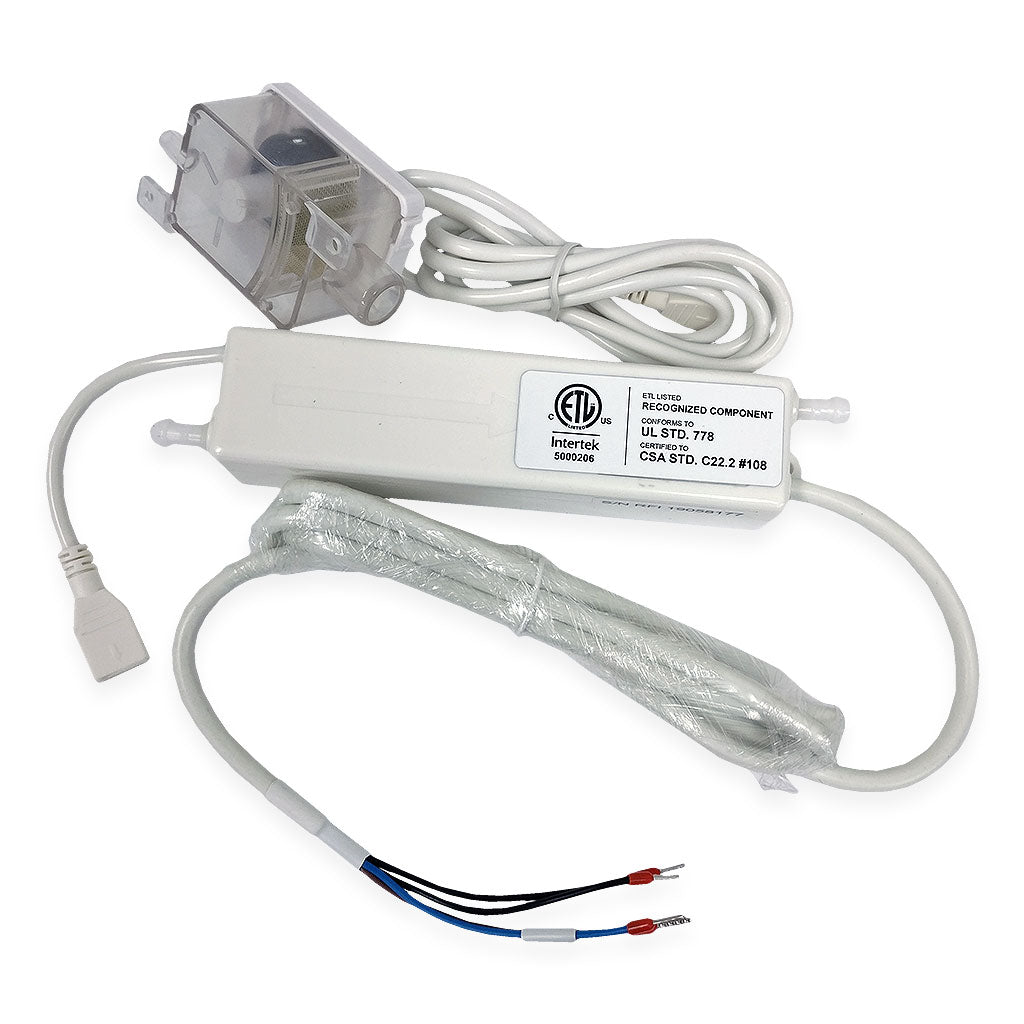

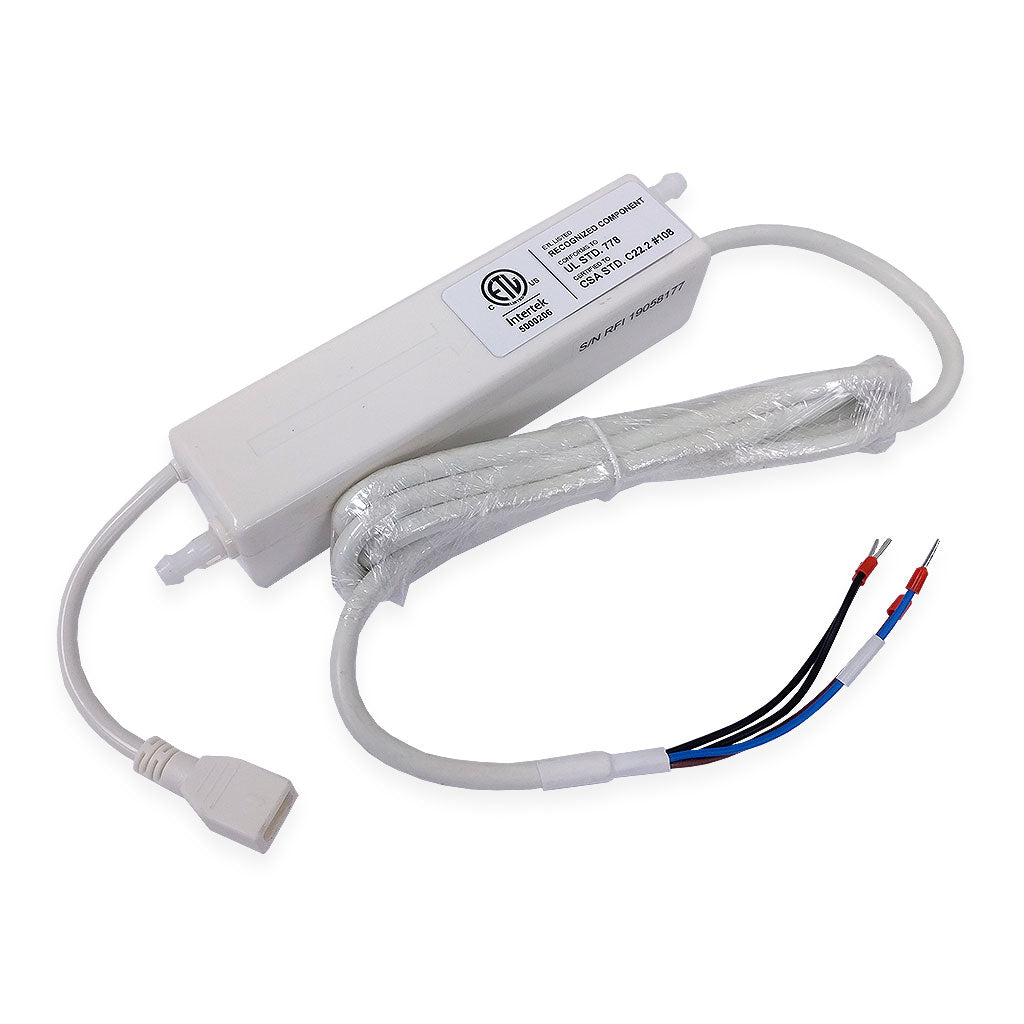

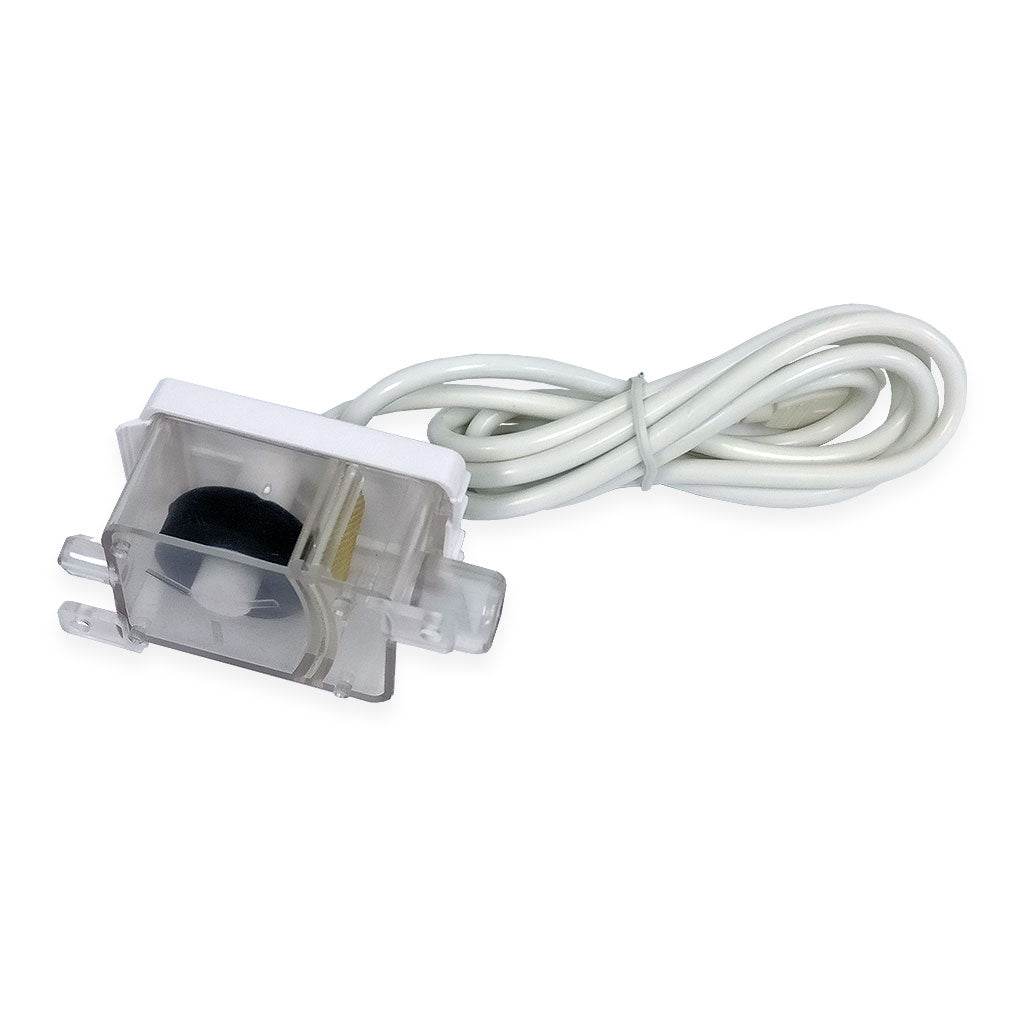

Condensate Pump for Mini Split Ductless Air Conditioners, Multi Voltage
Limited Time Offer!
- Free Shipping within the Continental US
- Wholesale Price Directly from Factory

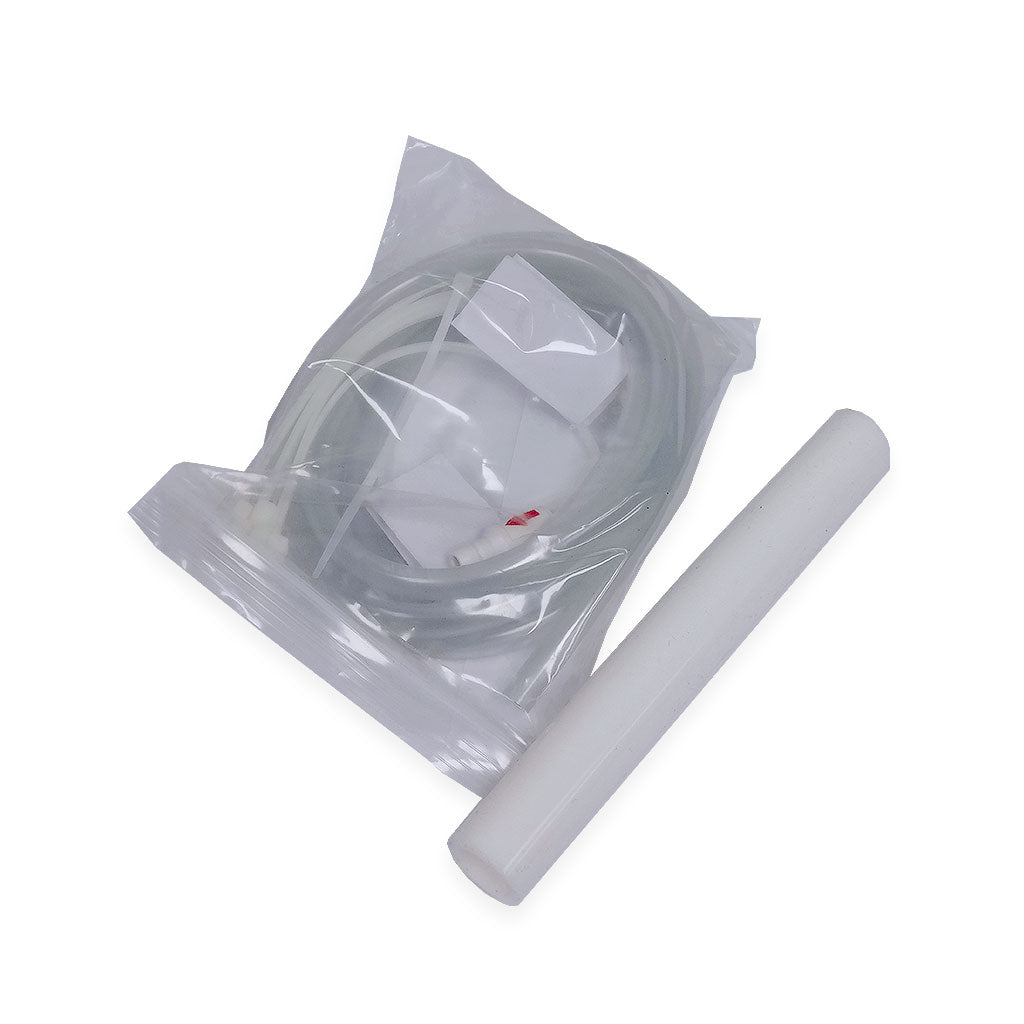

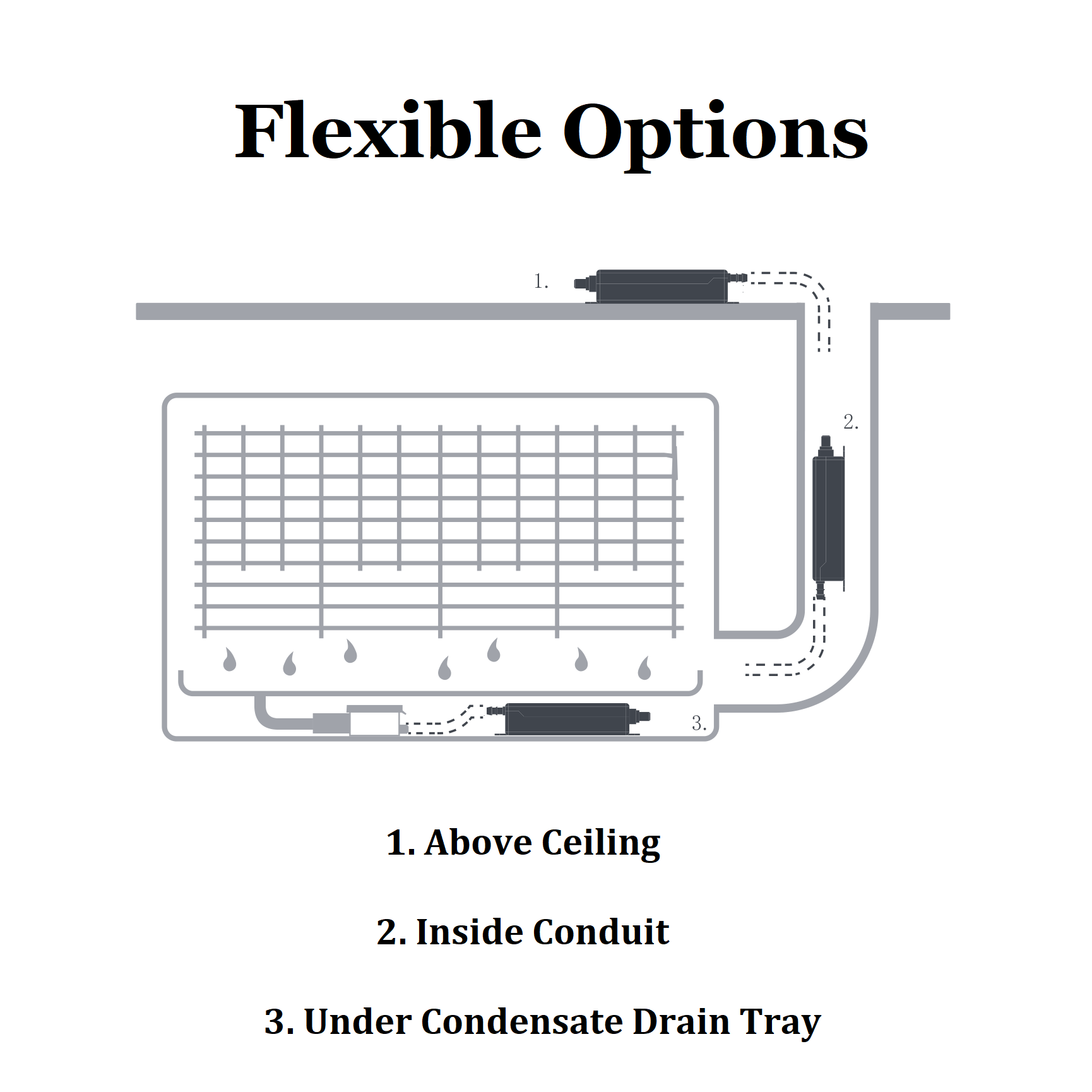

Ultra-silent and compact mute box condensate drainage pump, perfect for installation in air conditioning units with limited available space. The compact size, low noise level, multiple placement options, and ease of installation makes this suitable for most projects. Can be wired alongside a shutoff alarm switch as a backup. Comes with all necessary components. ETL certified for safety.
- Power Supply: 100-240VAC/50-60 Hz

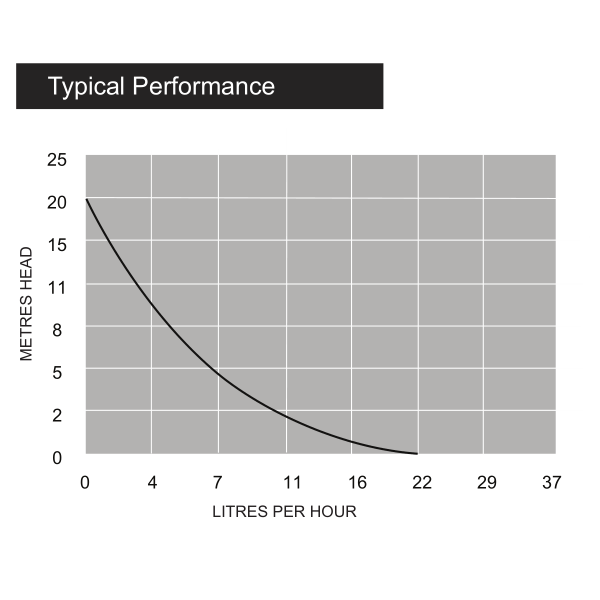

- Max Flow: 22L/hr @ 0 head
- Sound Level: <19dB(A) @ 1m
- Tank Capacity: 40ml
- Max Recommended Head: 20m
- Max Unit Output: 28kW/95550 BTU/hr
- Safety Switch: 3A Normally Closed
- Max Water Temperature: 158°F
- Discharge Tube: 6mm ID
- Class II Appliance
- Continuous Rated
- IPX5 Protection
- Thermal Protection
- Fully Potted

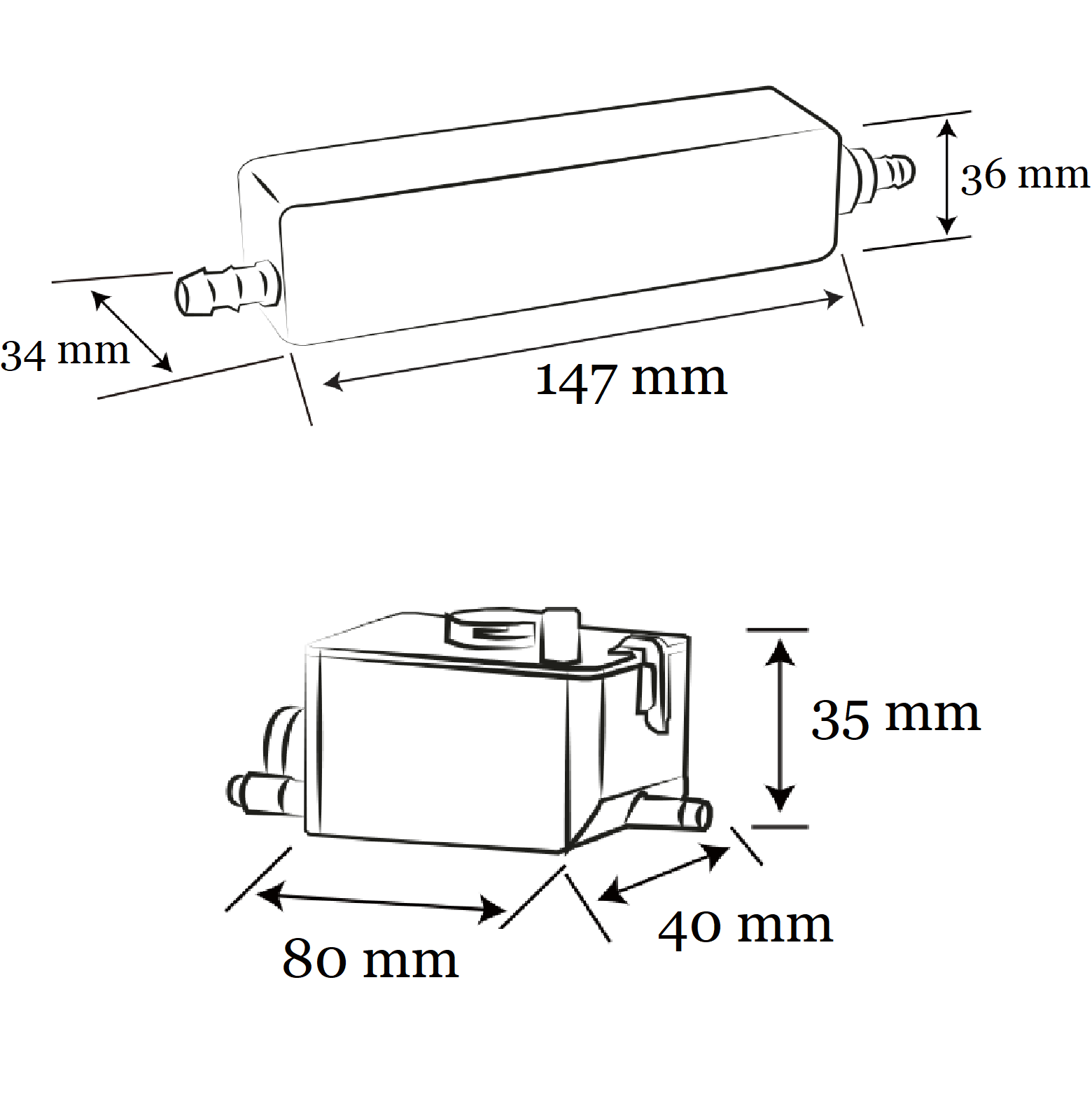

- LWH: 18.5cm X 3.6cm X 3.4 cm
QUESTIONS & ANSWERSAsk a Question
Does the power cord connect to the indoor or outdoor unit? How long is the power cord? Is thisnproduxt compatible with minisplit model WYS009AMFI19RL-16?
This wires directly into the indoor unit's terminal block. See wiring diagram here. Yes it is compatible with that model number.
Will this condensate pump fit inside the back of the indoor unit with a model WYS012AMFI19RL-16? I am looking to install the unit on a brick wall in a basement, and do not want an unsightly external condensate pump.
Certainly, it can fit discretely in the space behind the unit and remain unseen.
is this recommended for all ceiling cassettes?
Our ceiling cassettes come with condensate pumps built-in.
