Pioneer® Diamante Series 18,000 BTU 19 SEER 230V Aire acondicionado mini-split sin ductos Juego completo de bomba de calor con 16 ft. Equipo
Pioneer® Diamante Series 18,000 BTU 19 SEER 230V Aire acondicionado mini-split sin ductos Juego completo de bomba de calor con 16 ft. Equipo
Agotado
-
Estimated delivery if ordered today: Jul 25 - Jul 29
No se pudo cargar la disponibilidad de recogida
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Descripción general
Resumen
- Sistema de bomba de calor mini split sin ductos Diamante de alta eficiencia
- Capacidad de refrigeración: 18 000 BTU/H con eficiencia 19 SEER/10 EER
- Capacidad de calefacción: 19.000 BTU/H con eficiencia de 10 HSPF/3,0 COP
- Voltaje: 208~230V, 60Hz, 1Ph
- Sistema de aire acondicionado y calefacción montado en pared alta
- Modo de funcionamiento del inversor de CC de velocidad variable

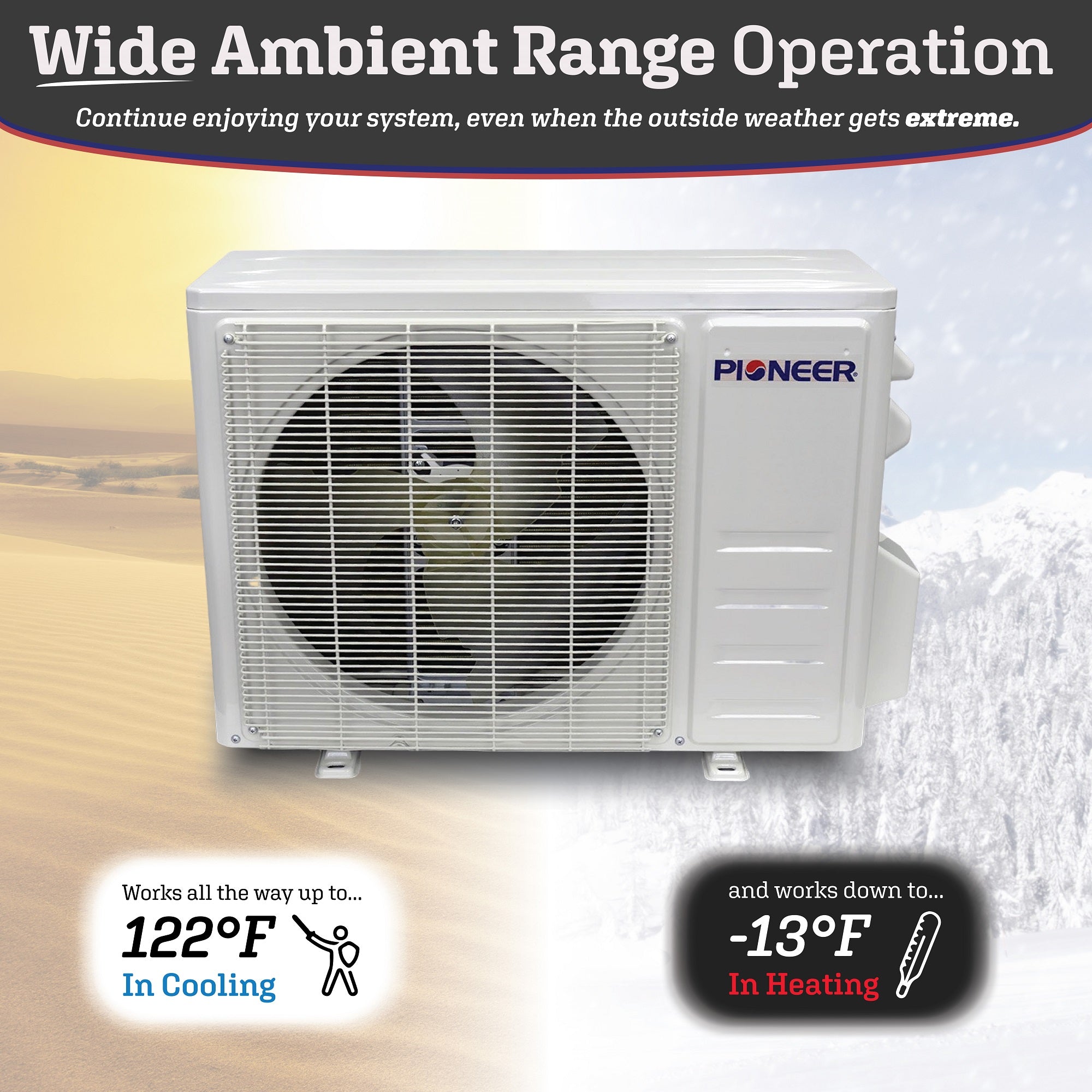

- Unidad de temperatura ambiente baja (-13 °F)
- Costos operativos anuales estimados de AHRI:
- Enfriamiento: $125.00
- Calefacción: $402.00

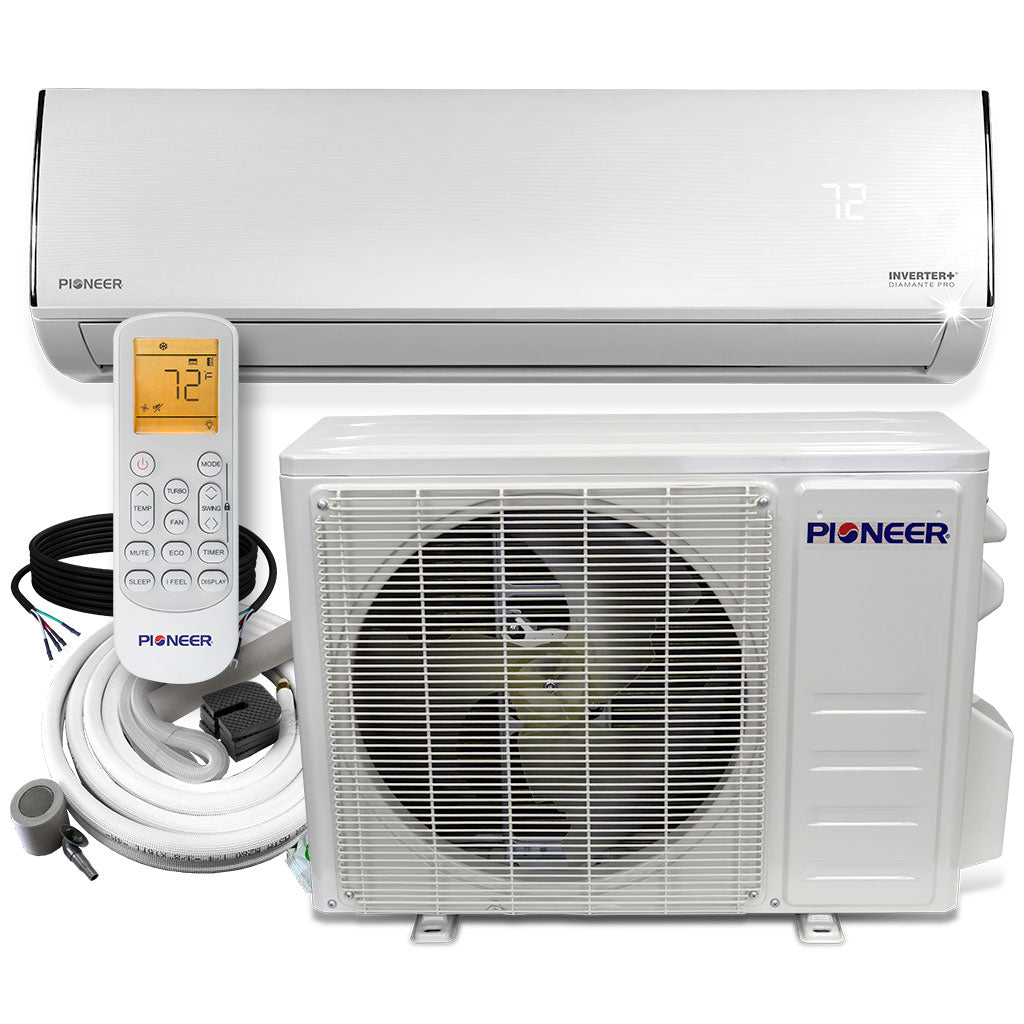

Qué está incluido
- Unidad interior
- Unidad exterior

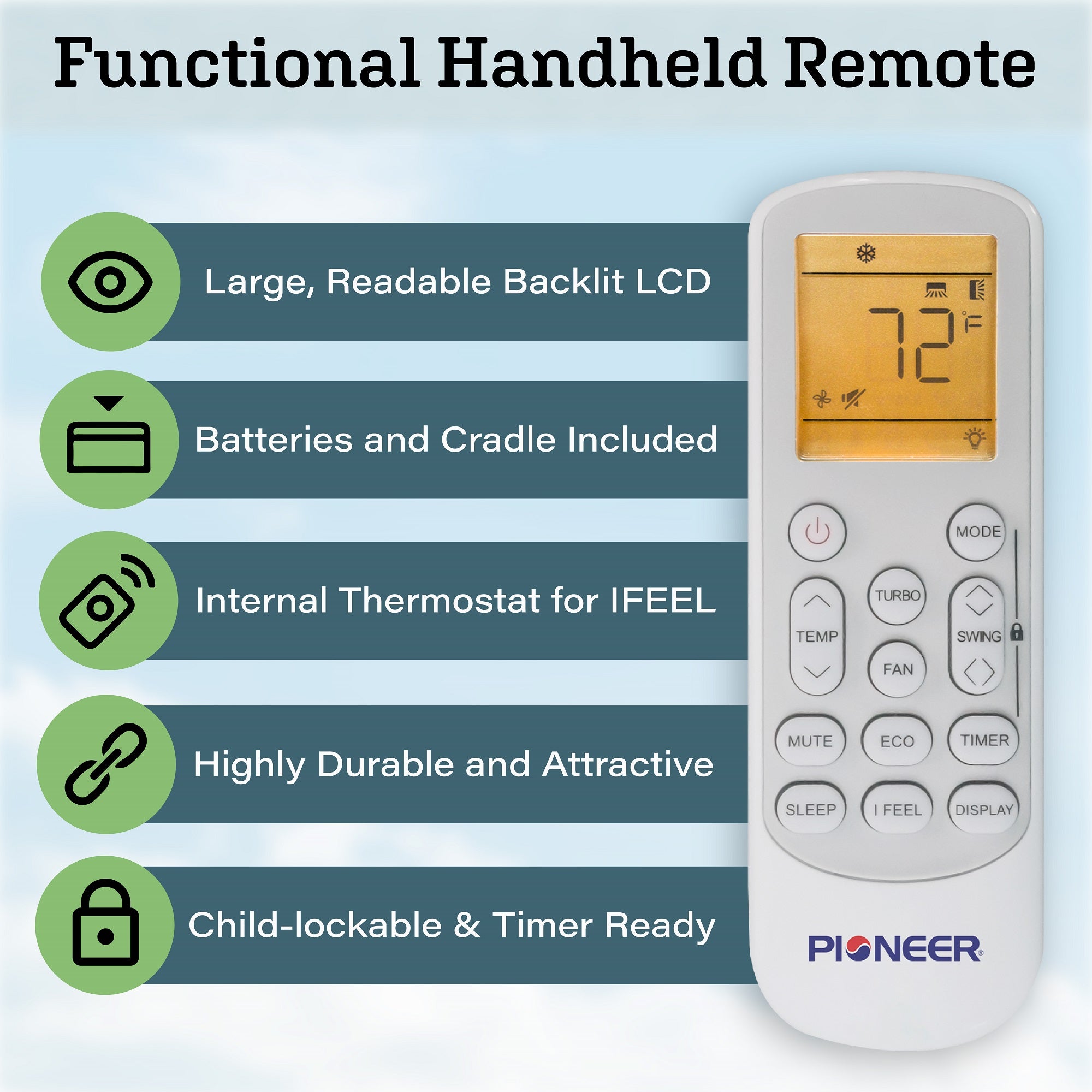

- Mando a distancia inalámbrico (con soporte de pared y pilas)
- 16 pies Líneas de Cobre
- 16 pies Cable eléctrico
- 10 pies Desagüe para interior/exterior
- Manga de paso de pared
- Masilla para Agujero de Pared
- Sellador de protección contra fugas
- cinta de embalaje
- Manual de instalación
- Manual de usuario
nuestra garantia
- 5 años Garantía para Partes
- 5 años de garantía para el compresor
Características
[[CARACTERÍSTICAS]]Información técnica
Datos de rendimiento
- Fuente de alimentación: 208~230V, 60Hz, 1Ph
- Capacidad nominal de refrigeración: 18 000 BTU/h
- Rango de capacidad de enfriamiento: 4,075~24,100 BTU/h
- Enfriamiento SEER: 19 BTU/w
- Capacidad nominal de calefacción: 19 000 BTU/h
- Rango de capacidad de calentamiento: 7,560~24,100 BTU/h
- Calefacción HSPF4: 10 BTU/w
- Tipo de refrigerante: R410A/44
- Área adecuada: 350~650 pies cuadrados
Datos de la unidad interior
- Número de pieza: WT018GLFI19HLD
- Flujo de aire (alto/medio/bajo): 606 / 465 / 429 CFM
- Nivel de sonido (alto/medio/bajo): 45/40/35 dB(A)
- Dimensiones netas (WDH): 39-3/4 x 8-5/8 x 12-3/8 pulgadas
- Dimensiones de la caja (WDH): 43-1/8 x 11-7/8 x 15-3/8 pulgadas
- Peso neto/bruto: 28,7/35,3 libras
Datos de la unidad exterior
-
Número de parte: YN 018GLFI19RPD
- Disyuntor necesario: 20A (doble polo)
- Nivel de sonido: 52 dB(A)
- Dimensiones netas (WDH): 30-3/4 x 13-3/4 x 23-7/8 pulgadas
- Dimensiones de la caja (WDH): 35-3/8 x 15-7/8 x 25-3/4 pulgadas
- Peso neto/bruto: 73,8/84,9 libras
Manuales y Documentos
Questions & Answers
Have a Question?
-
What size electric wire do I need on the 18000 BTU unit? And does it come with the unit? Does the flex conduit come with the unit?
This would take a 20A double-pole breaker. The corresponding wire would be 12 AWG, with 2 hots and a ground, no neutral. Electrical hookup is not included but we do offer a Disconnect Box and a Flexible Conduit.
-
Do you have just A/C no heat units on sale
All of our systems are heat pumps meaning heating and cooling. We do not carry AC only units, but you can disable the heat function if not needed.
-
What size amperage should the breaker be ?
This would take a 15A double pole breaker with 14 AWG wire.
-
How do I get a 25 ft line set
The Diamante series comes pre-packed with a 16 ft lineset which cannot be modified during purchase. If you need longer, it would require purchasing either the WYS series, or a longer lineset here.
-
will unit still heat at 0 degrees
This unit will heat down to -13°F outside temperatures.
-
HOW MUCH SQ FEET WILL IT COOL
Under typical circumstances, we recommend this unit to manage up to 650 square feet.
-
If I install the outdoor unit YN018GLFI19RPD with the wall mount brackets the unit is 3" away from the wall short from the recommened 12" will this affect the opperation of the unit and void the warranty?
No, the required clearance drops to 3 inches when mounted on wall brackets, since it opens up a new dimension of airflow from underneath. Warranty is not affected when using wall mounting brackets correctly.
