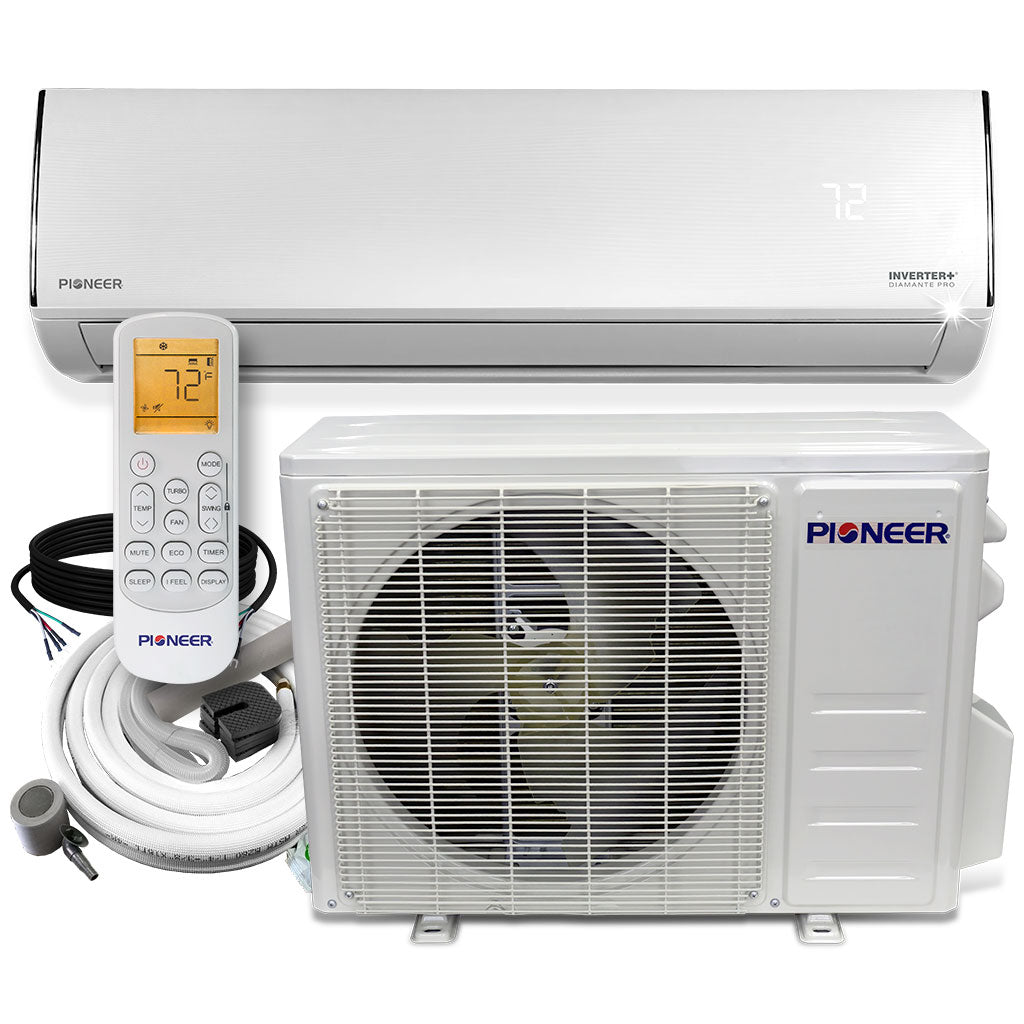

Pioneer® Diamante Series 12,000 BTU 19 SEER 230V Aire acondicionado mini-split sin ductos Juego completo de bomba de calor con 16 ft. Equipo
Pioneer® Diamante Series 12,000 BTU 19 SEER 230V Aire acondicionado mini-split sin ductos Juego completo de bomba de calor con 16 ft. Equipo
Stock bajo
-
Estimated delivery if ordered today: Jul 20 - Jul 24
No se pudo cargar la disponibilidad de recogida
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Descripción general
Resumen
- Sistema de bomba de calor mini split sin ductos Diamante de alta eficiencia
- Capacidad de refrigeración: 12.000 BTU/H con eficiencia de 19 SEER/10,5 EER
- Capacidad de calefacción: 12.500 BTU/H con una eficiencia de 9,5 HSPF/3,2 COP
- Voltaje: 208~230V, 60Hz, 1Ph
- Sistema de aire acondicionado y calefacción montado en pared alta
- Modo de funcionamiento del inversor de CC de velocidad variable

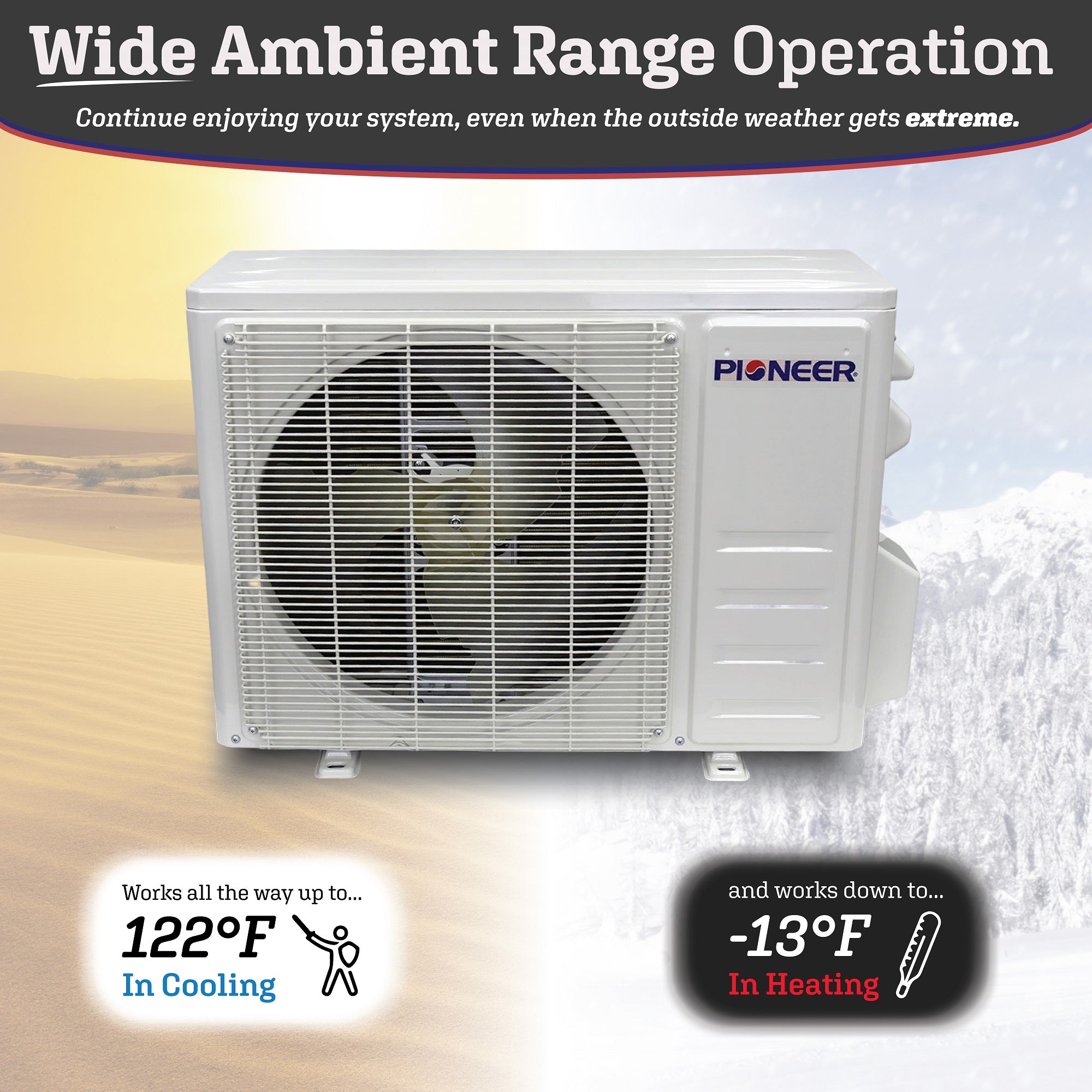

- Unidad de temperatura ambiente baja (-13 °F)
- Costos operativos anuales estimados de AHRI:
- Enfriamiento: $83.00
- Calefacción: $278.00

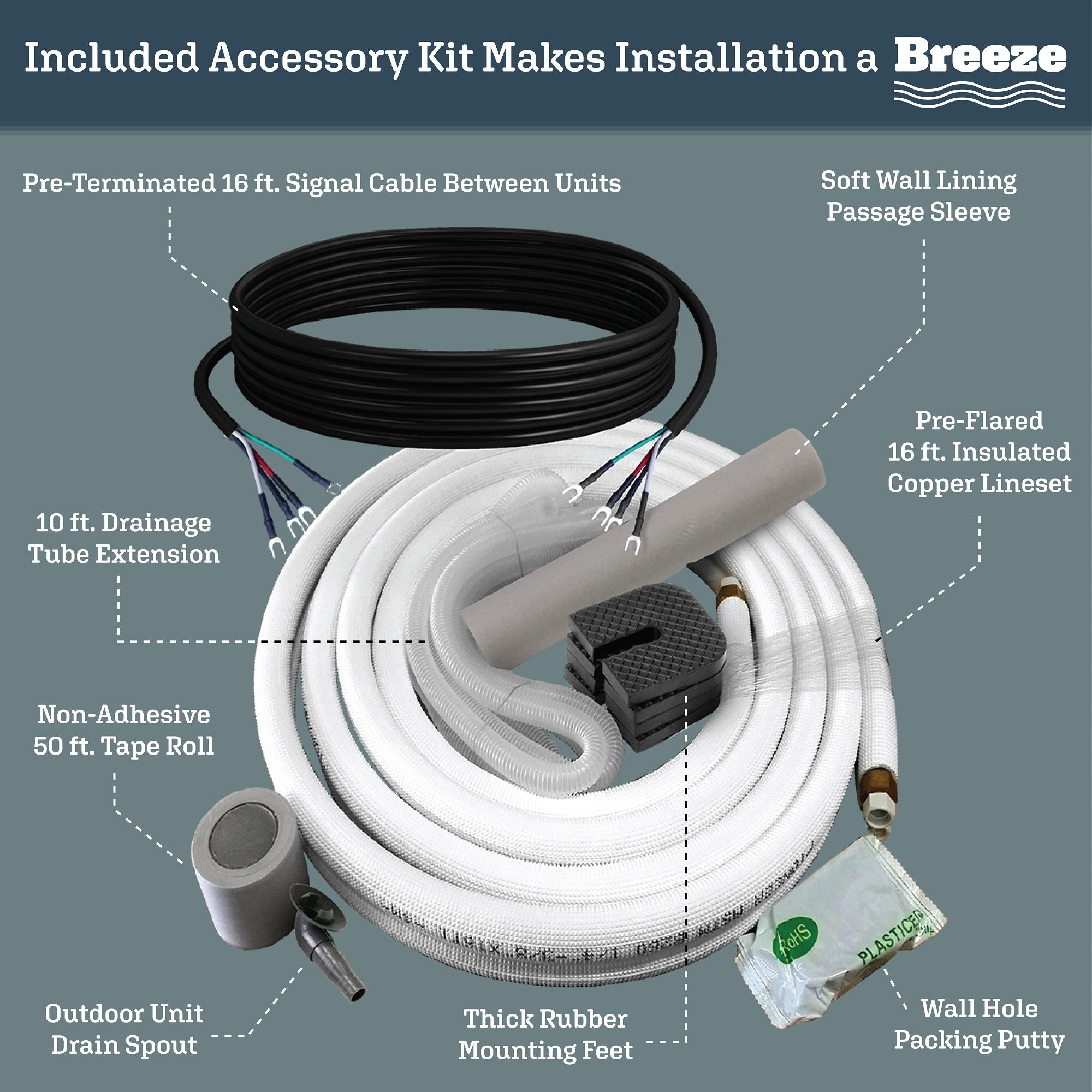

Qué está incluido
- Unidad interior
- Unidad exterior

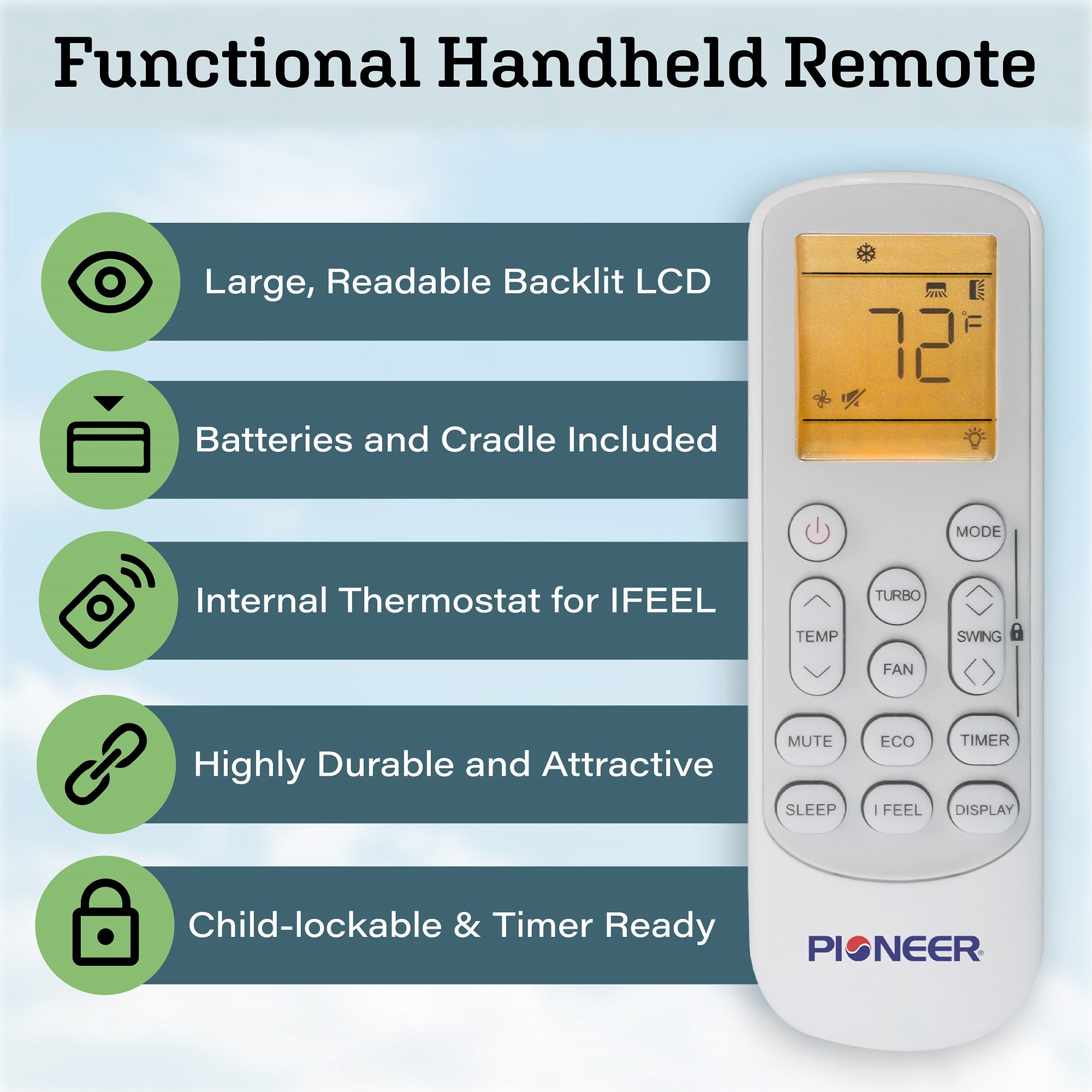

- Mando a distancia inalámbrico (con soporte de pared y pilas)
- 16 pies Líneas de Cobre
- 16 pies Cable eléctrico
- 10 pies Desagüe para interior/exterior
- Manga de paso de pared
- Masilla para Agujero de Pared
- Sellador de protección contra fugas
- cinta de embalaje
- Manual de instalación
- Manual de usuario
nuestra garantia
- 5 años Garantía de piezas
- 5 años para compresor
Características
[[CARACTERÍSTICAS]]Información técnica
Datos de rendimiento
- Fuente de alimentación: 208~230V, 60Hz, 1Ph
- Capacidad nominal de refrigeración: 12 000 BTU/h
- Rango de capacidad de refrigeración: 3700~13 000 BTU/h
- Enfriamiento SEER: 19 BTU/w
- Enfriamiento EER: 10.5 BTU/w
- Capacidad nominal de calefacción: 12 500 BTU/h
- Rango de capacidad de calentamiento: 3500~13 500 BTU/h
- Calefacción HSPF4: 9,5 BTU/w
- COP de calefacción: 3,2 W/W
- Tipo de refrigerante: R410A/34,2 oz.
- Área adecuada: 200 ~ 450 pies cuadrados
Datos de la unidad interior
- Número de pieza: WT012GLFI19HLD
- Flujo de aire (alto/medio/bajo): 383 / 318 / 253 CFM
- Nivel de sonido (alto/medio/bajo): 39/34/29 dB(A)
- Dimensiones netas (WDH): 32 x 8-1/8 x 11-1/2 pulgadas
- Dimensiones de la caja (WDH): 34-7/8 x 11 x 14-3/8 pulgadas
- Peso neto/bruto: 19,8/24,2 libras
Datos de la unidad exterior
- Número de pieza: YN012GLFI19RPD
- Disyuntor necesario: 15A (doble polo)
- Nivel de sonido: 52 dB(A)
- Dimensiones netas (WDH): 28-1/8 x 11-3/8 x 19-5/8 pulgadas
- Dimensiones de la caja (WDH): 33 x 13-3/8 x 21-5/8 pulgadas
- Peso neto/bruto: 57,3/66,3 libras
Manuales y Documentos
Questions & Answers
Have a Question?
-
Does the unit come charged with Freon already
Yes, the outdoor unit is charged to support up to 25' of line.
-
What size breaker is required for the 12000 btu unit 220 volt
It would be a 15A double-pole breaker with 14 AWG wire, 2 hots and a ground (no neutral).
-
Hello Can you tell me what is the Cooling EER Rate?
It is 10.50. https://www.pdhvac.com/site/downloads/certificates/certificate_WYT012GLFI19RL.pdf
-
I live in the Palm Springs, Calif area. I don't need HEAT. Does Pioneer offer a "cool only" option?
All of our systems are heat pumps meaning heating and cooling. We do not carry AC only units, but you can disable the heat function if not needed.
-
How much sf will this cover
We recommend this for up to 450 SQ ft.
-
Does the Diamante Series have a refrigerant leak detection feature?
Yes it does. In the event of a refrigerant leak, it will display error code Fy.
-
can you make the WYT012GLFI19RL a dual zone
You cannot currently. You would need to shop from the multi-zone options.
-
what size wire
The signal wire is included. The power wire needed is 14 AWG for the 15A breaker.
-
on the wyto12glf119rl 12,000 btu diamante series what is the lowest heat called for on the specs and should i get a zero rated unit?
This particular system will function down to -13°F outside temperatures in heating mode.
-
How much R410 comes precharged. I have to have mine refilled. 16ft of line. Thanks!
Factory pre-charge is 950g / 33.51ozs
-
What size breaker for the 12000 diamonte 19 seer?
This unit would take a 10A double-pole breaker.
-
how long line can be use
You can use up to 80 feet, but this series does have the ability to modify the length of the included 16 ft. lineset. You would need to get a separate line.
-
Can I order this with 50 ft line set
You cannot modify the default 16 ft lines, if you are open to exending the line you would need to order a 33 ft lineset here and also a union piece here to make 49 ft.
-
Do you have any information about federal tax incentives or credits available with the purchase of these units?
You can read more from our help article here: https://help.pioneerminisplit.com/en-US/all-about-energy-star-tax-credits-and-rebates-for-pioneer-split-systems-281231
-
Can you shorten the line set or is 16' the minimum length?
The minimum we recommend is 10 ft. That is the shortest that is supported by the precharged amount.The shortest possible is 5 ft but you'd need to remove an ounce of refrigerant to account for that.
