- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 9,000 BTU/H with 21 SEER/13.5 EER efficiency
- Heating capacity: 10,000 BTU/H with 11.5 HSPF/3.76 COP efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $57.00
- Heating: $184.00
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Concealed Mini Splits
Pioneer® Ducted concealed mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split system is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings. Our hidden ducted mini split system offerings include six capacities—such as our ceiling concealed mini split and mini split slim duct systems—to cover distinctive zones of every size and complexity. Check out our selection of concealed duct mini split systems today, and start enjoying hidden mini split AC and heat!More details about Pioneer® RYB Series

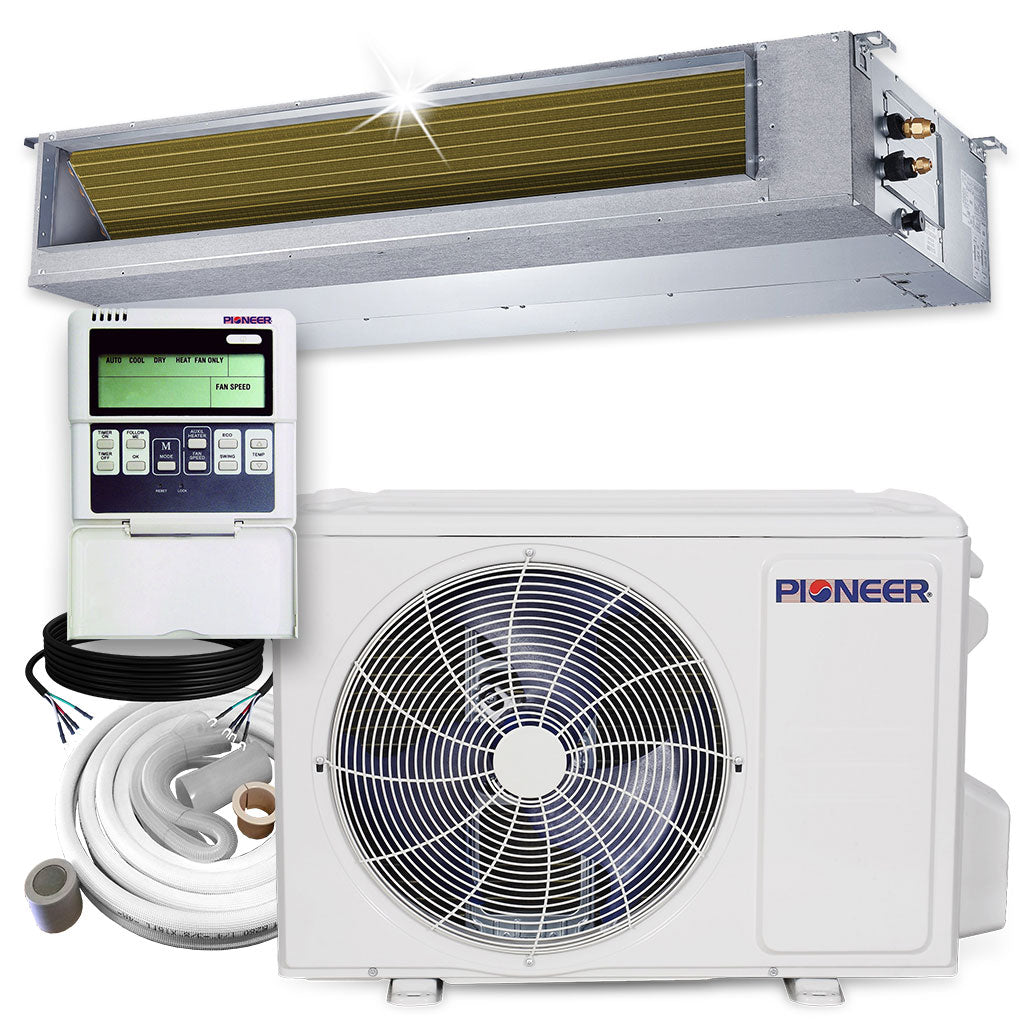

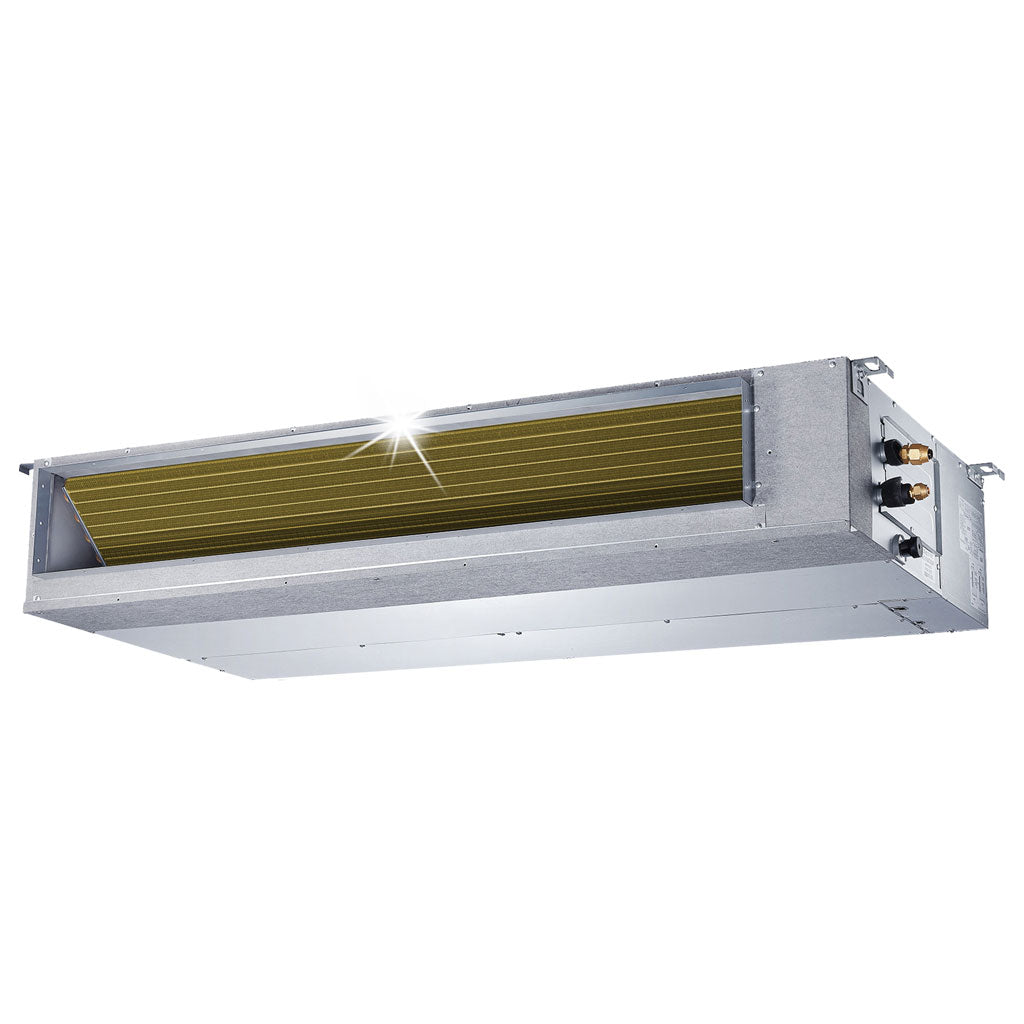

- Indoor Unit

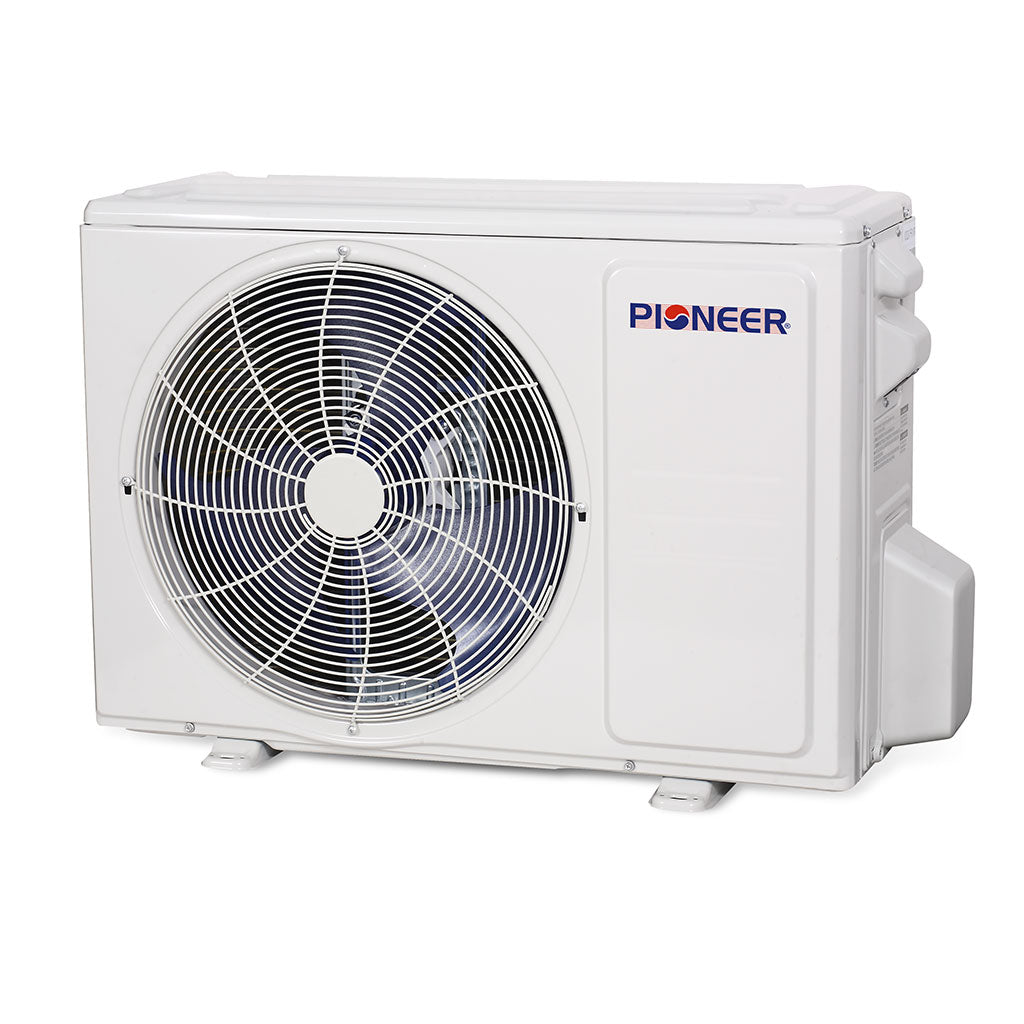

- Outdoor Unit

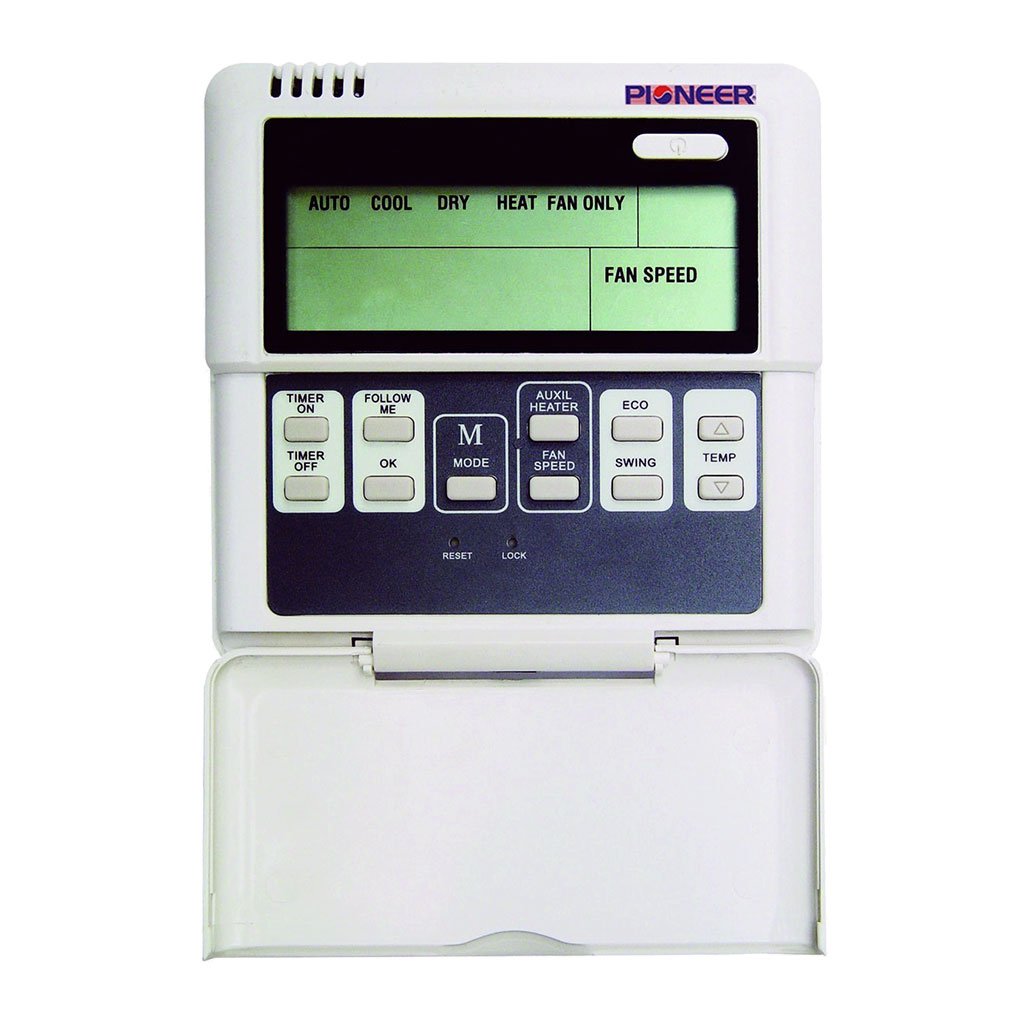

- Wire Remote Control

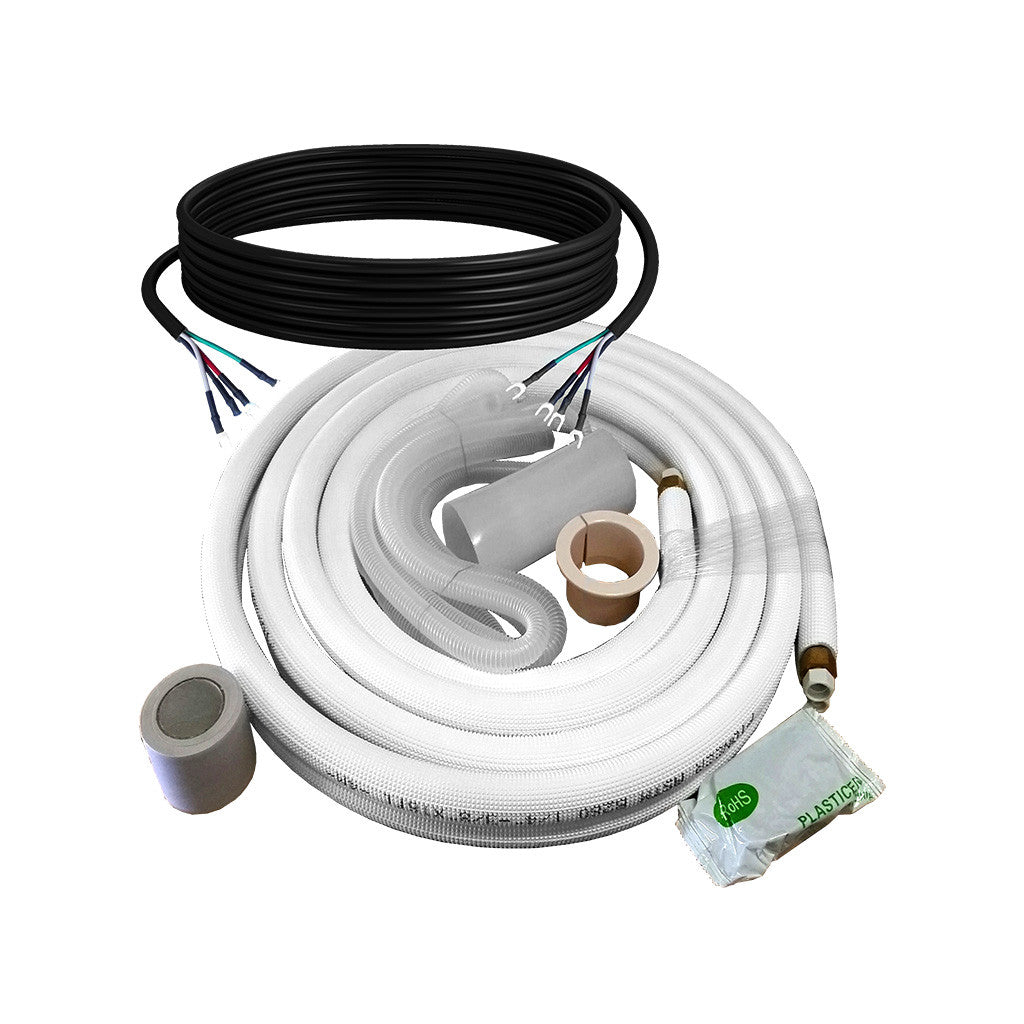

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- 5 year parts limited warranty
- 5 year compressor limited warranty
Industry-leading narrow width designed to be fitted into the tightest of spaces.
Dual Mounting Configuration Options
Install the system as ceiling-concealed or as floor-concealed. Both are standard options requiring minimal modification. The choice is yours.
Flexible Air Intake
The air handler can be easily modified to pull in return air from the bottom or the rear. Simply move the cover to the side that will not be used and you're all set.
Eccentric Fan Design
The air handler features an innovative blower wheel design which improves air flow at the air outlet, resulting in superior performance when measured against comparable products.
Built-In Drain Pump
The RYB Series Ceiling Concealed system includes a built-in drainage pump which can lift condensate water up to 25 feet.
High Static Pressure
Pioneer's RYB air handlers can be installed in various applications requiring high levels of static pressure, with 0.16 inches w.c. of static pressure for 9-12K models, all the way up to 0.60 in. w.c. for 24K BTU and above.
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,220~11,600 BTU/h
- Cooling SEER: 21 BTU/w
- Cooling EER: 13.5 BTU/w
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 4,800~13,900 BTU/h
- Heating HSPF: 11.5 BTU/w
- Heating C.O.P.: 3.76 W/W
- Refrigerant Type: R410a
- Suitable Area: 200~350 Sq.F
Indoor Unit Data
- Part Number: RB009GMFILDFHD
- Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
- External Static Pressure: 0.0~0.16 Inch WC
- Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
- Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
- Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
- Net / Gross Weight: 39.0 / 48.3 Lbs
Outdoor Unit Data
Part Number: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
- Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
- Net / Gross Weight: 63.7 / 69.0 Lbs
