Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 11,500 BTU 17 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Available in stock
-
Estimated delivery if ordered today: Dec 09 - Dec 13
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
System Overview
11500 BTU
Your Purchase Includes:
Outdoor Condenser
Pre-charged from the factory with enough R32 refrigerant to accomodate up to 25' lineset lengths, and equipped with intelligent self-defrost.

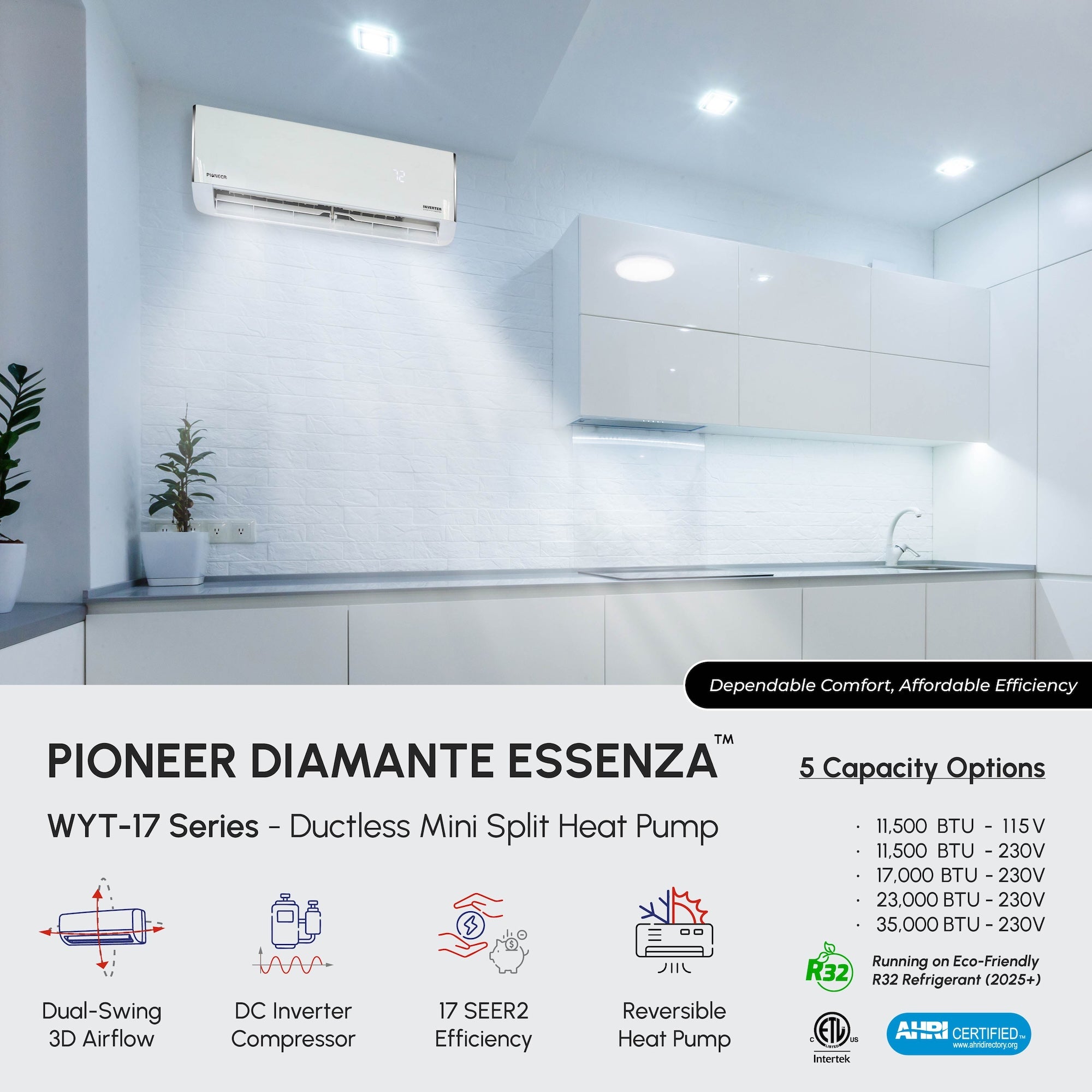

Indoor Air Handler
Whisper-silent and beautifully sleek, it mounts onto the wall and features a washable, re-usable dust filter and an easy-to-use self-clean mode for easy maintenance.
16' Installation Kit
Included with system purchase is the full installation kit which features a 16' insulated copper lineset, 16' signal cable between units, and a 10' drain hose.
Handheld Remote
Functional in form and easy-to-read, the remote offers all of the essential features like Cool, Heat, Dry and Fan modes, as well as I FEEL to detect nearby temperature.
Summary
- Standard Efficiency Diamante Essenza™ Ductless Mini Split Heat Pump System
- Cooling capacity: 11,500 BTU/H with 17.0 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 11,500 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Standard Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 11,500 BTU/h
- Cooling Capacity Range: 2,050~12,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 11,500 BTU/h
- Heating Capacity Range: 2,050~12,500 BTU/h
- Heating HSPF2 (Region IV): 9.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 200~450 sq ft
- Minimum Room Size: 20 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4-3/8"
- AHRI Reference: 217048734
-
Indoor Unit
- Part Number: WT012ALUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 276 / 265 / 241 / 224 / 206 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 36 / 33 / 29 dB(A)
- Product Dimensions (WDH): 30-1/2 x 7-7/8 x 9-3/4 Inches
- Carton Dimensions (WDH): 33-1/8 x 10-1/4 x 12-3/8 Inches
- Net / Gross Weight: 16.5 / 20.9 lbs
-
Outdoor Unit
- Part Number: YN012ALUI17RPD
- Breaker Needed: 20A (single-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 31 x 11-1/2 x 19-3/8 Inches
- Carton Dimensions (WDH): 33 x 13-1/4 x 22-3/4 Inches
- Net / Gross Weight: 50.7 / 61.7 lbs
Dimension Chart
Diamante Essenza™ High-Wall Series
Questions & Answers
Have a Question?
-
How programmable is this unit
You can add-on the Wi-Fi module TST-DIAWIFITPD which will allow you to set schedules, modes, and conditions for the unit to run with.
-
is this 1 ton capacty
A ton is equivalent to 12,000 BTUs. So about 0.96 ton.
-
Is there a copper line and electric wire longer than 16 feet?
The Diamante series comes pre-packed with a 16 ft lineset which cannot be modified during purchase. If you need a different length, it would require purchasing either the Quantum Ultra or Quantum Hyperformance models, which have modifiable line lengths, or a separate lineset here.
