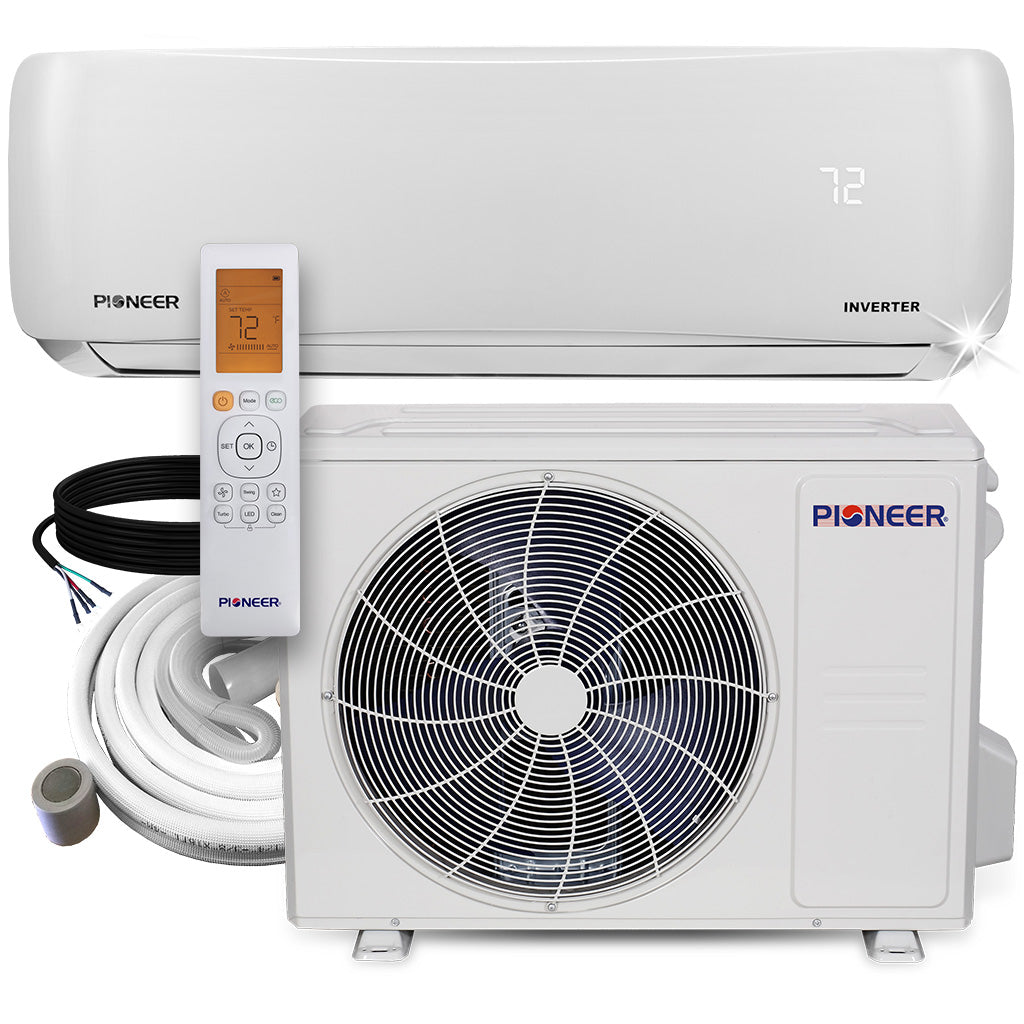

- Ultra High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 24,000 BTU/H with 21 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 26,000 BTU/H with 9.0 HSPF2 / 3.05 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $151.00
- Heating: $550.00
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.

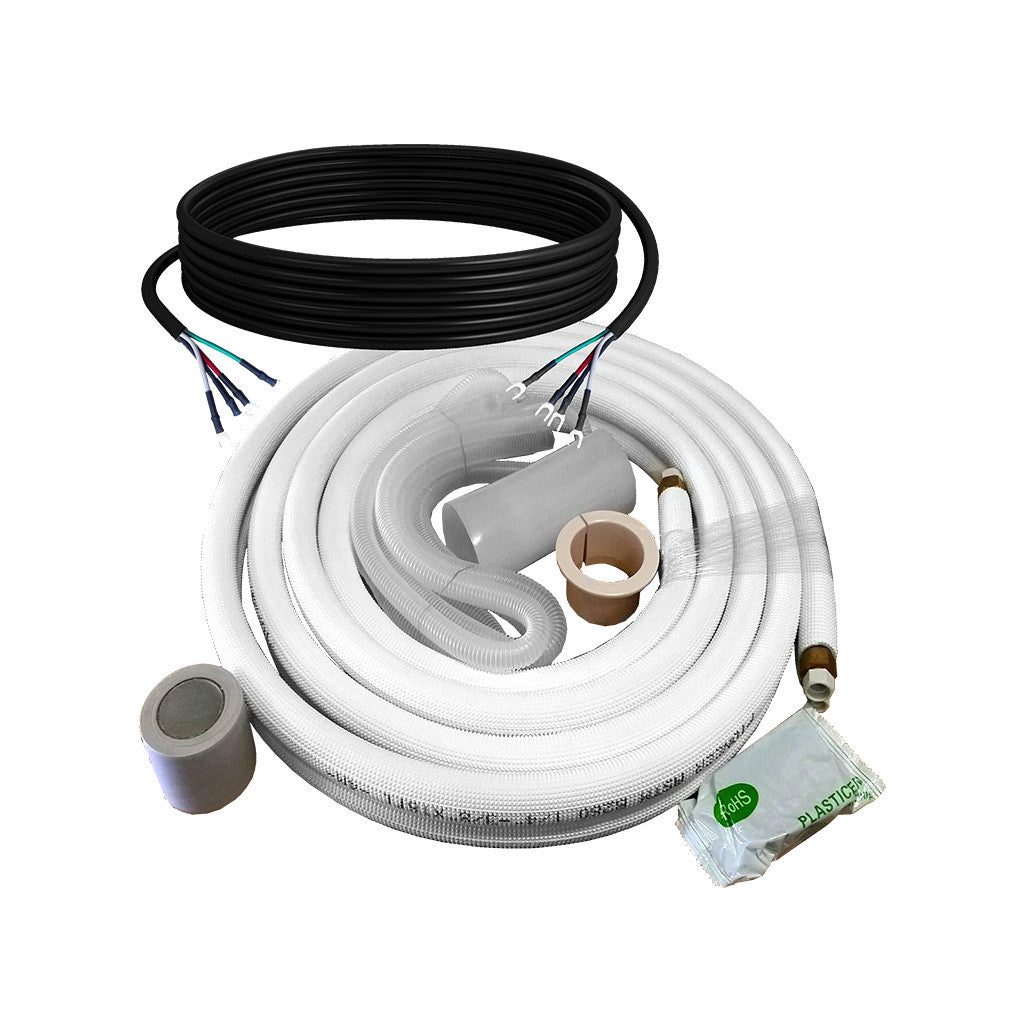

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Wall-Mounted Mini Split
Quantum Series Inverter+ (20 SEER) and Inverter++ (22 SEER)
At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!
- Indoor Unit
- Outdoor Unit

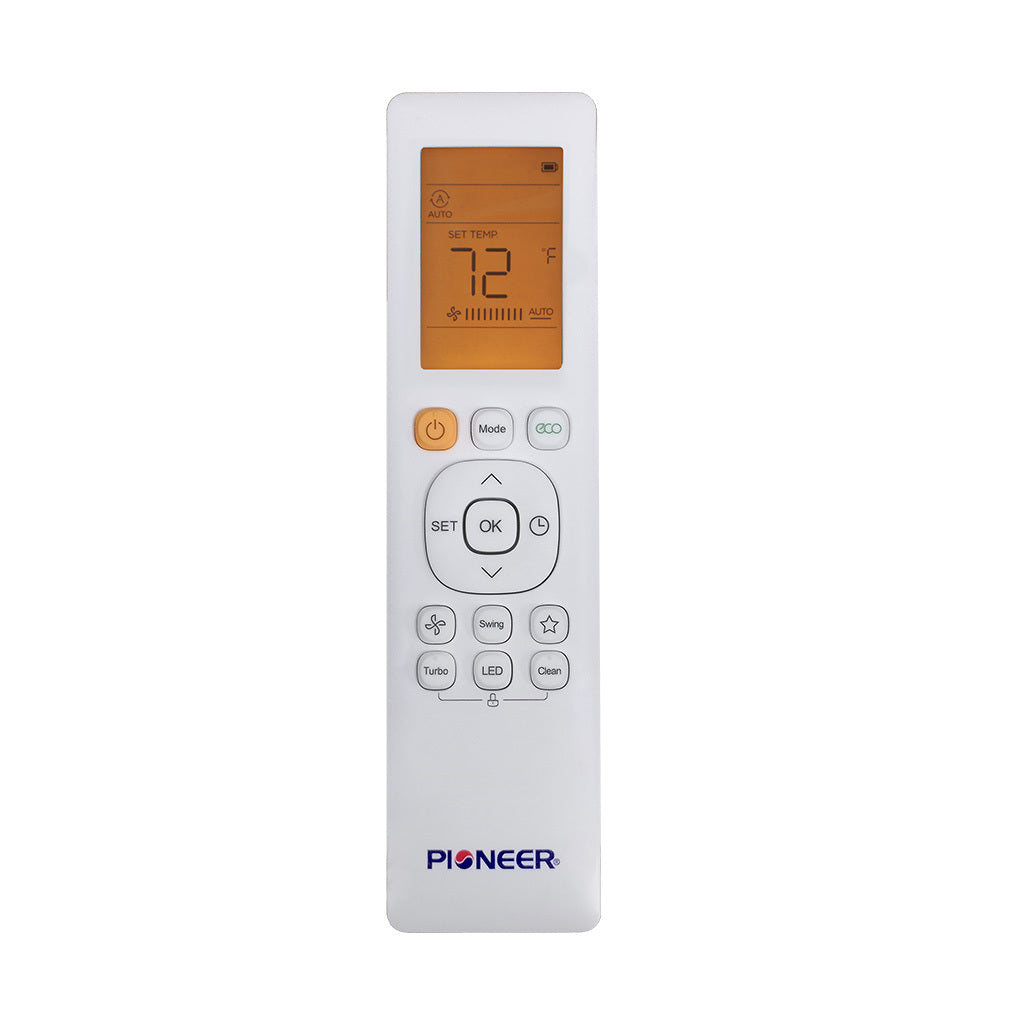

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- 5 year parts limited warranty
- 5 year compressor limited warranty
The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night.
Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
Refrigerant Leakage Detect
Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
Anti-cold Air Function
Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
- Emergency start
Low Ambient Cooling
With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
Intelligent on-off technology enables Pioneer products automatically enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving.
Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation.
Follow Me (Remote Thermostat)
Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
Chassis Heating Belt
Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.
High Density Filter
Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%.
With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back.
Remote in Engineer Mode
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 9,200~25,000 BTU/h
- Cooling SEER2: 21 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 26,000 BTU/h
- Heating Capacity Range: 10,350~26,410 BTU/h
- Heating HSPF2 (Region IV/V): 9.0 / 6.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.05 / 1.92 W/W
- Refrigerant Type: R410a
- Suitable Area: 600~950 Sq.F

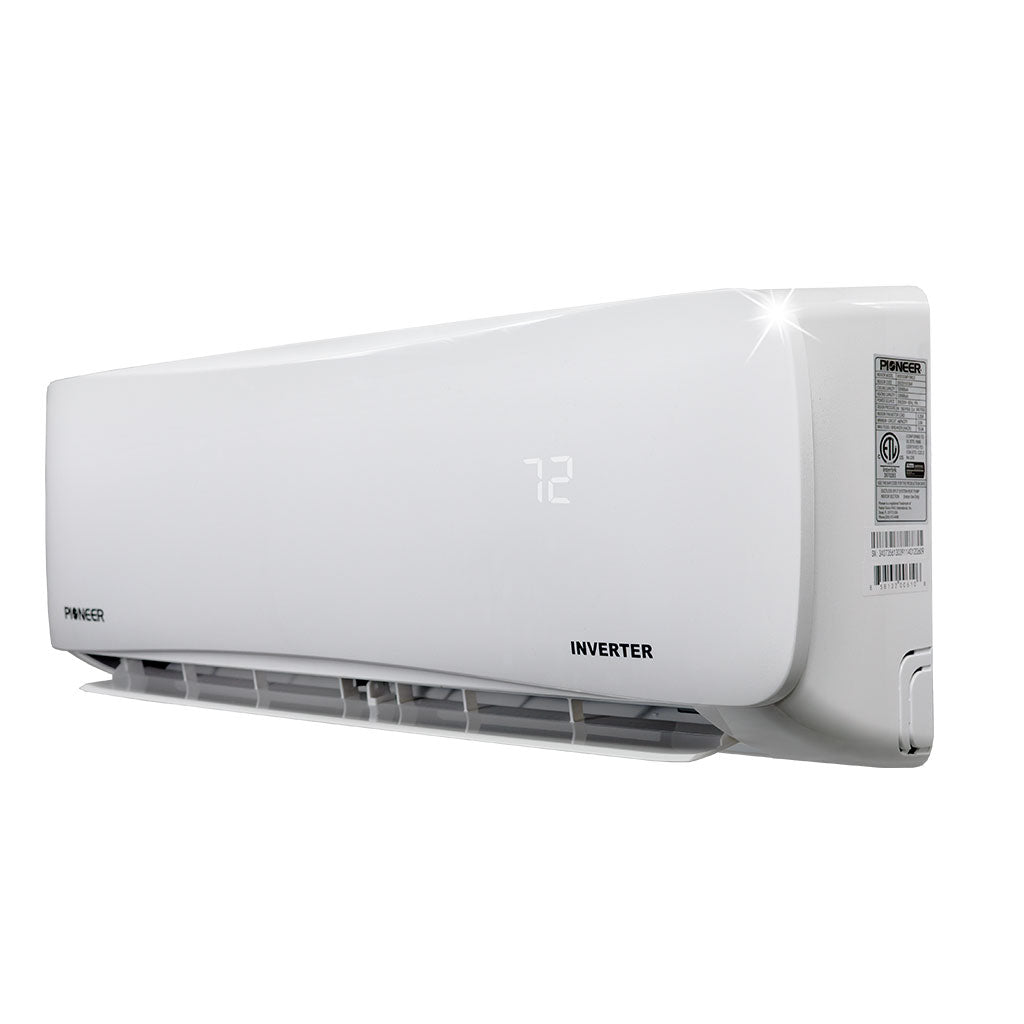

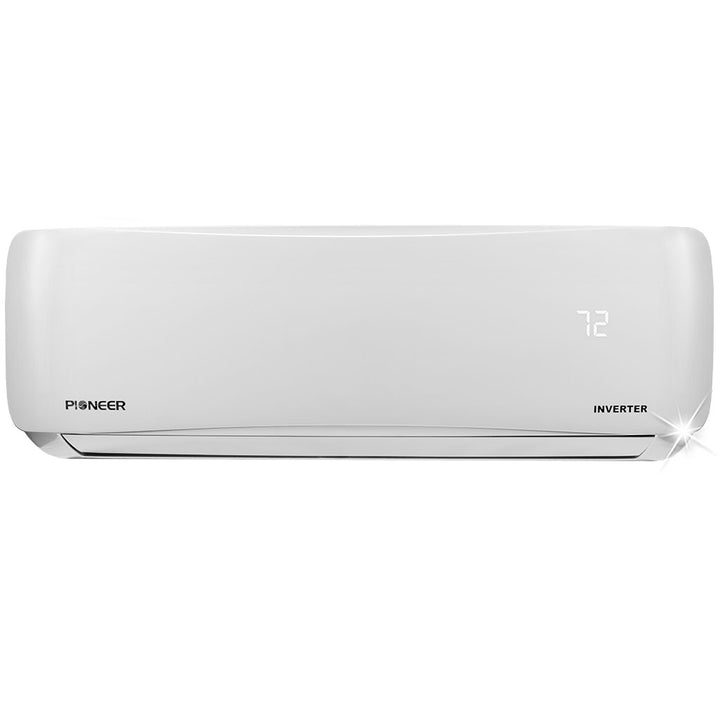

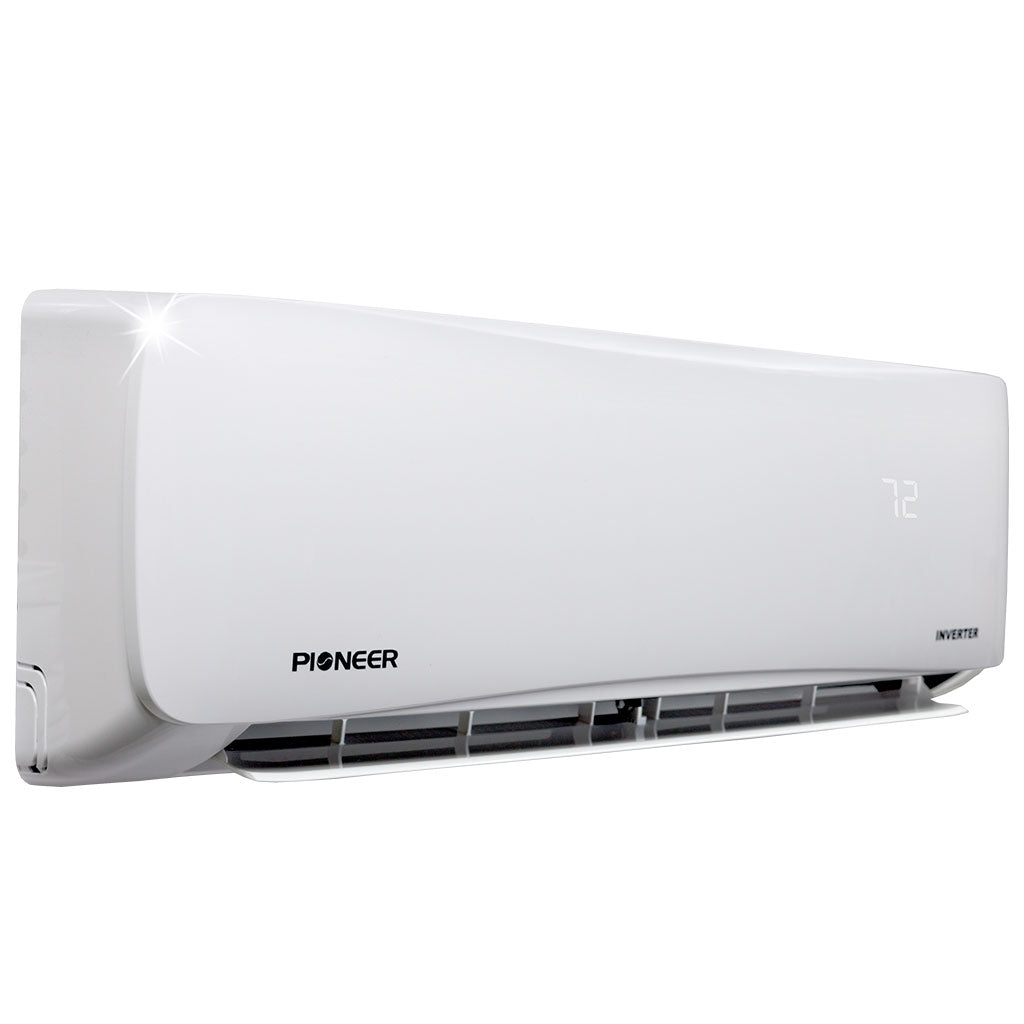

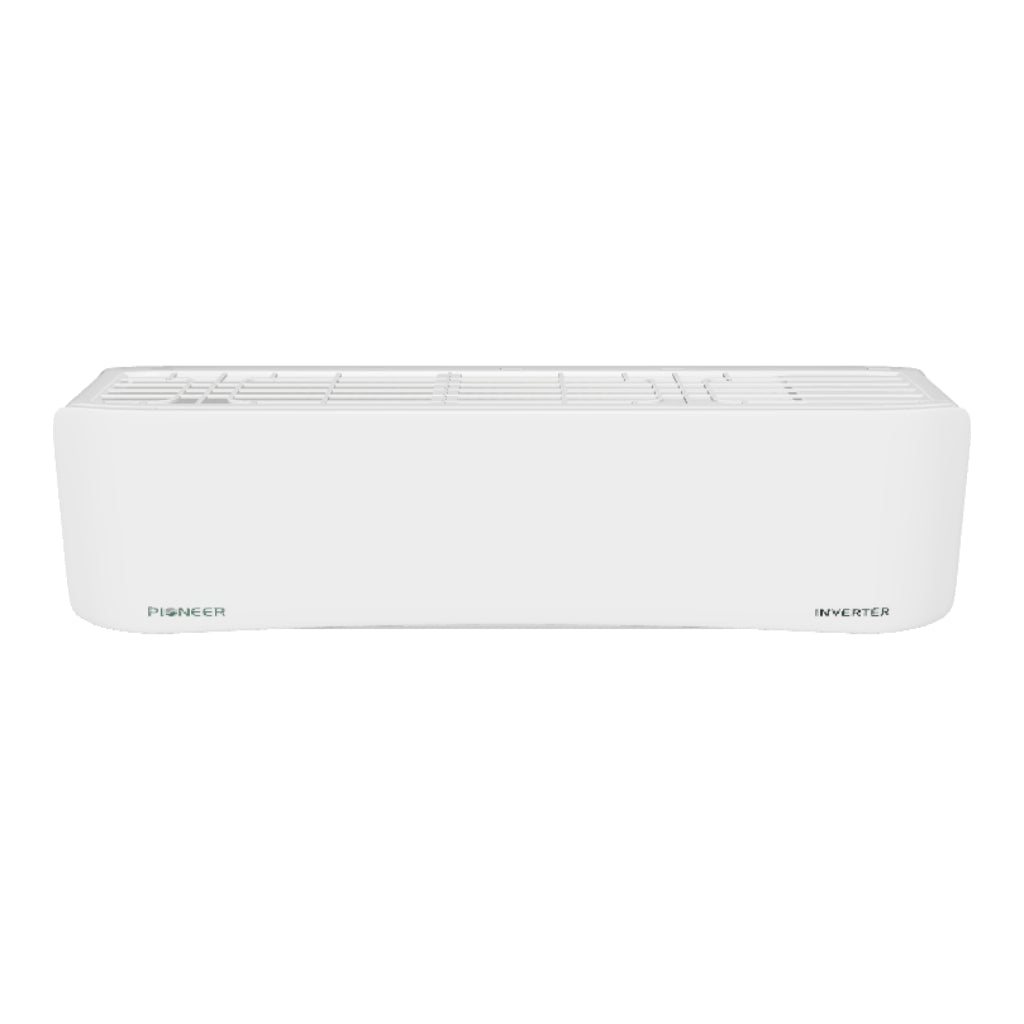

Indoor Unit Data
Part Number: WS024GMFI22HLE
- Air Flow (Hi/Med/Lo): 618 / 471 / 324 CFM
- Sound Level (Hi/Med/Lo): 47.5 / 42.0 / 32.0 dB(A)
- Net Dimensions (WDH): 42.5 x 8.8 x 13.2 Inches
- Carton Dimensions (WDH): 45.5 x 12.3 x 16.3 Inches
- Net / Gross Weight: 30.2 / 37.9 Lbs

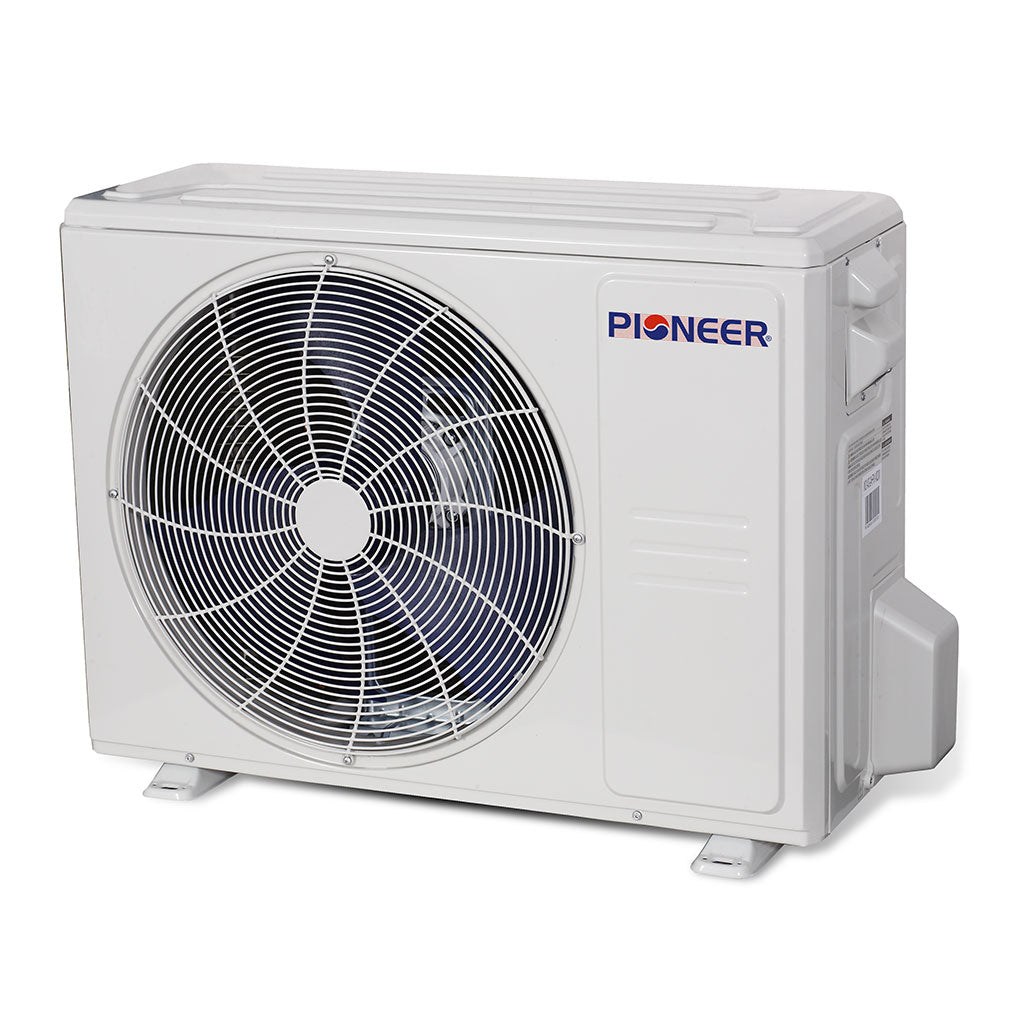

Outdoor Unit Data
- Part Number: YN024GMFI22RPE
- Breaker Needed: 25A (double-pole)
- Sound Level: 61.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
- Net / Gross Weight: 124.8 / 134.9 Lbs
Manuals & Downloads
Free Shipping For All Orders Over $49
WE ARE CURRENTLY IN THE BUSY SEASON, PLEASE ALLOW US 1-2 MORE BUSINESS DAYS TO PROCESS AND SEND OUT YOUR ORDER. THANKS FOR YOUR PATIENCE AND UNDERSTANDING.
For a Limited Time we offer free shipping on All Orders Above $49 by Standard Ground or delivered by Freight (LTL) to the 48 contiguous states. Free shipping offer does not apply to Alaska, Hawaii, or any international destination. Free shipping eligibility is noted on the product page, above the price.
Click here for information on Returns and Refunds
We only ship to the 48 contiguous United States. No shipments to APO/FPO addresses, AK, HI, PR or other US Territories. No international shipments. Due to the size and the weight of our equipment, we can only utilize well known freight companies for shipping. Each shipment will be palletized, strapped down and wrapped in stretch film to protect against damages during transit.
Upon arrival you may ask the driver to break down the palette into individual cartons to unload the goods from the truck easily. We generally include Lift Gate service. This will arrive as curb side delivery. Trucker will unload the goods from the truck to ground level. If you must have inside delivery service, there will be an additional charge which needs to be paid separately and coordinated with the freight company. We also allow free pickup from our main distribution warehouse, located in Miami area. Equipment we sell is not suitable for express or courier shipping because of their weight as well as high risk of damages.
Due to higher than expected order volume and busy sales season, larger orders may take an extra 3-5 days to be prepared for shipment. We are working around-the-clock to ship out all orders in a timely manner, and will communicate with you if there are any unexpected delays or questions.
We prepare each shipment within 72 hours after the receipt of payment (only during weekdays). Trucking companies usually pick up same day or a day after we call them that the shipment is ready. The transit may take any time between 5 to 8 business days and in rare cases up to 12 days.
We will provide tracking information after shipment. Please contact us in case of any shipment delays. CHECK YOUR INFORMATION CAREFULLY TO SUBMIT THE CORRECT DELIVERY ADDRESS, UPDATED EMAIL AND A VALID PHONE NUMBER with your order. Someone must be present to receive the cargo at the time of delivery. Delivery company will call your phone number to setup a delivery appointment for residential deliveries. If your phone number is not valid, the cargo can not be delivered and will be returned at your expense within 3 days of arrival. If the delivery is refused or can not be delivered, it will be handled as returned merchandise.
Upon arrival, count all cartons and compare with the number stated on the delivery receipt before signing. Open the cartons and inspect the goods carefully for any damages. All products have been inspected under strict ISO regulated facilities and leave our warehouse in perfect condition. Report any shipping damages to the freight carrier on the delivery receipt and file a claim. Also contact us with the description of damages and pictures, etc. Although rare, certain freight damages can occur and we are here to help.
We carry all necessary replacement and service parts and components in large quantities and make them available during and after the warranty period.
QUESTIONS & ANSWERSAsk a Question
How does the temperature setting affect the unit when it is set to dry mode. It seems like it "dry's" to be much cooler than the setting
The DRY mode works by making the indoor coil extra cold and slowing down the fan speed very low. This is so that it can draw out as much moisture from the air as possible.
Do the lines come flared? Or do i only have to flare them if i want a custom length?
They arrive pre-flared from factory. If you shorten them then you would need to reflare the ends.
Does this have an energy star rating? What is the average usage per month?
Yes this is Energy-Star certified.
- AHRI Estimated Yearly Operating Costs:
- Cooling: $148.00
- Heating: $505.00
What is the AHRI number for this unit?
It is 8819852, for more info see here: https://www.pdhvac.com/site/downloads/certificates/certificate_WYS024GMFI22-205.pdf
What is the lowest outdoor temperature the unit will work at when used for cooling
For COOLING mode it would be 5°F.
How many amps does the 2400 BTU draw?
This system draws 8.4A in cooling and 11A in heating. It requires a 25A double-pole breaker with 12 AWG wire.
Does the indoor unit have to be mounted on exterior wall?
No, it can be mounted on an interior wall. However, you would need to route the condensate drainage into a nearby sewer pipe from a kitchen or bathroom, or implement our condensate pump to route the drained condensate elsewhere.
Should this have a fusible disconnect, or is the breaker in the main panel sufficient?
Any disconnect whether fused or unfused will do, it will just act as a pullout switch for servicing. But ultimately the breaker in the circuit panel will be enough.
what is the lowest temp heat pump will work
This system will continue heating down to -13°F outside temperatures.
Ordered the system with a 16ft line set ,will a 10ft line set work without a problem?
That would not be a problem at all, the included pre-charge can support line lengths between 10 and 25 ft.
Will this unit work on 240 volts?
Yes, it can work on anywhere between 207~253V.
On this unit 24000 21.5 seer how many sq ft will it take care of
This is intended for spaces between 650 and 950 square feet.
How loud does the unit sounds? I am looking for a quite unit to install in a spa environment. It can not run louder then the relaxing music. Please explain!
These systems are ultra silent and barely audible. The 24K unit on low is about 35 dB, which is actually quieter than a library. You won't even believe it's on unless you put your hand over the vent to feel the air.
What size are the coolant lines, not length?
This system takes 3/8"-5/8" diameter lines.
What’s the amperage and recommended breaker size? Does this unit require a neutral wire?
This system would take a 20A double-pole breaker with 12 AWG wire. The wire would be two hots and a ground, no neutral.
What temperature does efficiency start to drop off at? For I instance at 20 degrees is it still at 100% Efficiency, whsf?
You can see the heating performance curve here.
Can this be connected to a thermostat?
There are currently no wired thermostat options available, the closest solution would be this wireless smart controller which can act as a thermostat for all intents and purposes.
What are the wifi options?
What is the max height the outdoor heat pump can be mounted? Can I mount it 3ft above the ground
The outdoor unit and indoor unit should not have a height differential greater than 16 ft.
Otherwise, mounting the outside condensing unit 3 ft off of the ground is not a problem.
What amp circuit breaker is required for your 24k unit
This would take a 25A double-pole breaker. The corresponding wire would be 12 AWG, with 2 hots and a ground, no neutral.
do your units come pre-charged with Freon?
Yes the outside units are factory pre-charged for up to 25 feet of lineset attached.
