Pioneer® 36,000 BTU 18 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation
Pioneer® 36,000 BTU 18 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation
Out of stock
-
Estimated delivery if ordered today: Jul 25 - Jul 29
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Overview
Summary
- Ultra High Efficiency Inverter+ central ducted split heat pump system
- Cooling capacity: 33,000 BTU/H with 18.0 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Central Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
- Communicating system with dedicated signal transmission
- Includes 10 kW Electric Strip Heater w/ breaker
- AHRI Estimated Annual Operating Costs:
- Cooling: $264.00
- Heating: $730.00
[[SERIES]]

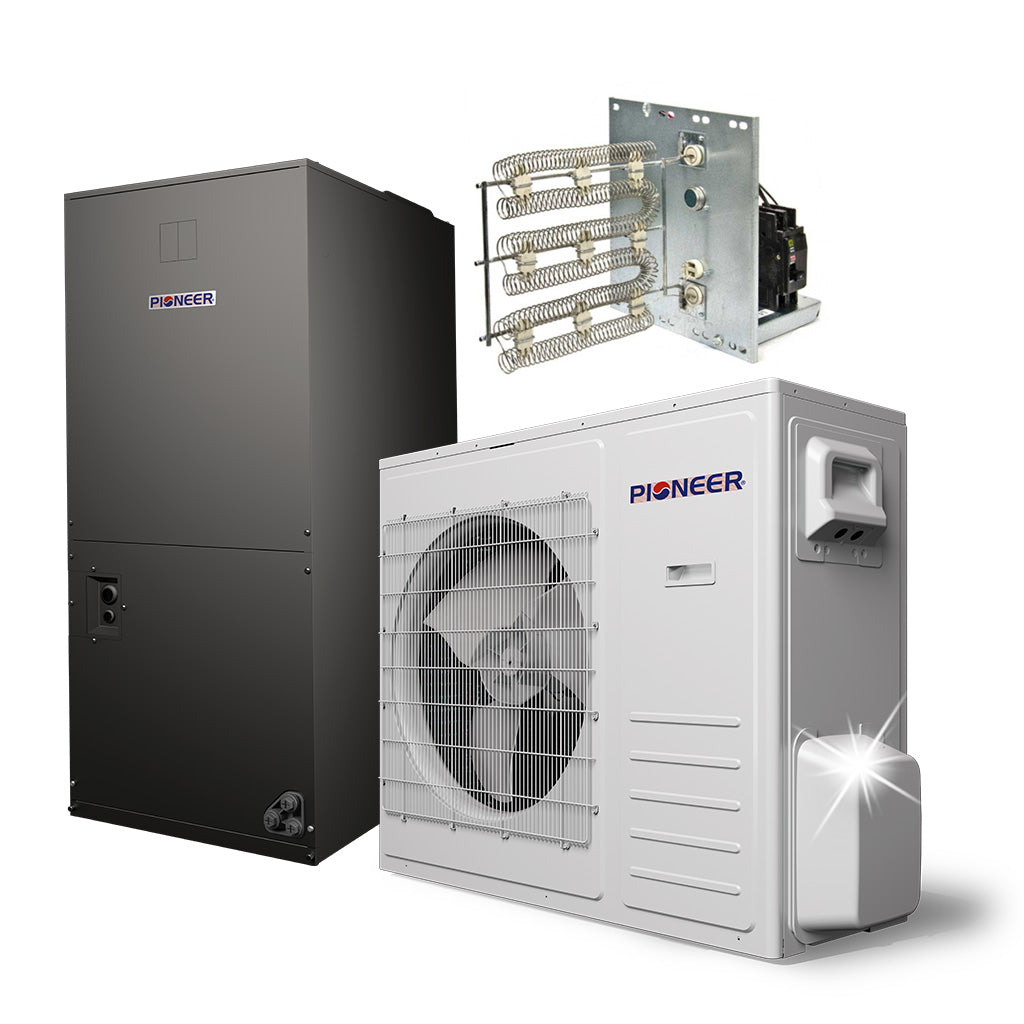

What's Included

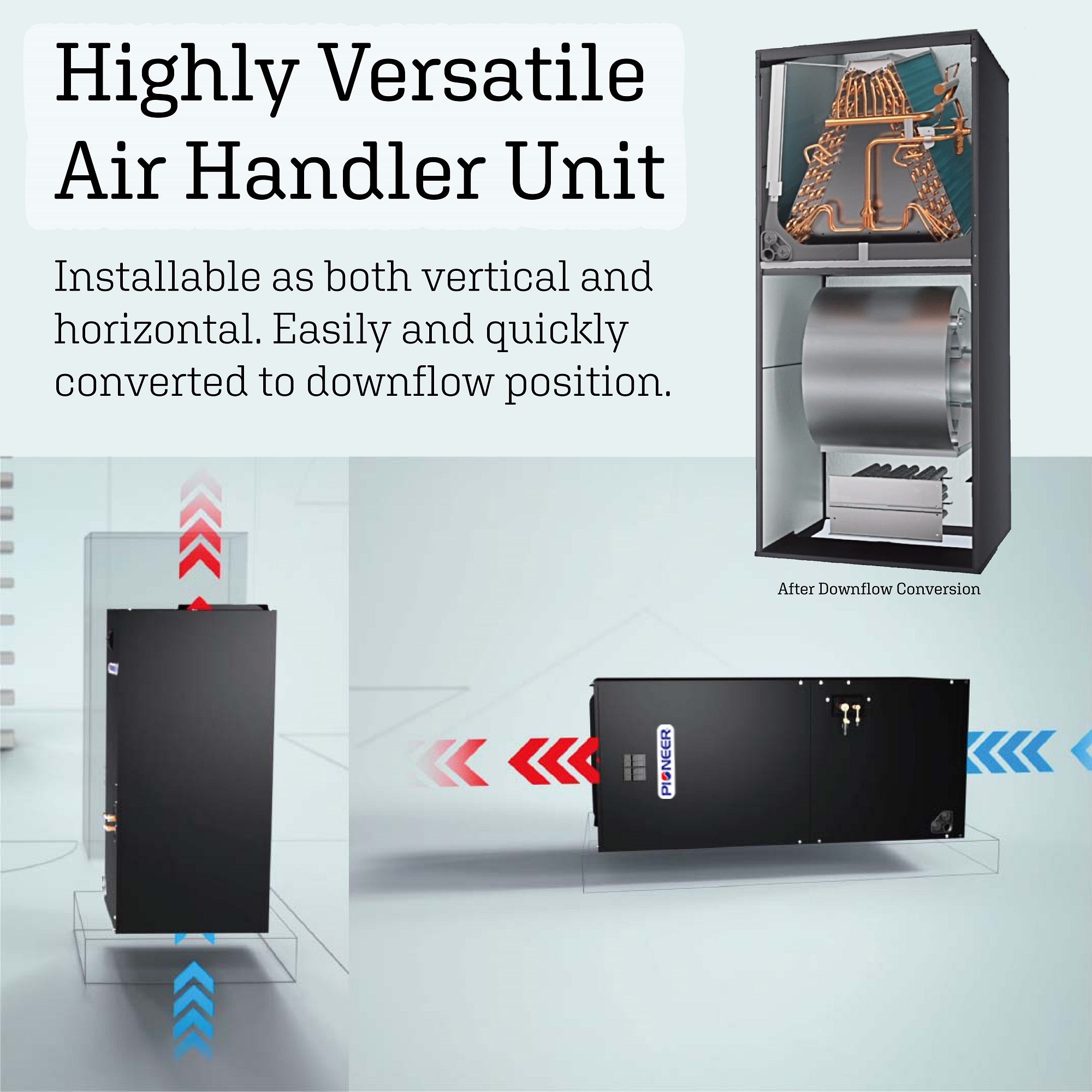

- Indoor Unit (Downflow-capable, with TXV)

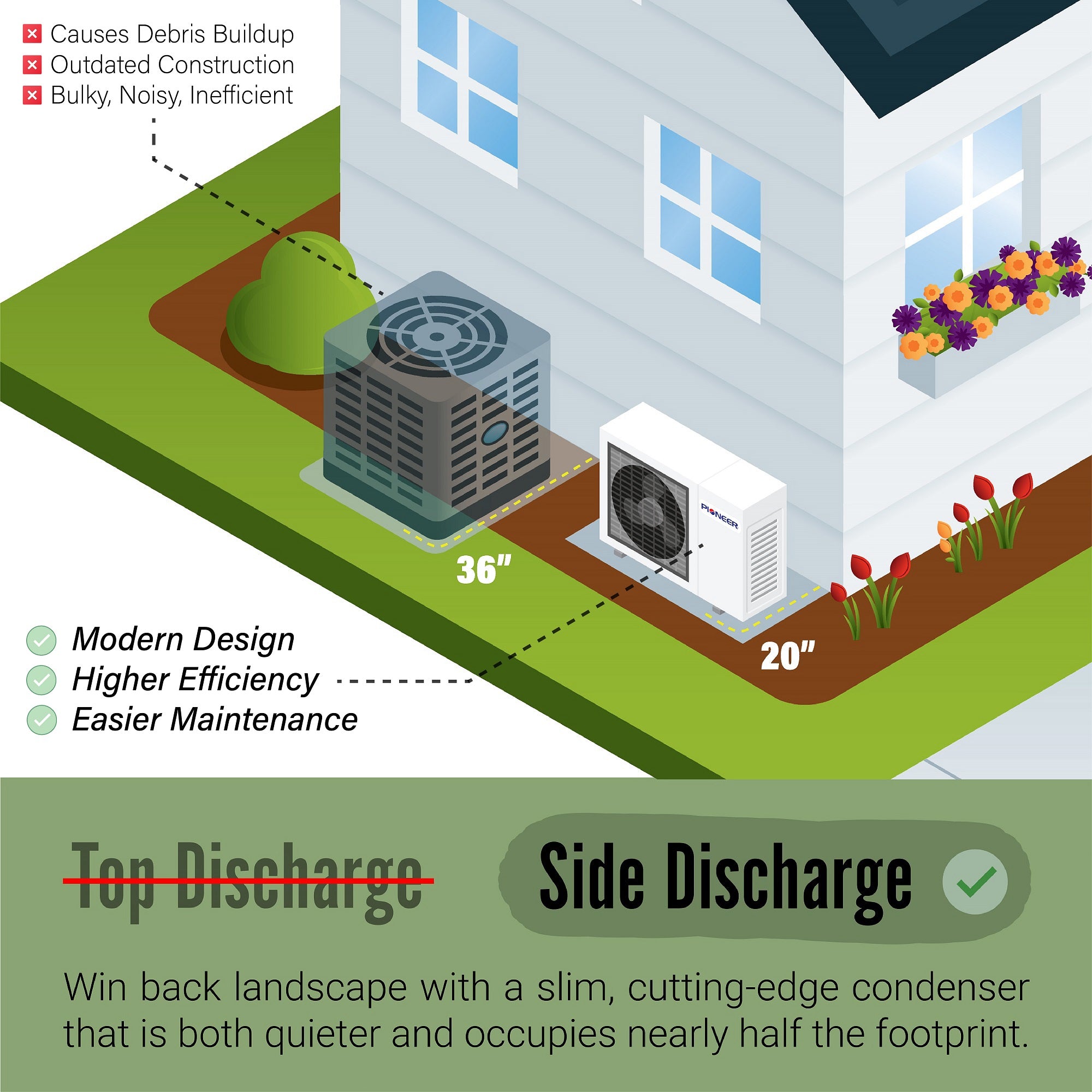

- Outdoor Unit (Side-Discharge, with filter drier)
- Electric Strip Heater (10 kW w/ breaker)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 years compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Max Cooling Rated Capacity (Min~Max): 33,000 (11,800~36,800) BTU/h
-
Cooling SEER2: 18.0 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Max Heating Rated Capacity (Min~Max): 38,000 (8,900 ~ 38,200) BTU/h
-
Heating HSPF2 (Region IV): 9.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 2.1 W/W
- Refrigerant Type: R410a
- Suitable Area: 1,200 Sq.F
- Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)

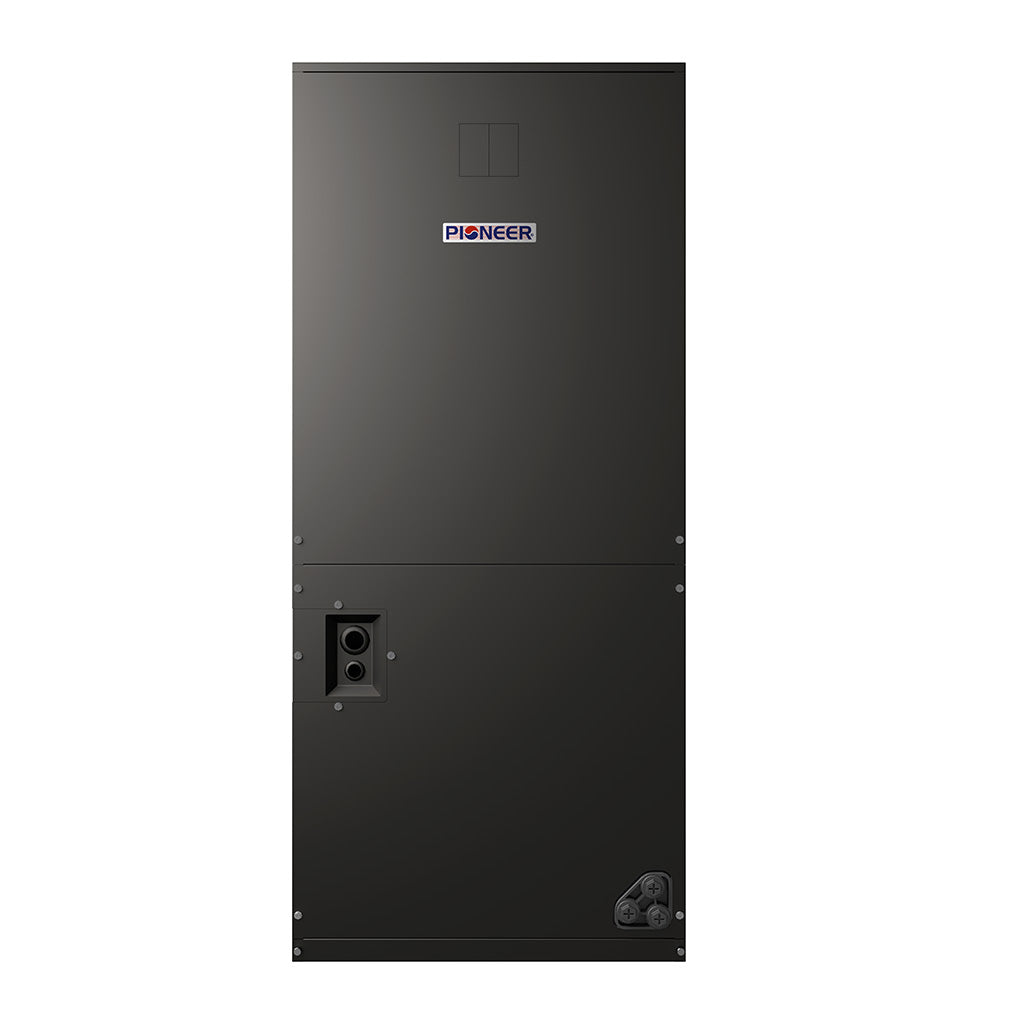

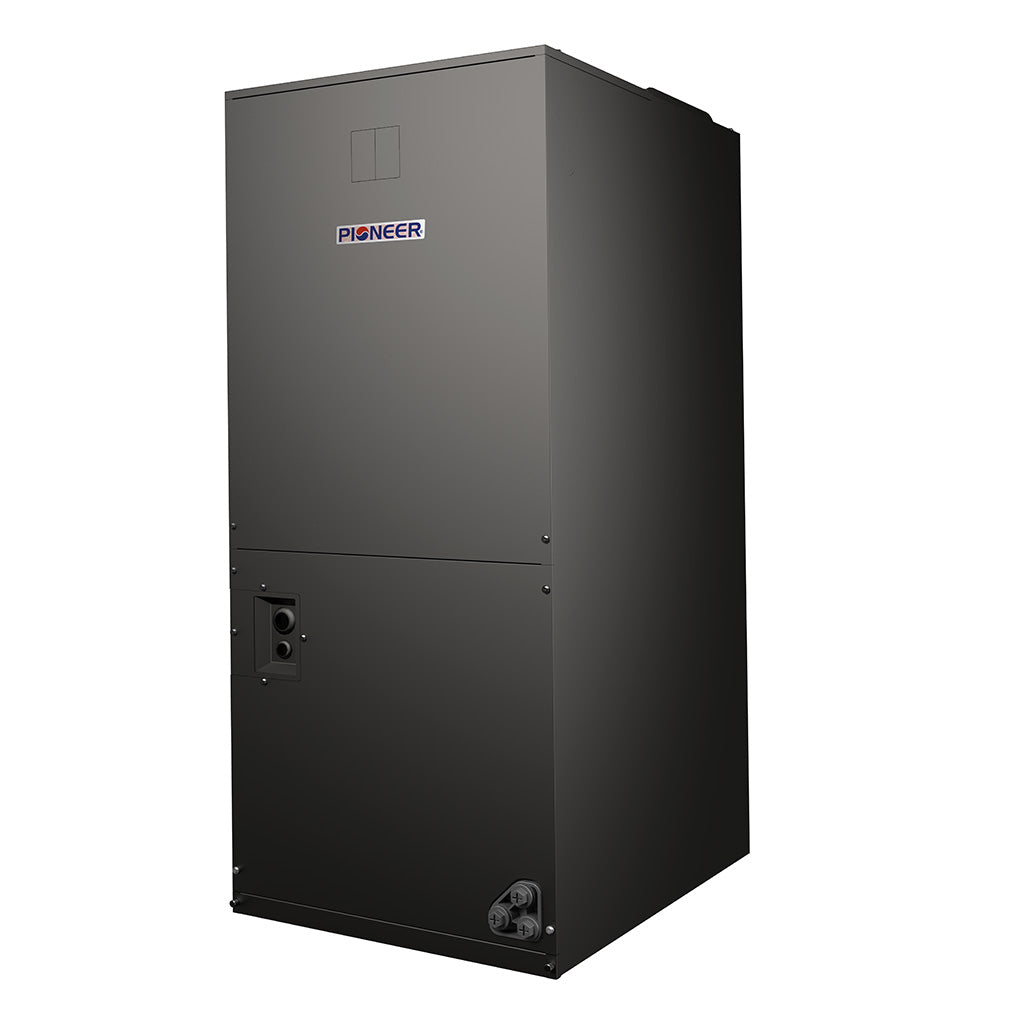

Indoor Unit Data
- Model: DR036GHFD18HT2
- Air Flow: 1120 CFM
- Sound Level: 57 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 19-5/8 × 21-5/8 × 46-1/8 Inches
- Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
- Net / Gross Weight: 140 / 163 Lbs
Outdoor Unit Data
- Model: YH3036GHFD18R2
- Sound Level: 57 dB(A)
- Metering Device: EXV
- Net Dimensions (WDH): 37-3/8 x 13-3/8 x 33 Inches
- Carton Dimensions (WDH): 43-3/4 x 18-1/8 x 36-1/4 Inches
- Net / Gross Weight: 148 / 159 Lbs
Manuals & Downloads
- Series Technical Brochure
- Indoor Section Installation Manual
- Outdoor Section Installation Manual
- Indoor Section Service Manual
- Outdoor Section Service Manual
- DYR3036GMFI18R Submittal Sheet
- AHRI Certificate
- Energy Guide
Version 2.0
Questions & Answers
Have a Question?
-
Do these ducted split systems run continuously at variable capacity like the mini-split systems?
-
Approximately how many sq ft does this heat and cool
Recommended for 800 - 1200 Sq.Ft.
-
Will a nest thermostat work with this unit?
Yes it definitely will.
-
what size breaker is needed for a 3 ton heat pump system
This would take a 30A double pole breaker with 10 AWG wire.
-
What is the wattage for heater strip and what is the compressor type inverter rotor or ordinary scroll or rotor
The wattage for heat strip has choices for 5 kW, 7.5 kW, or 10 kW. The system uses a Twin Rotary compressor: https://www.pdhvac.com/site/downloads/brochures/DYR-2020.pdf
-
Does this unit come with line set?
It does not include a lineset. This 36K system would use 3/8" and 3/4" lines. They would need to be brazed on to the system.
-
how many breakers are needed for the air handler
One breaker, the rating and wire depends on whether you are using the heater or not. The heater kit comes with a breaker for the air handler.
-
do these units take a special thermostat
You can use any standard 24V heat pump thermostat such as Nest, Ecobee, Honeywell, etc.
-
What's the BTU output at 17F?
At 17°F it is 25,000 BTUs.
