Pioneer® 24,000 BTU 18 SEER 230V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Pioneer® 24,000 BTU 18 SEER 230V Inversor mini-split sin ductos + sistema de bomba de calor de aire acondicionado Juego completo
Agotado
-
Estimated delivery if ordered today: Jul 20 - Jul 24
No se pudo cargar la disponibilidad de recogida
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Why buy from our store?
Descripción general
Resumen
- Inverter de ultra alta eficiencia + sistema de bomba de calor mini split sin conductos
- Capacidad de refrigeración: 24 000 BTU/H con eficiencia 18 SEER/9 EER
- Capacidad de calefacción: 24.000 BTU/H con una eficiencia de 9,8 HSPF/3,03 COP
- Voltaje: 208~230V, 60Hz, 1Ph
- Sistema de aire acondicionado y calefacción montado en pared alta
- Modo de funcionamiento del inversor de CC de velocidad variable
- Juego de líneas de cobre de longitud personalizable con conexiones abocinadas
- Costos operativos anuales estimados de AHRI:
- Enfriamiento: $176.00
- Calefacción: $518.00

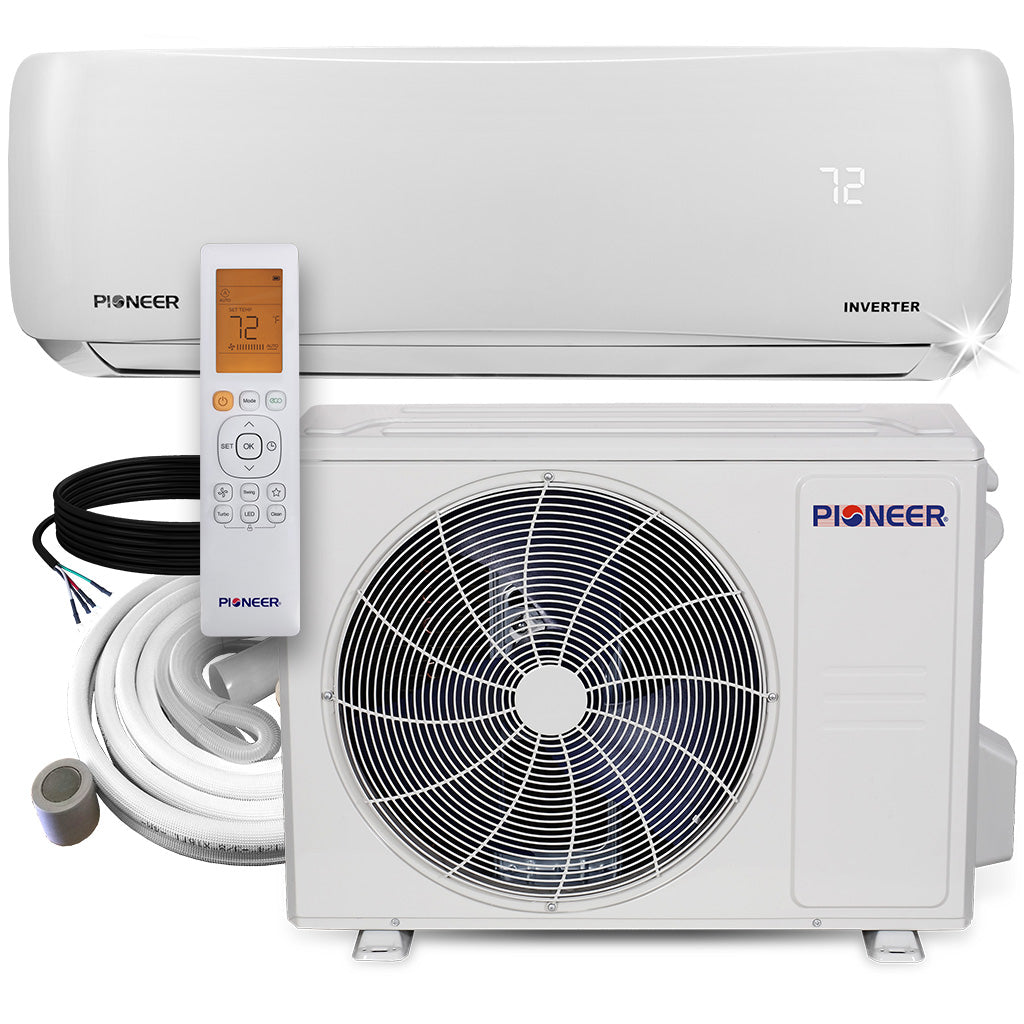

Qué está incluido
- Unidad interior
- Unidad exterior
- Control remoto inalámbrico
- Varias opciones de kit de instalación disponibles
- Sellador de protección contra fugas de conexión acampanada
- Manual de instalación
- Manual de usuario
- Garantía del fabricante
nuestra garantia
- 5 años de garantía limitada de piezas
- 5 años de garantía limitada del compresor
Características
[[CARACTERÍSTICAS]]Información técnica
Certificaciones
Datos de rendimiento
- Fuente de alimentación: 208~230V, 60Hz, 1Ph
- Capacidad nominal de refrigeración: 24 000 BTU/h
- Rango de capacidad de enfriamiento: 6,704~25,300 BTU/h
- Enfriamiento SEER: 18.0 BTU/w
- Refrigeración EER: 9 .0 BTU/w
- Capacidad nominal de calefacción: 24 000 BTU/h
- Rango de capacidad de calentamiento: 6,900~28,100 BTU/h
- Calefacción HSPF4/HSPF5: 9,8 / 8,0 BTU/w
- Tipo de refrigerante: R410A/63
- Área adecuada: 650~900 pies cuadrados

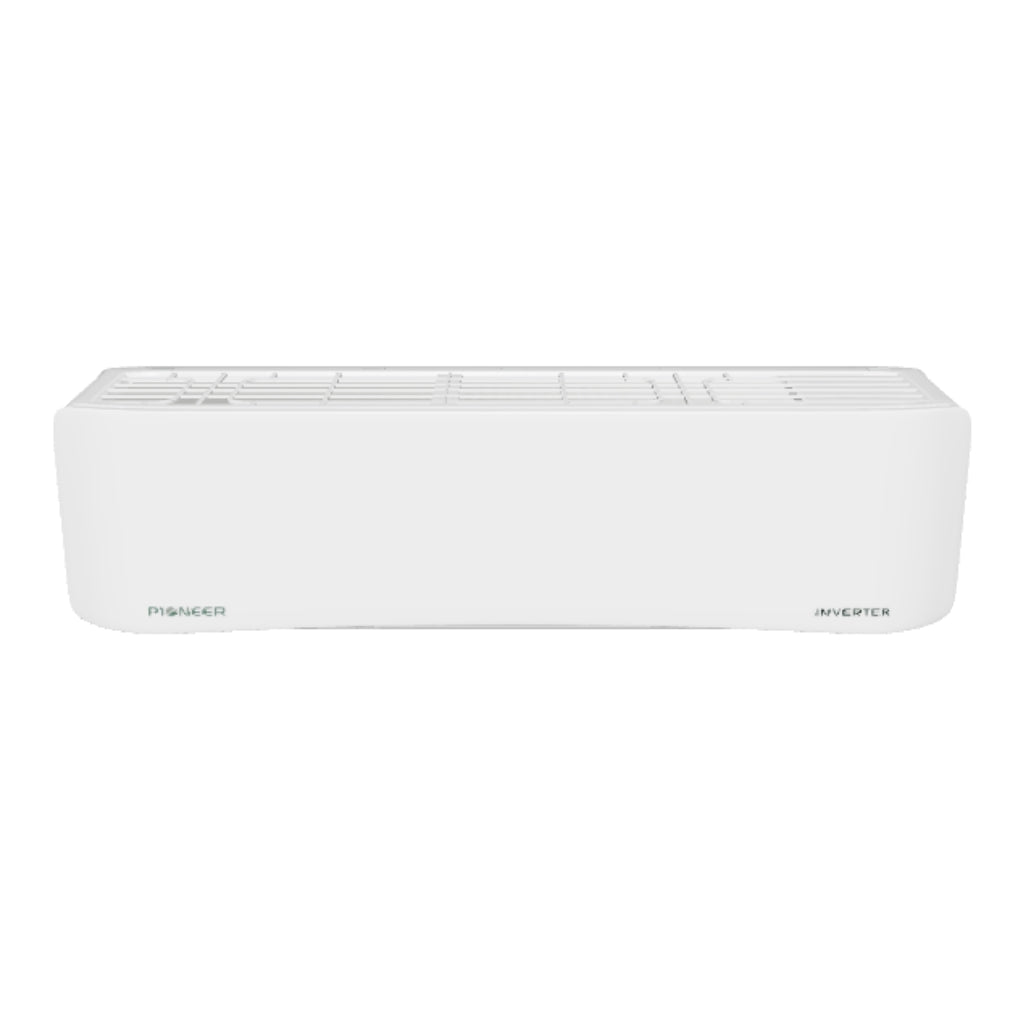

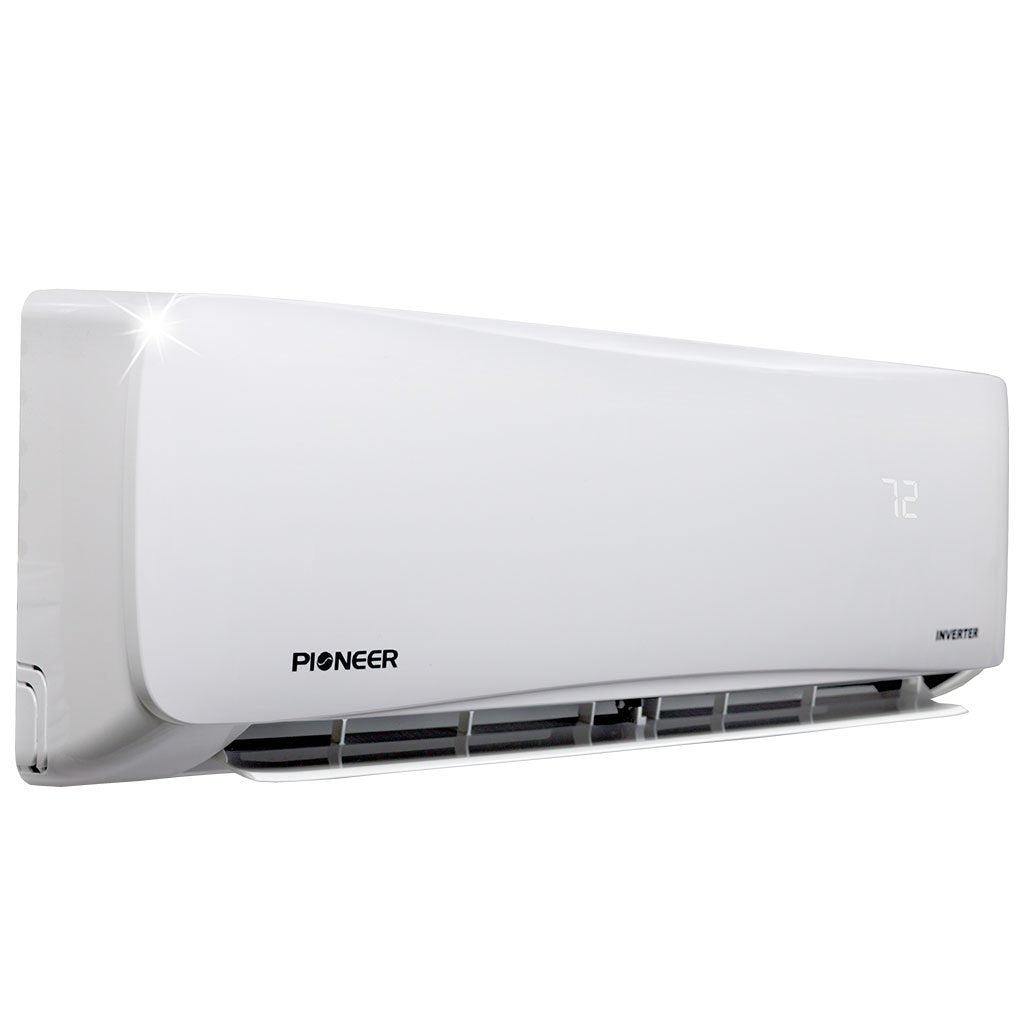

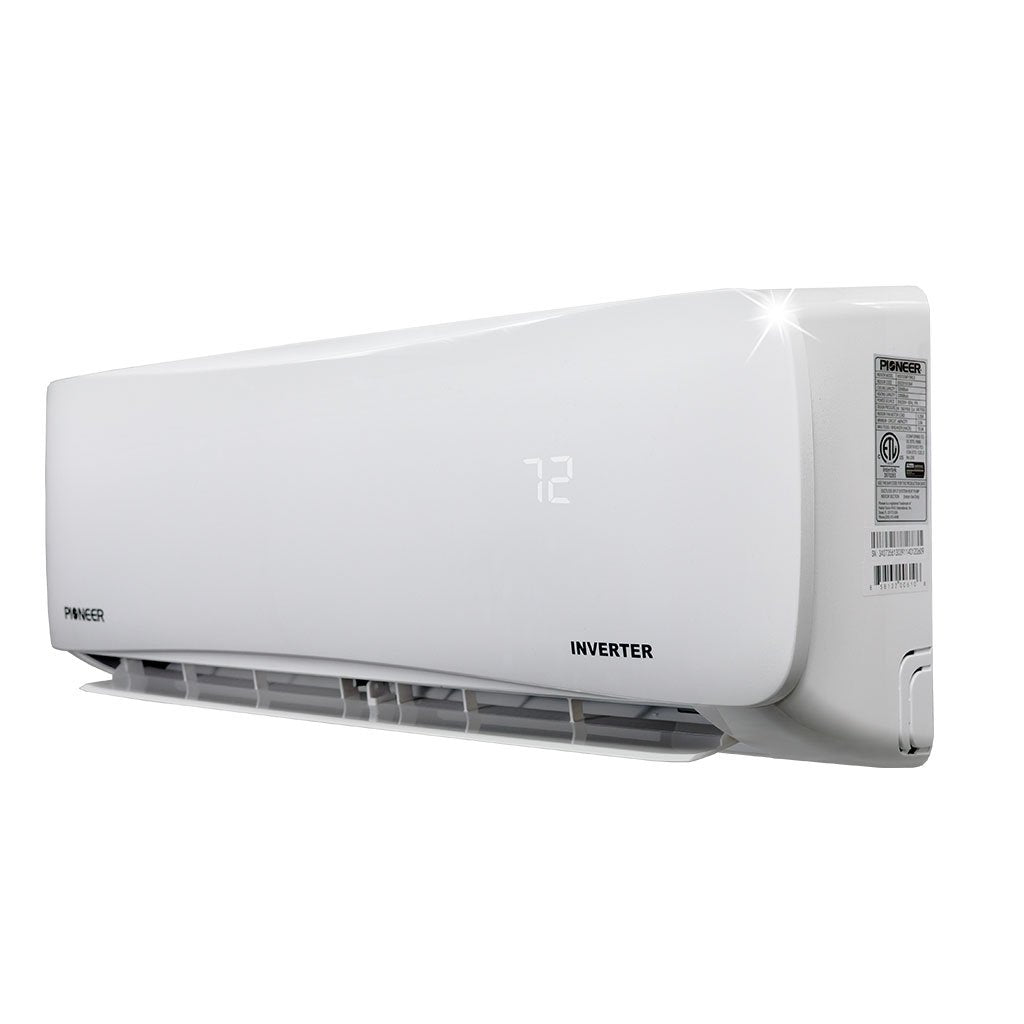

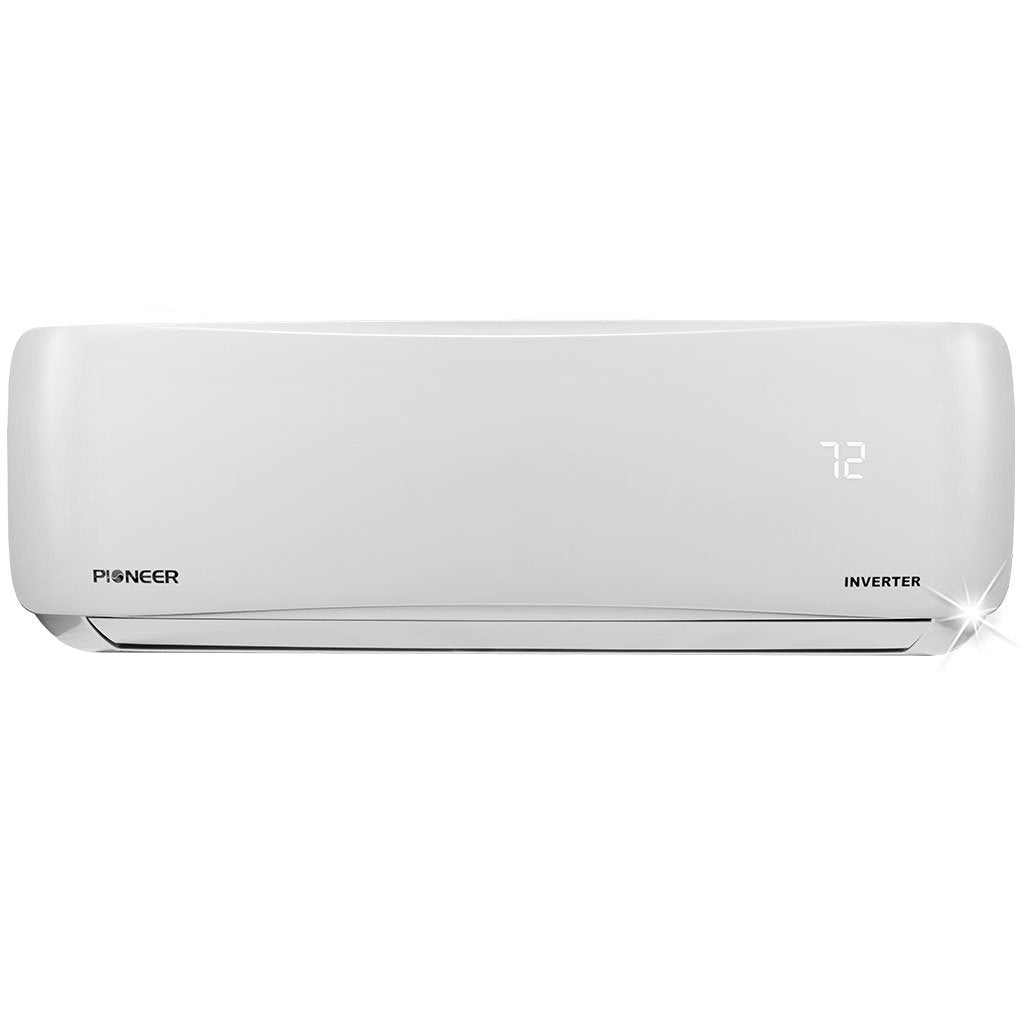

Datos de la unidad interior
- Número de modelo: WS 024GMFI20HLD
- Flujo de aire (alto/medio/bajo): 588 / 450 / 353 CFM
- Nivel de sonido (alto/medio/bajo): 45,5/39,5/35,0 dB(A)
- Dimensiones netas (WDH): 42"-1/2 x 8"-7/8 x 13"-1/8 pulgadas
- Dimensiones de la caja/envío (WDH): 45"-1/2 x 16"-3/8 x 12"-5/8 pulgadas
- Peso neto/bruto: 30/38,6 libras

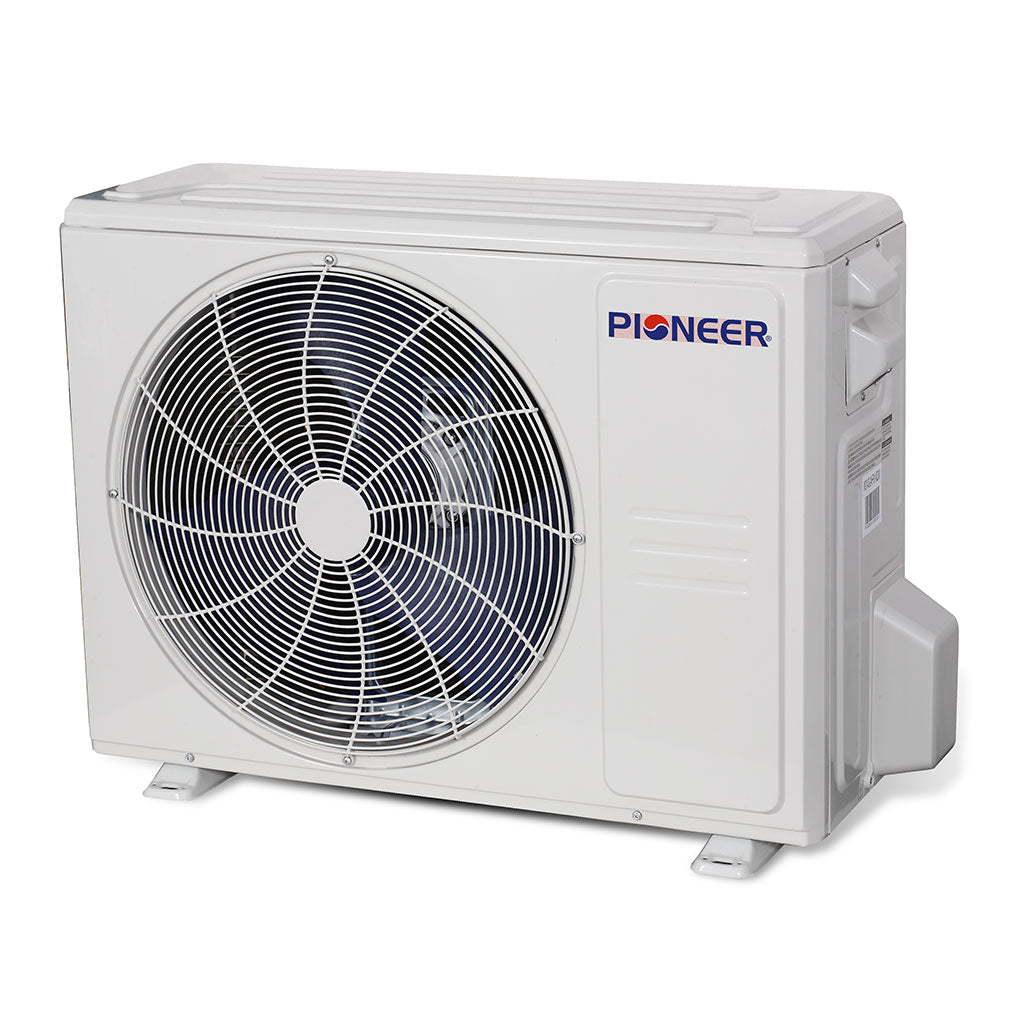

Datos de la unidad exterior
- Número de modelo: YN024GMFI20RPD
- Nivel de sonido: 60,0 dB(A)
- Disyuntor necesario: 20A de doble polo
- Dimensiones netas (WDH): 35" x 13"-1/2 x 26"-1/2 pulgadas
- Dimensiones de la caja (WDH): 39"-1/8 x 15"-5/8 x 29"-1/8 pulgadas
- Peso neto/bruto: 97,9/104,60 libras
Manuales y Descargas
Questions & Answers
Have a Question?
-
How many units can be added to 1 condenser
This is a single-zone, 1-to-1 system. If you are needing multiple indoor heads off of one outdoor, check out our Multi-zone section.
-
How many square’ ?
For standard applications, this system is intended to heat/cool spaces between 600 and 1,000 sq. ft.
-
What is the size of wrench needed for the 3/8 and 5/8 line fittings ?
The wrench/tool sizes needed would be 13/16" and 1-1/16".
-
Does it require a neutral wire ?
For this 230V system the power wire would be 2 hots and a ground, no neutral.
-
how long is the drain hose on a 33 foot line set?
For all selections, the drain hose remains at 10 ft. This is because for longer drainage runs, we recommend to route into PVC for optimal longevity.
-
Electric what size by realer and wire for 24000 btu and 30000
You can use a 20A double-pole breaker with 12 AWG wire on either of those.
-
what is the size of the line set size? both lines & what is max distance that condenser and evaporator coil apart from each other?
This system takes 3/8" and 5/8" lines and the two units can be up to 80 ft apart from eachother.
-
What is the lowest outdoor temperature that the heater will work at?
This system will heat down to 5°F outside temperatures.
-
How many square feet will this unit heat and cool?
This is typically meant to manage up to 1,000 SQ ft.
-
How much power AMPS or WATTS does this unit use?
You can find all technical specs and electrical on this product in this tech brochure. It is the 6th product column on the 2nd page.
-
How is the unit shipped?
It is shipped via freight LTL truck and is strapped and wrapped to a pallet. The delivery includes appointment and liftgate.
-
Does the kit come with a mounting pad?

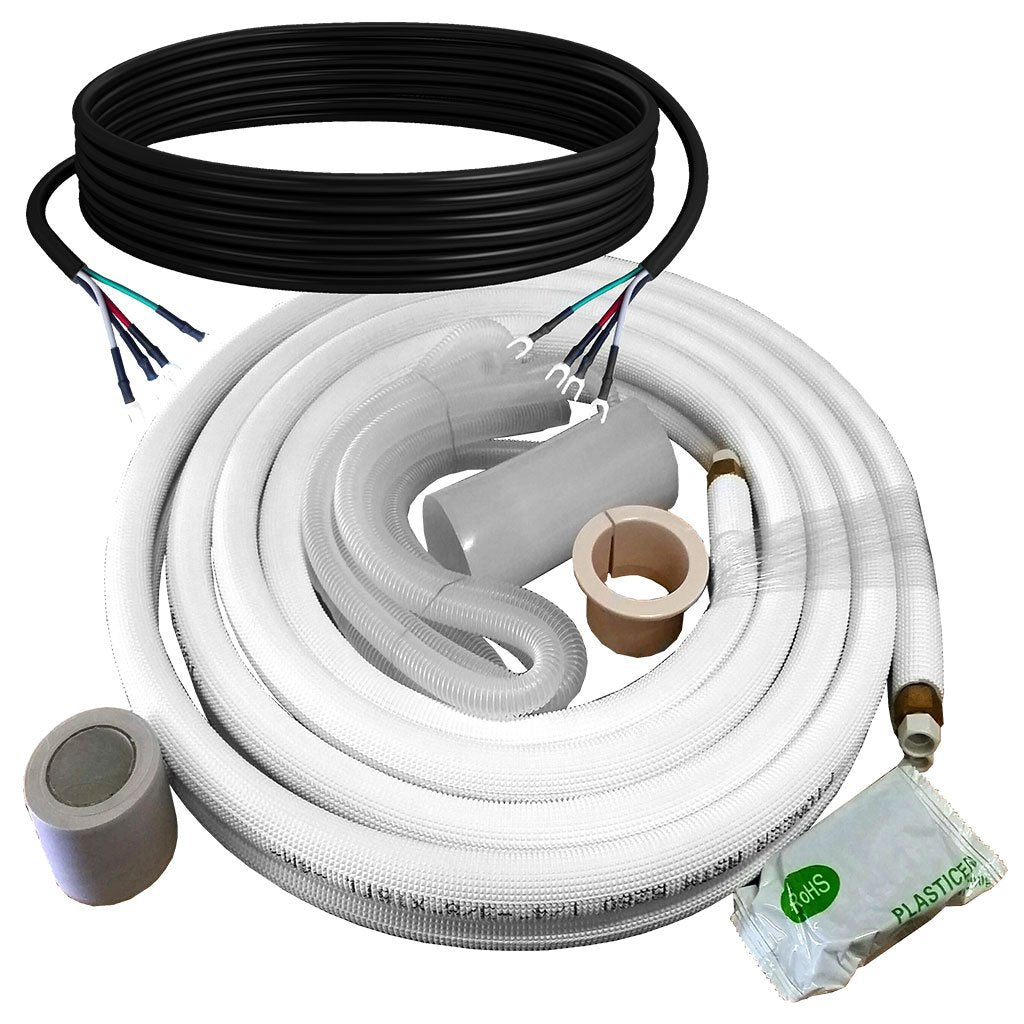

The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty. It does not include a mounting pad.
-
Will this unit communicate with Amazon Alexa?
It would have this capability after installing this Wi-Fi module.
-
I need the 33ft line set. Will the unit still come charged with R410a refrigerant?
The system comes pre-charged for line lengths up to 25 ft long. If selecting beyond that length, you might need to add some R410a to the unit onsite. We are unable to make adjustments to the precharge levels.
-
How many sq ft will this unit take care of?
This unit is generally intended for room sizes between 650 and 950 square feet.
-
I have a power feed of 246 volts single phase that run of a double pole 20amp breaker, would this be ok to power this 230 volt ac unit. The used to supply and under cabinet electric heater.
A 20A double-pole breaker is appropriate, and yes this system can work with 230V +/- 10%, for a range of 207~253V.
-
what is included with the unit ?
It would be: Outside Condenser Section with drain spout, Inside Air Handler Section with handheld remote and filter, and the installation kit length of your selection which would include the copper refrigerant tubing, signal cable, drain tube, wall cap, sleeve, and putty.
