Programmable Thermostat For Pioneer RB, UB, CB Model Mini Split Systems

Model Number: TST-MLD-I-WP24

Limited Time Offer!

  1. Free Shipping within the Continental US
  2. Wholesale Price Directly from Factory
  • $99.00
  • Save $49

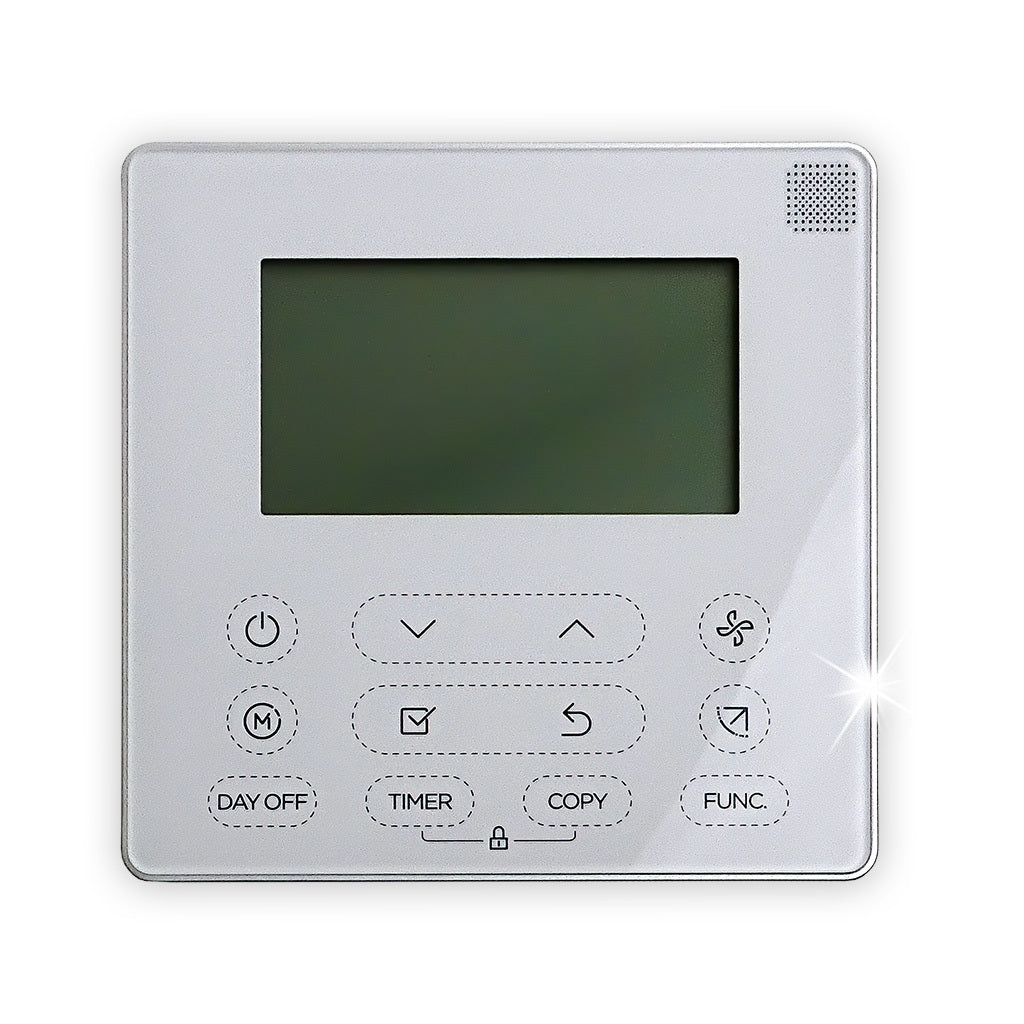

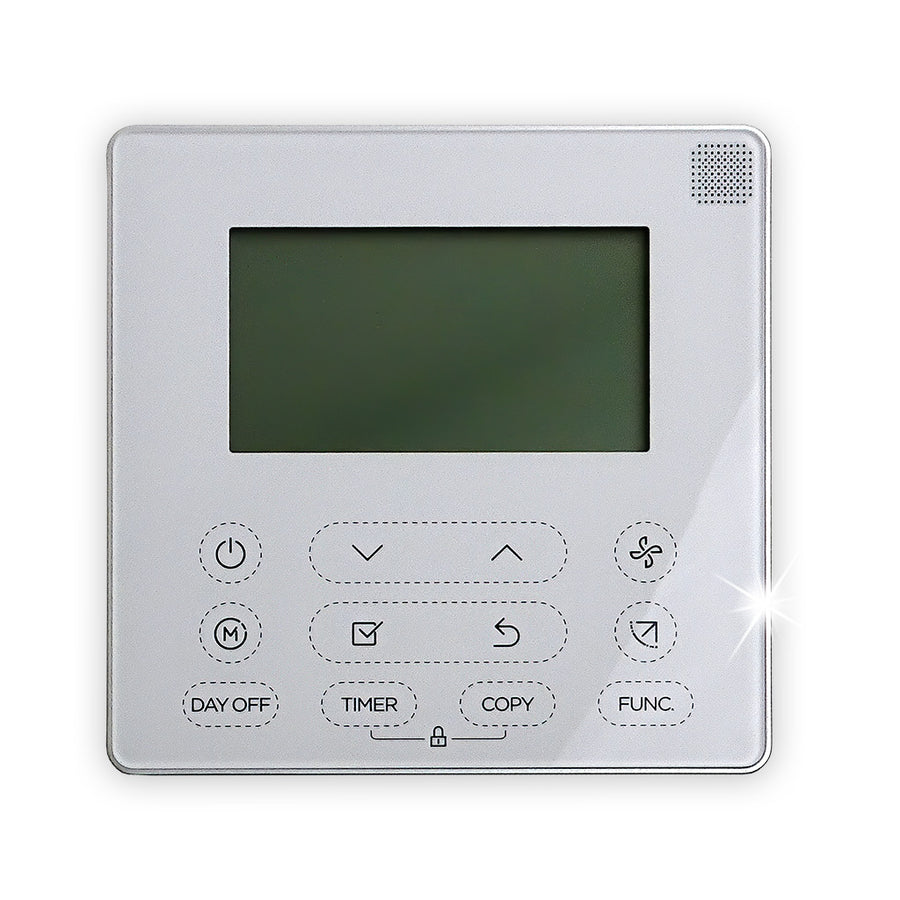

  • Digital LCD Screen Wired Remote Thermostat.
  • Brand new interface, with smooth touch-enabled buttons, and a sleeker and more attractive design.
  • Compatible with RB, CB, UB Fan Coil Units and RYB, UYB, CYB series split systems.
  • Infrared receiver in the thermostat enables direct communication with remote controllers and other smart controllers.
  • Weekly programming options.
  • Highly versatile and flexible.


  • LCD display.
  • Malfunction code display: it can display the error code, helpful for service.
  • 4-way wire layout design, no raised part at backside, more convenient to place the wires and install the device.
  • Room temperature display.
  • Weekly timer.


  • Mode: choose Auto-Cool-Dry-Heat-Fan
  • Fan speed: Auto/Low/Med/High speed
  • Swing (on some models)
  • Timer ON/OFF
  • Temp setting
  • Weekly timer
  • Follow me
  • Turbo
  • 24-hour System
  • 12-hour System
  • Auto-restart
  • Individual louver control (on some models)
  • Automatic airflow test
  • Child Lock
  • LCD display
  • Clock
  • Panel function (on some models)

  • Input voltage: DC 5V/12V
  • Ambient temperature: -5~43°C (23~110°F)


Ask a Question
  • Will this work with this model? Model Number: RYB018GMFILDAD-16

    Yes it is fully compatible with that series.

  • Will this work with the wireless that comes with the mini split?

    Yes, this has a built-in infrared receiver to accept commands from the handheld remote controller.

  • will this thermostat replace the kjr-12b/dp(t)- both f and e series if so, does it need wiring modifications?

    Yes it will act as a replacement, the only difference is that it will wire directly into the indoor board vs. the display panel of the KJR thermostat.

  • Will this thermostat work and wire right up to a cyb or cab cassette style pioneer system

    Yes it would be compatible with CYB/CAB/CB ceiling cassette units.
